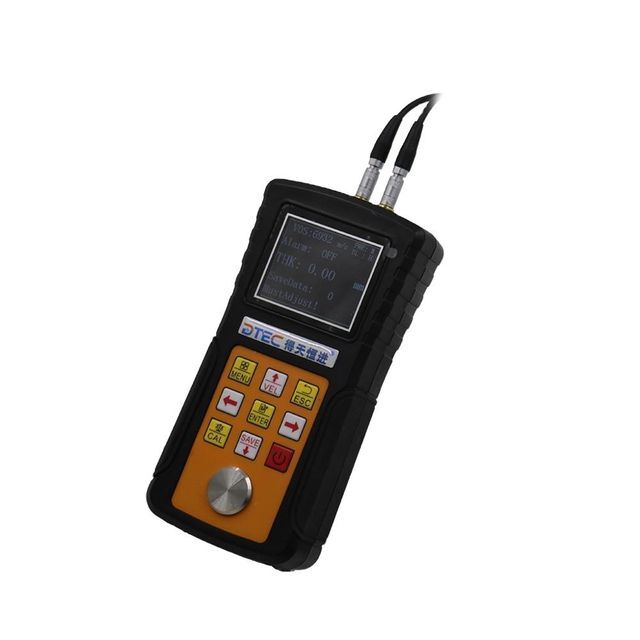

DTEC DT220 Digital Ultrasonic Thickness Gauge 0.1 0.01mm with optional resolution to measure metal thickness

Click here to contact
Product details
scope:0.75~300mm (steel)After-sale service:12 months
Packaging Details:Standard export carton; Gross weight: 1.5KG; Size: 36x25x14CM (LxWxH); Express: DHL/TNT/FedEx/UPS/EMS/Sea Freight Forwarderbrand:DTEC
model:DT220power supply:Two "AA" sizes
place of origin; place of origin:Beijing ChinaCalibration mode:zero, two
port:Beijing Airport; Tianjin SeaportGain adjustable:3-stage gain adjustable
minute. Test diameter:Diameter 25x3 mmCustom Support:OEM
communicate:Mini USB interfaceaccurate:0.1/0.01mm (optional)
Supply capacity:500 sets per monthStorage:20 files (up to 99 values ​​per file)
type:Digital DisplayWarranty:1 year
unit of measurement:Metric/Imperial units optionalpayment terms:L/C,Western Union,T/T,Paypal
Product Description





DTEC Advantage
  • Able to measure various materials;
  • Four optional probes are available for special applications;
  • Probe-Zero function, Sound-Velocity-Calibration function;
  • Choice of measurement unit (metric/imperial) and display resolution (0.1/0.01mm);
  • Two-point calibration function;
  • Two working modes: single point mode and scan mode;
  • Upper and lower limits can be preset. Automatic alarm when the result value exceeds the limit;
  • Four measurement readings per second for single point measurement, ten measurement readings per second for scanning mode;
  • The coupling status indicator shows the coupling status;
  • Auto hibernate and auto power off functions to save battery life;
  • Optional software (support 64 systems) to process memory data on PC;
  • Optional thermal micro-printer can print measurement data through USB1.1 port.



Specification



Measuring range
0.75~300mm (steel)
Sound speed range
1000~9999 m/s.
Resolution
0.1/0.01mm (optional)
accuracy
±(0.5%Thickness+0.04)mm, depending on material and conditions

unit of measurement

Metric/Imperial units optional

Display method
4.5 digit LCD with EL backlight
memory
20 files (up to 99 values ​​per file)

power supply

Two "AA" size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off).

data output

USB1.1 port
aspect
31.5x24.5x8.5cm(LxWxH)

Package weight

1.5kg



Different probe specifications
Model
frequency.
(MHz)
diameter.
(mm)
Measuring range
lower limit
describe
N02
2.5
14
3.0mm~300.0mm (steel)
20
For thick, high attenuation or high scattering materials
N05
5
10
1.2mm~230.0mm (steel)
Φ20mm×3.0mm
normal measurement
N05
/90°
5
10
1.2mm~230.0mm (steel)
Φ20mm×3.0mm
normal measurement
N07
7
6
0.75mm~80.0mm
(steel)
Φ15mm×2.0mm
For pipe wall or small curvature pipe wall
HT5
5
12
3~200mm (steel)
30
For high temperature (below 300℃)

Speed ​​of sound in different materials:
Material
speed of sound
among us
Miss
aluminum
0.250
6340-6400
steel, common
0.233
5920
steel, stainless steel
0.226
5740
brass
0.173
4399
copper
0.186
4720
iron
0.233
5930
cast iron
0.173-0.229
4400-5820
lead
0.094
2400
nylon
0.105
2680
silver
0.142
3607
gold
0.128
3251
Zinc
0.164
4170
titanium
0.236
5990
tin
0.117
2960
epoxy resin
0.100
2540
ice
0.157
3988
nickel
0.222
5639
Plexiglas
0.106
2692
polystyrene
0.092
2337
porcelain
0.230
5842
PVC
0.094
2388
Quartz glass
0.222
5639
rubber, vulcanized
0.091
2311
Teflon
0.056
1422
water
0.058
1473
