Brand new original oxygen sensor O2-A2
- 0.10 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| WhatsApp: | +8613715255627 | More details: | contact us! ! |
| Supply capacity: | 98999 pieces per week | place of origin; place of origin: | Angus, UK |
| Lowest price: | Please contact us! | transportation: | DHL/FEDEX/TNT/UPS/EMS.etc |
| theory: | Oxygen Sensor | payment terms: | Wire Transfer, Western Union, Paypal |
| Skype: | Chen Dongbo | port: | Hongkong |
| usage: | O2-A2 | output: | sensor |
| Packaging Details: | standard packaging | brand: | The original |
| delivery time: | 1-3 days | Delivery Details: | 1-2 days |
| Health status: | 100% brand new and original | model: | O2-A2 |
Product Description

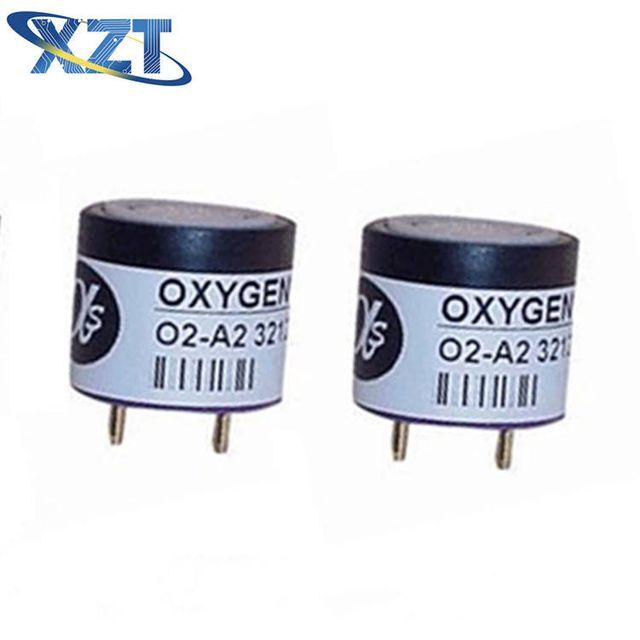

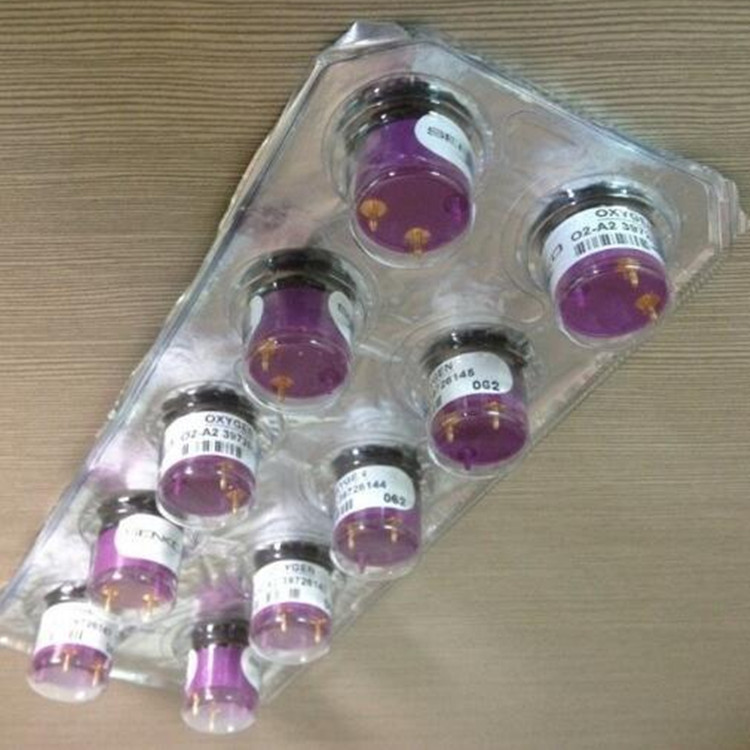

Brand new original oxygen sensor O2-A2
Main features of oxygen sensor (O2-A2):
(1) Oxygen sensor measuring range (%): 0-30%
(2) Operating life: > 24 months to reach 85% of initial signal
(3) Dimensions (mm): Φ20.0×16.8mm
(4) Output: 80 - 120 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): < 10 from 20.9% to 0 (load 47 Ω)
(6) Linearity (ppm): <0.6 full scale linearity error (zero point, 400 ppm)
(7) Weight: < 16g
(8) Temperature range: -20 - 50°C
(9) Pressure range: 80 - 120Kpa
(10) Humidity range: 5 - 95% RH
(11) Storage time: 6 months (storage temperature 3-20℃)
(12) Load resistance: 47 - 100 ohms
(1) Oxygen sensor measuring range (%): 0-30%
(2) Operating life: > 24 months to reach 85% of initial signal
(3) Dimensions (mm): Φ20.0×16.8mm
(4) Output: 80 - 120 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): < 10 from 20.9% to 0 (load 47 Ω)
(6) Linearity (ppm): <0.6 full scale linearity error (zero point, 400 ppm)
(7) Weight: < 16g
(8) Temperature range: -20 - 50°C
(9) Pressure range: 80 - 120Kpa
(10) Humidity range: 5 - 95% RH
(11) Storage time: 6 months (storage temperature 3-20℃)
(12) Load resistance: 47 - 100 ohms
