MIAT new product fast powerful electric drone motor 80Kv 100Kv electric brushless dc bldc motor from China
- 335.00 >=2 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| OEM&ODM: | accepted | noise: | low noise level |
| Speed (RPM): | KV100 | Function: | drive device |
| Torque: | 0.98N*m-11.6N*m | Protective function: | waterproof |
| application: | Automation products | brand: | MIAT |
| product name: | Brushless DC Motor | put up: | Permanent magnets |
| model: | P200 | Certification: | FCC/CE/Rocks |
| Commuting: | brushless | place of origin; place of origin: | Guangdong, China |
| Warranty: | 3 months - 1 year | feature: | high efficiency |
| Supply capacity: | 10000 pieces per month | usage: | Boats, Cars, Electric Bikes, Fans, Home Appliances, Drones |
| payment terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram | type: | micro motor |
| port: | Shenzhen Port |
Electric brushless DC brushless motor

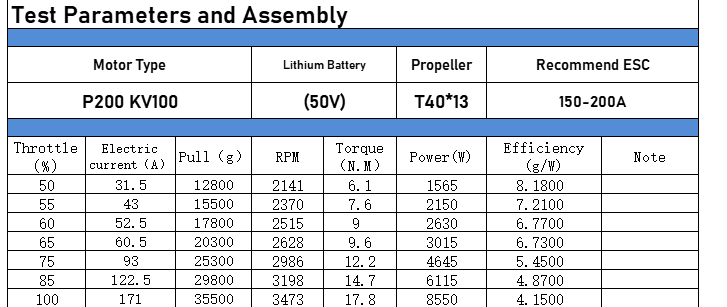

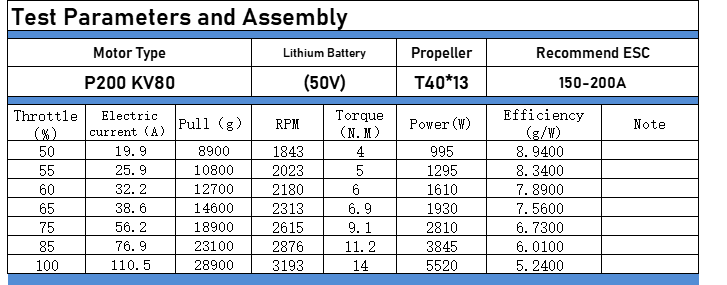

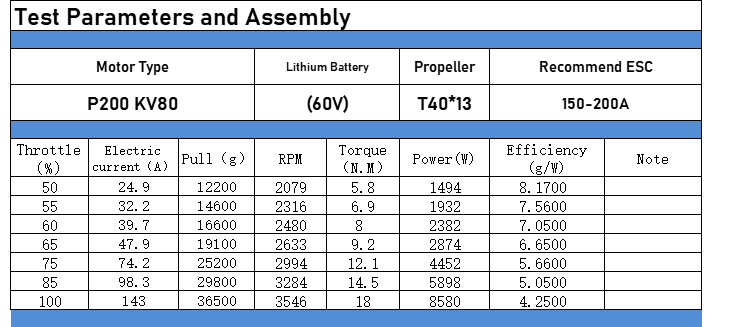

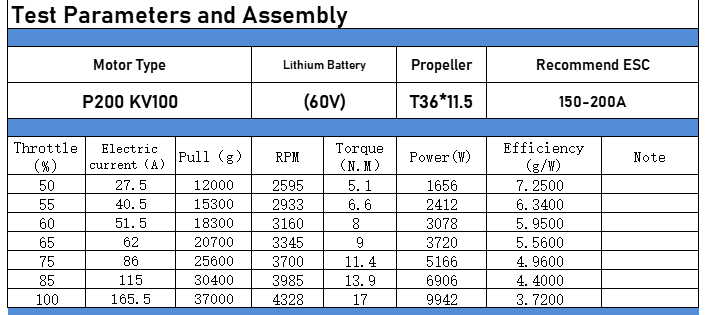

Product parameters
PP200 36N42P | ||||
motorcycle | P200 KV80 | P150 KV100 | ||
Core size (mm) | XXX | XXXX | ||

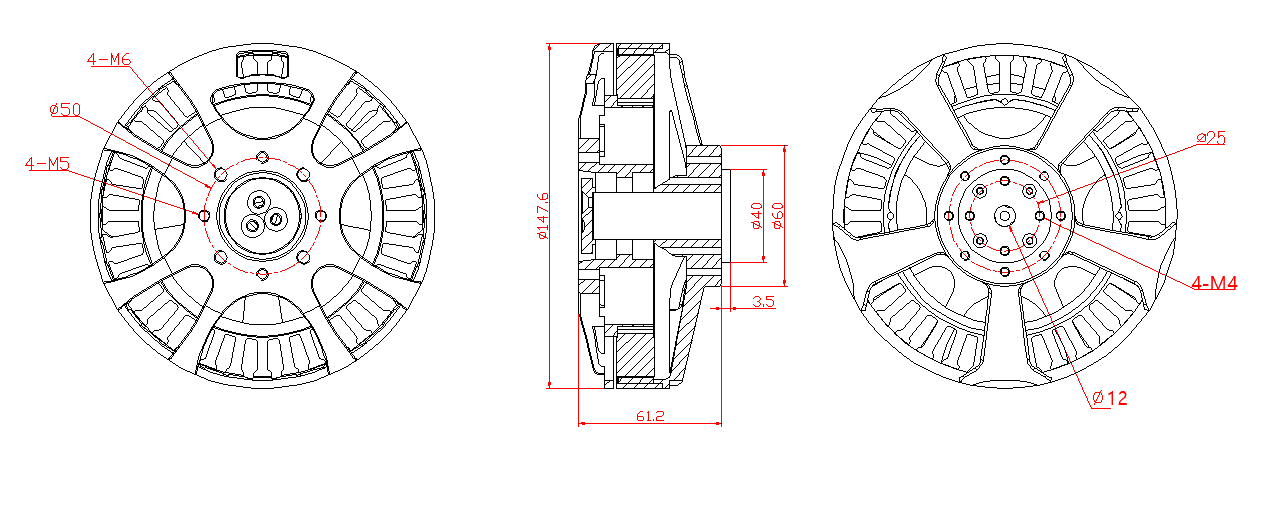

Motor size (mm) | ø147.5*61 | ø56*35.5mm | ||
Weight / grams) | 1640 | 277 | ||
Idle current (48V) | 5.9A | 8.8A | ||
Support lithium battery (V) | 12S(48V)-14S | 12-14S | ||
Maximum continuous current (A) | 121 | 159 | ||
Maximum continuous power (W) | 7350 | 9980 | ||
Internal resistance (Ω) | 0.168 | 0.134 | ||
Recommended propeller | 36-40 inches | 18 inches | ||
notes: Just typical technical data for your reference, specifications such as voltage, speed, torque, shaft, etc. can be customized.
