Circular Connector Straight Plug 5 Pin Male Connector Receptacle Compatible K103 1F S103A054 K103A054 M12 Circular Connector
- 21.67 1 - 19 pairs
- 20.91 20 - 49 pairs
- 20.35 50 - 99 pairs
- 19.58 >=100 pairs
| HS code: | 8547901000 | Contact handling: | gold plated |
| Contact and Housing Materials: | brass | Surface treatment: | Pearl Chrome |
| Gross weight per piece: | 0.100 kg | gender: | female male |
| Packaging Details: | 1 connector in a PE bag, 50-100 connectors in a small box (size: 20cm*15cm*6cm), and 6 small boxes in a carton (size: 30cm*20cm*20cm). | contact details: | welding |
| Sales unit: | single product | type: | round push-pull |
| place of origin; place of origin: | China | Specification: | M12, key G |
| Single package size: | 10X10X5cm | Protection class IP50: | standard |
| application: | strength | model: | INT-K103A054-130+ & INT-S103A054-130+ |
| Pin: | 5P | brand: | Steinick |
| Insulation Materials: | polystyrene |
*Free samples: 1-2 pieces.
*Fast delivery time: 5-7 working days if the quantity is less than 200 pieces.
*Flexible payment methods: T/T, PayPal, Westunion, Credit Card.
* Provide 24-hour service to customers.
*Competitive price and stable production.
*Certified by TUV CE and RoHS.
*OEM/ODM/cable assembly.
* World-class customer service;
Model plug. Series (0F…2F), Straight Plug, Male Contact, With Half Shell Key (G or A), Clamp
Model Socket.Series(0F...2F),free socket,female terminal,with half shell key(G or A),clamp
F series connectors have the following main features:
1.- Push-pull locking system
2.- Widely adopted by the industry
3.- Unparalleled signal integrity
4.- Complete protection against accidental disconnection
5.- Self-locking mechanism
6.- Specially designed for frequent connect/disconnect operations
7.- Ideal for compact product design
8.- Locking system integrated into the connector housing
9.- Push-pull locking system as standard
10.- Non-locking or emergency quick release solutions are also available

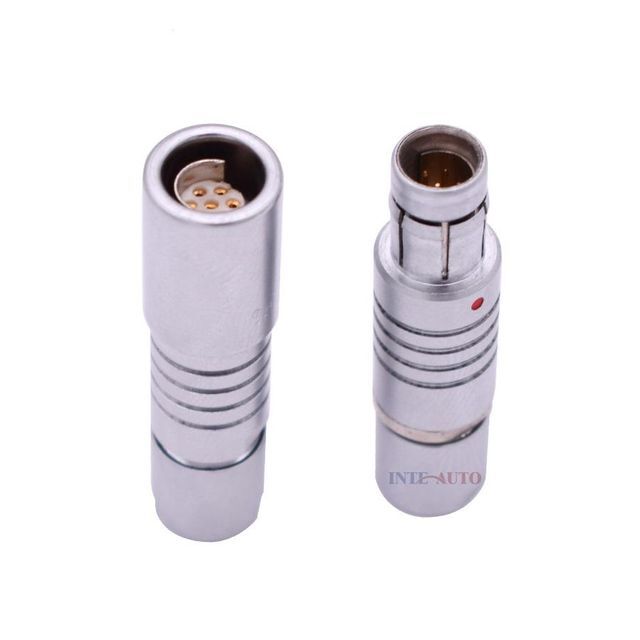

Direct purchase sales model: INT-K103A054-130+ & INT-S103A054-130+

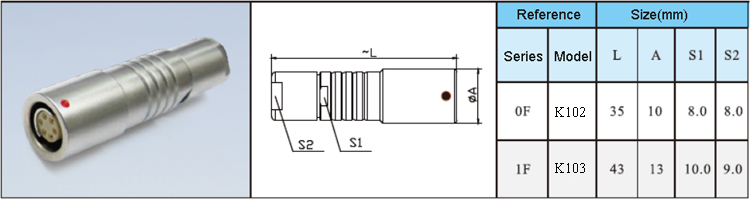

Socket Description: 1F (K103) Cable Mount Socket, Female Terminal 5 Pin, Cable Clamp 6.2mm, Half Shell Key (G), Pearl Chrome.

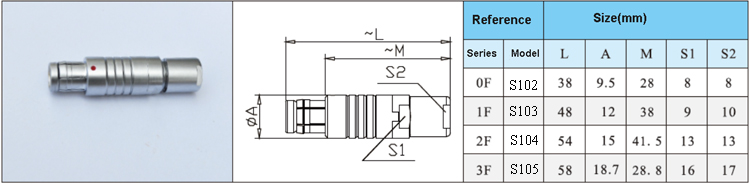

Plug Description: 1F (S103) Cable Mount Straight Plug, Male Contact 5 Pin, Cable Clamp 6.2mm, Half Shell Key (G), Pearl Chrome Plated.
Please leave a message if you need black chrome
| number | INT-S103A054-130+ INT-K103A054-130+ |
| Size/Series | 1F (Metal (Mechanical Keying)) |
| Housing Style/Model | Straight plug, cable clamp 6.2mm Free socket, cable clamp 6.2mm |
| keying | 1 key (alpha=0, plug: male contact, socket: female contact) |
| building materials | Brass (chrome plated) housing and collet nut, nickel plated brass locking sleeve and intermediate piece |
| configure | Brass (Gold Plated) |
| insulator | polystyrene |
| contact details | welding |
| Endurance (Shell) | 5000 mating cycles |
| temperature (min) | -40 degree |
| temperature (max) | 250 degrees Celsius |
| Humidity (max) | <=95% [at 60 degrees Celsius / 140 degrees Fahrenheit] |
| vibration | 15 grams [10 Hz - 2000 Hz] |
| shock resistance | 100 g [6 ms] |
| salt spray corrosion | >144 hours |
| IP level | 50 |
Product key:
Product Size:
