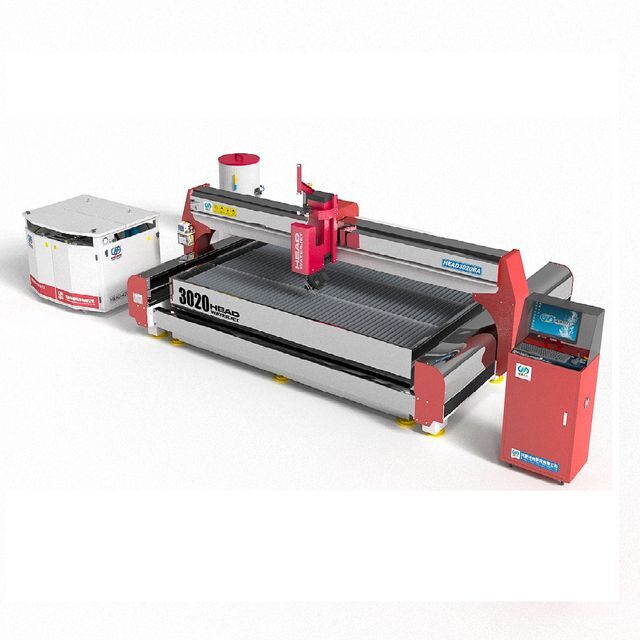

HEAD brand 5 axis Jet abrasive machine Waterjet metal cutting machine

Supplier: Shenyang Head Science & Technology Corporation
Region: Liaoning, China
Contact: Ms Karen Zheng
Price: $55000.00 /set
Min. Order: 1 set

Click here to contact

Product details

brand:	HEAD water jet	Voltage:	380V/50Hz
port:	Dalian abrasive jet machine water jet cutting metal	Mechanical test report:	if
electricity demand:	380V/50HZ	Maximum displacement:	3.7 L/min
Ball screw:	Abba	Packaging Preview:
Marketing Type:	Hot Products of 2021	Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, construction works, advertising agencies
Core components:	Pump	Number of axes:	5
Supply capacity:	20 sets of abrasive jet water jet cutting metal per month	Repeatability (X/Y/Z) (mm):	±0.002
Dimensions (LWH):	As for the machine	Cutting accuracy (mm):	0.1
payment terms:	L/C,Western Union,T/T,MoneyGram	Health status:	new
Packaging Details:	Flexible packaging or other sandblasting machine water jet cutting metal as negotiated by both parties	place of origin; place of origin:	Liaoning, China
Warranty:	1 year	Video external inspection:	if
main motor power:	37kW	motor:	Yaskawa
Weight (kg):	3400kg	Maximum working pressure:	420Mpa/60000PSI
Cutting accuracy:	+/-0.1mm	year:	2022
rated power:	37kW	Control System:	Weihong Software/ECS (Italy)
Maximum oil discharge:	106L/min	Core Components Warranty:	1 year
Showroom location:	Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey , United States, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand	control precision:	+/-0.01mm
Main selling point:	high accuracy

About HEAD Waterjet

waterjet cutting system/cnc waterjet cutting machine

We manufacture the most different waterjet machines for our customers - also known as waterjet cutters or waterjets.

water jet cutting systemalmost all industries. it makes

Very fine, precise sensitive cuts, hard and soft materials and non-metals such as

Metal,ceramics,plastic,composite material, andfood.

When mixed with fine sand, waterjet cutting systems can also cut enormous material thicknesses without altering the material structure in the cutting area.

Why choose water jet

It is the fastest growing precision machining process that is environmentally friendly and has high efficiency and productivity.
Waterjet cutting technology has come to dominate because there is no limit to what a waterjet can cut. This is a tool-less sharpening process that cuts with high precision, leaving clean, smooth edges.

Tip: Cutting platform size and other components can be customized

What can HEAD Waterjet do for you?

Advanced Waterjet Technology Improve time managementfor each task;

save timein finishing due to excellent cutting performance
Our Waterjet SystemsCut a variety of materialsNo need to change tools
Do nothot zone,Do not dust or debris,Do notsmoke,Do notToxic gas, quiet operation
cut any material, shape, size or thicknessNo need to change tools

Waterjet Cutter Specifications
maximum. pressure			420 MPa
maximum. flow			3.7 L/min
voltage			3 phase 220/380 voltage, 50/60Hz, 37KW, 50HP
maximum. Nozzle/Orifice Diameter			1.02mm / 0.33mm
maximum. Oil pump delivery capacity			106L/min
Max cutting head			1-10 cutting heads (1 for standard machine)
Model			HEAD-5AC
A-axis rotation angle			±70°/16°~196°
C-axis rotation angle			±540°~infinity

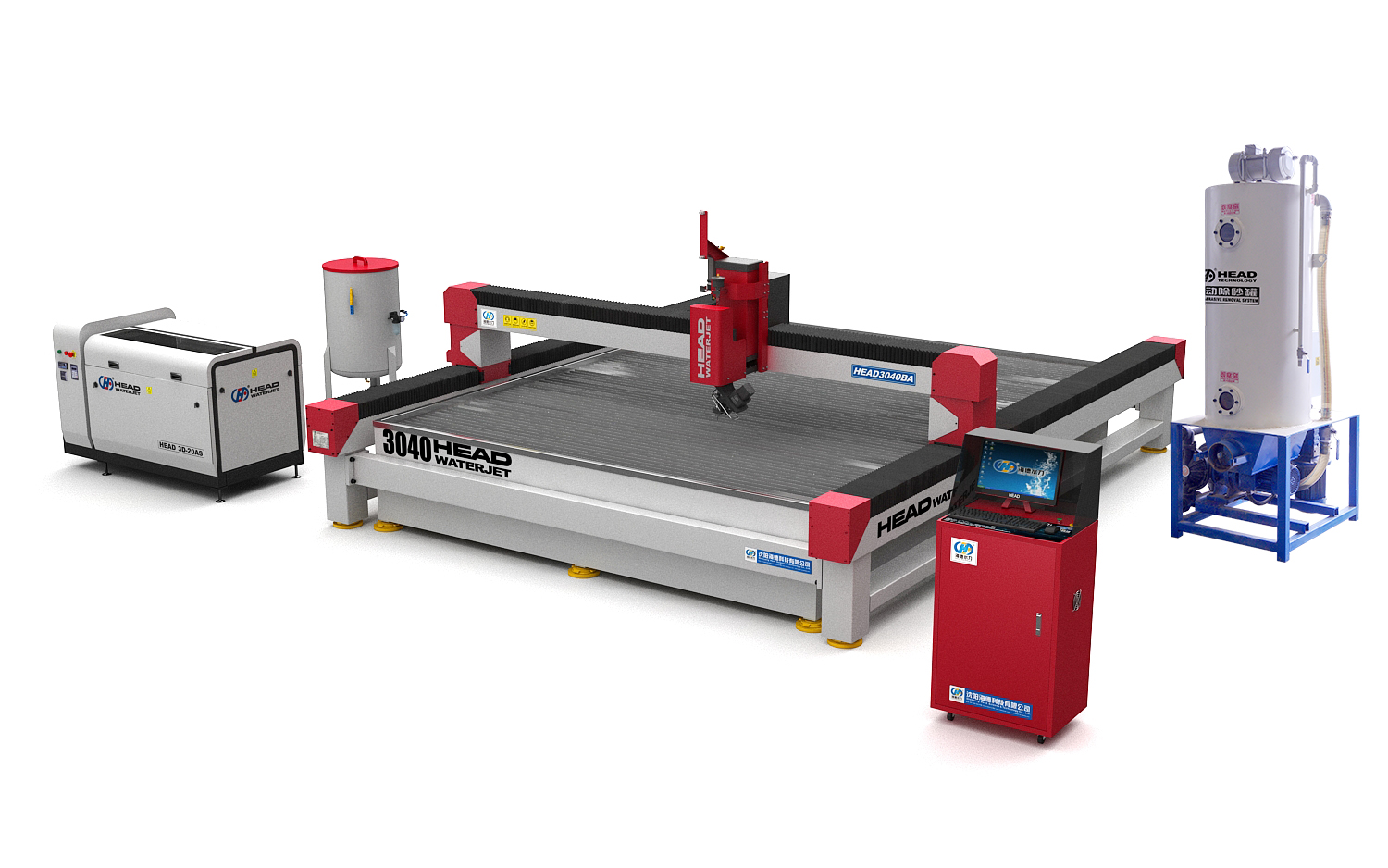

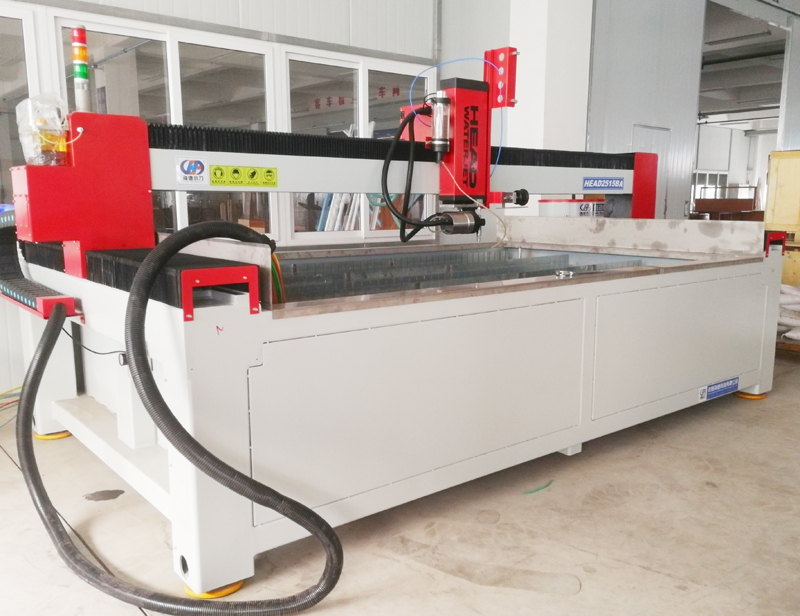

HEAD water jet cutting machine

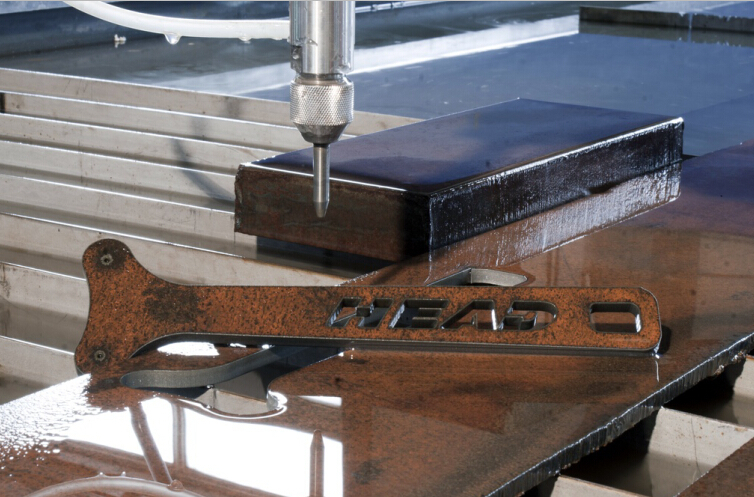

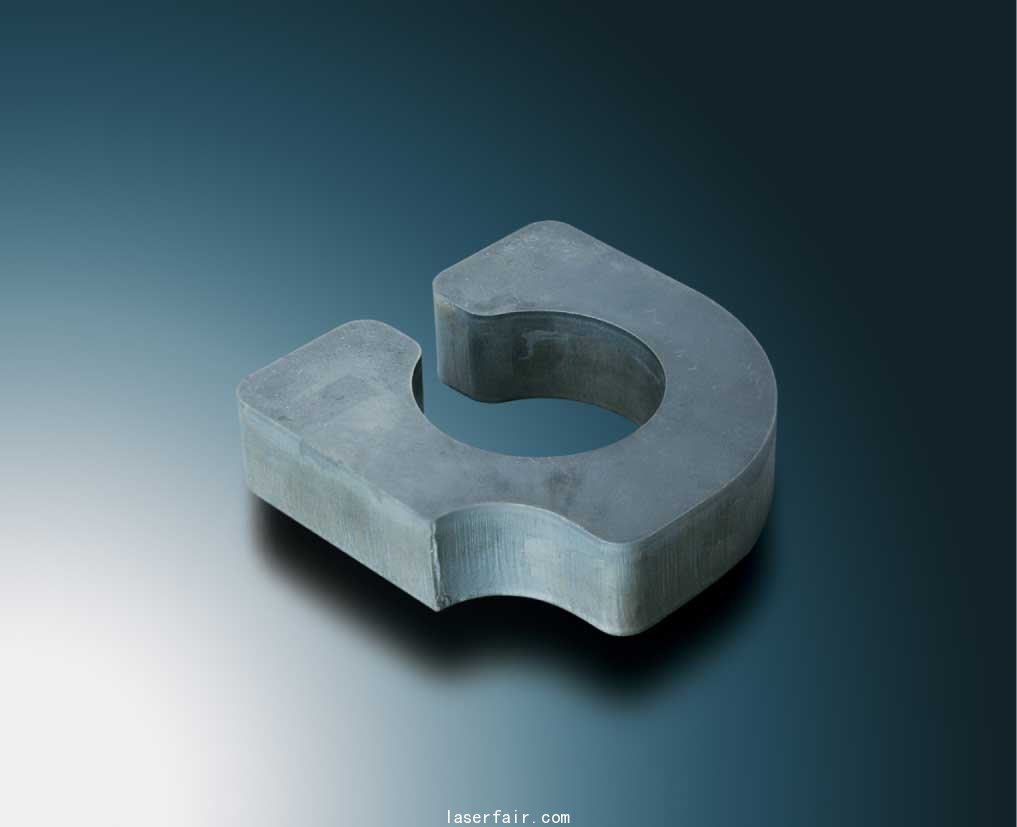

HEAD water jets are a must-have tool for leading metal manufacturers because they are capable of cutting all metals such as: Hardened Tool Steel, Aluminum, Titanium, Copper, Brass and other rare metals.
The cold cutting process that occurs during machine operation eliminates hot zones that often lead to changes in chemical and mechanical properties within the product.

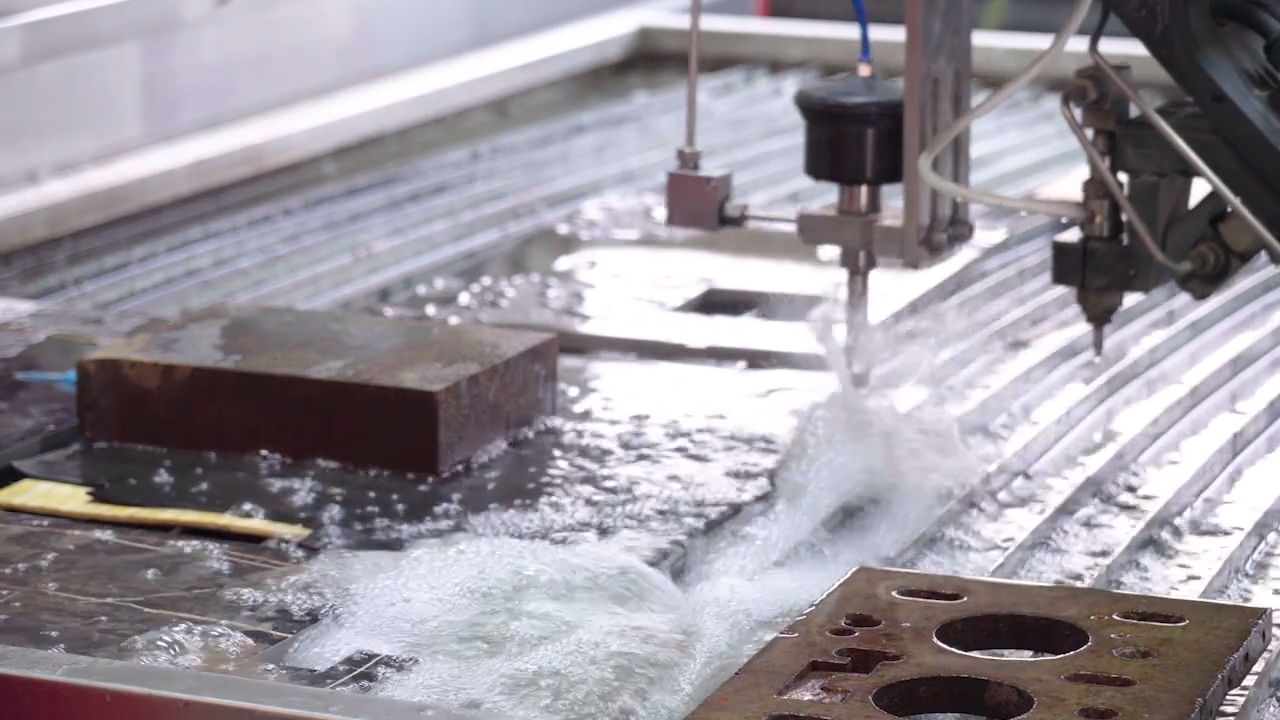

Cutting metal parts submerged in the waterbed also increases safety in the shop, as dust particles and metal filaments are immediately captured by the waterjet cutting table.

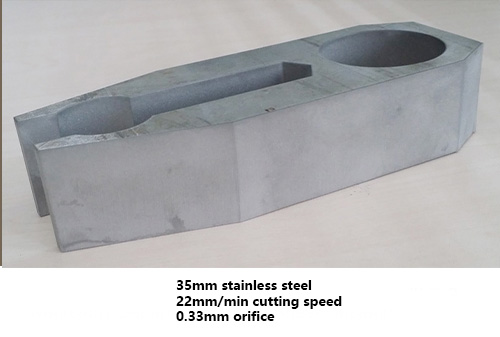

Not only is waterjet cutting the preferred choice for its safety and finishing properties, it is capable of cutting steel up to 12 inches (300 mm).

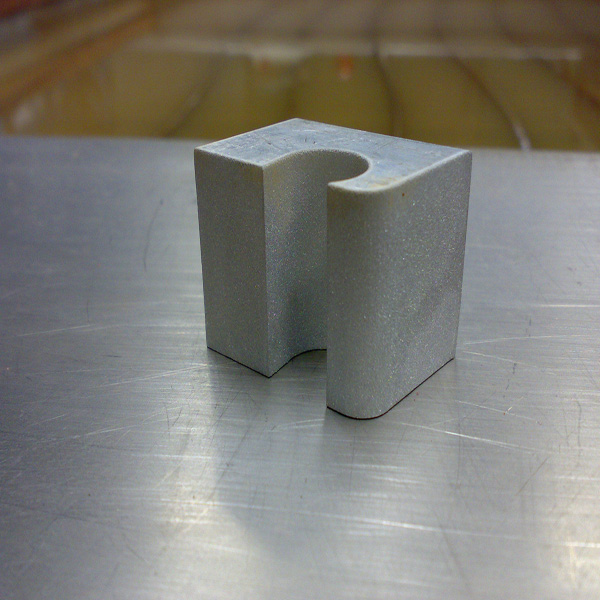

This advantage provides metal fabricators with greater design freedom when quoting projects and speeds up their production lines, making their workshops more efficient in completing projects. Water jet machines produce extremely smooth and clean cuts. Edge quality allows secondary operations such as tapping holes, milling features or edge welding to be performed quickly and easily without any further preparation.

222

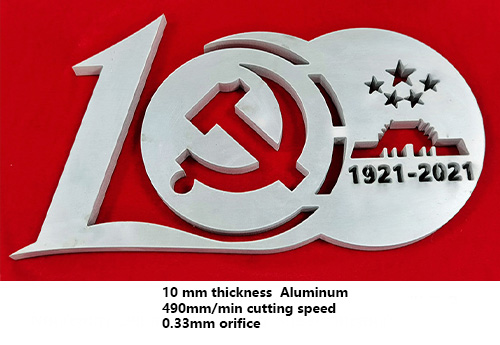

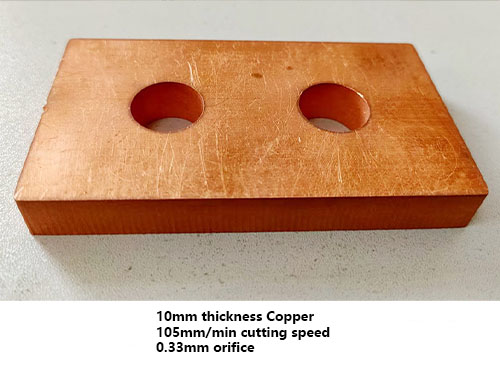

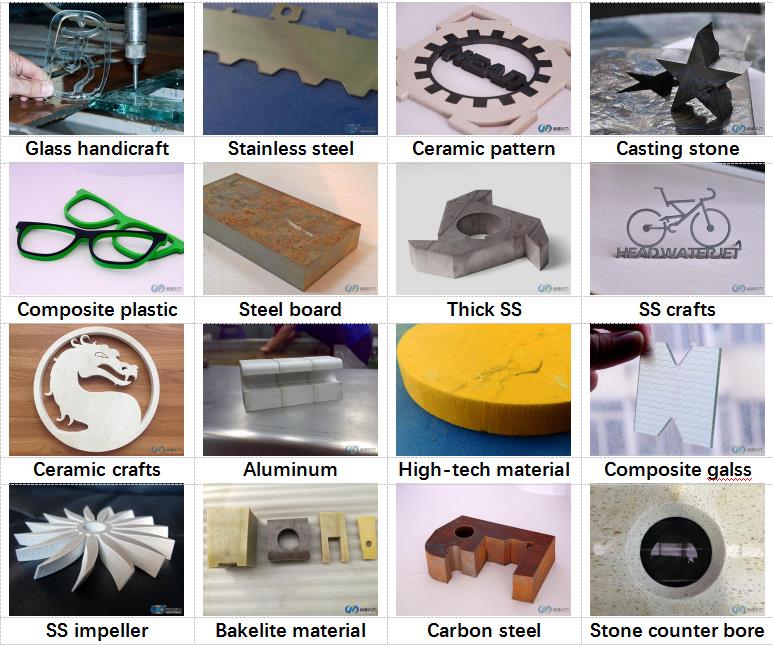

What can a water jet cut?

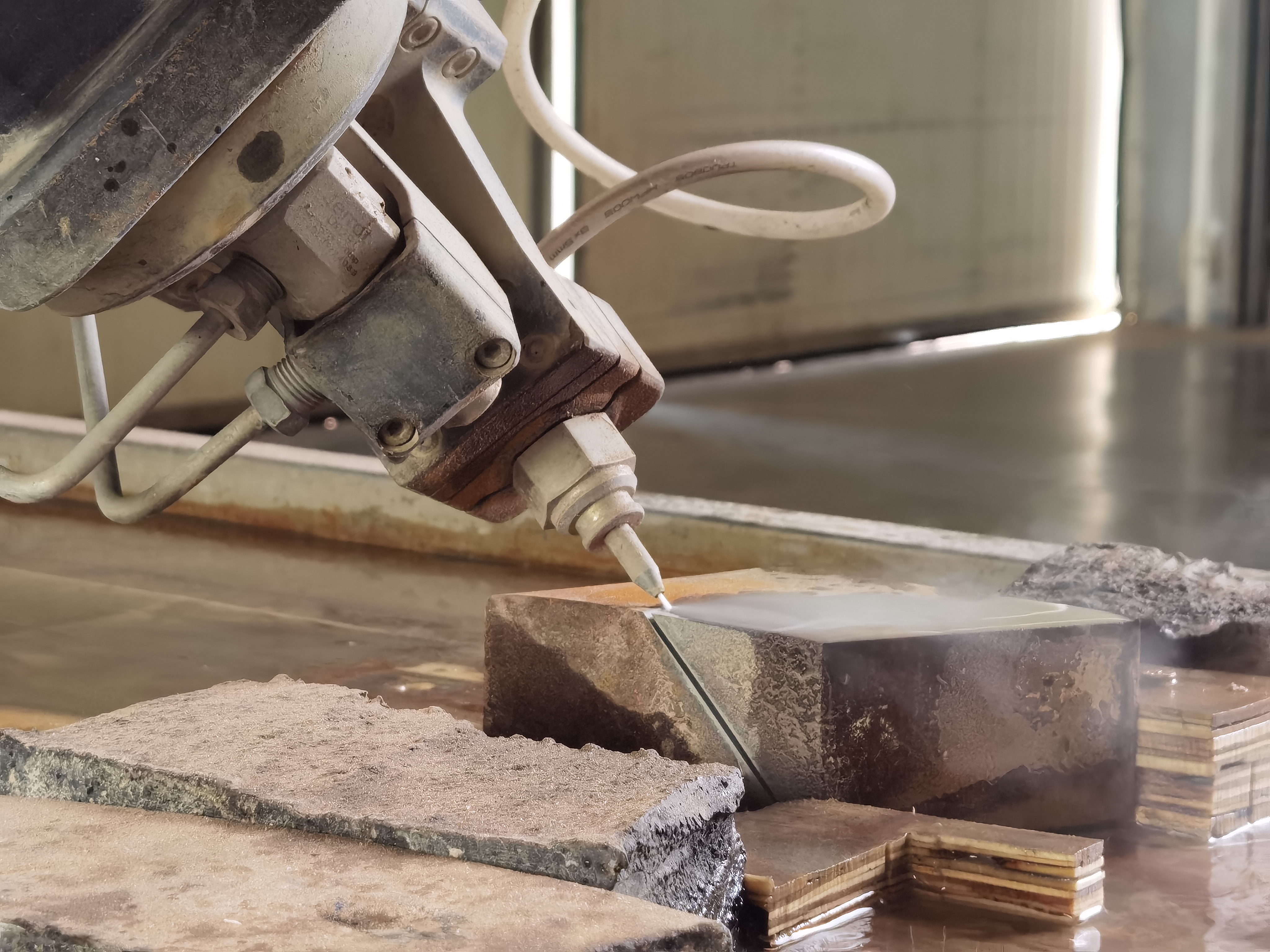

HEAD waterjet cutting systems are used in many industries such as the automotive industry, aerospace industry, military/defense industry, and even the food industry. These industries use our water jets to cut a variety of materials such as steel cutting, metal cutting, glass cutting, food cutting and also for stone and tile cutting.
Benefits of using a water jet:
Versatility, high cutting speed, unlimited capacity, eco-friendly, easy to use, no stress effects, no tools required
Sharpening, no heat affected zone, no dust or smoke, small cutting width, productivity, profitability, and complements all
Other precision mechanical operations.
stay safe
Although anything can be cut, the water jet is still very safe. Obviously, this is because we don't need to place any body parts under the waterjet cutting head. If there is a leak in the high-pressure water system, the pressure can quickly drop to a safe level. The water itself is safe and non-explosive, and the garnet abrasive is inert and non-toxic. So it is very safe to use the water jet to cut the material.
Environmental friendly
Used abrasives and waste are suitable for landfill as long as we do not process hazardous materials. Garnet abrasives are inert and can be disposed of with the rest of our waste. If we process large amounts of lead or other hazardous materials, we still need to properly dispose of our waste and recycle the water. But keep in mind that very little metal is actually removed during the cutting process. This keeps the environmental impact relatively low, even though we occasionally process hazardous materials. In most areas, excess water is simply drained down the drain. In some areas, water treatment may be required before discharge into the sewer. In a few areas, a "closed loop" system of circulating water may be required.

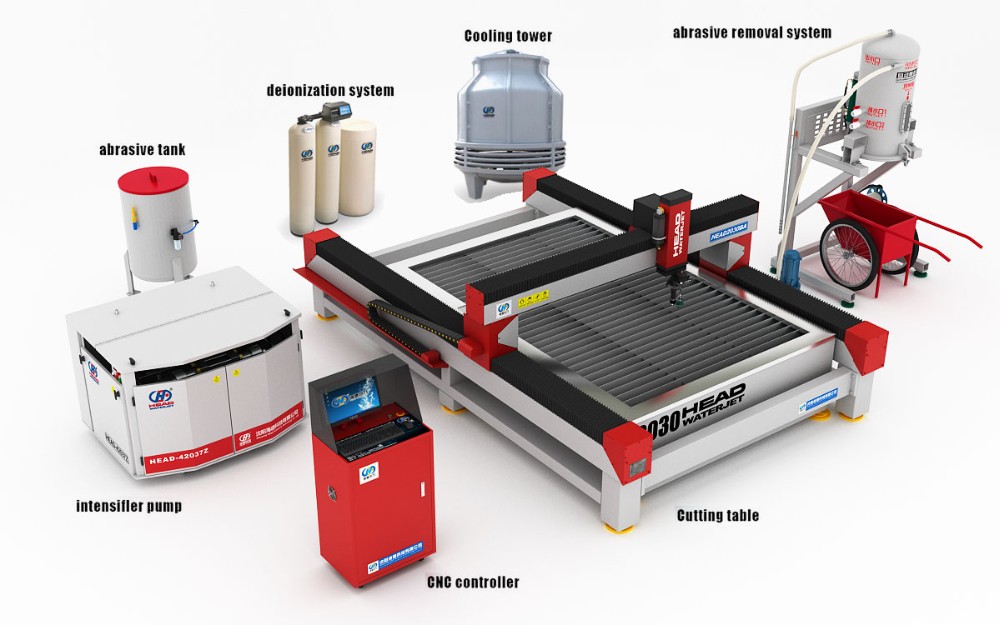

booster

* Produce high pressure water

* Stable running performance

* Main components are imported from the United States, Accustream

main motor

* Siemens (North Germany) brand

* Generate kinetic energy through electrical energy
* Three-phase AC asynchronous motor

Z axis

*The cutting head moves up and down

*Double linear guides and screw rods ensure that the cutting head is stable without shaking and has a long service life

servo motor

* Sports motor

* Rotary ball screw

* Realize X-axis work

* Guaranteed accuracy

Waterjet CNC Software

* Control all cutting process
* Shanghai "Weihong" brand
*Easy to operate. Learn in just 8 hours

Our team of water jet engineers has been developing and innovating new complete

Over 13 years of high pressure abrasive waterjet cutting solutions

we can provide you

1. Free maintenance12 months.

2. We will provide wearing parts at agency price.
3.24 hours online service, free technical support.
4. The machine has been adjusted before leaving the factory, and the operation panel is included in the scope of supply. Please let me know if you have any other questions.
5. We have manual instruction andSoftware installation video, operation and use and maintenance of the machine; we will send professional technicians to the customer's factory to provide them with two weeks of training,Including machine working principle, Auto CAD drawing, common problems and solutions, etc..

Q1: Does this machine pass the CE certificate?

A1: Yes, this machine passedEuropean CECertificate and meetsafety standard.

Q2: What is the cutting thickness?
A2: 0-120mm for marble; 0-110mm for granite; 0-40mm for ceramic tile; 0-80mm for glass and mosaic;

Steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm;

0-200mm for plastic, acrylic, foam.

Our dual pressure system can cut 0-160mm steel plate, 0-200mm stone.

It is also beneficial for customers to cut thicker materials.

Q3: How fastspeed?
A3: The speed depends on the customer's material and cutting requirements, and the customer can adjust the speed parameters.

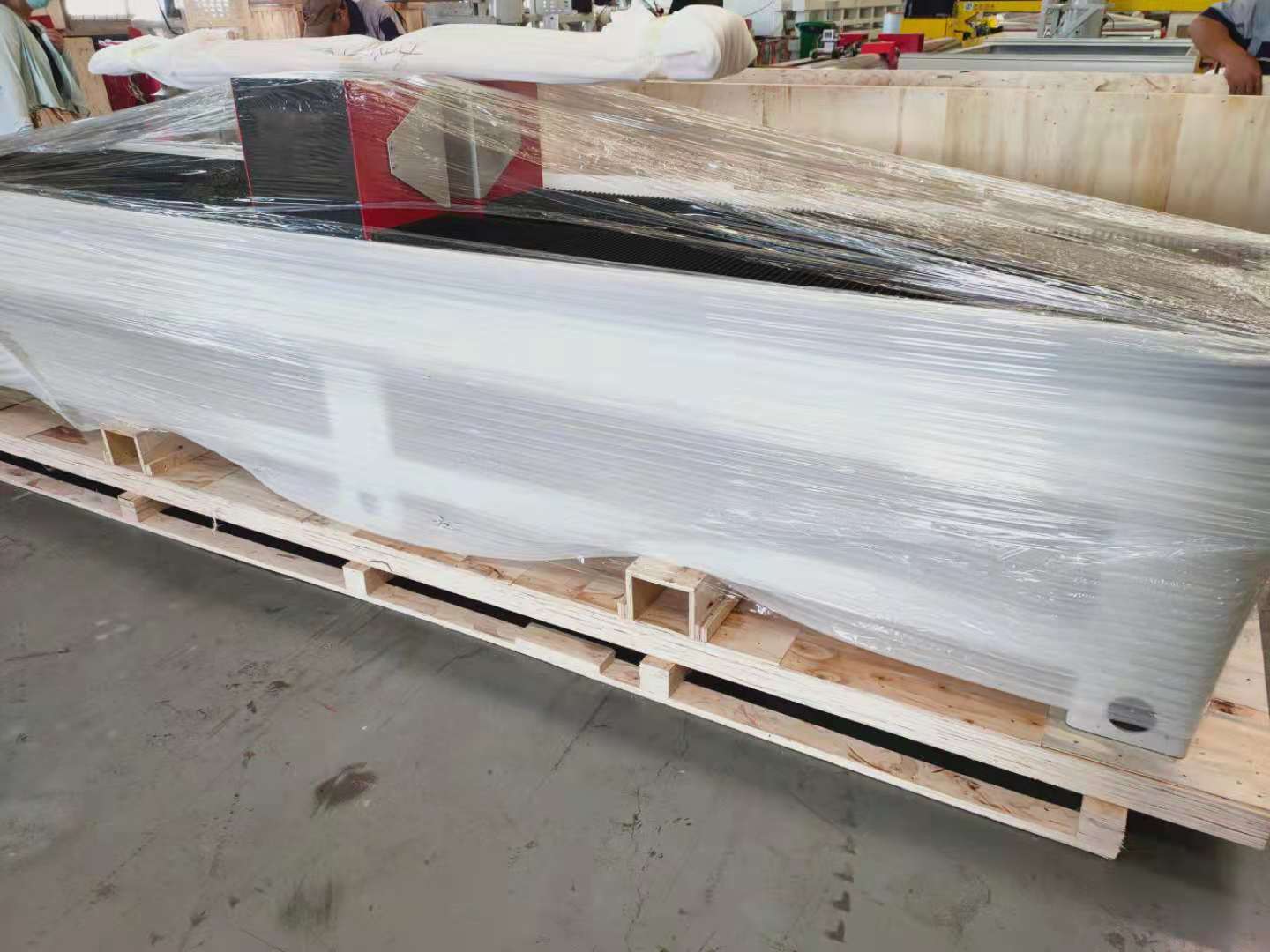

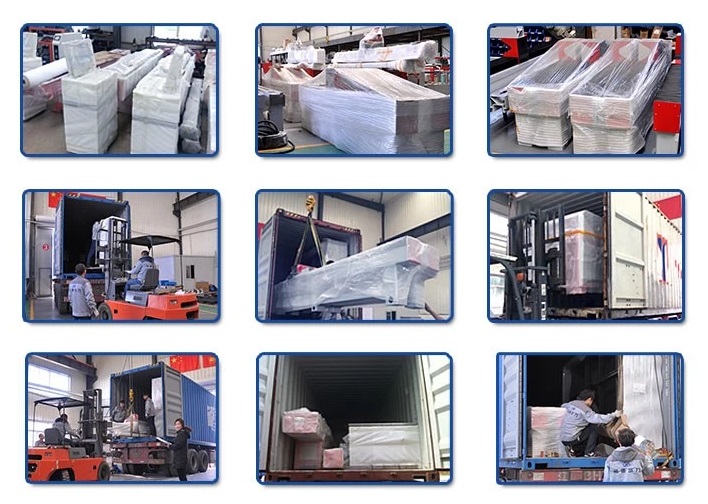

Our packaging advantages:
1. Ourwooden boxis fumigated. No wood inspection is required, saving shipping time.
2. The accessories of the whole machine are covered with soft materials, mainly pearl cotton.

Avoid all possible damage during delivery. Then we will wrap it in plastic, making sure that the soft material being wrapped is intact, while avoiding water and rust.
3. The outermost is the wooden box with the fixed formwork.
4. There is a sturdy iron jack at the bottom of the wooden box, which is convenient for handling and handling.

before delivery, we will do about20-30Machine working hours and use standard packaging to each configuration. We choose famous export companies and shipping companies to make shipping more convenient and safer.

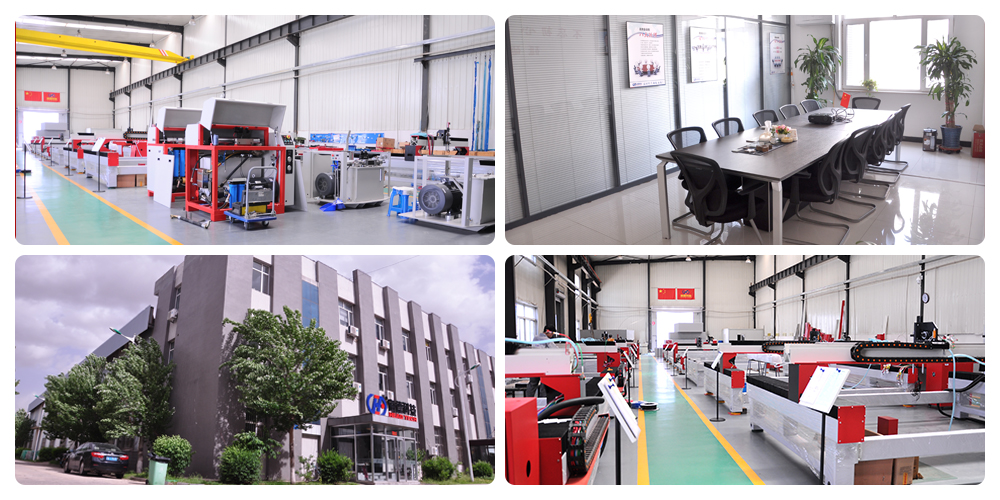

Hyde waterjet is a dedicated large-scale ultra-high pressure waterjet cutting machine manufacturer with independent technology research and development, high technology, high quality and high reputation. It has been engaged in the research and manufacture of water jet cutting, and is one of the most professional water jet manufacturers in the fields of stone parquet, glass parquet, metal special-shaped cutting, aerospace, military and other fields. We are a manufacturing and trading portfolio of water jet cutting machines in Liaoning, China, with more than 15 years of complete experience and a professional sales team. With the HEAD water jet, cutting is no longer a problem!

Quality and credibility go all the way. HEAD, a company that has survived the fierce market competition, has a very strong national culture and develops side by side with the world and this era. We are determined to realize our dream step by step with the advantages of high technology.
