5 axis table top bridge saw water jet price 6mm -20mm porcelain 3500x2000 mm bridge saw

Product details
Voltage:custom madeGross weight per piece:20.000 kg
Cutting Thickness (Maximum):200mmmotor:Servo optional
weight:7000 kgShowroom location:Turkey, United Kingdom, United States, France, Germany, Brazil, Peru, Indonesia, Mexico, Russia, Spain, Thailand, Chile, Malaysia, Australia
programmable logic controller:OmronMaximum Aperture:0.35mm
Enhancer:AccusreamCore components:Motor, pump, PLC
power supply:custom madeHealth status:new
Video external inspection:ifMax displacement:3.8 L/min
Production capacity:HighCore Components Warranty:1 year
Maximum working pressure:420Mpa/4012bar/60000psiMechanical test report:if
brand:headApplicable industries:Clothing stores, building materials stores, machinery repair shops, construction projects, advertising companies
Marketing Type:New Products 2020Packaging Details:Flexible pack or as your request in 20/40ft container for ceramic floor tile maker water jet cutter
Sales unit:single productWarranty:1 year
type:stone cutting machinePackaging Preview:
Dimensions (L*W*H):As for the machineShift Mode:Electric shift
Main selling point:high productivitystrength:37KW
Continuous working pressure:370-390MpaSingle package size:22X50X32 cm
Ball screw:Abbaplace of origin; place of origin:Liaoning, China
use:Marble. Tile. Granite. Porcelain
Product Description

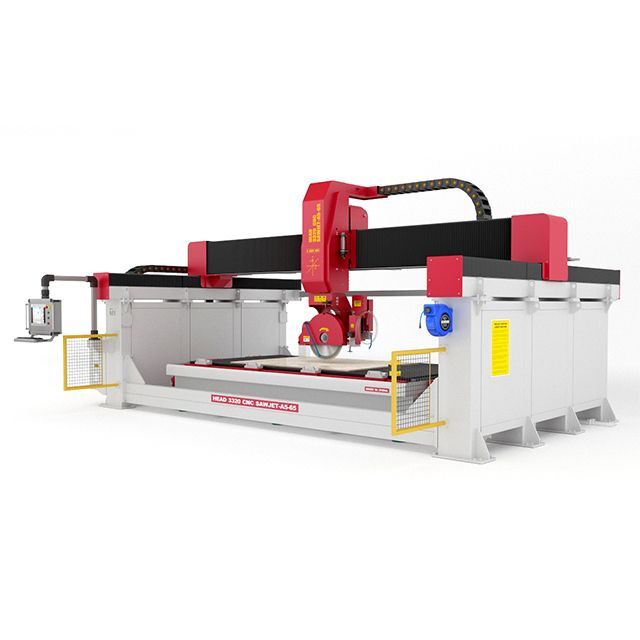

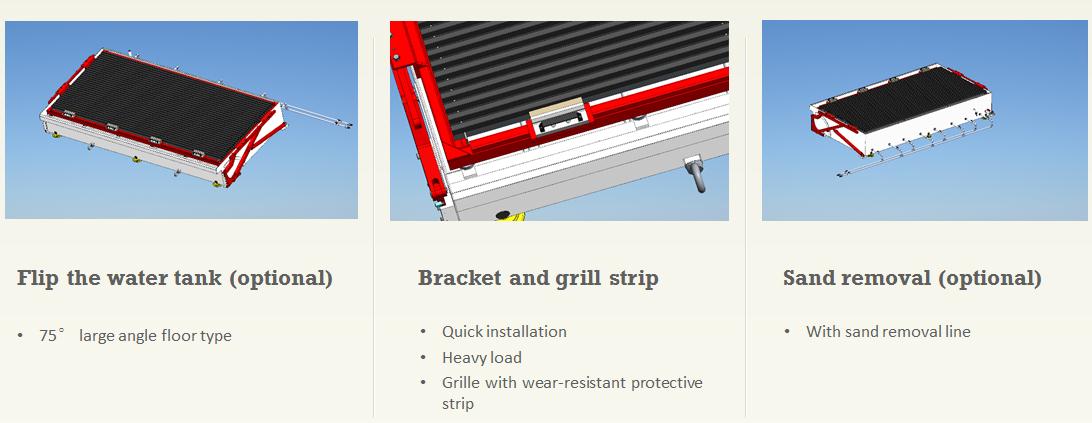

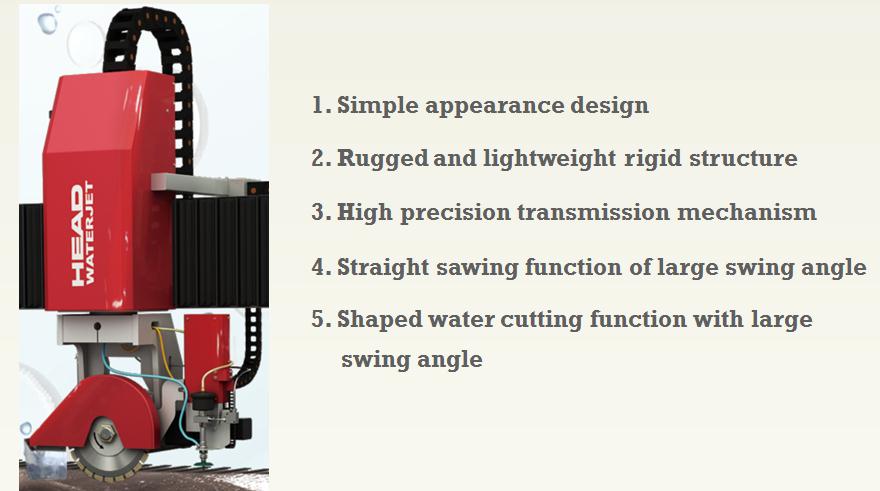

HEAD 5-axis waterjet bridge saw cutting machine is the best combination for stone cutting, saw blade and waterjet can cut 65° angle. It can be equipped with a HEAD patented floor-to-ceiling flip platform for easy loading and unloading of plates. It can be operated by one person to avoid damage to the board. One machine creates double the value for you and saves half the cost. Come and find out! Simple and easy to operate. For more product details, please contact me, welcome to inquire!

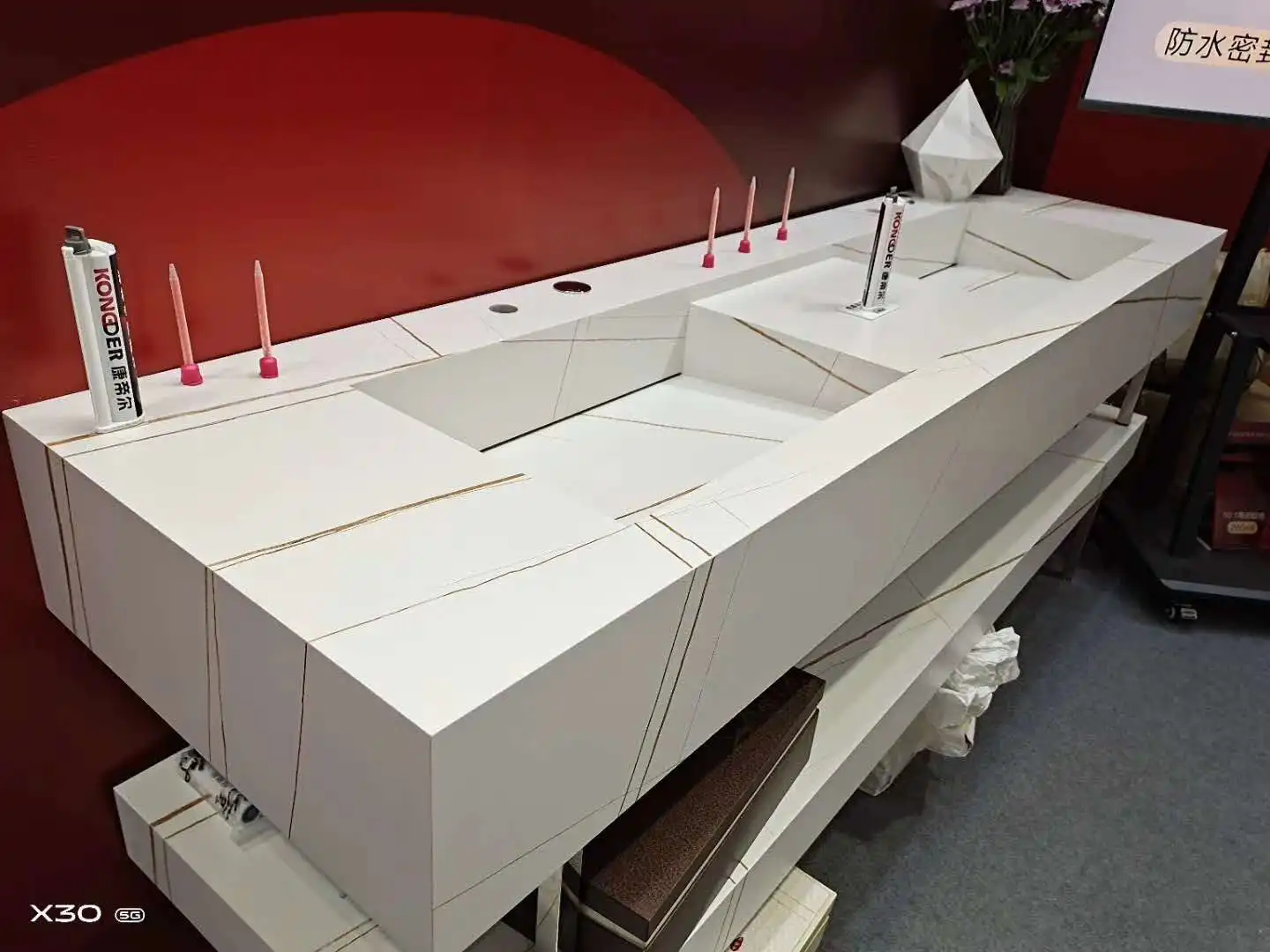

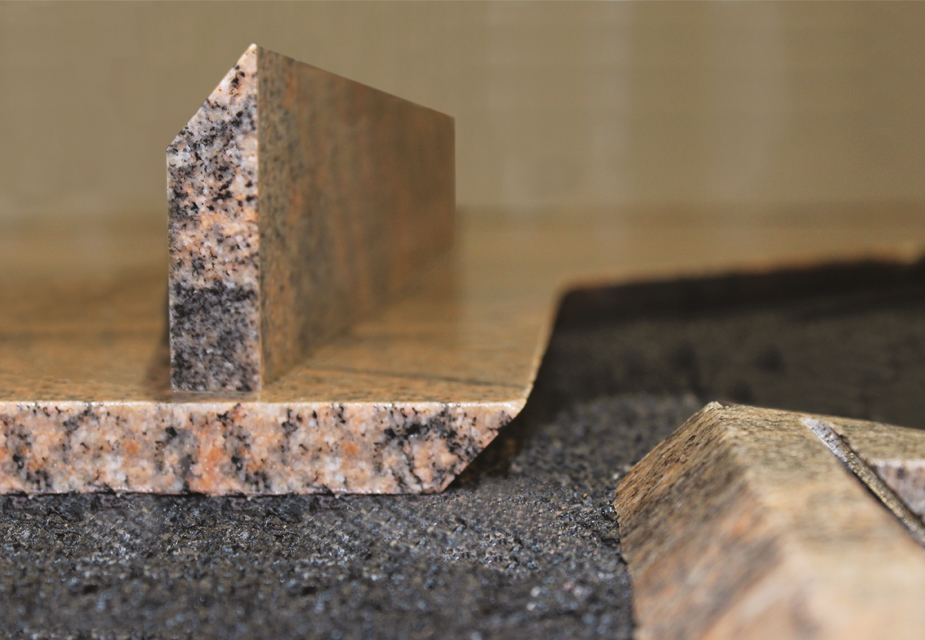

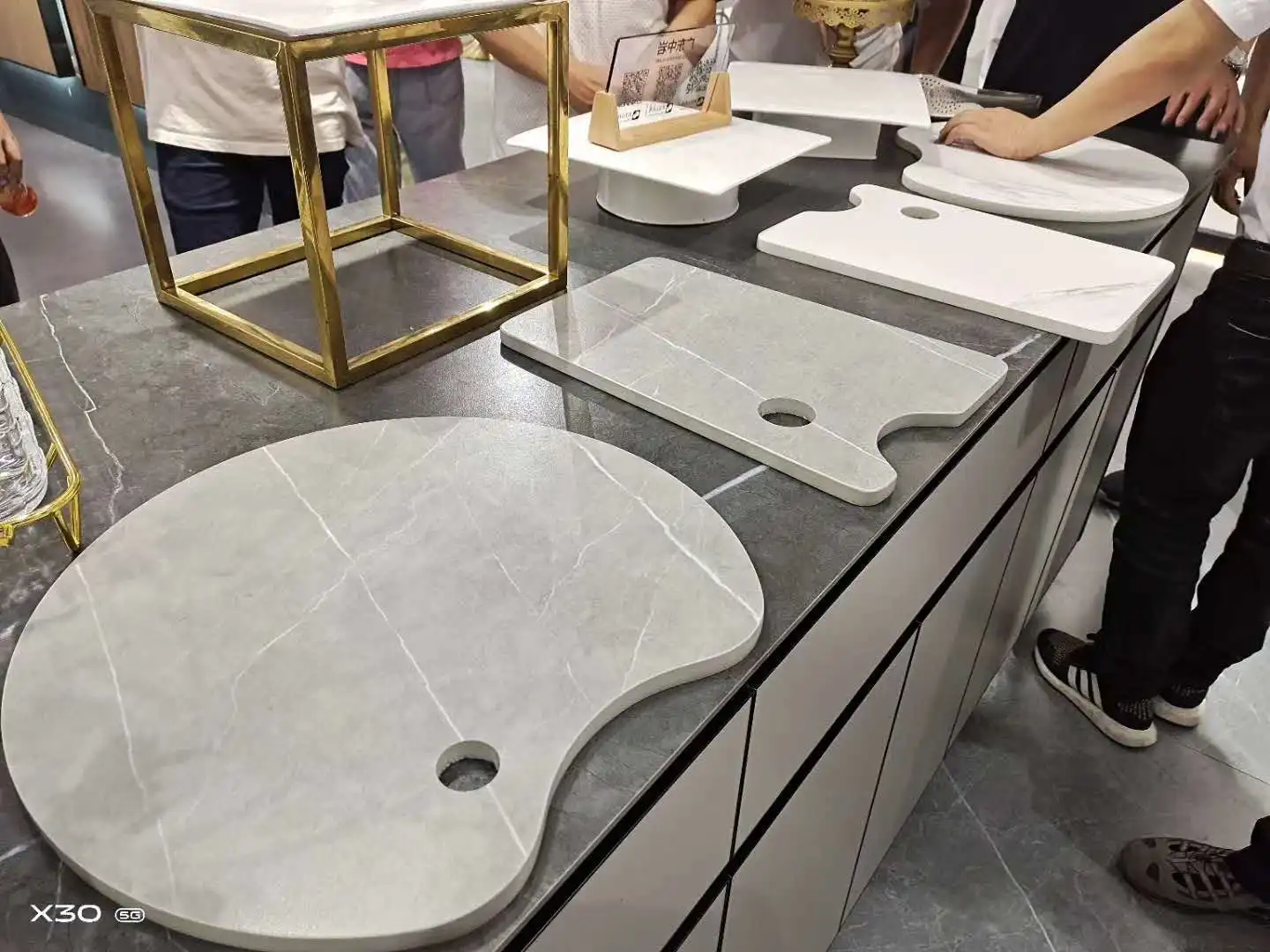

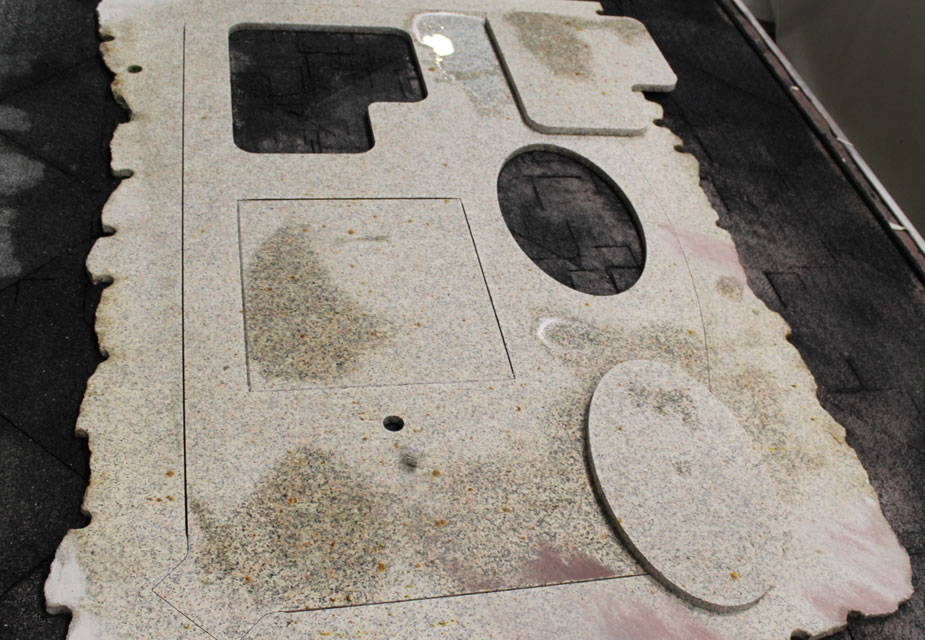

Cut the sample
This stone CNC sawing and bridge saw has everything you need for today's technologically advanced bridge saws and waterjets: 5 interpolated axes, half-inch spindle with grooved spindle lubrication, tilt table up to 85° for part movement The vacuum manipulator system automates the cutting process, with on-board cameras, blade presets and stone thickness probes.

Waterjet technology is very easy to use: setup is straightforward. The main benefit for the customer is an increase in the cold cutting process and productivity, mainly due to a significant reduction in time and cost, mainly because no further processing is required. Waterjet solutions allow you to cut any shape, size or material up to 200mm thick. Different materials can be easily cut by using the same tools and parameters for most operations, such asMarble, granite, glass, ceramics, composites, metals and alloys.

Service and FAQ

>>> Try to read this ------- our service

1. Free maintenance12 months.
2. We will provide wearing parts at the agency price.
3.24 hours online service, free technical support.
4. The machine has been adjusted before leaving the factory, and the operation panel is included in the scope of supply. Please let me know if you have any other questions.
5. We have manual instruction andSoftware Installation Video, operation and use and maintenance of the machine; we will send professional technicians to the customer's factory to provide them with two weeks of training,Including machine working principle, Auto CAD drawing, common problems and solutions, etc..

>>> Try reading this -------- FAQ
Q1: Does this machine pass the CE certificate?
A2: Yes, this machine passedEuropean CECertificate and meetsafety standard.
Q2: What is the cutting thickness?
A2: 0-120mm for marble; 0-110mm for granite; 0-40mm for ceramic tile; 0-80mm for glass and mosaic; 0-60mm for steel, stainless steel, copper; 0-80mm for aluminum; plastic, acrylic, foam 0-200mm. Our dual pressure system can cut 0-160mm steel plate, 0-200mm stone. It is beneficial for customers to cut thicker materials.

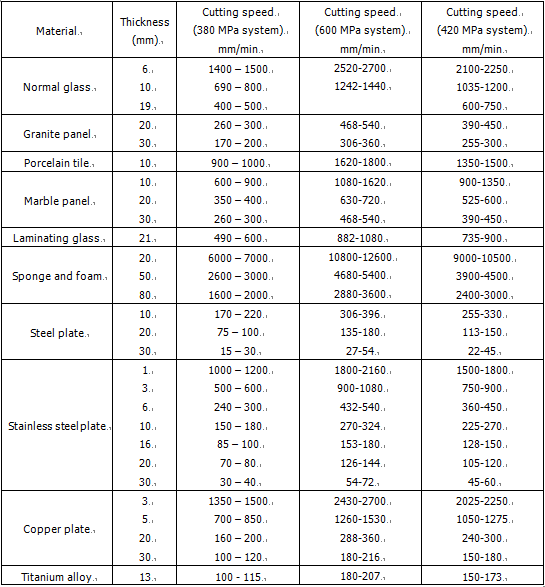

Q3: How fastspeed?
A3: The speed depends on the customer's material and cutting requirements, and the customer can adjust the speed parameters.

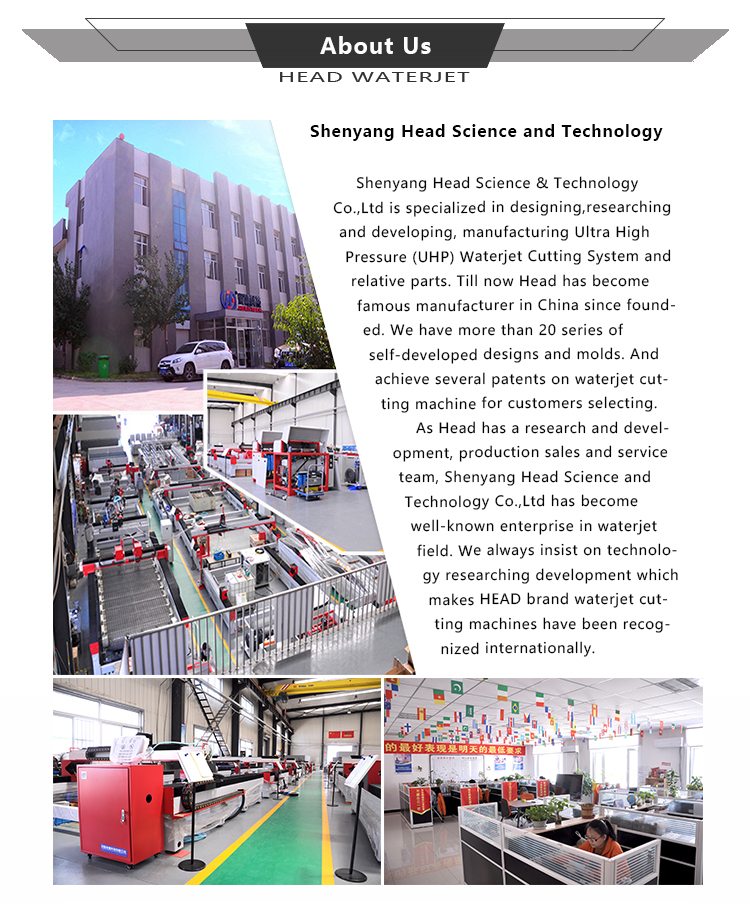

About our company

>>Company Honor View

Packaging and Delivery

Our packaging advantages:
1. Ourwooden boxis fumigated. No wood inspection is required, saving shipping time.
2. The accessories of the whole machine are covered with soft materials, mainly pearl cotton.
Avoid all possible damage during delivery. Then we'll wrap it in plastic, making sure that the soft material being wrapped is intact, while avoiding water and rust.
3. The outermost is the wooden box with the fixed formwork.
4. There is a sturdy iron jack at the bottom of the wooden box, which is convenient for handling and handling.


before delivery, we will do about20-30Machine working hours and use standard packaging to each configuration. We choose famous export companies and shipping companies to make shipping more convenient and safer.

The head spray makes cutting no longer a problem!

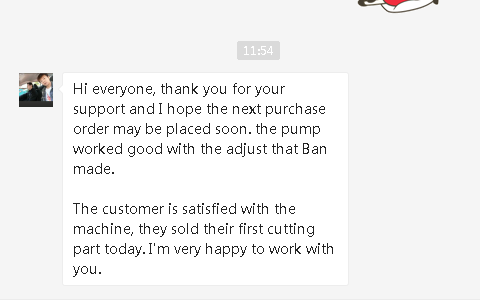

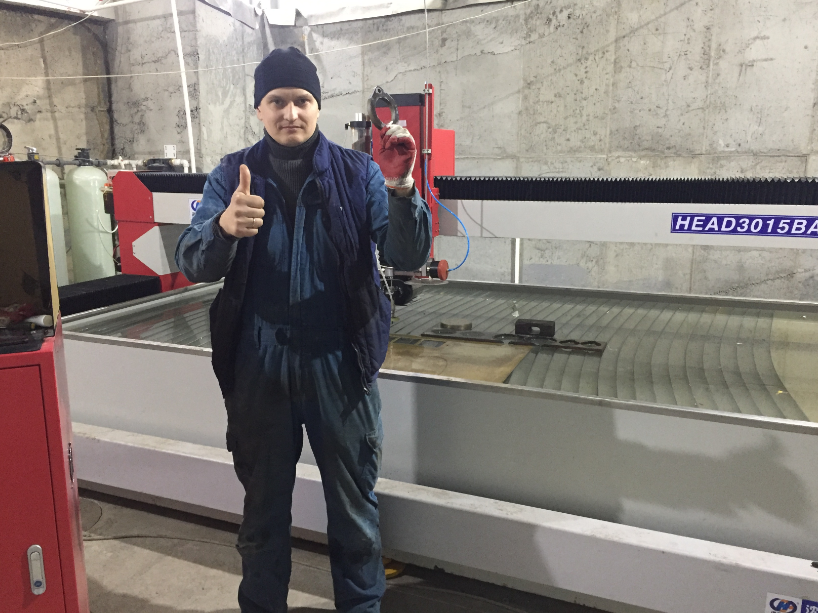

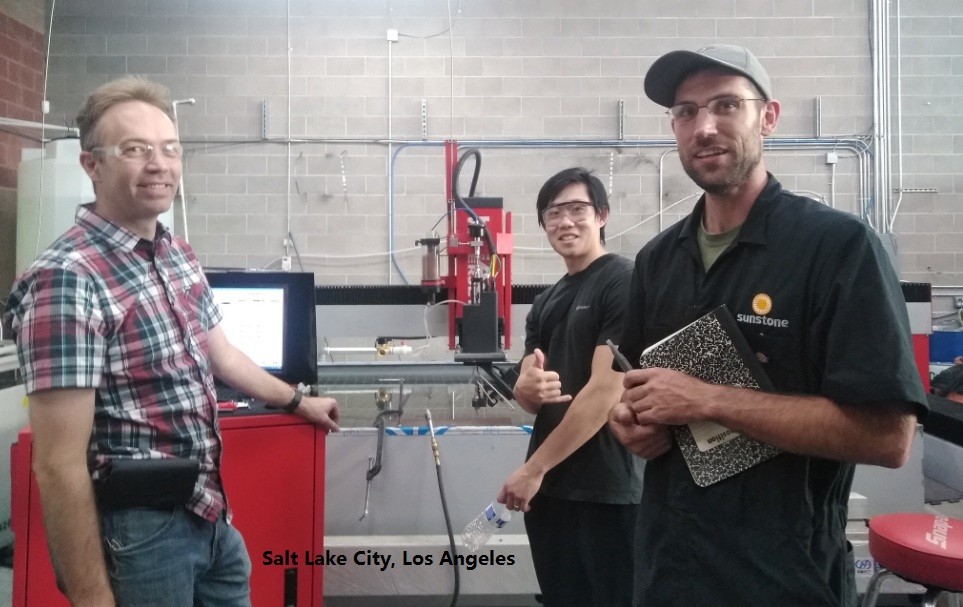

customer feedback
