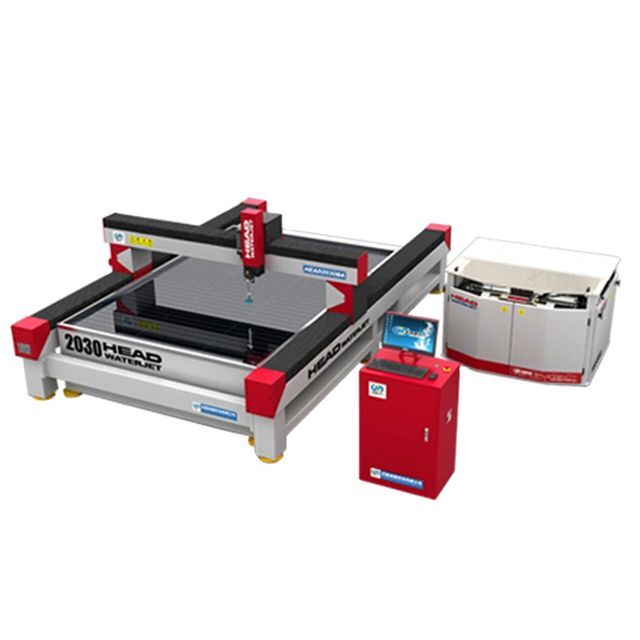

China Cutting Machine Metal Sheet Water Jet Cutting Machine Water Jet CNC Cutting Machine Cost Water Jet Cutting Machine

Supplier: Shenyang Head Science & Technology Corporation
Region: Liaoning, China
Contact: Ms Karen Zheng
Price: $36000.00 / 1 - 1 sets
$33000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Maximum Nozzle Diameter:	0.33mm	Maximum cutting thickness:	100mm
Control System:	Weihong Software/ECS (Italy)	Main selling point:	high productivity
port:	Dalian Port, China Waterjet CNC Cutting Machine Cost Waterjet Cutting Machine	Packaging Preview:
Marketing Type:	Hot Products of 2021	Table travel (Z) (mm):	150
rated power:	37kW	Table stroke (X) (mm):	1500
Packaging Details:	China Waterjet CNC Cutting Machine Cost 1. Full film packaging machine; 2. Anti-collision; 3. Fumigation-free plywood wooden box with metal straps. 4. Our wooden box is fumigated. No wood inspection required, saving shipping time.	Maximum oil discharge:	96 L/min
Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, printing plants, construction works, advertising agencies	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Number of axes:	3	control precision:	0.01mm
Health status:	new	Max displacement:	3.7 L/min
Supply capacity:	1 set per month	Dimensions (LWH):	machine type
Showroom location:	Morocco, Algeria, Sri Lanka, Nigeria, Japan, Malaysia, Australia, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Brazil, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand	Cutting accuracy:	0.1mm
Core components:	motor, pump	Z-axis travel:	150mm (can be customized)
Cutting accuracy (mm):	0.1	Table travel (Y) (mm):	2000
Mechanical test report:	if	brand:	head
pressure:	370MPa-420MPa	Relocation Accuracy:	0.02mm
Voltage:	380/220/415V ,3ph ,50/60hz	Core Components Warranty:	1 year
place of origin; place of origin:	Liaoning, China	Weight (kg):	3589 kg
Warranty:	1 year	Repeatability (X/Y/Z) (mm):	±0.002
year:	2021	Video external inspection:	if

Product Description

Product Description:

Cutting platform size and other components can be customized

Follow the latest market developments. We are actively engaged in supplying CNC water jet cutting machines. Widely used for cutting soft and hard materials, the provided jet cutting machines are well demanded by the market due to their high performance. In order to guarantee the quality, multiple parameter checks are carried out on all the jet cutting machine series before the final delivery to the customer. The offered jet cutters are available in different specifications at affordable prices

feature:

• 50 HP high 420 MPa pressure for smooth finishing at high speed.
• The main heart of the supercharger, "Supercharger" is "Made in the USA".
• User friendly and minimal maintenance cutting head design with American made "Water Switch Seal Kit" and other components.
• All parts of the machine are processed by high-precision Yaskawa servo motors (made in Japan). This allows you to run trouble-free and extend the life of your parts.

Waterjet Cutter Specifications
maximum. pressure			420 MPa
maximum. flow			3.7 L/min
voltage			3 phase 220/380 voltage, 50/60Hz, 37KW, 50HP
maximum. Nozzle/Orifice Diameter			1.02mm / 0.33mm
maximum. Oil pump delivery capacity			106L/min
Max cutting head			1-10 cutting heads (1 for standard machine)

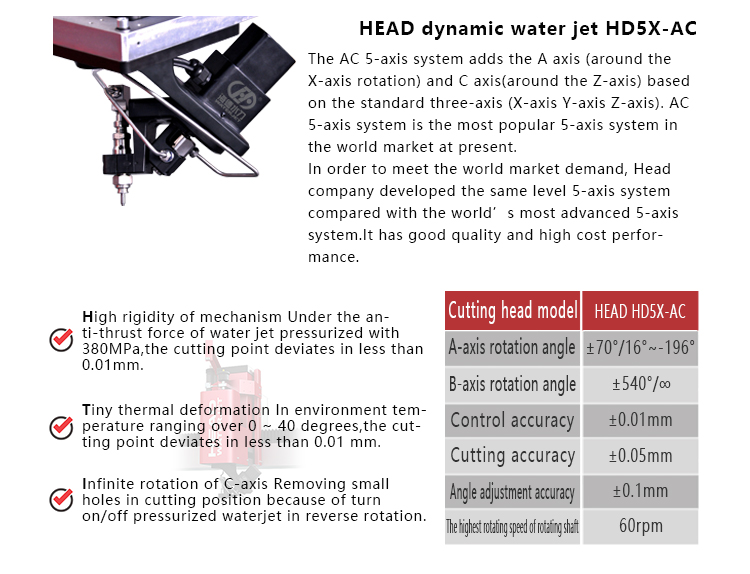

Model			HEAD-5AC
A-axis rotation angle			±70 degrees
C-axis rotation angle			±360 degrees

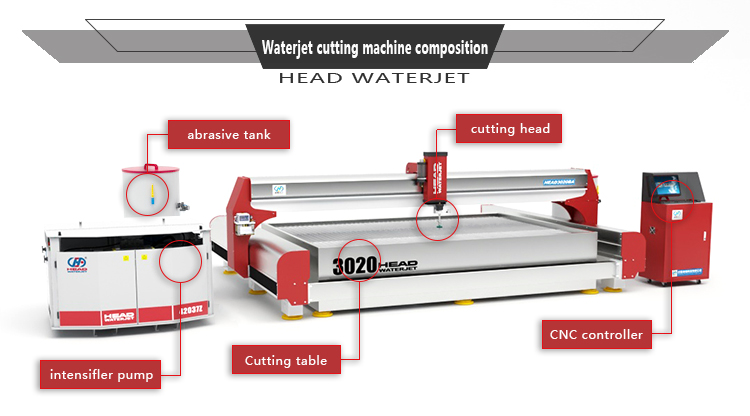

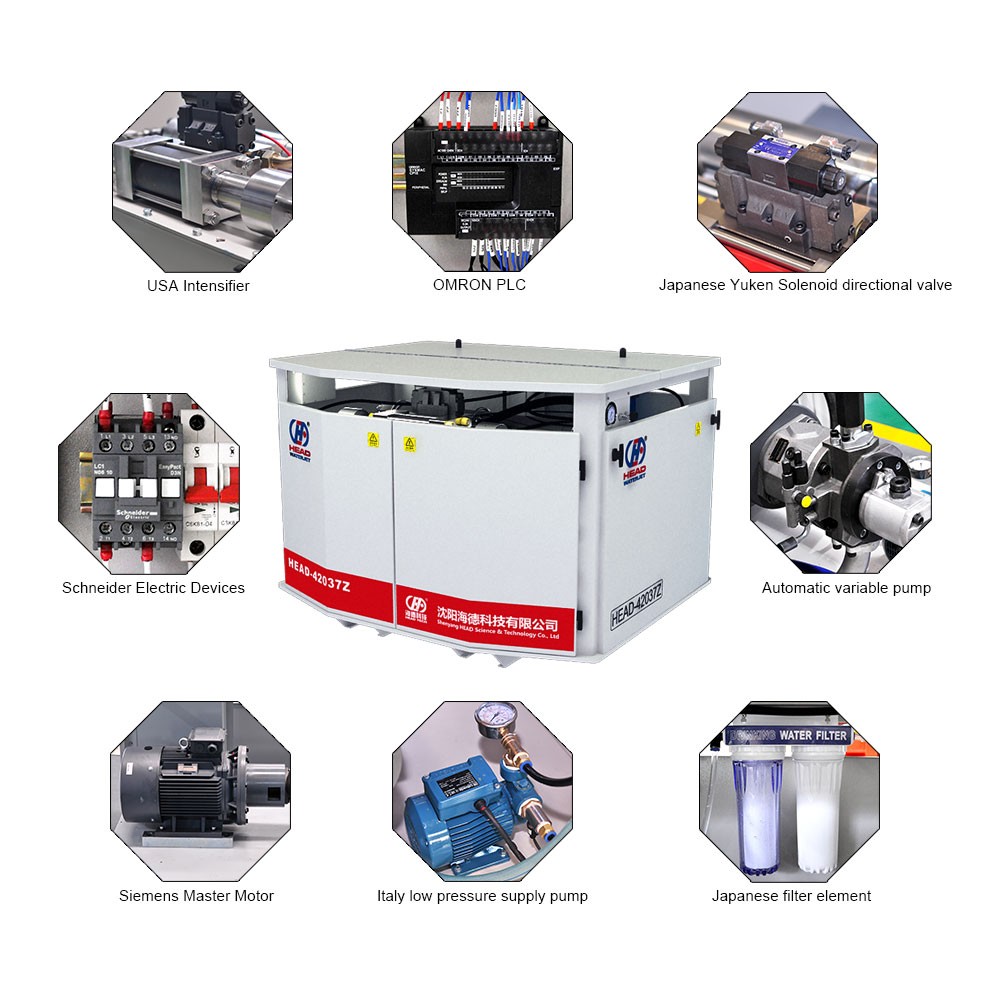

Mechanical parts display

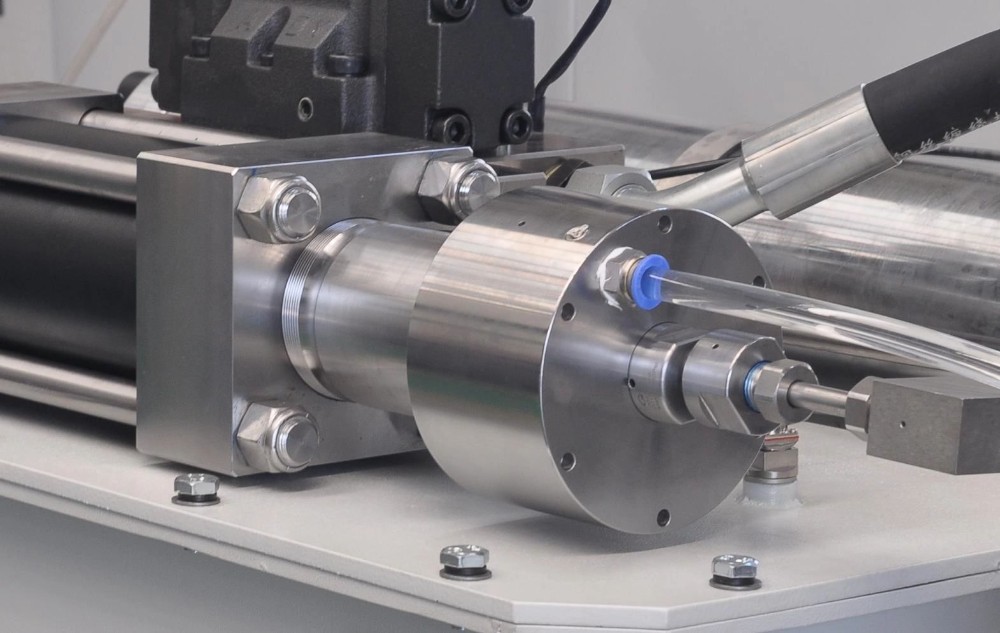

booster

* Produce high pressure water

* Stable running performance

* Main components are imported from the United States, Accustream

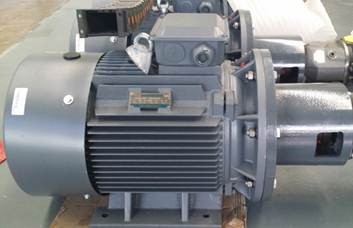

main motor

* Siemens (North Germany) brand

* Generate kinetic energy through electrical energy
* Three-phase AC asynchronous motor

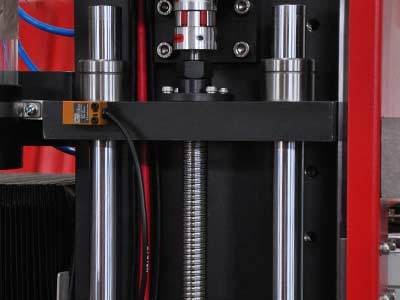

Z axis

*The cutting head moves up and down

*Double linear guides and screw rods ensure that the cutting head is stable without shaking and has a long service life

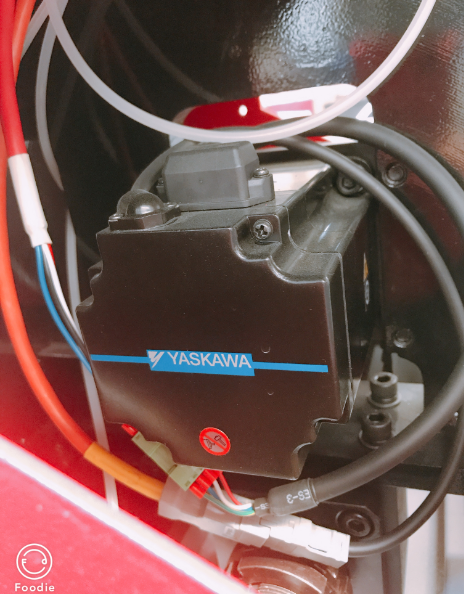

servo motor

* Sports motor

* Rotary ball screw

* Realize X-axis work

* Guaranteed accuracy

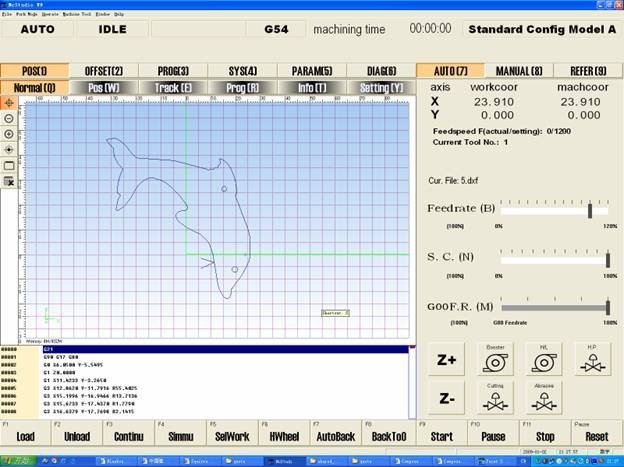

water spray software

* Control all cutting process
* Shanghai "Weihong" brand
*Easy to operate. Learn in just 8 hours

Why choose water jet

stay safe
Although anything can be cut, the water jet is still very safe. Obviously, this is because we don't need to place any body parts under the waterjet cutting head. If there is a leak in the high-pressure water system, the pressure can quickly drop to a safe level. The water itself is safe and non-explosive, and the garnet abrasive is inert and non-toxic.

So it is very safe to use the water jet to cut the material.

Environmental friendly
Used abrasives and waste are suitable for landfill as long as we do not process hazardous materials.
Garnet abrasives are inert and can be disposed of with the rest of our waste. If we process large quantities of lead or other hazardous materials, we still need to properly dispose of our waste and recycle water. But keep in mind that very little metal is actually removed during the cutting process. This keeps the environmental impact relatively low, even though we occasionally process hazardous materials. In most areas, excess water is simply drained down the drain. In some areas, water treatment may
Necessary before draining into the sewer. In a few areas, a "closed loop" system of circulating water may be required.

Why choose HEAD Waterjet
1. Competitive price: It can fit your budget and best-selling business well.
2. OEM accepted: we can produce any design you request.
3. Good service: We treat our customers as friends.
4. Good quality: We have strict quality control system. Good reputation in the market.
5. Fast and Delivery: We get big discount from freight forwarder

detailed image
