ZQ-80A manual/automatic metallographic sample cutting machine
- 3100.00 1 - 2 sets
- 3000.00 >=3 sets
| Supply capacity: | 200 sets per month | Marketing Type: | 2020 New Products |
| Certification: | CE | Mechanical test report: | if |
| Applicable industries: | home use | Year: | 2019 |
| Main selling points: | multifunctional | Warranty: | 1 year |
| weight: | 210 kg | Core component warranty: | 1 year |
| type: | ZQ-80A | Origin: | China |
| brand: | Huayin | Video outbound inspection: | if |
| Voltage: | 380V | After-sales service provided: | online support |
| After Warranty Service: | online support | Packaging Details: | wooden box |
| port: | Qingdao Port | Showroom location: | not any |
| payment terms: | L/C, T/T | Local service locations: | not any |
| rated power: | 2.5 kW | Weight (kg): | 210 |
| Health status: | new | Core components: | engine |
| MOQ: | 1 |

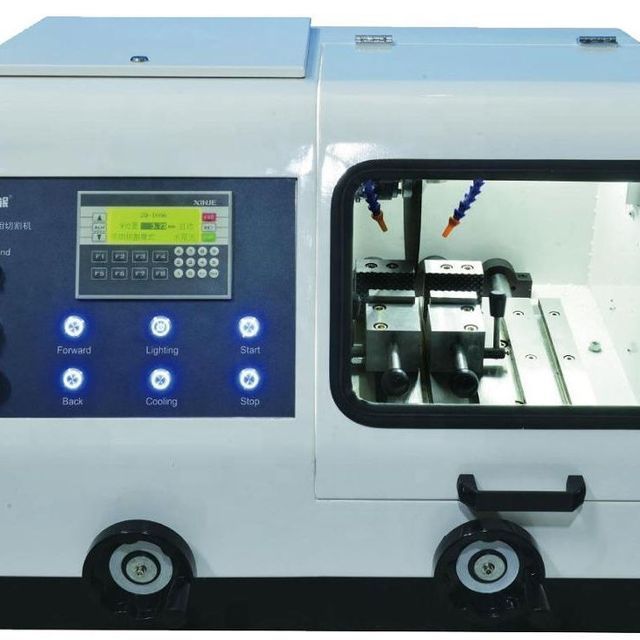

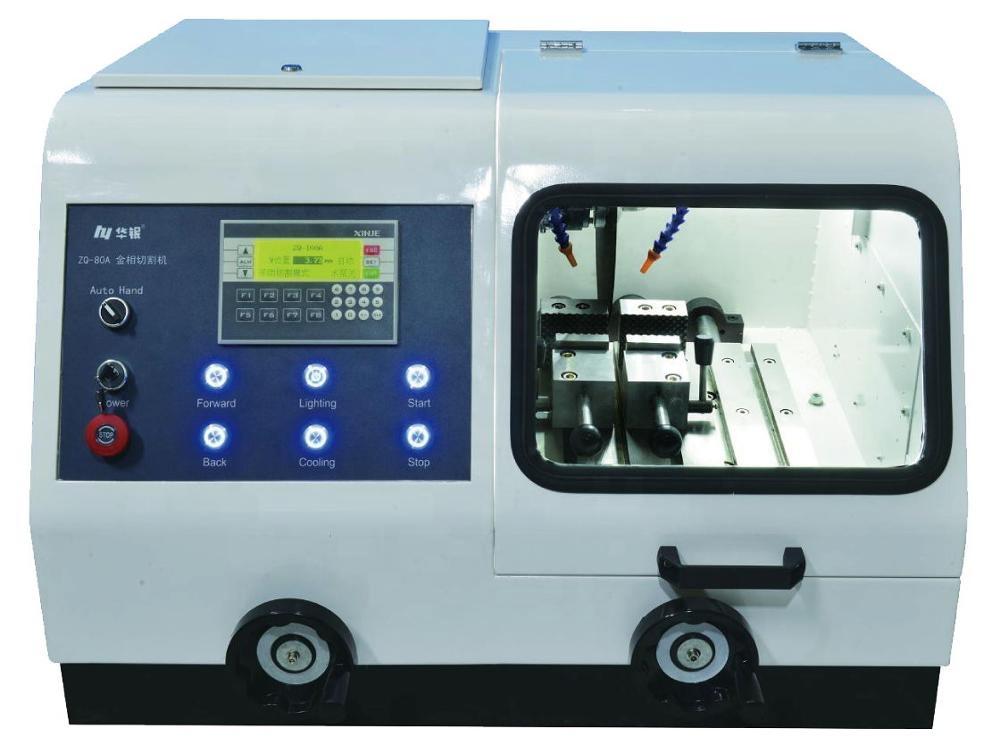

ZQ-80A manual/automatic
Metallographic sample cutting machine
This machine is composed of body, electric control box, cutting chamber, motor, cooling system, cutting wheel and so on. Equipped with fast clamps, the cooling system can cool the sample during cutting to avoid damage to the metallographic structure of the sample due to overheating. Three different cutting modes can be selected according to different samples, and the cutting speed and cutting stroke can also be preset, which greatly improves the cutting quality of samples. This machine can be operated by manual or automatic cutting, and has safety protection function. The running status prompt is convenient for man-machine dialogue, and the large-volume cutting chamber is convenient for users to operate. It is a necessary sample preparation instrument for factories, scientific research institutes and laboratories of colleges and universities.
Technical Parameters
|
Model |
ZQ-80A |
|
Spindle speed |
2100 rpm |
|
cutting wheel |
Φ350*2.5*32mm |
|
maximum. cutting diameter |
Φ80mm |
|
Automatic cutting stroke |
125mm |
|
maximum. Worktable travel |
275mm |
|
Feeding speed |
1-10 mm/min |
|
working desk size |
320mm*293mm |
|
strength |
2.5 kW |
|
power supply |
380V, 50Hz, three-phase |
|
aspect |
890mm*700mm*610mm |
|
net weight |
220 kg |
|
Tank weight (including water pump) |
14 kg |
