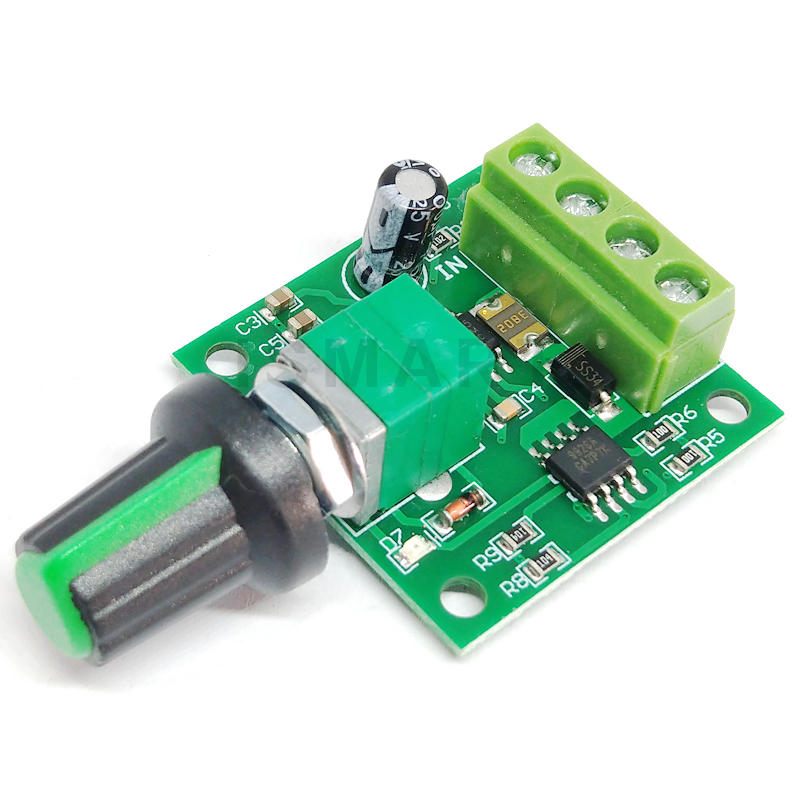

ISMART DC 1.8V 3V 5V 6V 12V 2A PWM Motor Speed Controller Low Voltage PWM Motor Speed Controller 0~100% Adjustable Driving Module
- 0.40 2 - 99 pieces
- 0.39 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | intelligent | Warranty: | other |
| place of origin; place of origin: | Guangdong, China | model: | DC motor governor |
| Gross weight per piece: | 0.050 kg | Sales unit: | single product |
| Single package size: | 15X15X10 cm | Name: | DC motor governor 2V |
Specification
feature:
This new 1803BK DC Motor Speed Controller allows the use of a Pulse Width Modulated (PWM) DC voltage with a duty cycle to control the DC direction of the motor, the product is fully adjustable from 0%-100%.
With a 2A resettable fuse and a power-on LED.
Capable of supplying 2A of continuous current to your DC motor or other DC load.
Specification:
Input power supply voltage: 1.8V-15VDC
Maximum output power: 30W
Maximum continuous output current: 2A
Adjustable duty cycle: 0%-100%
Size: Approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: about 14 grams
Note: The DC power supply of the DC motor governor should not be directly connected to the household 220V AC power.
Please allow 1-3mm difference due to manual measurement.
Due to different monitors and different lighting, the pictures may not reflect the actual color of the item. Thank you for your
understand.
Package Included:
1 motor speed controller
This new 1803BK DC Motor Speed Controller allows the use of a Pulse Width Modulated (PWM) DC voltage with a duty cycle to control the DC direction of the motor, the product is fully adjustable from 0%-100%.
With a 2A resettable fuse and a power-on LED.
Capable of supplying 2A of continuous current to your DC motor or other DC load.
Specification:
Input power supply voltage: 1.8V-15VDC
Maximum output power: 30W
Maximum continuous output current: 2A
Adjustable duty cycle: 0%-100%
Size: Approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: about 14 grams
Note: The DC power supply of the DC motor governor should not be directly connected to the household 220V AC power.
Please allow 1-3mm difference due to manual measurement.
Due to different monitors and different lighting, the pictures may not reflect the actual color of the item. Thank you for your
understand.
Package Included:
1 motor speed controller
