8 ton electro-hydraulic telescopic boom mobile crane with truck mounted 4x2 Dongfeng Howo crane

Supplier: Xuzhou Haoyi Construction Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms sunny ji
Price: $18500.00 / 1 - 1 units
$18200.00 / 2 - 9 units
$16000.00 / >=10 units
Min. Order: 1 unit

Click here to contact

Product details

Hydraulic cylinder brand:	good justice	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Construction Engineering, Energy and Mining, Advertising Agencies
brand:	good art	Certification:	CE/ISO9001
Unique Selling Points:	wireless remote	payment terms:	L/C,Western Union,T/T
Supply capacity:	100 units per month	maximum. Lifting height:	15.6m
Core Components Warranty:	1 year	After-sales service provided:	Engineers can repair machinery overseas, video technical support, online support, free spare parts
place of origin; place of origin:	Jiangsu, China	Video external inspection:	if
Hydraulic pump brand:	pear orchard	Health status:	new
Local service location:	not any	Packaging Details:	40' Open Top: 10pcs Standard Export Package
Warranty:	1 year	Engine Brand:	no
color:	Color depends on customer	Rated lifting moment:	20 tons.m
Showroom location:	not any	Hydraulic valve brand:	Haizhou
Rated load capacity:	8000kg	Mechanical test report:	if
Packaging Preview:		Weight (kg):	3100 kg
After Warranty Service:	Video technical support, online support, spare parts	application:	0~17.2m
port:	Lianyungang/Shanghai/Qingdao	Marketing Type:	New Products 2020
feature:	Crane	span:	5700mm
Core components:	Pump

Product Description

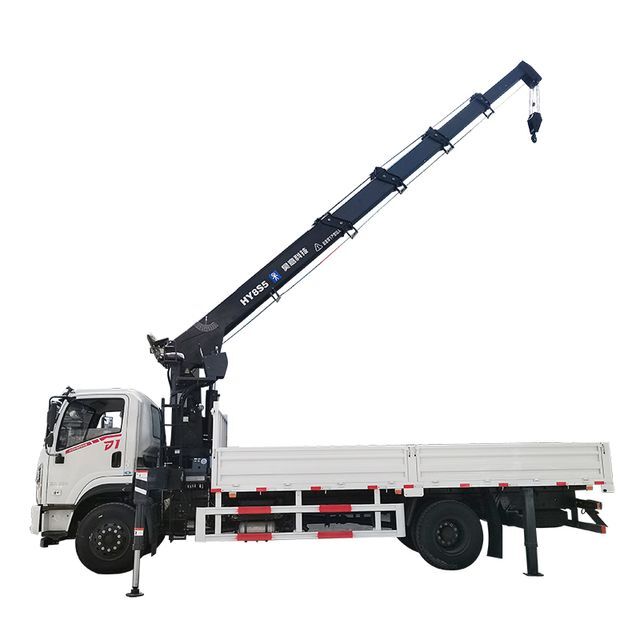

8 ton electro-hydraulic telescopic boom mobile crane with truck mounted 4x2 Dongfeng Howo crane

Haoyi 8-ton 5-arm truck crane, the main structure adopts high-strength steel plate, the crane adopts double telescopic oil cylinder, hydraulic winch, and integral rotary drive; the operating system adopts wireless remote control and bilateral handle to realize remote operation, which is convenient and safe.

thing	unit	HY8S5
Maximum lifting torque	Ton. Meter	20.0
Maximum working radius	Meter	17.0
Max.Working High	Meter	19
Slewing angle	.	360° azimuth
installation space	mm	1050
Outrigger span	mm	5700
Crane weight	Kilogram	3100

real photos

Our advantage

remote control

Can operate truck cranesWireless remote control, safe, convenient and efficient. In addition to lifting operations, aerial work baskets can also be installed to achieve aerial work functions, and one machine can be used for multiple purposes!

Self-locking aerial work basket

After the aerial work basket is installed, the crane becomes a multi-purpose work vehicle. It has the functions of loading, lifting, and high-altitude operation. It adopts wireless remote control operation system, which is safe, reliable, convenient and fast.
