8 ton HY8S5 truck mounted crane with telescopic boom for sale

Supplier: Xuzhou Haoyi Construction Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms sunny ji
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Shanghai/Qingdao/Lianyungang	payment terms:	L/C, Western Union, T/T, Alibaba Payment, Credit Card Payment
Maximum working radius:	16m	Health status:	new
Unique Selling Points:	wireless remote	place of origin; place of origin:	Jiangsu, China
Supply capacity:	100 sets per month	Hydraulic valve brand:	Haizhou
Core components:	Pump	Warranty:	1 year
Maximum lifting capacity:	8000kg	Marketing Type:	New Products 2020
Engine Brand:	no	Showroom location:	not any
Packaging Details:	Bare parts, spare parts and tools in standard export boxes	Hydraulic cylinder brand:	good justice
Swing speed:	<2R/min	Rated load capacity:	8000kg
Mechanical test report:	if	Boom Type:	straight arm
brand:	good art	Hydraulic pump brand:	pear orchard
span:	5250mm	Video external inspection:	if
Packaging Preview:		application:	8 tons
Rated lifting moment:	20T.M	feature:	Crane
Installation space:	815mm	Core Components Warranty:	1 year
Weight (kg):	3200 kg	maximum. Lifting height:	20m

Product Description

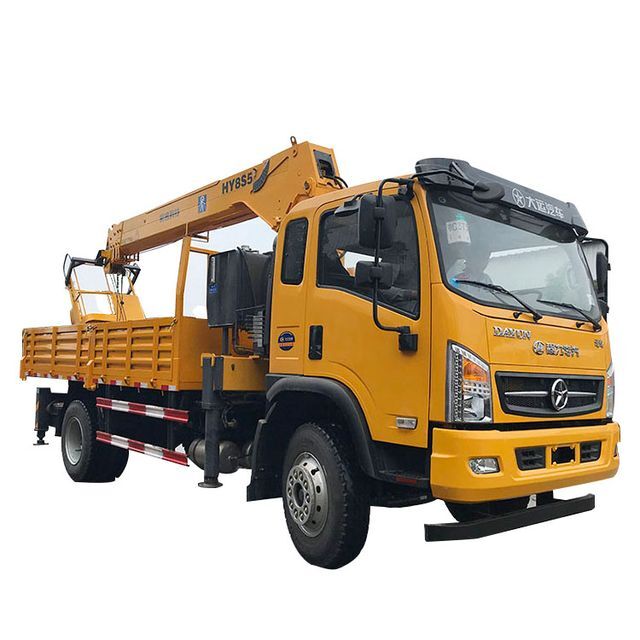

8 ton truck mounted crane HY8S5 with telescopic boom for sale

Haoyi 8-ton 5-arm truck crane, the main structure adopts high-strength steel plate, the crane adopts double telescopic oil cylinder, hydraulic winch, and integral rotary drive; the operating system adopts wireless remote control and bilateral handle to realize remote operation, which is convenient and safe.

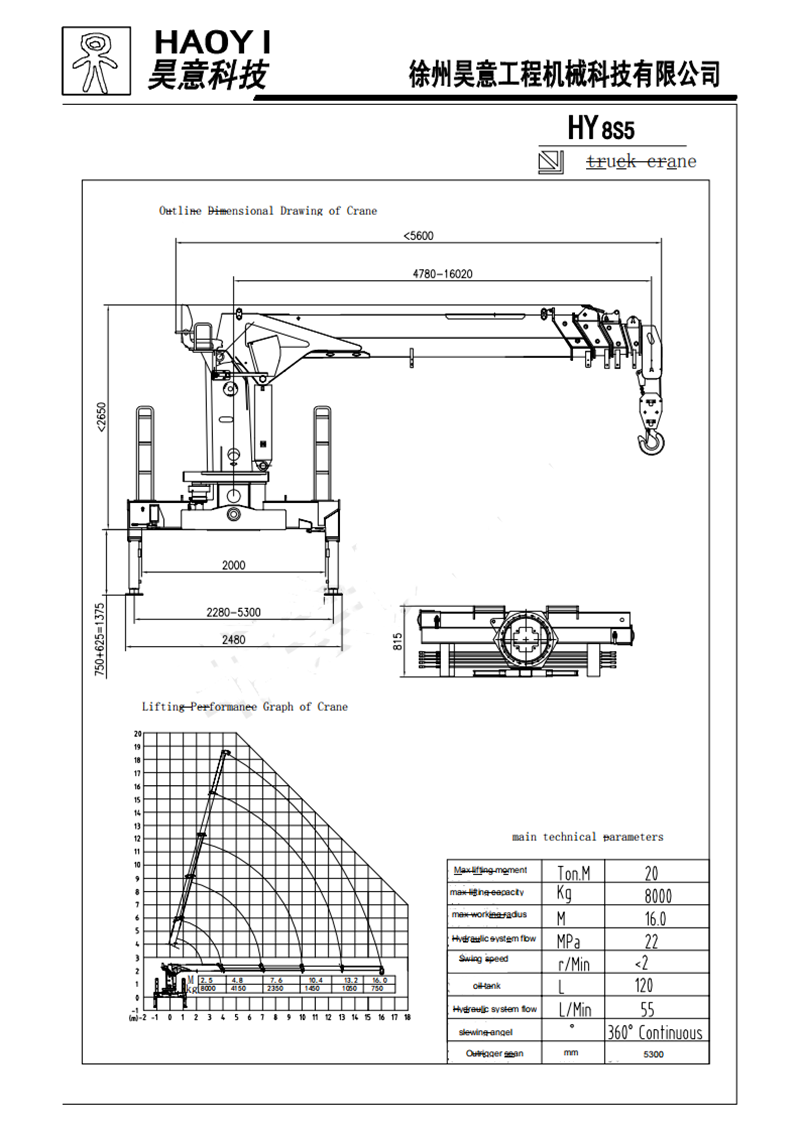

thing	unit	HY8S5
Maximum lifting torque	Ton. Meter	20.0
Maximum working radius	Meter	16
Max.Working High	Meter	17.6
Slewing angle	.	360° azimuth
installation space	mm	1050
Outrigger span	mm	5700
Crane weight	Kilogram	3200

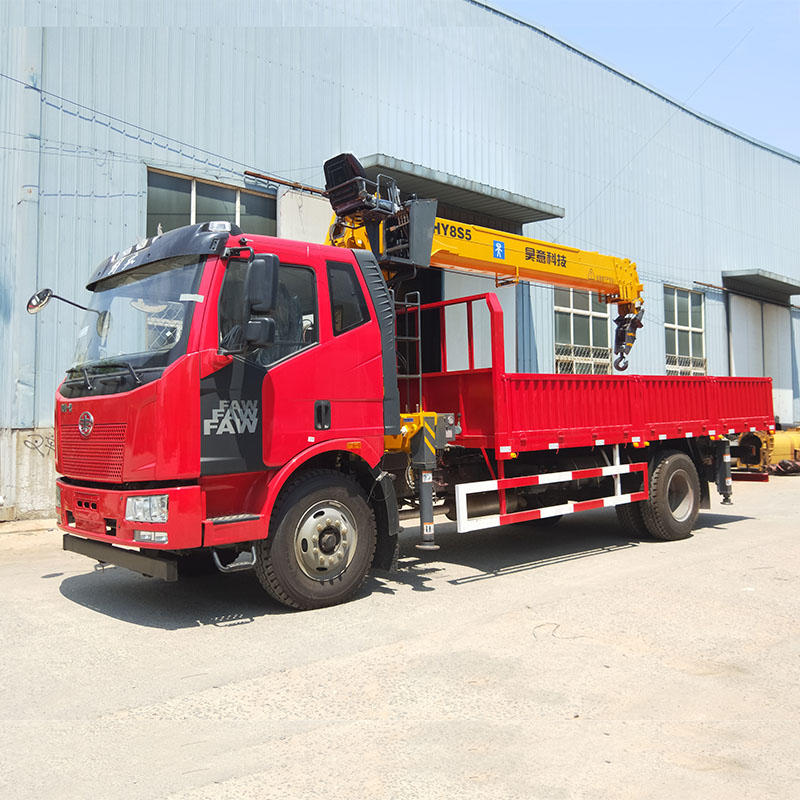

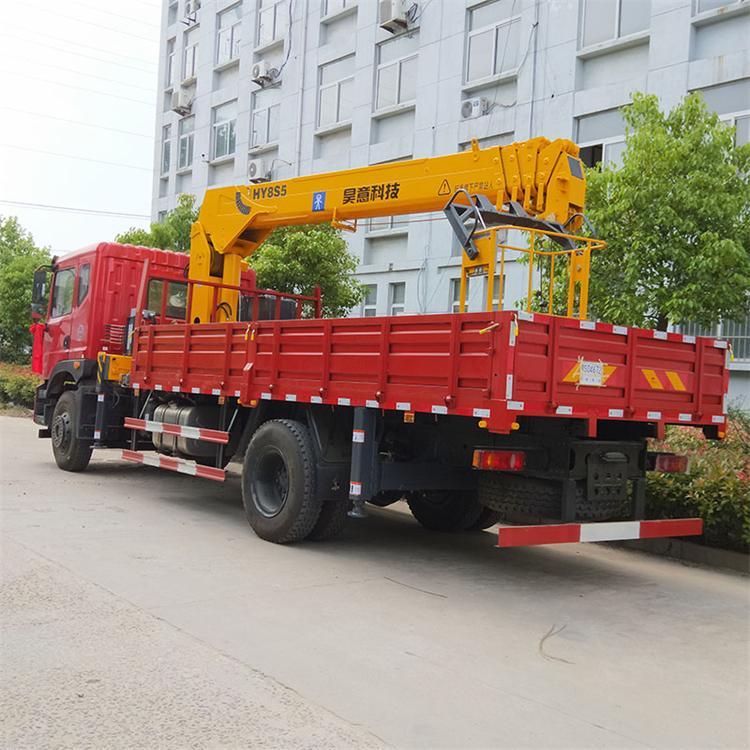

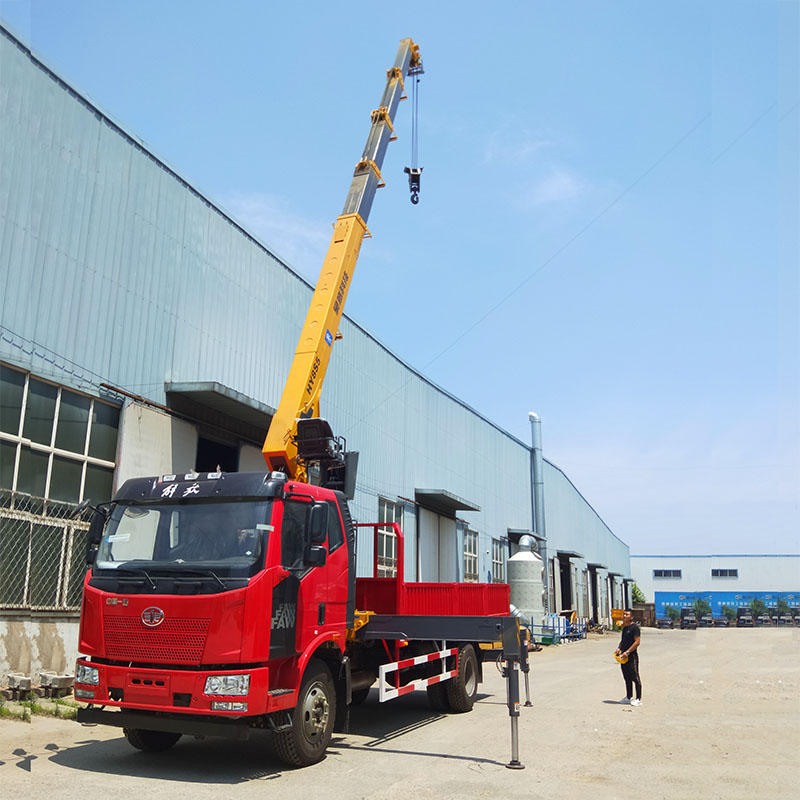

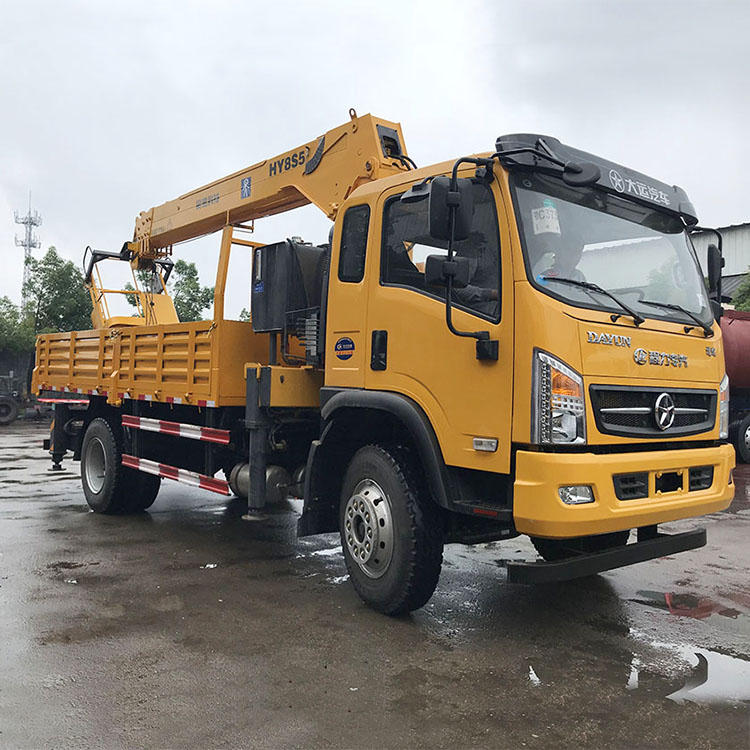

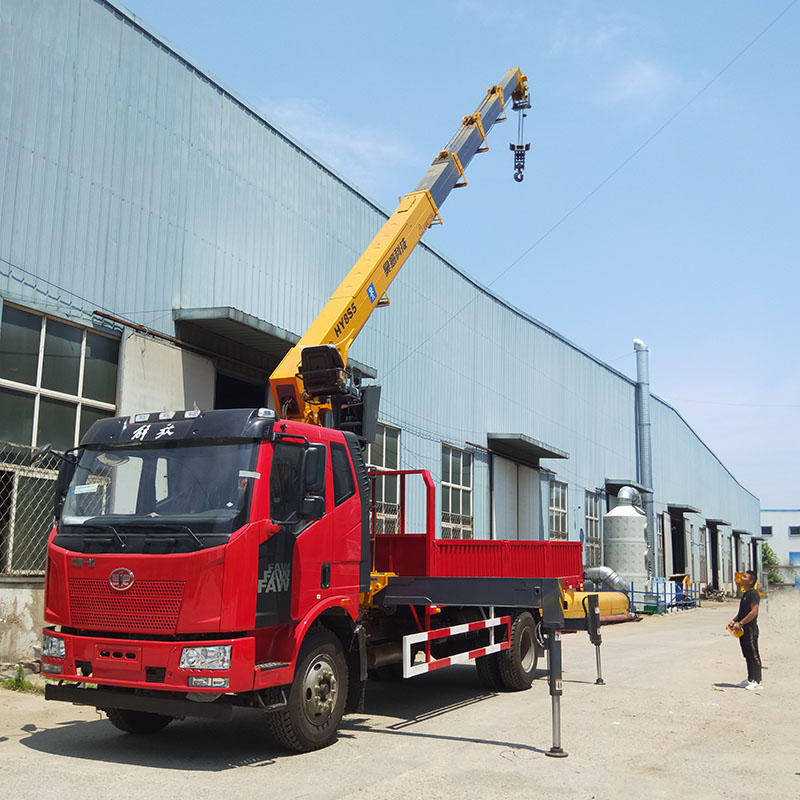

real photos

Our advantage

remote control

Can operate truck cranesWireless remote control, safe, convenient and efficient. In addition to lifting operations, aerial work baskets can also be installed to achieve aerial work functions, and one machine can be used for multiple purposes!

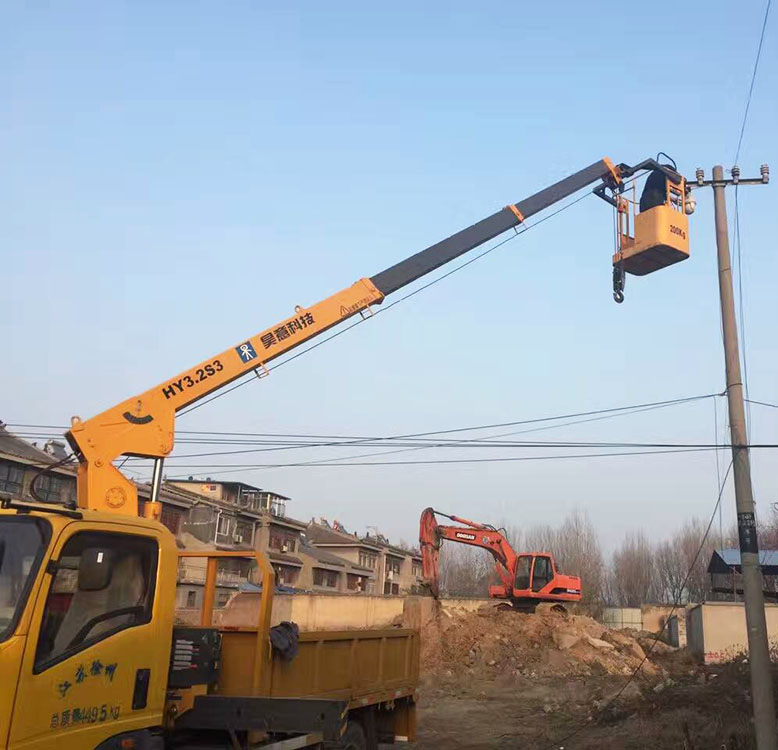

Self-locking aerial work basket

After the aerial work basket is installed, the crane becomes a multi-purpose work vehicle. It has the functions of loading, lifting, and high-altitude operation. It adopts wireless remote control operation system, which is safe, reliable, convenient and fast.
