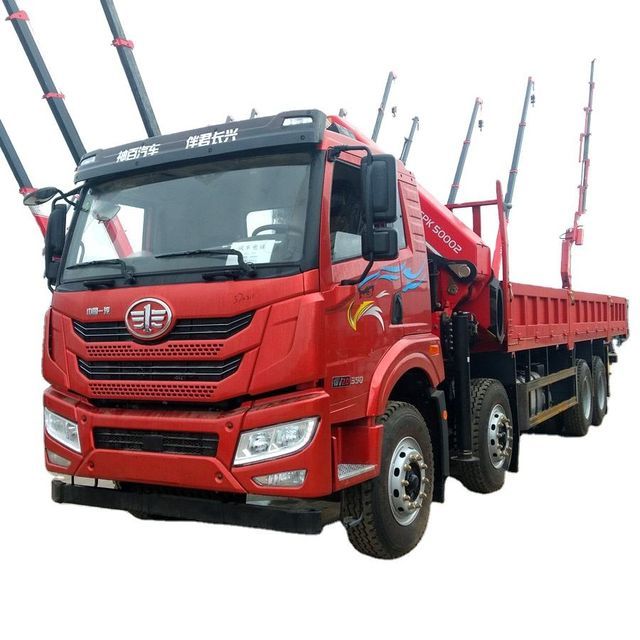

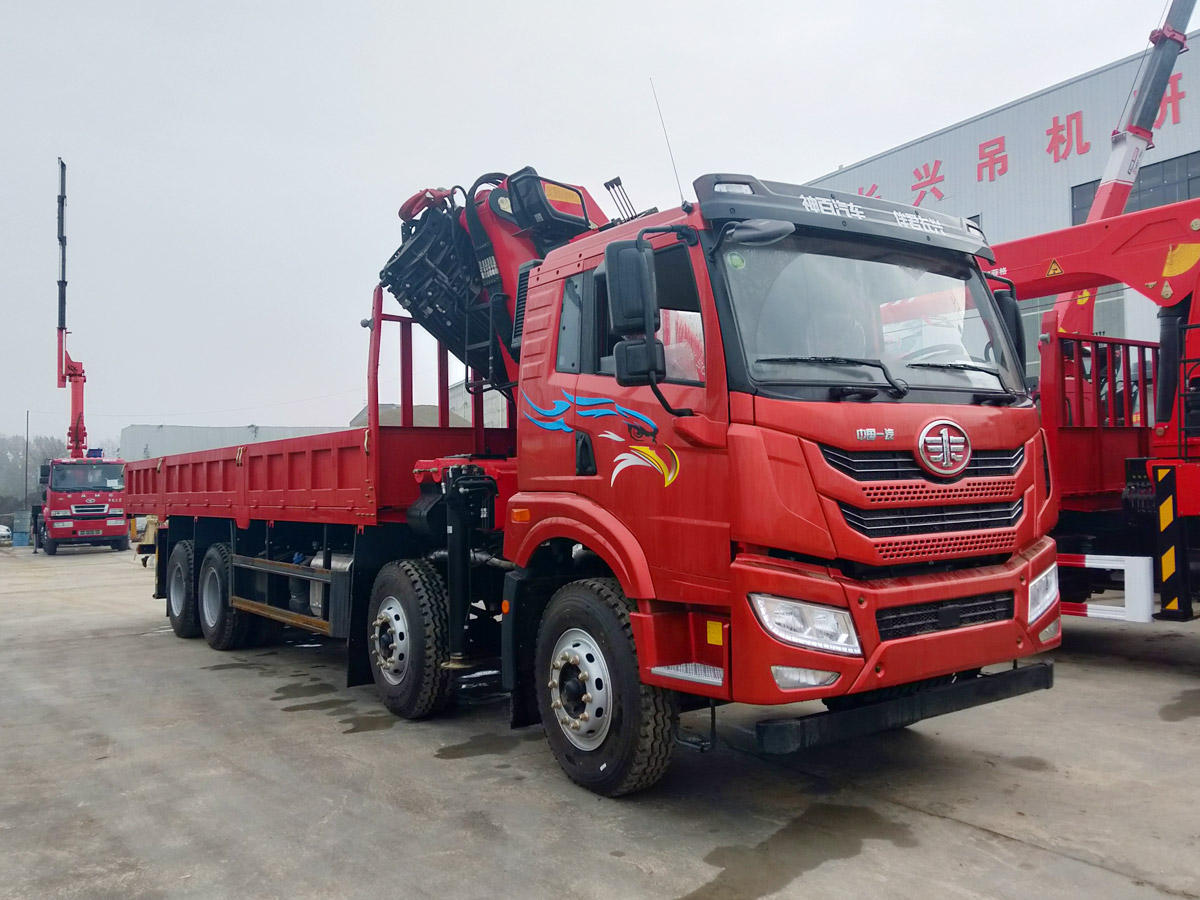

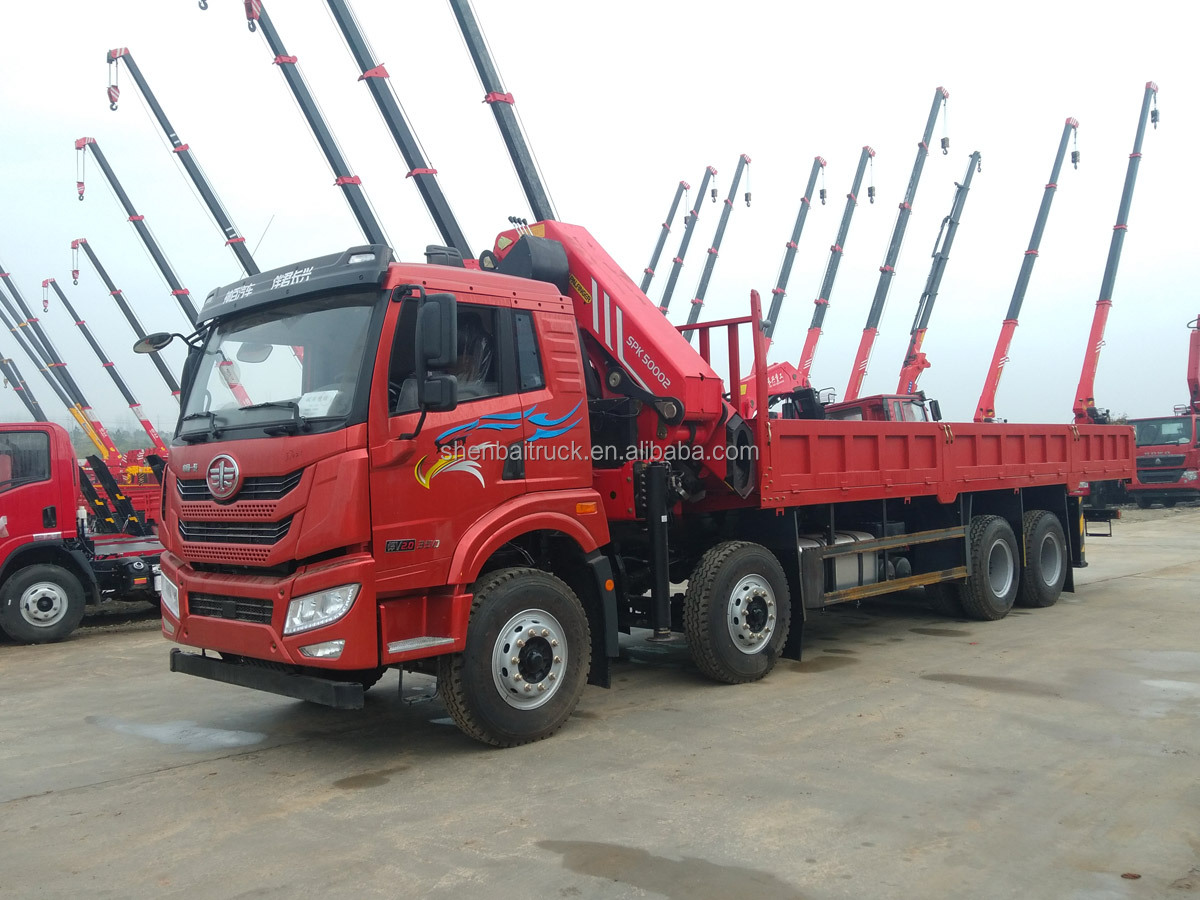

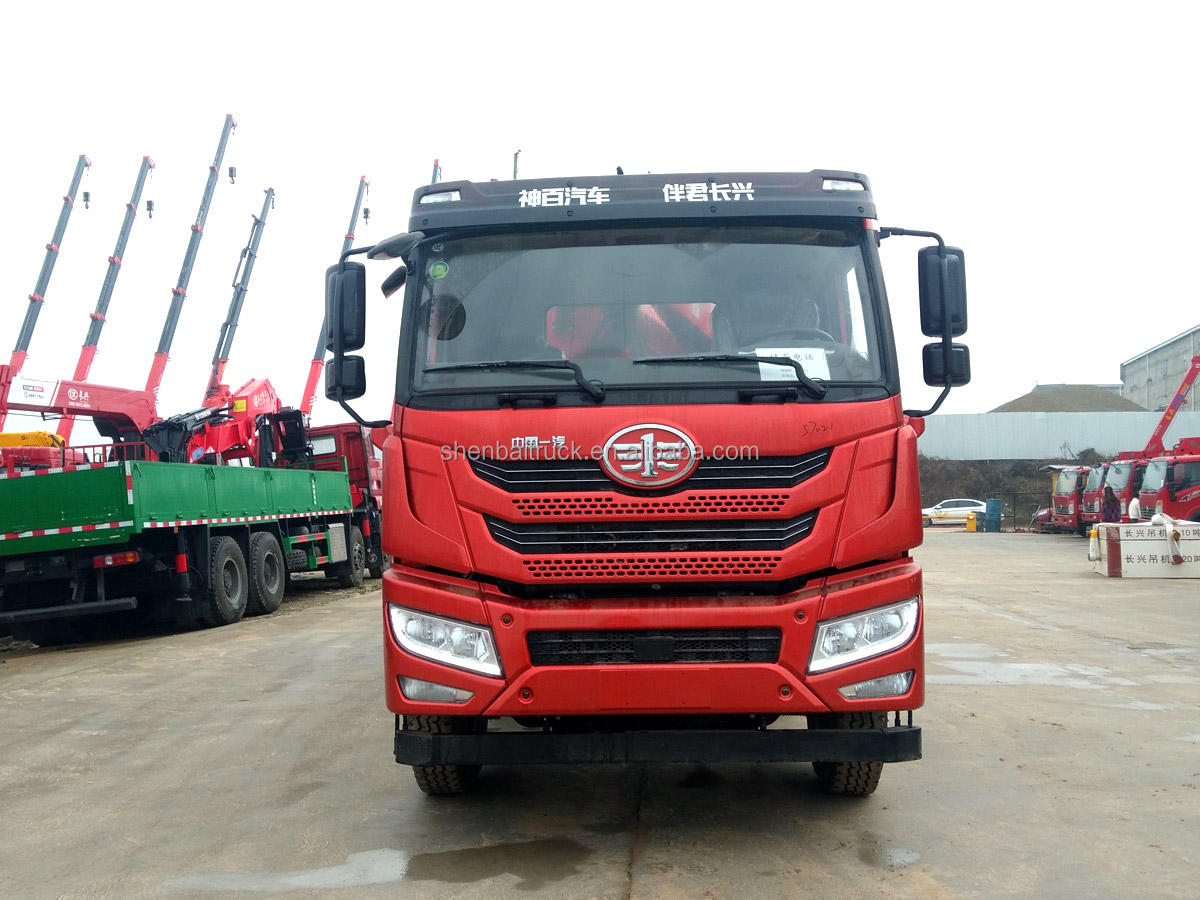

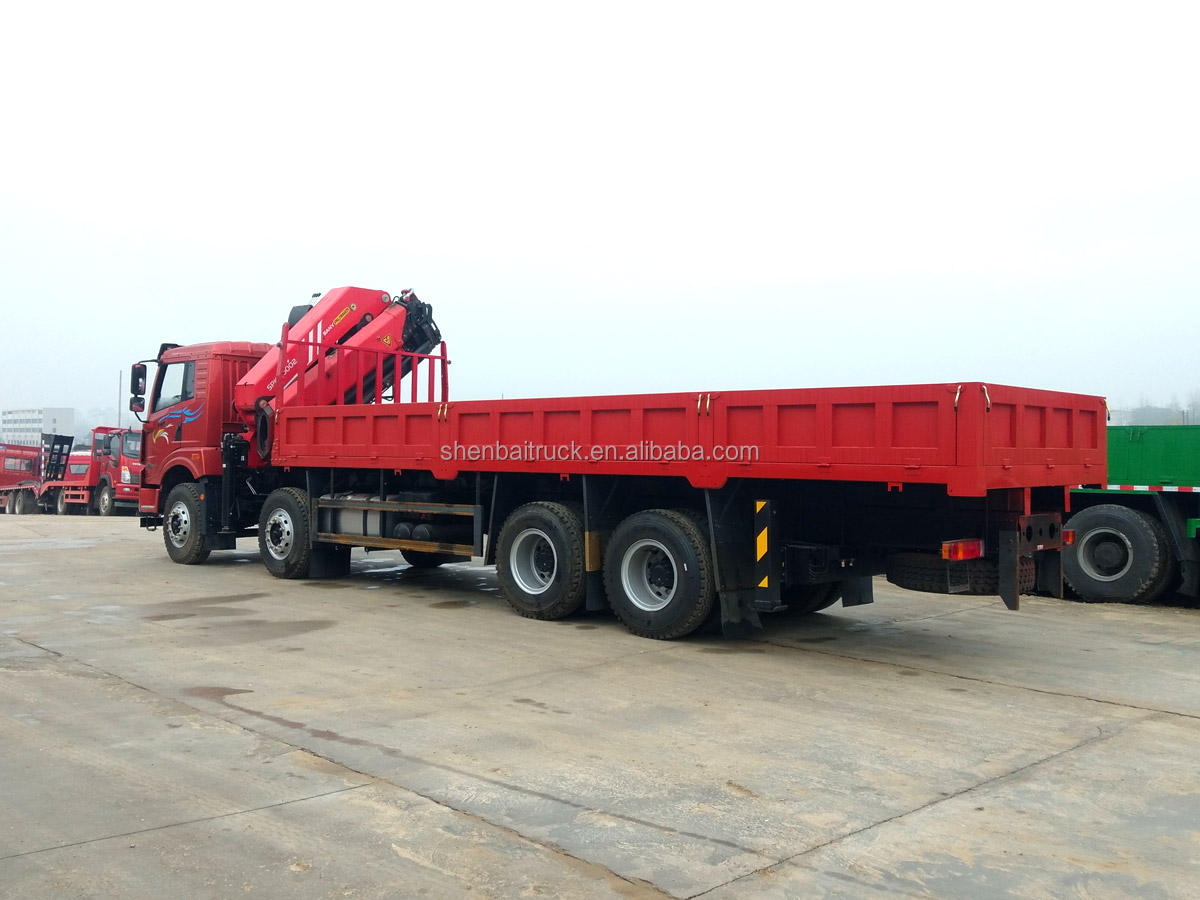

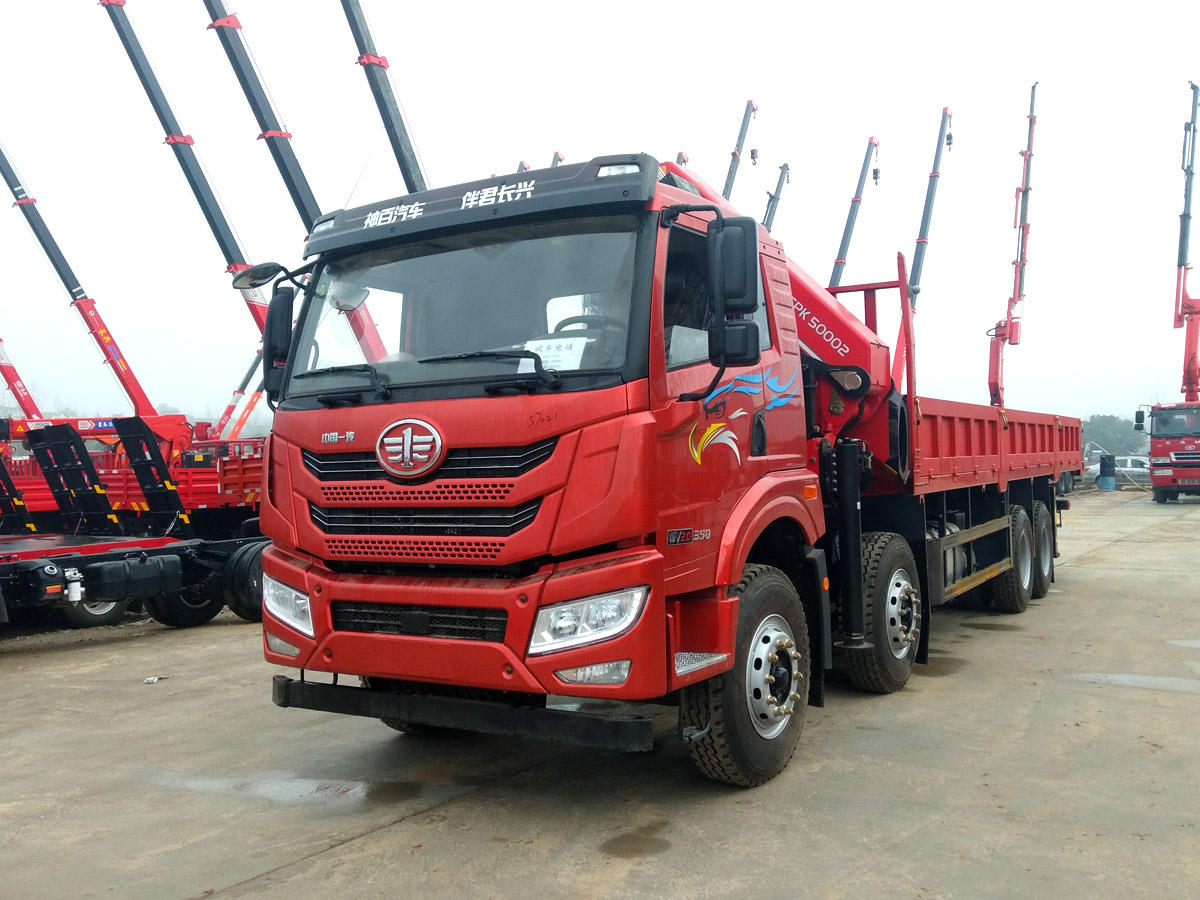

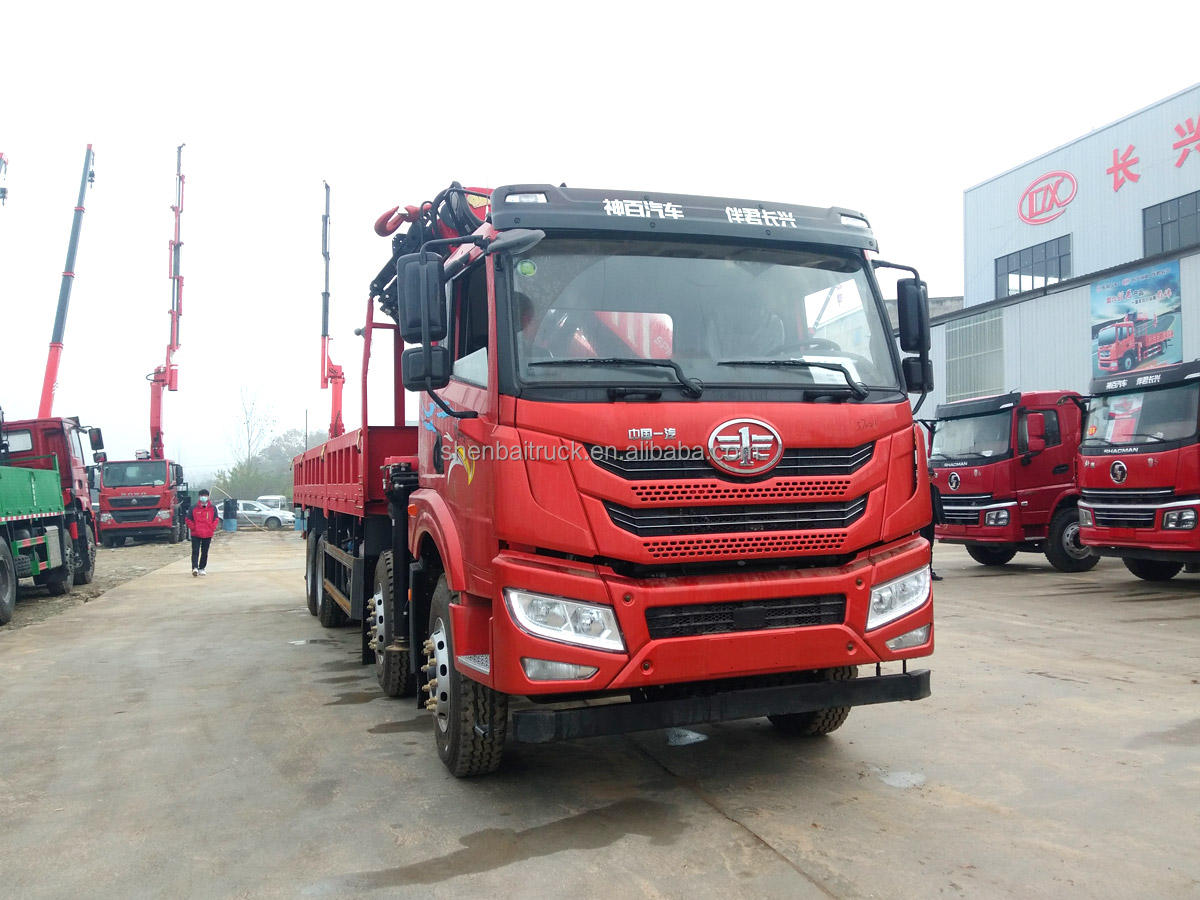

Lifting 12/16/18/20/25Tons Palfinger Palfinger Folding Boom Crane Hydraulic Truck Vinch FAW 8x4 Truck Mounted Crane

Supplier: Hubei Shenbai Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms Jennica Yang
Price: $40999.00 / 1 - 4 units
$35999.00 / 5 - 9 units
$30999.00 / >=10 units
Min. Order: 1 unit

Click here to contact

Product details

payment terms:	Letter of credit, wire transfer, MoneyGram	application:	construction and transportation
color:	Customer requirements	brand:	Shenbai
Place of origin:	Hubei, China	Rotation angle:	360) Spin all
Hydraulic valve brand:	Ward	Core component warranty:	1 year
Engine brand:	Dachai	Video outbound inspection:	if
Hydraulic cylinder brand:	Liyuan	product name:	FAW 8x4 truck equipped with 25-ton knuckle boom crane
feature:	Crane	Showroom location:	Philippines, Peru, Russia, Spain, Kenya, South Korea, Chile, Colombia, South Africa, Nigeria, Malaysia
Gasoline type:	diesel engine	Warranty:	1 year
Maximum lifting height:	18.2m	Hydraulic pump brand:	Ward
Crane type:	folding arm crane	Health status:	new
Core components:	Pressure vessels, motors, others, bearings, gears, pumps, gearboxes, engines, PLC	Driving type:	8X4 left-hand drive, right-hand drive
port:	Shanghai, Tianjin, Shenzhen, Ningbo	Maximum working radius:	14.3m
Rated load capacity:	20 tons	Unique Selling Points:	High load moment
Marketing type:	2020 new products	Weight (kg):	31000kg
Supply capacity:	200,000 units per year	Maximum lifting capacity:	25 tons
maximum. Lifting height:	18.2m	Mechanical test report:	if
span:	8300 mm	Rated lifting moment:	49 tons
Boom type:	6-section steering knuckle boom

Product Description

Lifting 12/16/18/20/25 tons Palfinger folding arm crane hydraulic truck crane FAW 8x4 truck mounted crane

Truck-mounted crane is the actual common name of crane. It is a kind of lifting machinery. It is a machine with cyclic and intermittent motion. It is widely used. Truck-mounted crane is mainly used for material handling. Its work is
It is characterized by intermittent movement in a work cycle, such as picking, shift change and other processes.
Transport, unloading and other mechanisms work alternately accordingly

Specification
thing	Specification	thing	Specification
Name	Lifting 12/16/18/20/25 tons Palfinger folding arm crane hydraulic truck crane FAW 8x4 truck mounted crane
chassis	FAW	gross weight	31000kg
Dimensions	1200025503950mm	Curb weight	11005kg
Wheelbase	2300+4200+1350mm	approach angle	19°
front rail	2020mm	departure angle	12°
rear track	1847 mm	front overhang	1375mm
Number of axes	4	Rear suspension	2575mm
Maximum speed	90km/h	tire quantity	12
Traction system	8×4	fetal	11.00R20 18PR
spread	manual	Taxi allowed passenger capacity	2,3
Engine brand	Weichai	type	diesel engine
Model	WP8.350E61	shift	7800ml
horsepower	350	Emission Standards	Euro 2/3/4/5/6
Maximum lifting capacity	25000kg	Rotation angle	360°
Maximum lifting moment	49 tons	Recommended power	257 kilowatts

Product configuration

Hydraulic engine

Hydraulic cylinder

heat sink

multi valve

Slewing ring

winch

jib

remote control

span hydraulic cylinder

1. Throttle control system
It changes the previous form of separate control and throttle operation, and realizes the synchronization of bilateral handles and automatic acceleration and deceleration of the driven throttle. Due to the smooth speed change, lifting work can be easily performed.

2. Automatic hooking device at terminal position
It saves the preparation time before and after the operation to the maximum extent, ensures that the customer's vehicle is in driving condition in the shortest time, prevents crane damage accidents caused by hoist swings, and enhances driving safety.

3. Lifting and rewinding device
If the user is negligent or unfamiliar with the operation of the hook, the lifting and winding device will stop the lifting of the hook in time to prevent the wire rope from breaking and causing personal and property safety.

4. Rotary locking device
The slewing locking device can ensure that the lifting arm will not shake due to centrifugal force during vehicle driving and turning, and avoid various accidents caused by shaking.

5.Torque limiter
The optional torque limiting overload protection device prevents users from overloading due to negligence or unfamiliarity with the principles of lifting operations, resulting in vehicle rollover and crane damage.

Product advantages

Certification

Our advantage

1. Single-cylinder synchronous cable technology makes work efficiency higher than before. 2. Advanced development methods ensure the reliability of the design. 3. The more symmetrical central design of the pentagonal and hexagonal arms gives them greater bending resistance. 4. Compact hinge design takes up less space. 5. Install an over-roll alarm device to make the work safer. 6. The integrated lifting winch greatly improves work efficiency and extends the service life of the hydraulic system. 7. Floating three-point bridge structure reduces additional stress on the chassis during driving. 8. The self-designed and developed rotary machinery has greater driving force and can meet the requirements of various working conditions. 9. Anti-rotation pulse device makes the vehicle safe to drive.

Product list: Crane truck series

Optional chassis brands: Isuzu, Dongfeng, FAW, JAC, SAC, JMC, Howo, Beiben... Optional crane brands: XCMG, Sany Heavy Industry, Changxing, Shimei... Optional crane type: available Extended straight arm/folding arm optional crane tonnage: 2 tons, 4 tons, 5 tons, 6.3 tons, 7 tons, 8 tons, 10 tons, 12 tons, 14 tons, 16 tons, 20 tons, 25 tons, 30 tons...
