Mini crane 800kg 1300kg 1800kg for pickup truck

Supplier: Xuzhou Haoyi Construction Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms sunny ji
Price: $4500.00 / 1 - 1 sets
$4350.00 / 2 - 2 sets
$4100.00 / 3 - 9 sets
$2800.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Hot Product 2019;	Packaging Detail:	nude, spare parts and tools into standard exporting cases;
Core Components:	Pump;	Payment Terms:	T/T,Alibaba Payment,Credit Card Payment;
Hydraulic Cylinder Brand:	haoyi;	Machinery Test Report:	Provided;
Hydraulic Valve Brand:	haizhou;	Package Preview:	;
Rated Loading Capacity:	800/1300/1800kg;	Span:	590mm;
UNIQUE SELLING POINT:	Wireless remote control;	company type:	manufacturer;
Port:	SHANGHAI/LIANYUNGANG/qingdao;	COLOR:	CUSTOMIZED;
After-sales Service Provided:	Overseas service center available;	Max. Lifting Height:	7.5m;
Engine Brand:	not;	Application:	0~5.6m;
Showroom Location:	None;	Condition:	New;
Supply Ability:	50 Sets per Month;	Warranty of core components:	1 Year;
type:	wagon crane;	Video outgoing-inspection:	Provided;
Brand Name:	HAOYI;	Rated Lifting Moment:	1~3 t.m;
Warranty:	1 Year;	Hydraulic Pump Brand:	Liyuan;
Weight (KG):	280 kg;	Feature:	TRUCK CRANE;
Place of Origin:	Jiangsu, China;	feature:	customized fatory;

Product Description

Item	Unit	HY08Z4
Max.Lifting Moment	Ton . M	1.0
Max.Working Radius	M	3.6
Max.Working High	M	5.5
Slewing Angle	。	360°
Installation Space	Mm	400
Outrigger Span	Mm	2100
Crane Self Weight	Kg	260

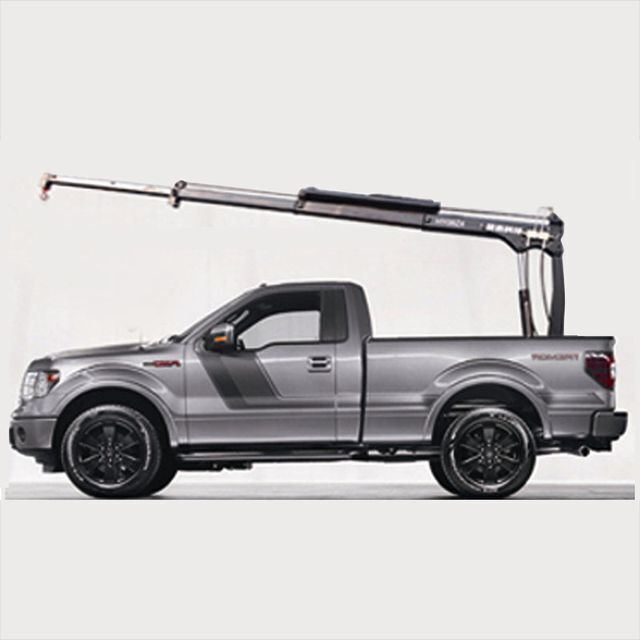

Mini crane 800kg 1300kg 1800kg for pickup truck or light trailer

0.8 ton mini pickup truck crane , container crane with knuckle booms0.8 ton mini pickup truck crane , container crane with knuckle booms

Physical Photos

Our Advantages

Wireless remote control

(optional)

Pickup crane standard handle operation, you can also choose to install additional wireless remote control. The operation is more convenient, safe and efficient.

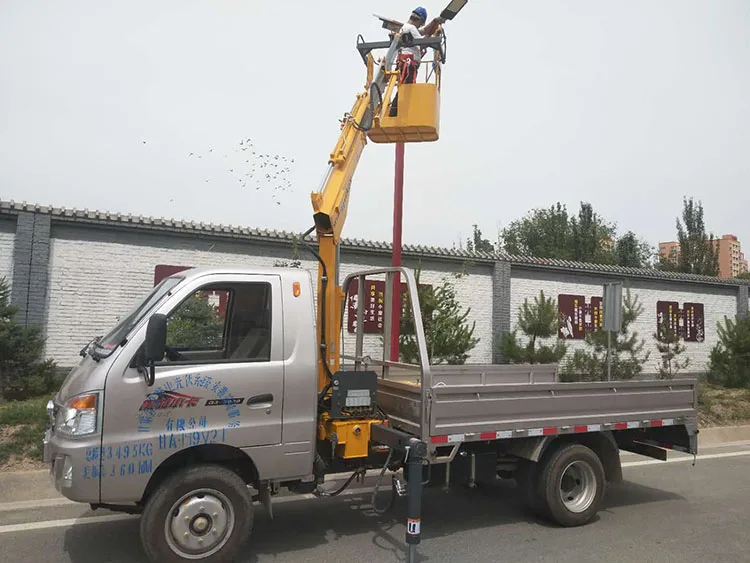

Self-locking Basket(optional)

The crane has become a multi-purpose operation vehicle after installing the aerial work basket. It has the functions of cargo loading, lifting and aerial working, and uses wireless remote control operation system, which is safe, reliable and convenient
