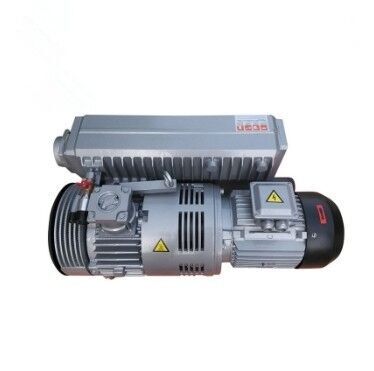

XD Series Rotary Vane Vacuum Pump Overview

XD series vacuum pump is single-stage rotary vane oil-sealed vacuum pump. It can be used separately or as backing pump for vacuum pump, mechanical booster pump, and turbo molecular pump.

XD series vacuum pumps adopts foreign advanced technology,its wearing parts are imported from abroad. It can absolutely replace the similar foreign pump.

Application

XD series vacuum pumps are suitable for low and medium vacuum fields, which are mainly used for pumping air and other dry gases rather than corrosive, toxic, flammable and explosive gases. Furthermore, they cannot pump the gases containing tiny particles or dust and cannot transport other small objects.

XD series vacuum pumps can work for long term in the well-ventilated room with ambient temperature of 5-30 ℃ and with humidity ≤80%.

In addition to the above applications, the XD series vacuum pumps can be available other applications, such as:

1. To increase the amount of the pumping gas and to improve the vacuum degree, please combine with Roots pumps to form a unit for this.

2. If pumping moist air or condensable gas, the condenser can be installed before the vacuum pump and the gas ballast valve is installed on the vacuum pump.

3. If pumping the gases containing dust particles, the dust filters can be installed in front of the vacuum pump.

4. If pumping the corrosive gases, the corrosion-proof gas filter can be installed in front of the vacuum pump.




Application Industry

Packing,sticking

---packaging used by vacuum or inert gases for varied food,metal items and electronic elements

---sticking for photographs and advertisement sheets

Lifting,transporation,sticking,loading/unloading

---lifting of glass plate

---sticking of board,plastic plank

---loading/unloading of non-magnetic item

---loading/unloading and transportation of paper sheets and paper boards in paper making and printing industry

---transportation of powder materials

Drying,air-eliminating,dipping

---dipping and drying of electronic elements

---aireliminating of moulds,dopes and vacuum furnace

Others

---labotary devices.

---medical treatment devices

---freon recycling

---vacuum heat treatment

Memo

Lead time: around 15 days if quantity less than 50 units, if quantity more than 50 units, please confirm with us.

Voltage: 380V,50HZ,3 phase (if special voltage is required, please let us know)

We are in customized business, if special motor, color or material is needed, we can make it according to customer's requirements

If you have any questions about product details, shipping, price term or payment term, please contact our email: info@doctorpump.cn
