High Quality Multi Purpose Anti Theft Energy Meter Smart Electricity Meter Active Measurement Stop Digital Electric Meter
- 2.00 >=200 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Place of Origin: | Zhejiang China (Mainland); | Output Voltage: | 220v/230v/240v; |
| Model Number: | DDSD285P; | Packaging Detail: | each piece per inner box, boxes to standard export carton; |
| Display Type: | Analog and Digital; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Dimensions: | 50/60 Hz; | Desc: | DDSD285P series Multi-function Energy Meter; |
| Operating Temperature: | -40℃ to 70℃; | Supply Ability: | 20000 Piece/Pieces per Day -; |
| Accuracy Class: | 1.0; | Measuring Energy Range: | 0-999999; |
| Brand Name: | HF-SHAW; | Port: | Shanghai , Ningbo; |
| Phase: | Single Phase; |
HF-Shaw Electric
Product Description
>>Introduction

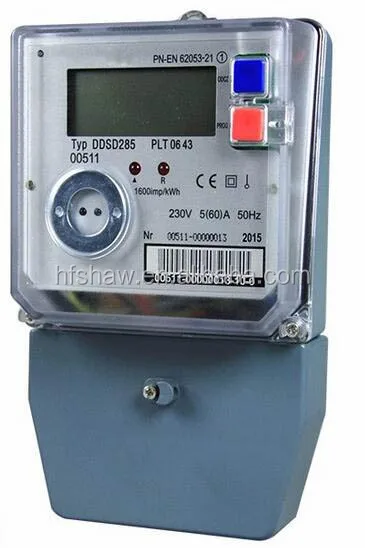

DDSD285 (P) Single Phase Meter is aresidential meter. The meter measures and records active energy,active maximum demand and real time values of the power grid with T O U features.Data and parameters are displayed on LCD and can be read out through optical port or RS485 port. The user's power consumption can be checked by analyzing historical data and load profile. Event log Of the meter helps determine the meter status as well a spower grid conditions.

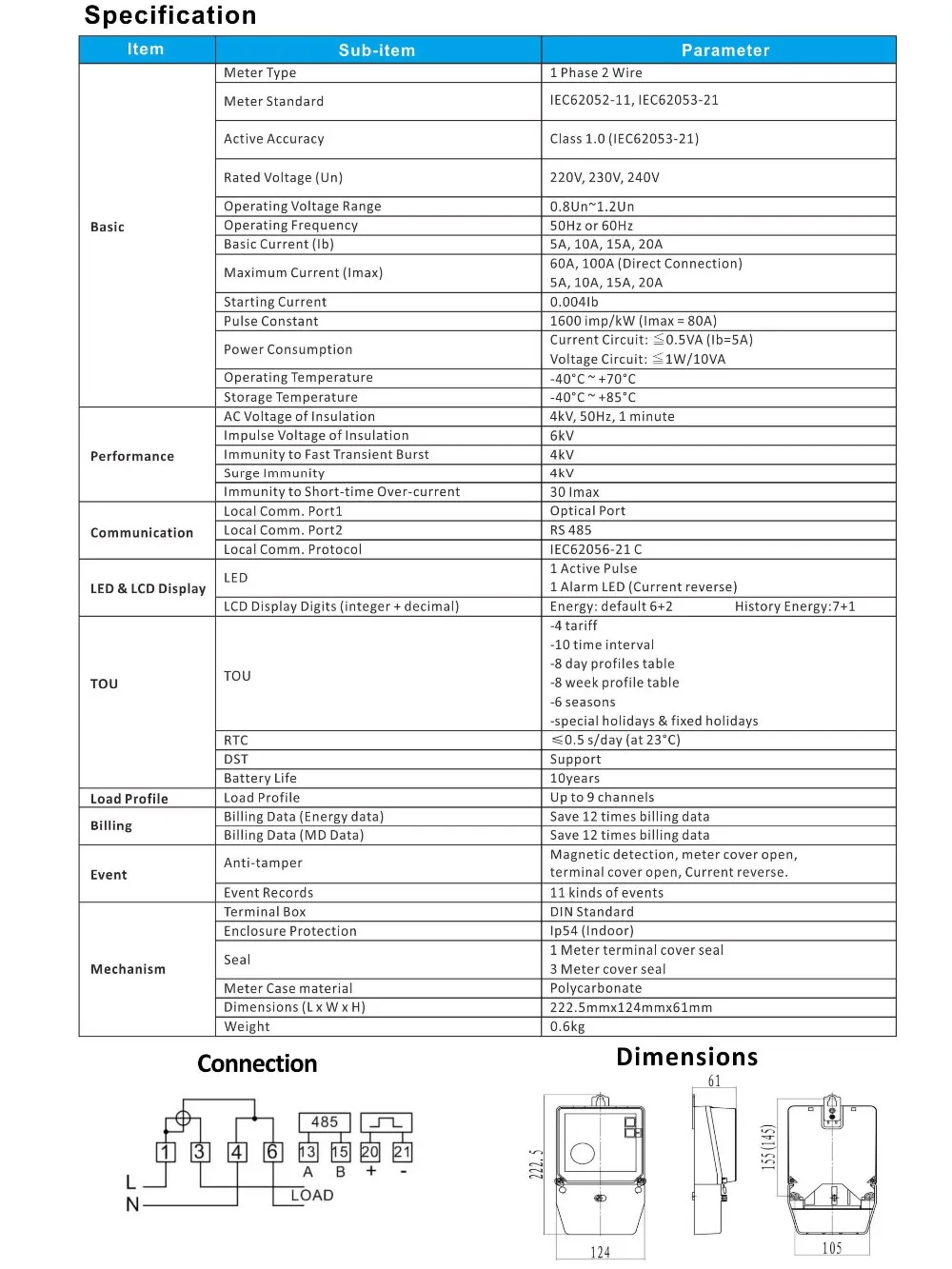

>>Specification
Detailed Images

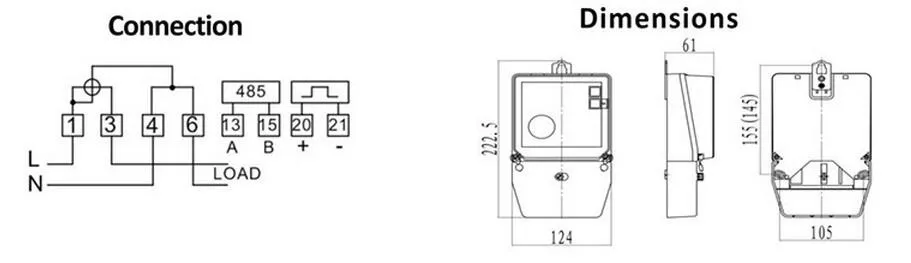

>>Outdraw Dimension
