CE automatic airport luggage packing machine

Supplier: Shandong China Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Emily Du
Price: $1600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 sets of automatic airport luggage packing machines with CE per month	Warranty:	2 years
Package size (LWH):	(0.25-1.2m)L * (0.2-0.5m)W * (0.25-1m)H	counter:	Check how many bags there are in total
Video external inspection:	if	Main selling point:	easy to operate
weight:	260kg	type of packaging:	Carton, Can, Bottle, Bag, Film, Aluminum Foil
Auto grade:	automatic	Materials used for packaging:	plastic paper
Dimensions (LWH):	1710mm X 710m X 1750m	Applicable industries:	Hotels, Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Farms, Retail, Food Stores
Certification:	Chief Executive	Voltage:	110V/ 220V/50HZ or 60hz
Showroom location:	UK, USA, Italy, Germany	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
application:	Food, Beverage, Medical, Chemical, Apparel	Core Components Warranty:	2 years
Packaging Details:	Wooden case automatic airport luggage packing machine with CE	Control System:	programmable logic controller
After-sales service provided:	Online support, video technical support, free spare parts, on-site installation and commissioning training	Turntable speed:	50 rpm
Packaging Preview:		Drive Type:	electrical
Turntable Material:	SS304	Stretch film:	Width: 500mm; Thickness: 23 microns; Length: 1600m
Local service location:	England America	port:	Qingdao Shanghai Ningbo Guangzhou
type:	Packing Machine	Packaging efficiency:	40-60 bags/hour
brand:	China Nonferrous Metals Group	payment terms:	T/T, Western Union
Turntable maximum load:	100 kg	Diameter of turntable:	500mm
Marketing Type:	New Products 2020	Core components:	PLC, motor, gearbox
Mechanical test report:	if	place of origin; place of origin:	Shandong China
Health status:	new

Product Description

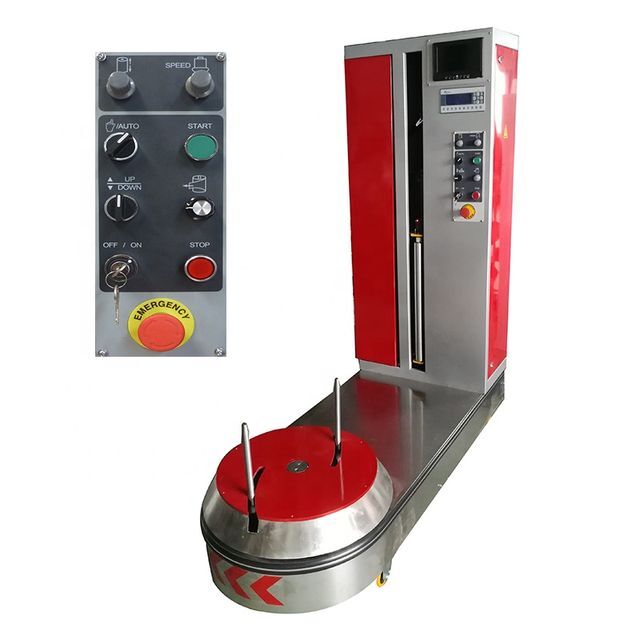

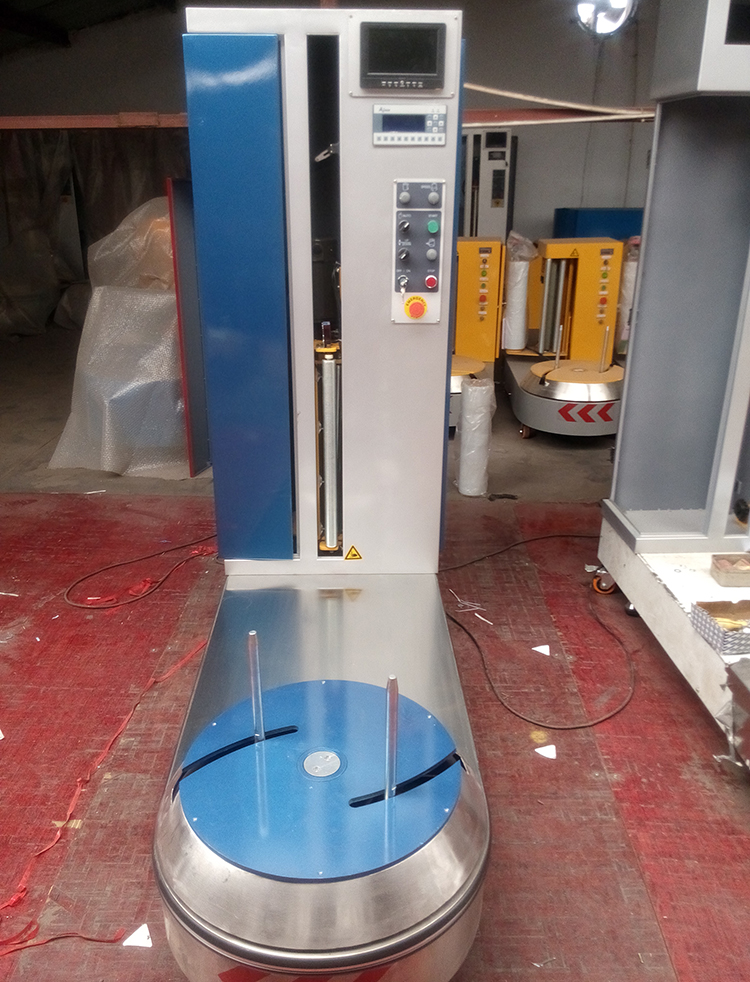

CNMC Airport Baggage Automatic Packaging Machine Sales

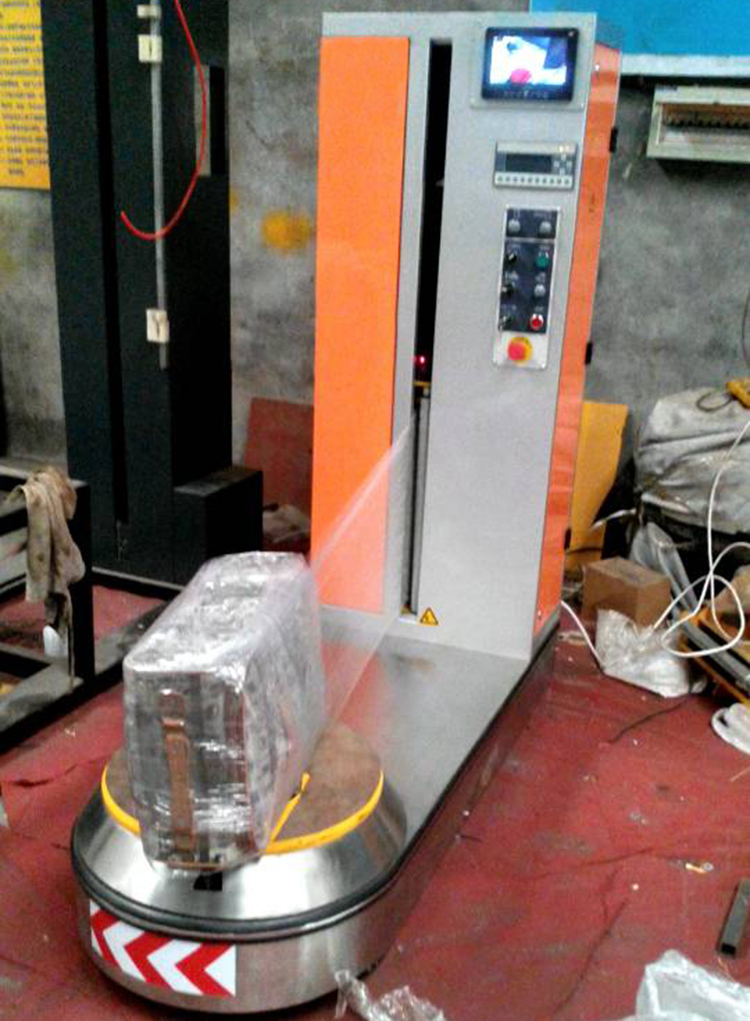

Airport, hotel luggage packers are specially designed for the safe packing of luggage, luggage, boxes and related items. The stretch film provides extra support during luggage/baggage transportation to protect them from damage, and the plastic and closure tags cannot be removed and replaced by thieves. In addition, wrapped luggage can be easily separated and identified. This machine has four wheels for easy mobility.

technology

technical parameter:

Model	HT600F-L
Size of luggage to be wrapped
*Maximum luggage size (LWH)*	*(250-1200)mm(200-500)mm(250-800)mm*
maximum load capacity	100kg
counter	See how many bags there are in total
Machine Specifications
Turntable speed	3-50 rpm adjustable
Turntable diameter	500mm
Turntable height	400mm
Car rise/fall speed	adjustable
Control System	PLC control
Voltage	220v/110v 1 phase 50/60hz
strength	1.2kW
packaging efficiency	50-70/hour
Machine size	1650mm600mm1700mm(LWH)
machine weight	245kg
Stretch film roll size
Maximum outer diameter (D)	230mm
Inner diameter (d)	76mm
Film height	500mm
Film thickness	17-35 microns
optional

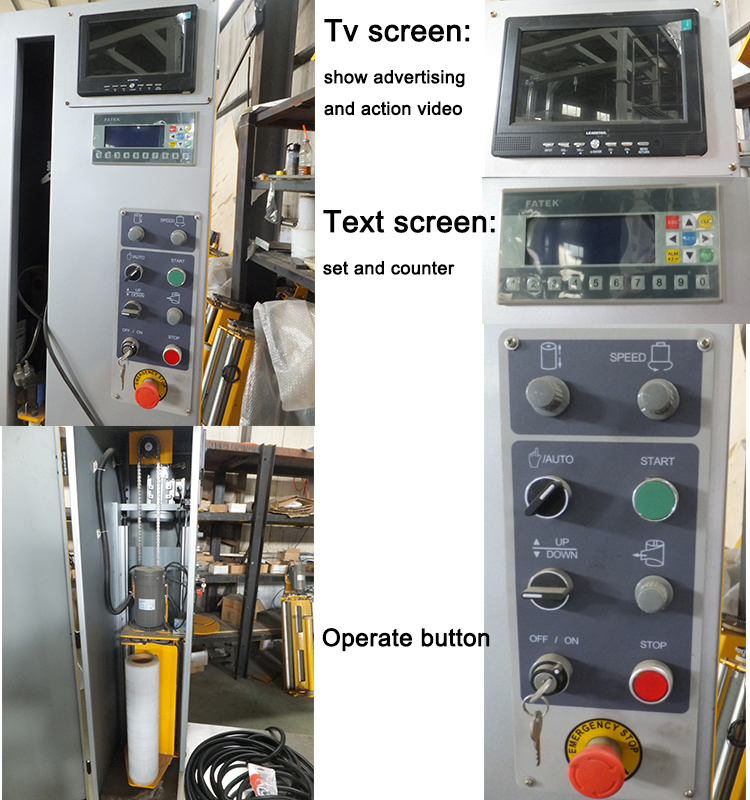

With screen: see how the machine operates; display advertisements

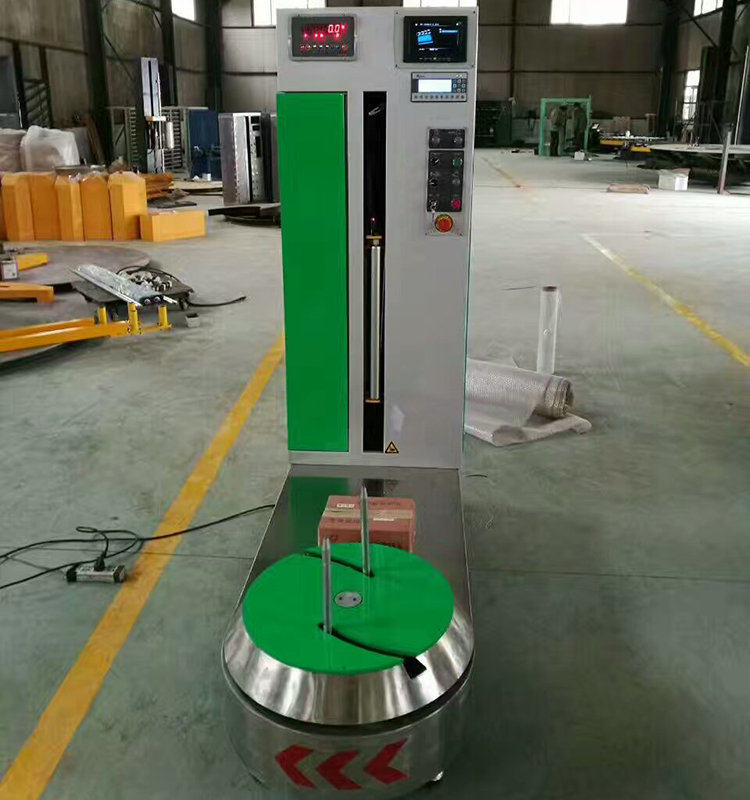

With scale: Check luggage weight
with foot switch
Color: Choose orange, red, green, blue
Buy machine get 1 film test machine
