Automatic Box Cellophane Packaging Machine Poker Soap Perfume Box Packaging Machine Cellophane Packaging Machine

Supplier: Shanghai Pingqiang Packaging Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr mike zhang
Price: $8820.00 / 1 - 1 sets
$8280.00 / 2 - 4 sets
$7380.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Origin:	Shanghai	Showroom location:	not any
Packaging Materials:	BOPP film and gold tear tape	Marketing Type:	Hot Products in 2022
Core components:	PLC, gear, motor, bearing, gearbox	type:	winding machine
Main selling points:	easy to operate	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
MOQ:	1	brand:	PQ package
Voltage:	220V	payment terms:	L/C, T/T

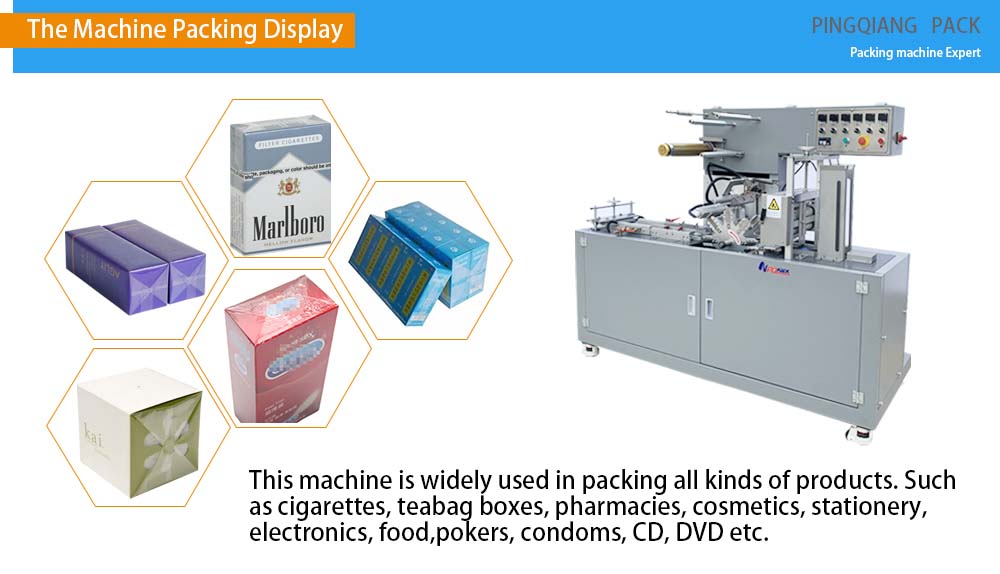

application:	Daily necessities, medical treatment, chemical industry, clothing	Driver type:	pneumatic
Power supply and electricity:	220V 50Hz 5kw	Mechanical test report:	if
Maximum package size:	(L) 60-240 (W) 30-120 (H) 10-60mm	product name:	Cellophane Packaging Machine
type of packaging:	carton, box	Automatic level:	fully automatic
weight:	450 kg	Warranty:	1 year
Video shipment inspection:	if	After-sales service provided:	Online support, video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services
Packing speed:	40~80 packs/min	Core component warranty:	1 year
Health status:	new	Dimensions (LWH):	1885mm720mm1560mm
Certification:	CE certification	Applicable industries:	Manufacturing plants, machinery repair shops, food and beverage plants, food stores, printing shops, food and beverage stores
Local service location:	not any	Materials used for packaging:	BOPP film

Product overview

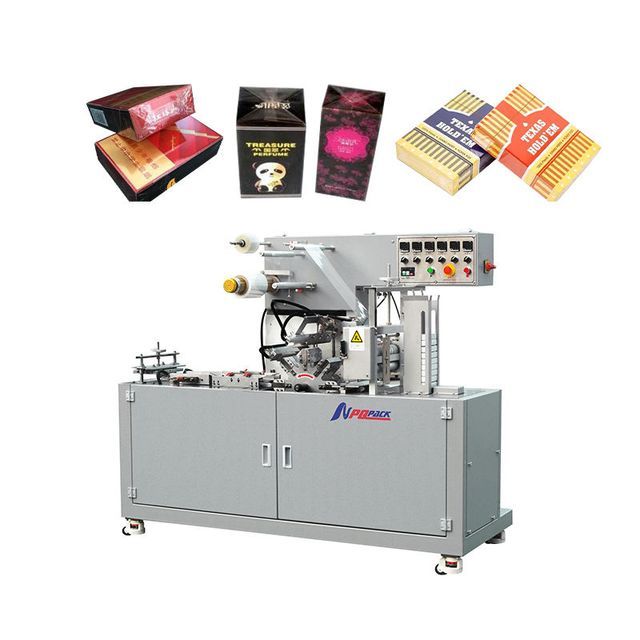

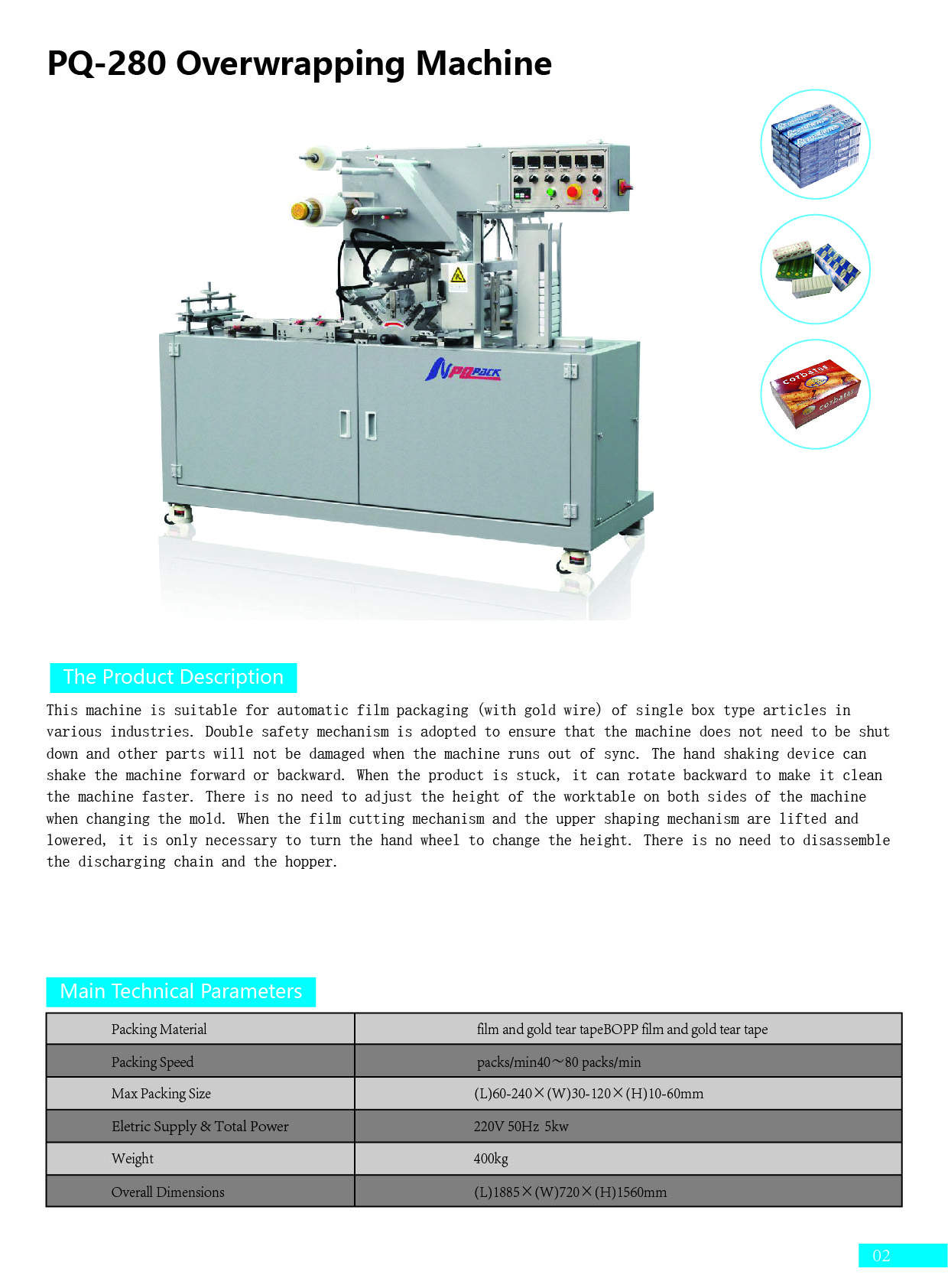

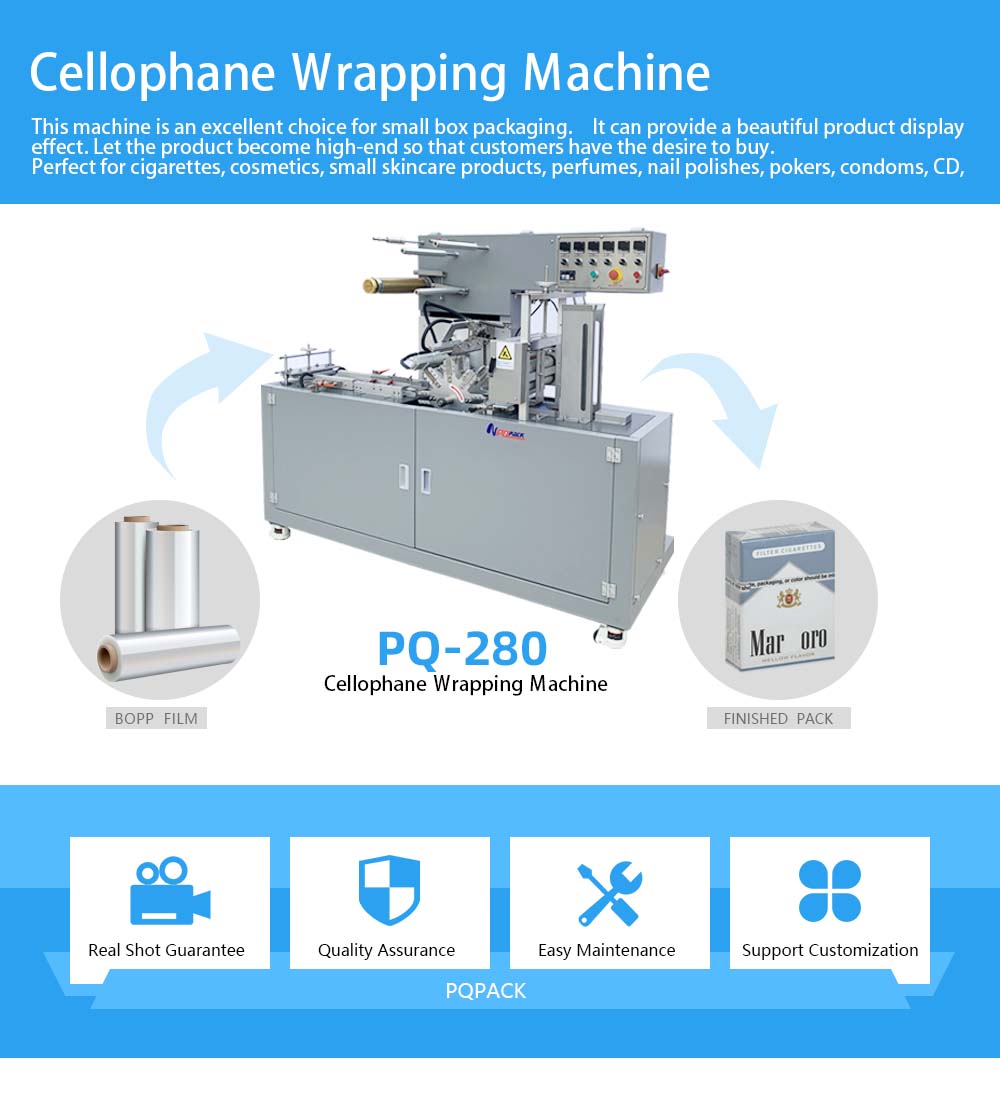

PQ-280 cellophane winding machine

This machine is suitable for automatic film packaging (gold wire) of single box items in various industries. With double safety mechanism, there is no need to stop the machine when it is out of sync, and it will not damage other parts. The manual device can shake the machine forward or reverse. When the product gets stuck, it can rotate in reverse, making it faster to clean the product. There is no need to adjust the height of the working table on both sides of the machine when changing the mold. When lifting the film cutting mechanism and the upper iron plate, only need to turn the hand wheel to change the height. There is no need to disassemble the discharge chain and discharge hopper.

List of functions

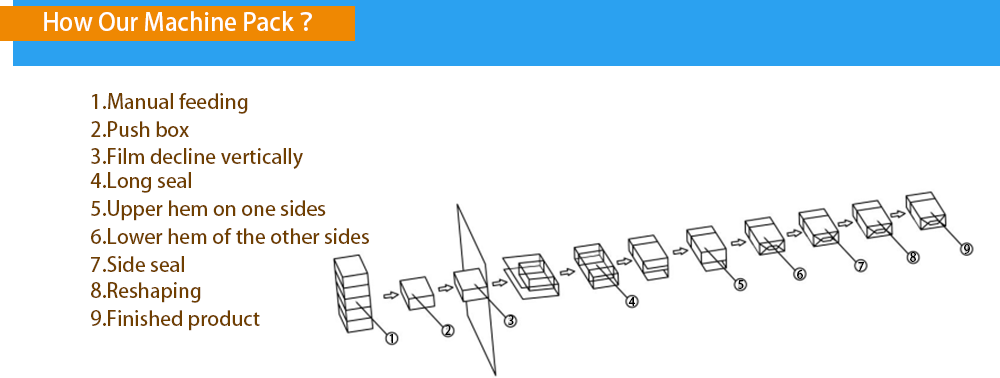

1. This machine is a fully automatic high-speed transparent film packaging equipment, which adopts the horizontal push packaging method. All wrapping and heat-sealing actions are completed by cam and cylinder transmission, which has the characteristics of high speed and stable operation.

2. Change the mold to pack items of different sizes. The newly designed quick-adjustment structure makes it more convenient and quick to replace the mold.
3. This machine adopts all-aluminum oxide film cutter holder and single-rotation film cutter. The cut film is accurate and flat, and there is no need to replace the film cutting mechanism for large and small products.
4. Adopt frequency converter to adjust the packing speed, which can reach 30-70 packs/minute according to different packing items.
5. Equipped with double-sided anti-wrinkle device, which makes the film packaging more personal and more beautiful.
6. Quick disassembly and assembly of the cable reel, with composite glue laser anti-counterfeiting function
The unpacking line really plays the role of anti-counterfeiting and moisture-proof.
7. This machine adopts two kinds of feeding mechanisms, automatic feeding and manual feeding. Automatic feeding can be connected with fully automatic unmanned production line.
8. The automatic feeding mechanism has the function of stopping when the box is used up, and is equipped with a blocking torque overload protection device and an upper and lower double layer air blowing auxiliary film lowering device.
9. Imported stainless steel integrated panel is used, and an integrated electric box is installed on the top (with
completely isolated electrically and mechanically).
10. The whole machine adopts acrylic safety cover.

product specification

No	thing	data
1	Packaging Materials	BOPP film and gold tear tape
2	packing speed	40～80 packs/min
3	Maximum package size	(L) 60-240×(W) 30-120×(H) 10-60mm
4	Power and total power	220V 50Hz 5kw
5	machine weight	400 kg
6	Machine size	(L) 1885×(W) 720×(H) 1560mm

product configuration

No	thing	brand
1	Time Relay	Omron (Japan)
2	time relay base	Omron (Japan)
3	intermediate relay base	Omron (Japan)
4	Temperature Controller	Taisong
5	inverter	Zhongchen
6	MCB	Schneider
7	emergency button	Schneider
8	run/stop button	Schneider
9	2 position selector switch	Schneider
10	switching power supply	Schneider
11	mains disconnect switch	Schneider

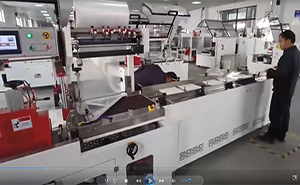

successful project

PQ-280 Cigarette Packing Paper

Side seal packaging machine

PQ-450 Cellophane Winding Machine

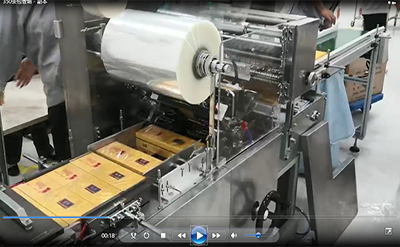

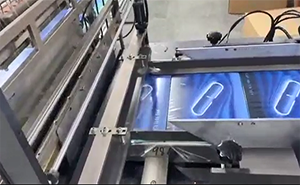

If you need any video please contact us. We will send you the original video. We support all kinds of cellophane packaging machines and shrink film packaging machines in China.
