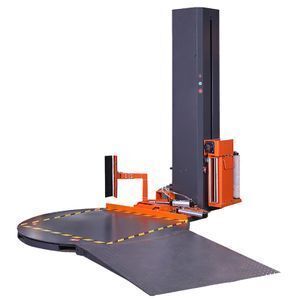

Pallet Stretch Wrapping Machine Wrapper

Supplier: Shandong China Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Emily Du
Price: $2100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Pallet Stretch Wrapping Machine Wrapper;	Package Preview:	;
Machinery Test Report:	Provided;	Warranty:	1 Year Guaranette,1 Year;
Key Selling Points:	Easy to Operate;	Certification:	CE;
Brand Name:	CNMC;	Place of Origin:	Shandong China;
Video outgoing-inspection:	Provided;	After Warranty Service:	Video technical support,Online support,Spare parts;
Payment Terms:	L/C,T/T,Western Union;	Condition:	New;
Model:	HT1650F;	Weight:	650kg;
Driven Type:	Electric;	Type:	Wrapping Machine;
Packaging Detail:	Wooden box;	Marketing Type:	Hot Product 2019;
Port:	Tianjin,Qingdao,Shanghai;	Packaging Type:	Cartons,Barrel,Bags,Film,Foil,Belt,Pouch;
Showroom Location:	none;	Local Service Location:	none;
Core Components:	PLC,Motor;	Voltage:	220V/50hz;
Application:	Food,Beverage,Commodity,Machinery & Hardware,APPAREL,Textiles;	Dimension(LWH):	2650mm1650mm2400mm;
Supply Ability:	200 Set/Sets per Month;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Packaging Material:	plastic;	Packing material:	Film;
Automatic Grade:	Automatic;	Warranty of core components:	1 Year;
After-sales Service Provided:	Online support,Video technical support,Free spare parts;

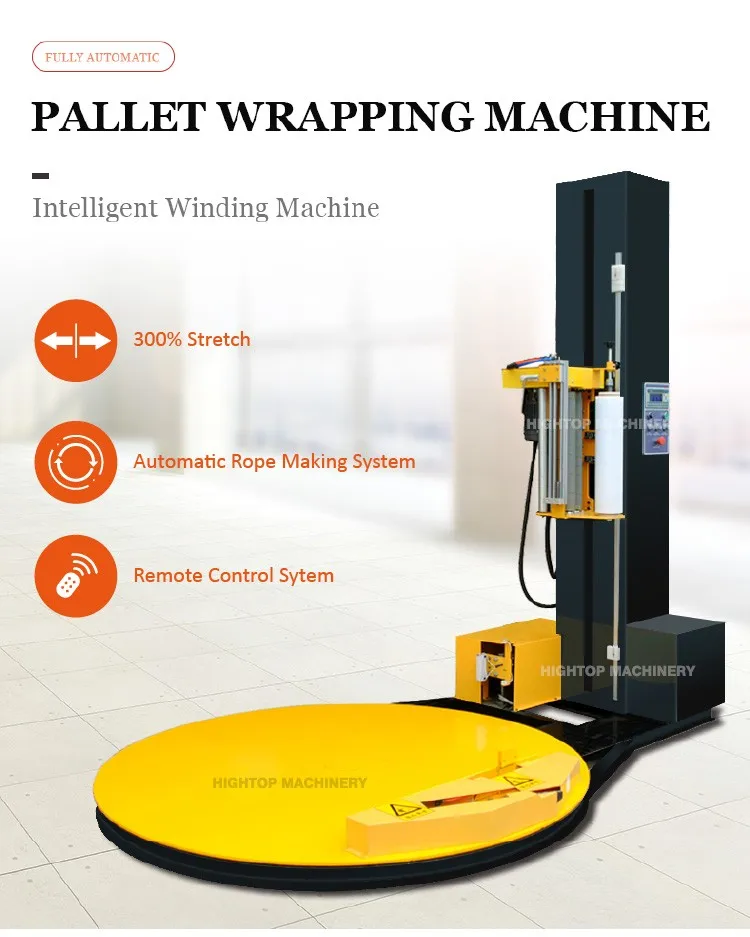

Product Description of Fully Automatic Pallet Stretch Wrapping Machine

Pallet Stretch Wrapping Machine Wrapper

Automatic stretch pallet wrapping machines work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support while the products being transported or stocked so that they do not tip, spill, or otherwise damage.

It is widely used in chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drink etc, especially the container goods transportation in foreign trade.

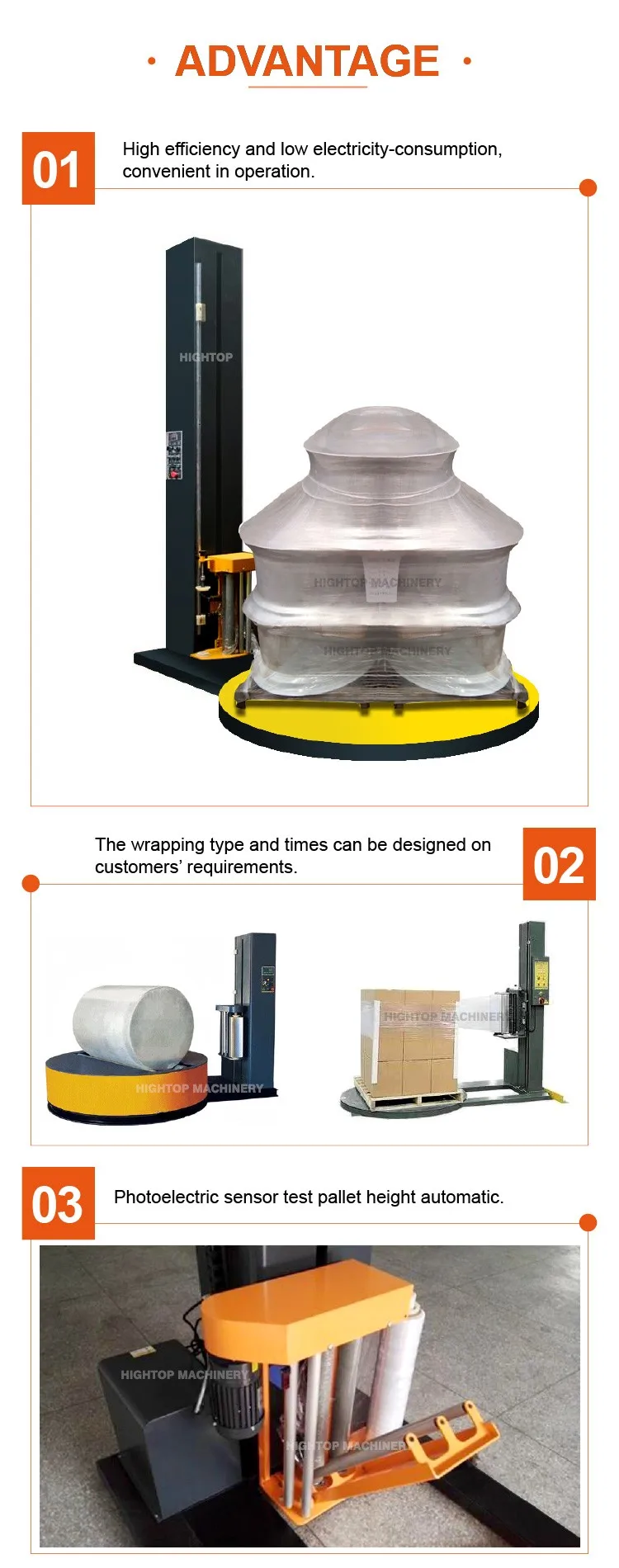

Feature:

1.Heavy load capacity

2.Variable turntable speed and film carriage up down speed

3.Manual/auto exchange

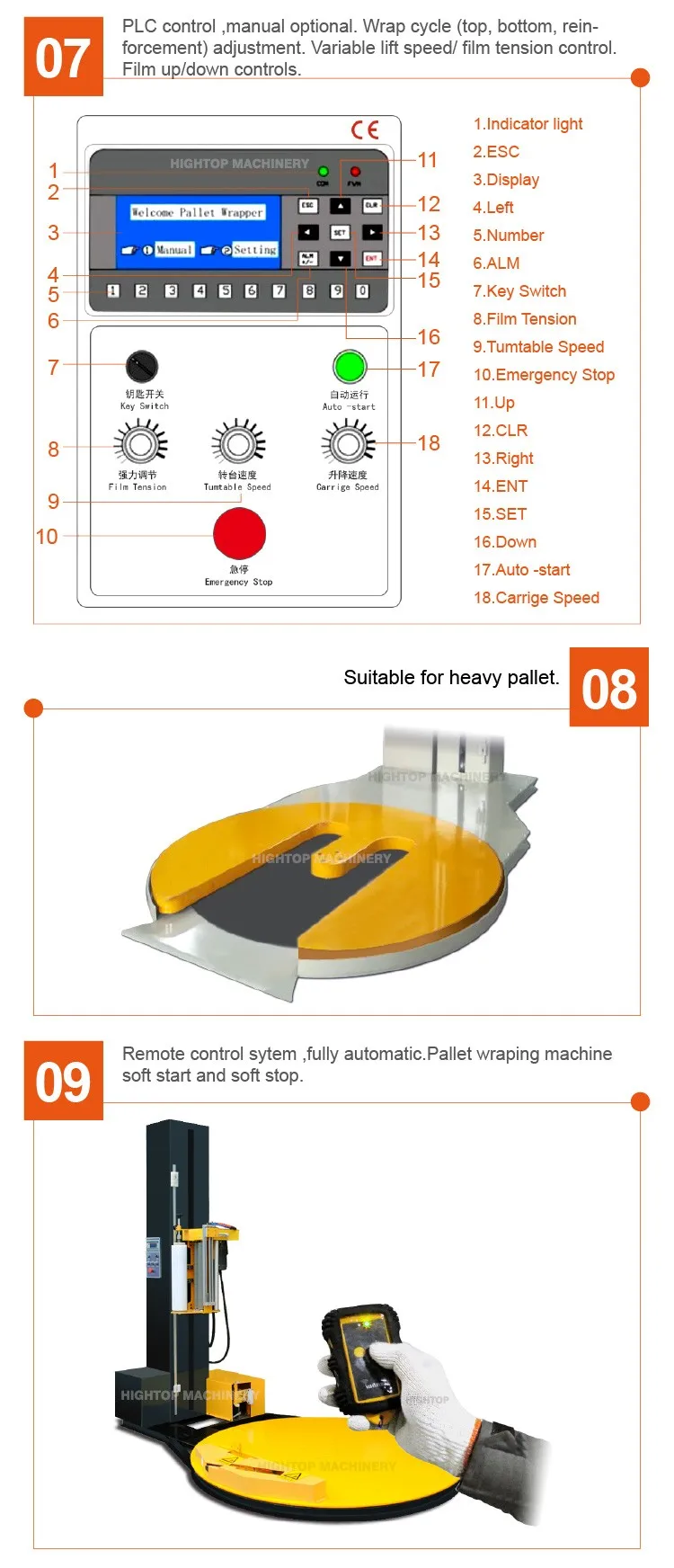

4.PLC control,wrapping cycle can setting,more economic

5.Pre stretch film carriage,save more stretch film

6.Soft start,soft stop

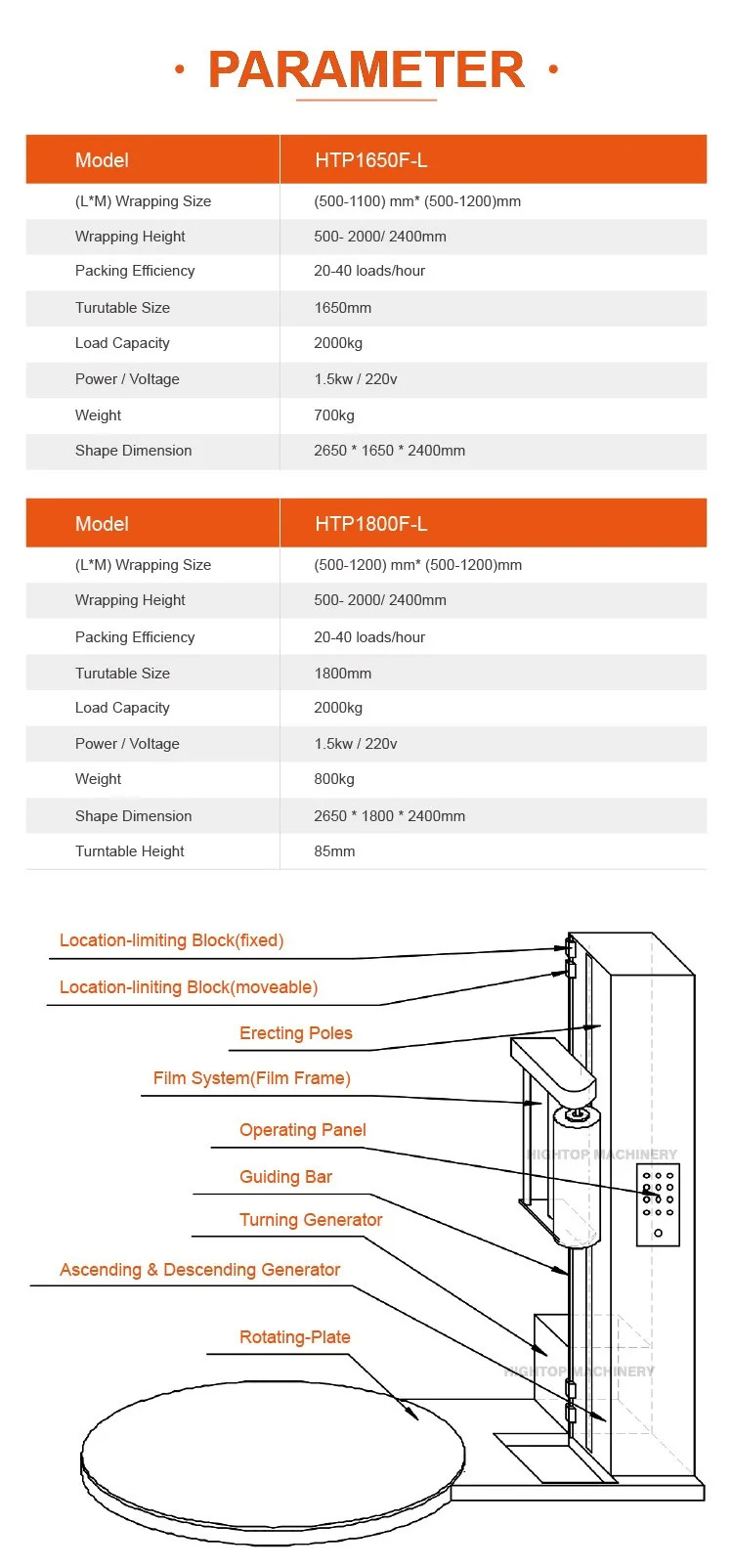

Parameter

Parameter of Fully Automatic Pallet Stretch Wrapping Machine

Pallet Stretch Wrapping Machine Wrapper

Model	HT1650F
Size of goods to be wrapped
Min wrap size(LWH)	500mm500mm500mm
Max wrap size(L*W)	1200mm1200mm2000mm
Max wrap height	2000mm(option: 2400mm, 2600mm,2800mm,3000mm)
Max load weight	2000kg(option: 2500kg, 3000kg)
Machine specification
Turntable rotation speed	3-12 rpm
Turntable diameter	1650mm
Turntable height	85mm
Carriage up/down speed	adjustable

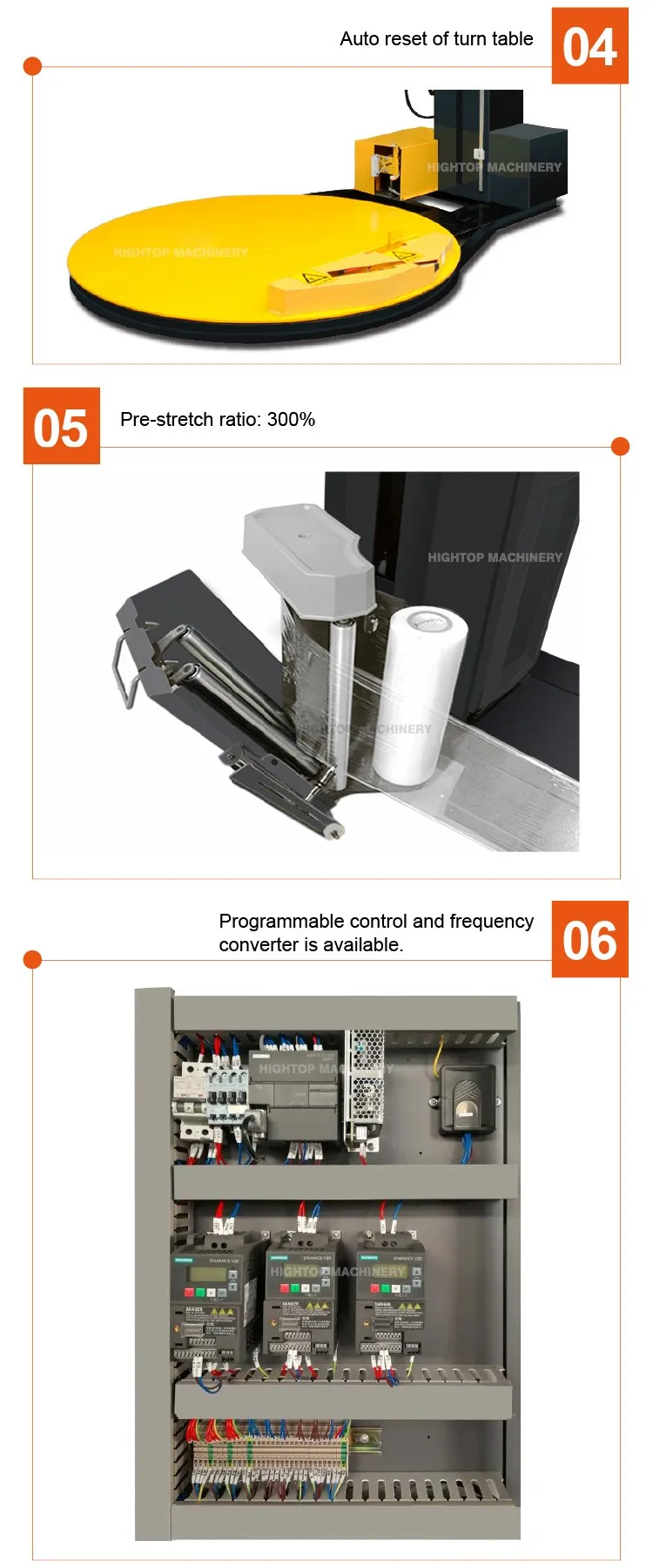

Film carriage	Pre-stretch 300%
Packing efficiency	20-40 loads/hour
Voltage/Power	220V/50HZ 1Phase, 1.5kw
Machine size	2650mm1650mm2400mm (LXWXH) Standard
Machine weight	650kg

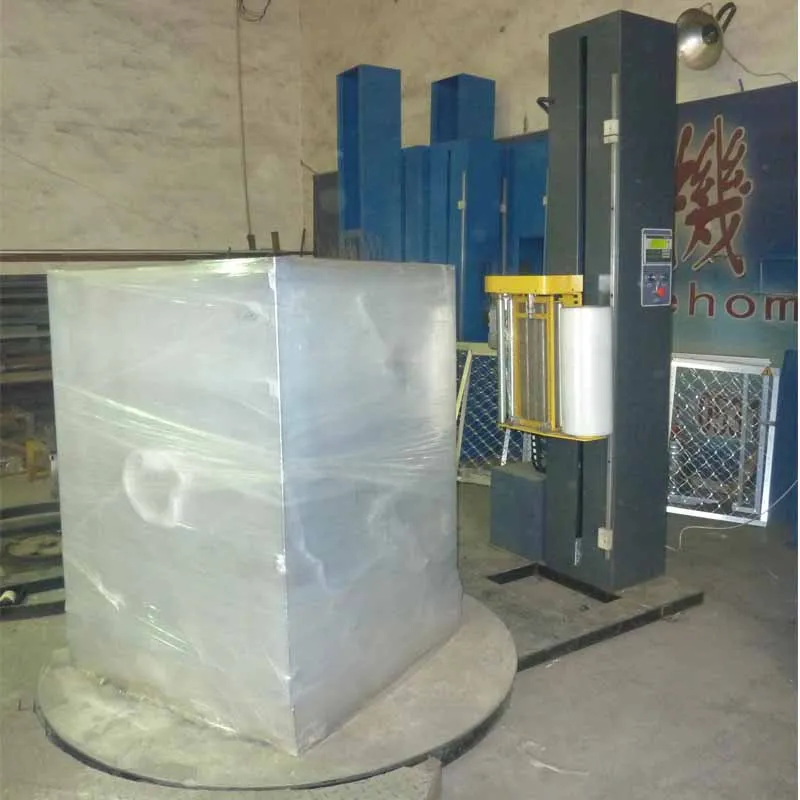

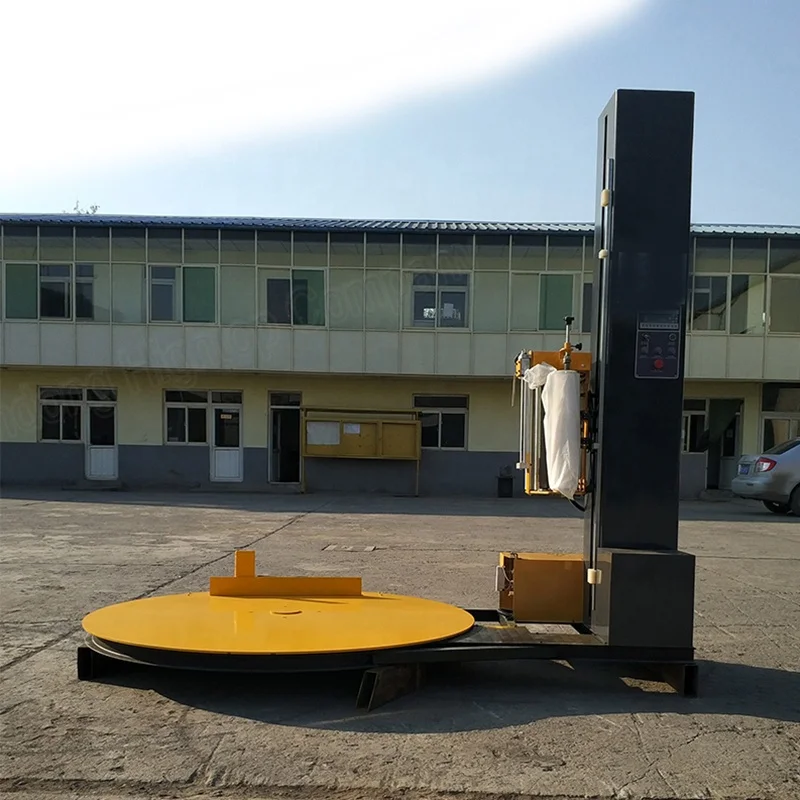

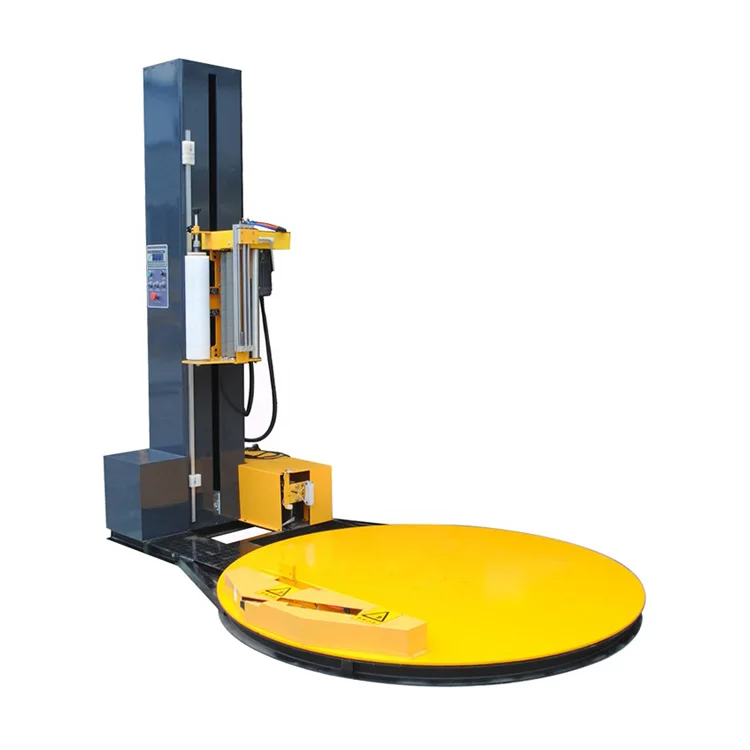

Detailed Images

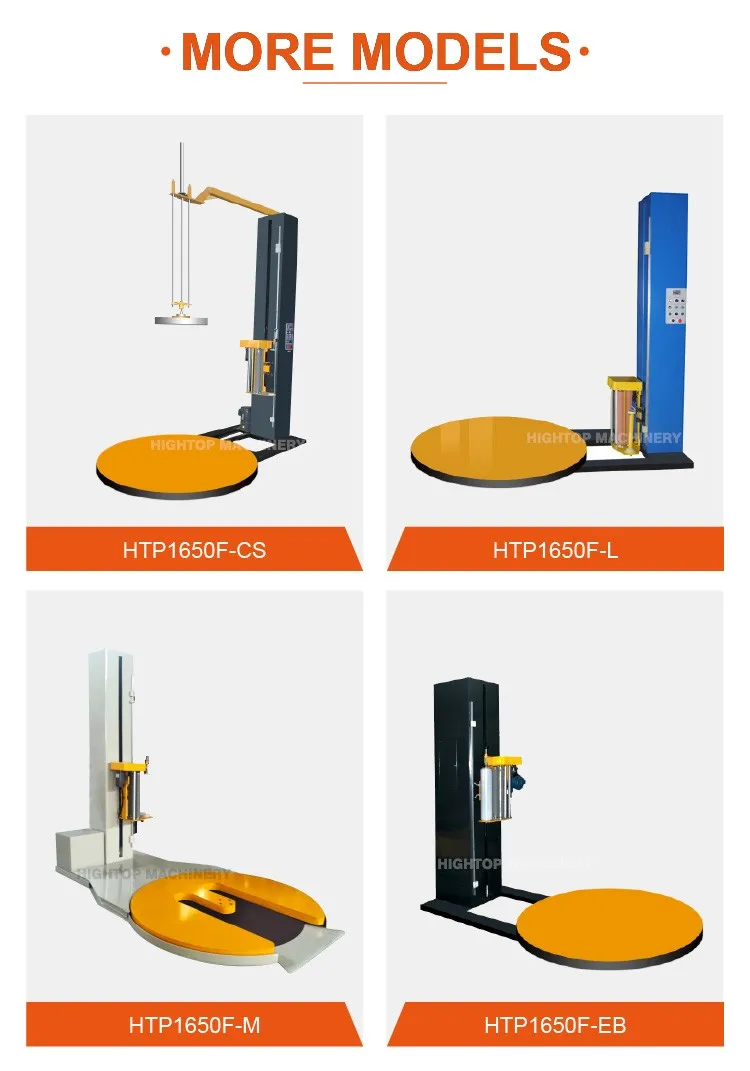

Images of Fully Automatic Pallet Stretch Wrapping Machine

Pallet Stretch Wrapping Machine Wrapper
