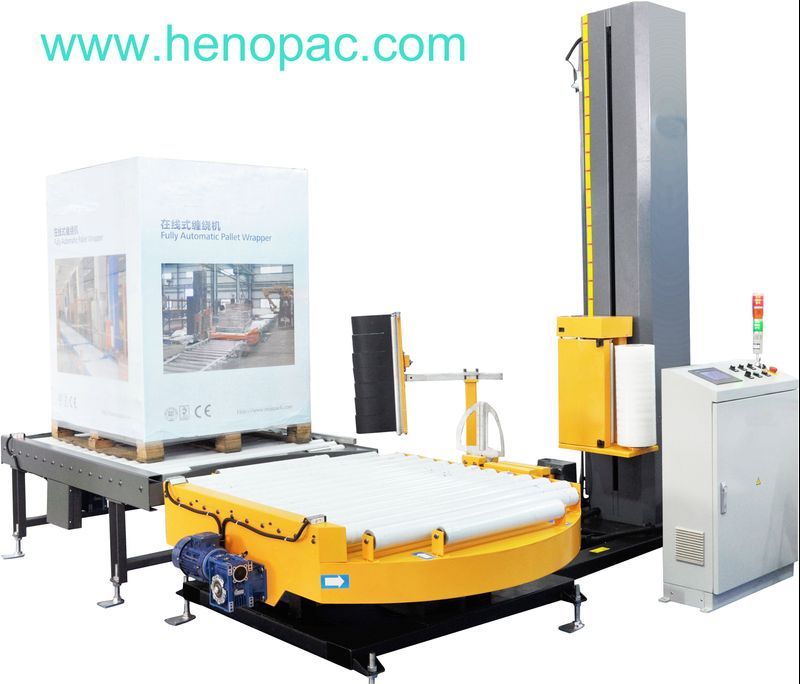

G6 Fully Automatic Pallet Wrapper

缠绕尺寸

宽(800-1200)*长(800-1200)

转盘直径

∮2000mm _

转盘高度

500mm（定制）

缠绕振打高度

1800毫米

装载重量

2000公斤

包装速度

25-45托盘/小时

转盘速度

3-15转/分（可调）

输送速度

3m/min（可调）

动力预拉伸膜车

,比例：250% 薄膜张力可调

薄膜类型

厚度17-35微米，宽度450-500毫米，纸芯76毫米，最大直径250毫米

滚筒尺寸

T 3.0* ∮76 *1350mm

料辊

G镀锌纸箱钢

空气压力

0.4-0.7兆帕

电压_

三相5线 交流380V 50Hz

控制系统

PLC+HMI+变频器

1. PLC + HMI + Frequency inverter to control

2. Automatic/Manual exchange control

3. All parameter adjustable by HMI

4. turntable speed ,film carriage speed and the film tension can adjustable

5. Automatic stretch film apply & cut ,Pneumatically driven

6. Powered pre-stretch film carriage, ratio is 250%

7. turntable home position

8. the turntable have the brake function

9. The structure of the turntable is the slewing bearing

10. Automatic detection the height by the photocell

11. Alarm and Emergency Button

12. All core component adopt the famous brands, very durable

13. Film broken alarm and stop the machine

14. Machining by the laser

15. The turntable rotary and film carriage are soft start and stop

16. The motors are heavy load ,over voltage ,over current protect by the AC frequency inverters

17.The system easy to operate and humanization high safety design
