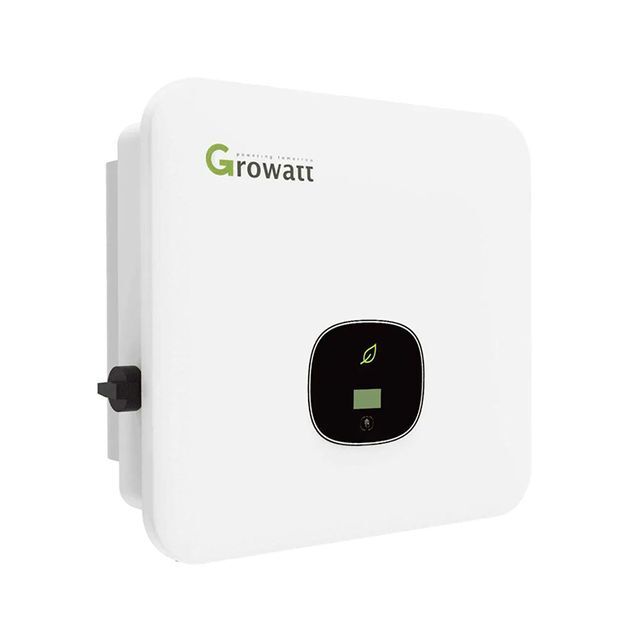

Growatt Grid Connected Solar Inverter DC AC 10kw 15kw 20kw 30kw

Supplier: Hefei Sunway Solar Energy Tech.Co.,Ltd
Region: Anhui, China
Contact: Ms Lynn Chen
Price: $825.00 / 10 - 99 units
$805.00 / 100 - 999 units
$785.00 / >=1000 units
Min. Order: 10 units

Click here to contact

Product details

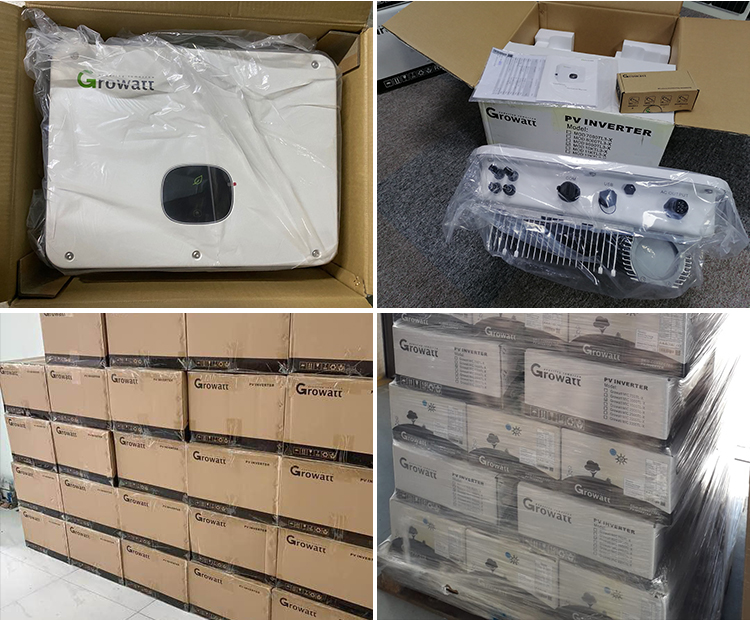

Packaging Details:	Growatt Grid Tied Solar Inverter DC AC 10kw 15kw 20kw 30kw Standard and Protected Carton or Wooden Box with Pallet	Inverter efficiency:	98.6%
model:	MOD 10000TL3-X	The output voltage:	220V/380V, 230V/400V (340-440V)
Supply capacity:	10000pcs Growatt grid-connected solar inverter per month DC AC 10kw 15kw 20kw 30kw	Maximum photovoltaic power:	15000w
Packaging Preview:		Protection class:	IP66
type:	DC/AC inverter	port:	Shanghai or any Chinese port
Key words:	Grid-tied solar inverter	color:	white
output type:	three times	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
MPPT voltage range:	140V-1000V	standard:	580V
cool down:	Natural convection	place of origin; place of origin:	Anhui, China
size:	425387178mm	product name:	Growatt Grid Connected Solar Inverter DC AC 10kw 15kw 20kw 30kw
Input voltage:	160-1100v	application:	Solar System Home
brand:	Growatt	Warranty:	10 years
Certificate:	TUV/CE/IEC/VDE	Output current:	16.7A
Inverter Type:	Grid-tied solar inverter	weight:	14KG
Output frequency:	50/60HZ

Growatt MOD inverters feature 2 MPPTs, Type II SPDs on the DC and AC sides, string monitoring and Arc Fault Interrupter (AFCI) functionality. Growatt MOD inverters come with a 10-year product warranty.

The Growatt MOD series is the latest three-phase inverter solution designed for residential use. The MOD series has a beautiful, compact design that adds visual appeal to your home. With excellent efficiency up to 98.3%, the Growatt MOD three-phase inverter is a smart choice, offering great performance at a great price.

Specification

data sheet

MOD 3000TL3-X

MOD 5000TL3-X

MOD 7000TL3-X

MOD 9000TL3-X

MOD 10000TL3-X

MOD 13000TL3-X

MOD 15000TL3-X

Input data (DC)

maximum. Recommended PV power (for module STC)

4500W

7500W

10500W

13500W

15000W

19500W

22500W

maximum. DC voltage

1100V

Starting voltage

160V

200V

standard

580V

MPPT voltage range

140V-1000V

Output data (AC)

AC nominal power

3000W

5000W

7000W

9000W

10000W

13000W

15000W

maximum. AC apparent power

3300W

5500W

7700W

9900W

11000W

14300W

16500W

Rated AC Voltage (Range*)

220V/380V, 230V/400V (340-440V)

AC grid frequency (range*)

50/60 Hz (45-55 Hz/55-65 Hz)

maximum. Output current

5.0A

8.3A

11.7A

15.0A

16.7A

21.7A

25.0A

Adjustable power factor

0.8 ahead...0.8 behind

efficiency

maximum. efficiency

98.3%

98.6%

European efficiency

97.5%

98.1%

98.2%

MPPT efficiency

99.9%

General data

Dimensions (W/H/D)

425/387/147mm

425/387/178mm

weight

12.5kg

14 kg

16kg

range of working temperature

–25°C ... +60°C

Protection class

IP66

Relative humidity

0~100%

high

4000 meters

exhibit

OLED+LED/WIFI+APP

Product Description

Features of Growatt MOD3000TL3-X~15000TL3-X

* Three-phase power
* 3-15KW solar inverter
* Maximum efficiency: 98.6%
* DC/AC ratio up to 1.5
* Type II SPD on DC and AC side
* AFCI function optional
* Touch keys and OLED display
* Free online service
* IP66 protection grade

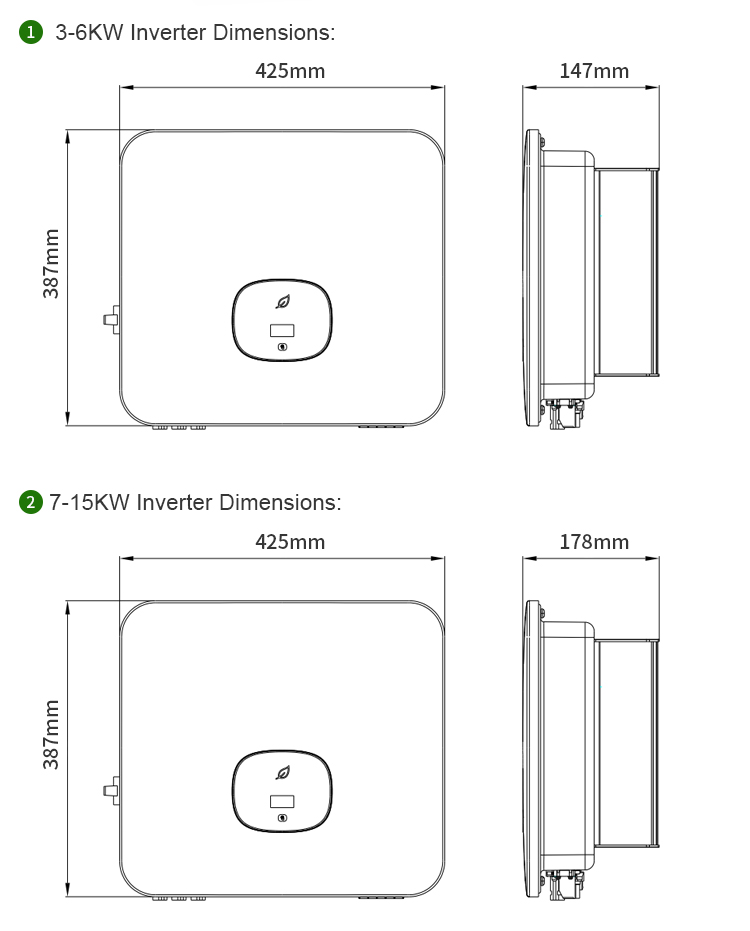

Dimensions and Weight
Model	Height (H)	Width (W)	Depth (D)	weight
MOD 3-6KTL3-X	387mm	425mm	147mm	12.5kg
MOD 7-11KTL3-X	387mm	425mm	178mm	14 kg
MOD 12 - 15KTL3 - X & MOD 7 - 11KTL3-X-AU	387mm	425mm	178mm	16.0kg

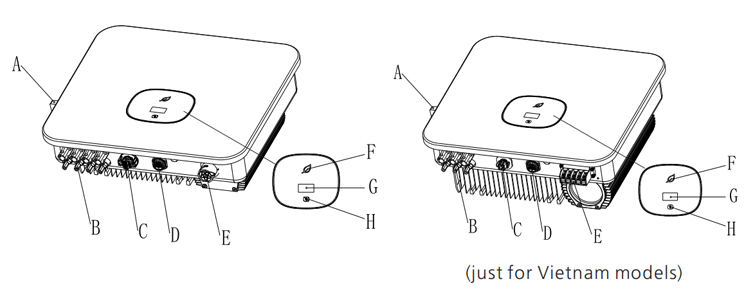

The appearance description is as follows:
Do not.	Name	Do not.	Name
One	DC switch	E	AC terminal
Second	PV terminal	F	LED indicator
C	RS485 port	G	LCD screen
D	USB port	H	touch button
