6kva 6000w 6kw off grid stand alone home solar energy power system for Philippines and Sri Lanka

Product details
Controller Type:MPPT;Model Number:SW6000-OFF;
Work Time (h):24 Hours;Single package size:185X200X125 cm;
Brand Name:Sunway;Output Frequency:50/60HZ;
Load Power (W):6 KW;Specification:Normal;
Output voltage:1 phase ,2 phase,3 phase;Solar Panel Type:Grade A Polycrystalline;
Output Voltage (V):220/240v 340/400v;Output frequency:50HZ/60HZ;
Package Type:Standard and protect well carton or wooden box with pallet;Place of Origin:Anhui China (Mainland);
Warranty:25 years;Product name:6KW 6KVA off grid solar system;
Inverter:off grid;Application:Home;
Solar panel:Poly;Selling Units:Single item;
Combiner box:Anti-lighting;Application:Flat ground and roof;
Battery Type:Lead Acid;Single gross weight:1,200 KG;
Battery Capacity:250ah;Solar system protection:Low and Under Voltage;

  6kva 6000w 6kw off grid stand alone home solar energy power system for Philippines and Sri Lanka

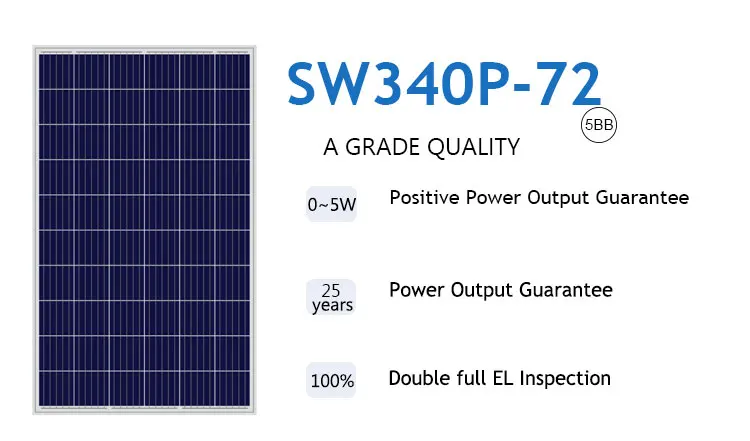

Solar Panel

Electrical Parameters

72 cells

Module

SW340P-72

SW330P-72

SW320P-72

SW310P-72

SW300P-72

Rated Maximum Power at

STC(W)

340

330

320

310

300

Open Circuit Voltage(Voc/V)

47.5

46.9

46.4

45.9

46.08

Maximum Power Voltage(Vmp/V)

38.2

37.8

37.4

37

36.82

Short Circuit Current(Isc/A)

9.22

9.14

9.05

8.96

8.53

Maximum Power Current(Imp/A)

8.9

8.74

8.56

8.38

8.15

Module Efficiency(%)

16.42

16.16

15.91

15.63

15.11

Power Tolerance

0~+3%

Standard Test Condition(STC)

                Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

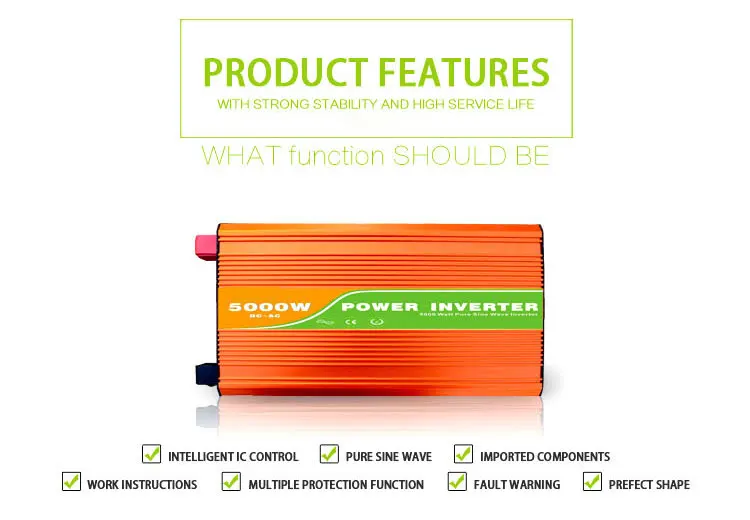

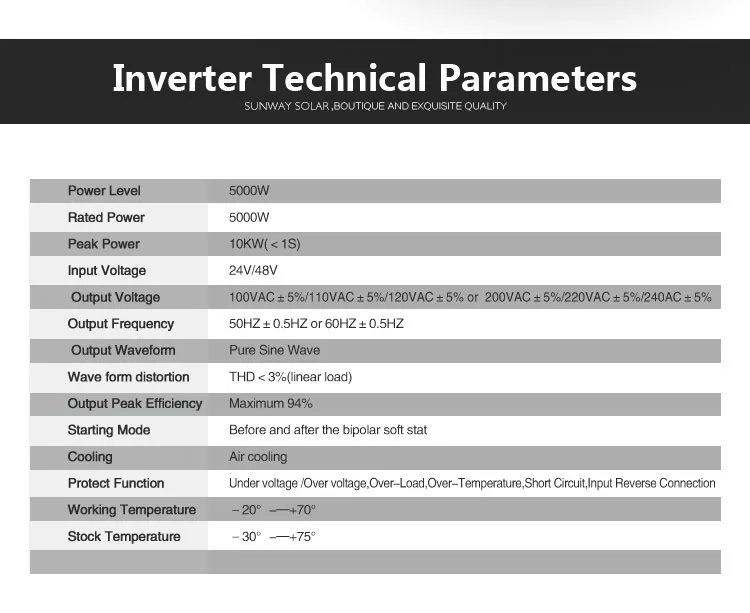

Solar Inverter

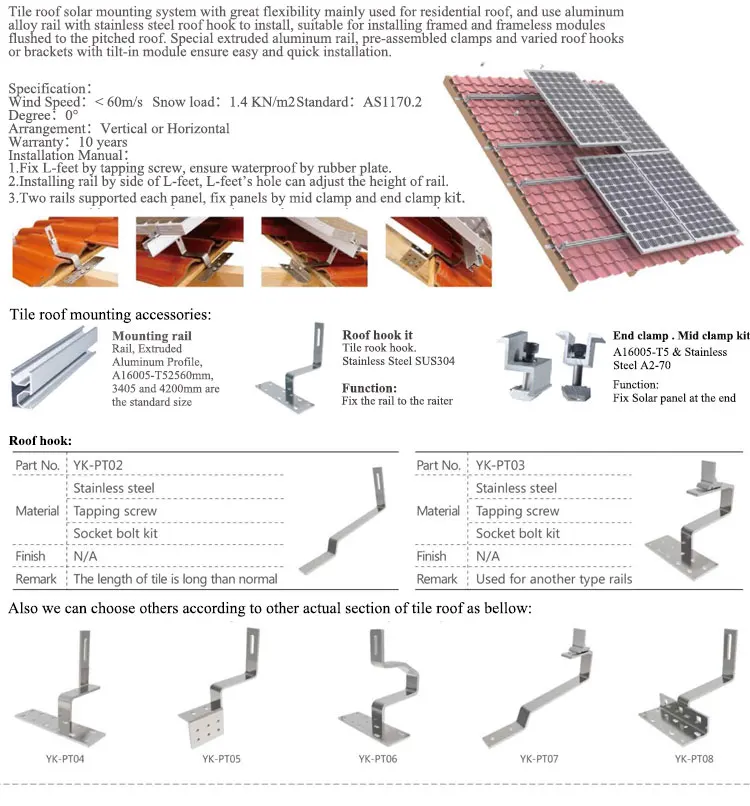

Solar Mounting System:

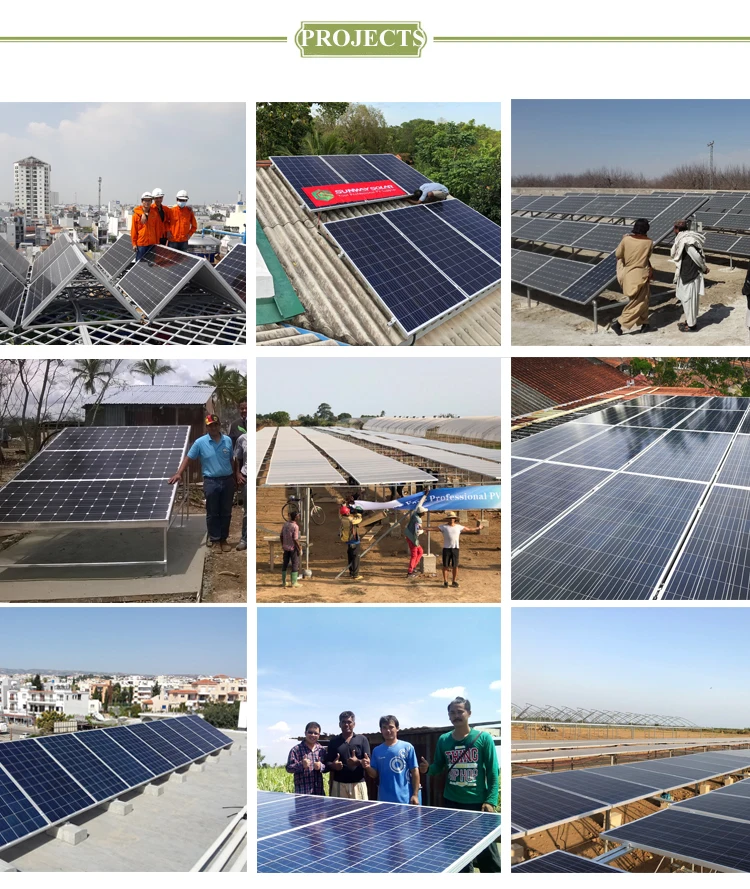

Projects

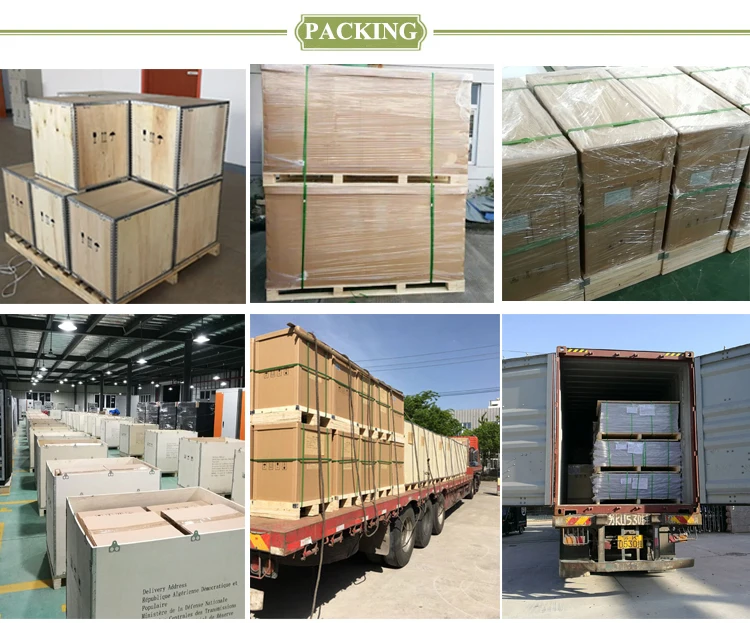

Packaging & Shipping



Company Information

FAQ



A: What's your main products?

Solar system, solar panel, inverter, controller, battery and mounting system and all the related soar power accessories.

B: Are you a factory or trading company?

We are a manufacturer with export license.

C: Could you print our company logo in nameplate and package?

Yes, we can do it according to your design.

D: Can you support OEM and on-site installation?

Yes,as a professional solar system manufacturer, we can offer our clients OEM and on-site installation, fully support and assistance in service, the most competitive price with absolutely high quality products.

E: How does your factory carry out quality control?

 Quality is priority. Sunway people always attaching great importance to quality controlling from the very beginning to the end. We have professional QC team to carry out the Quality control.
