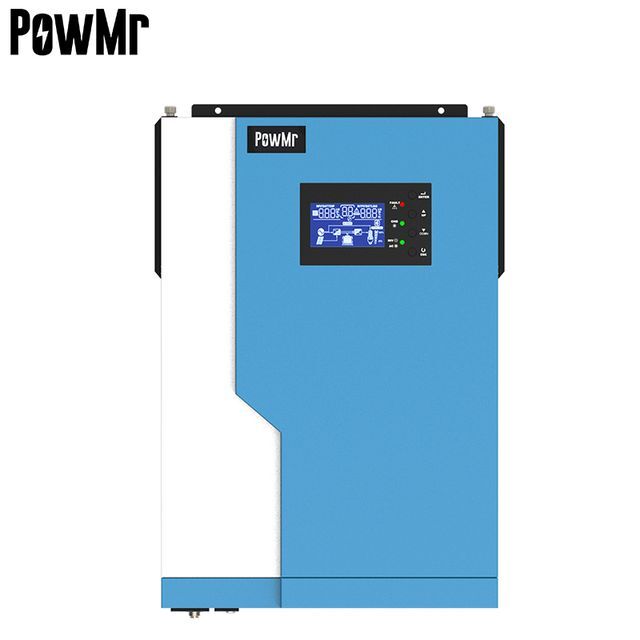

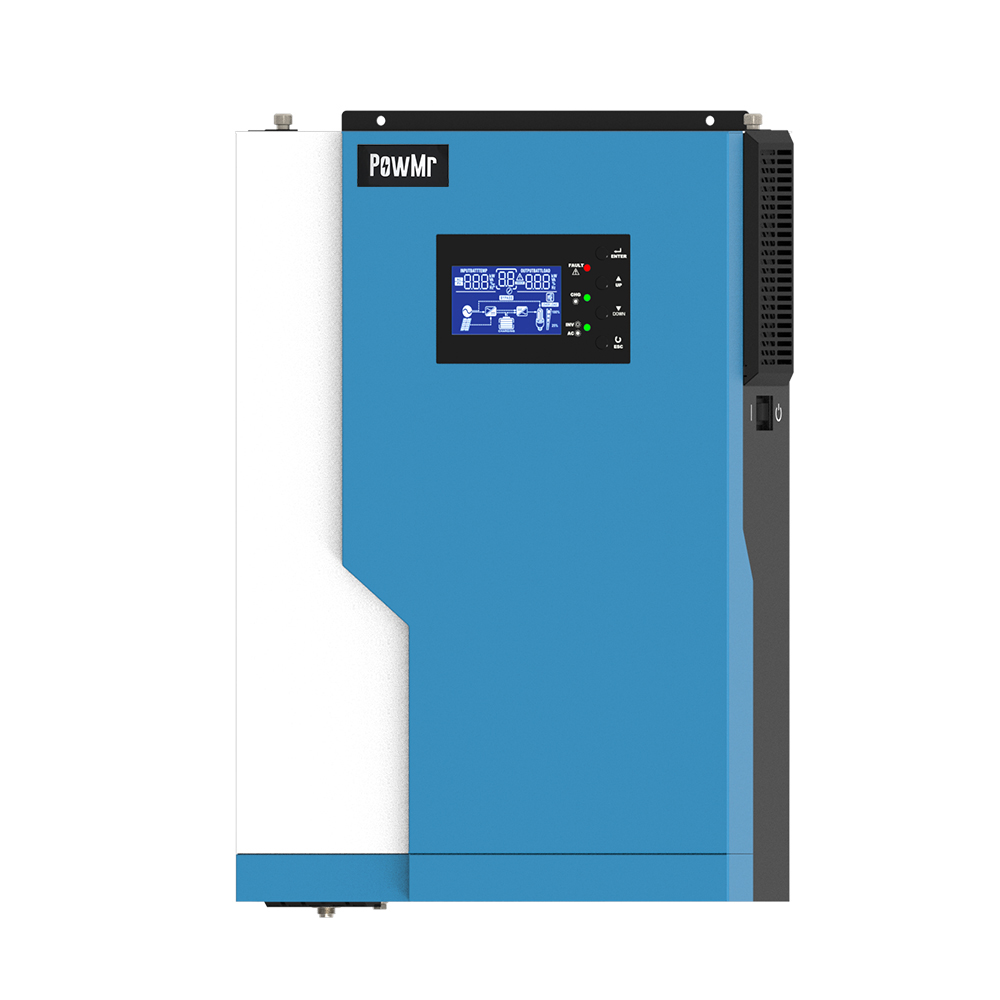

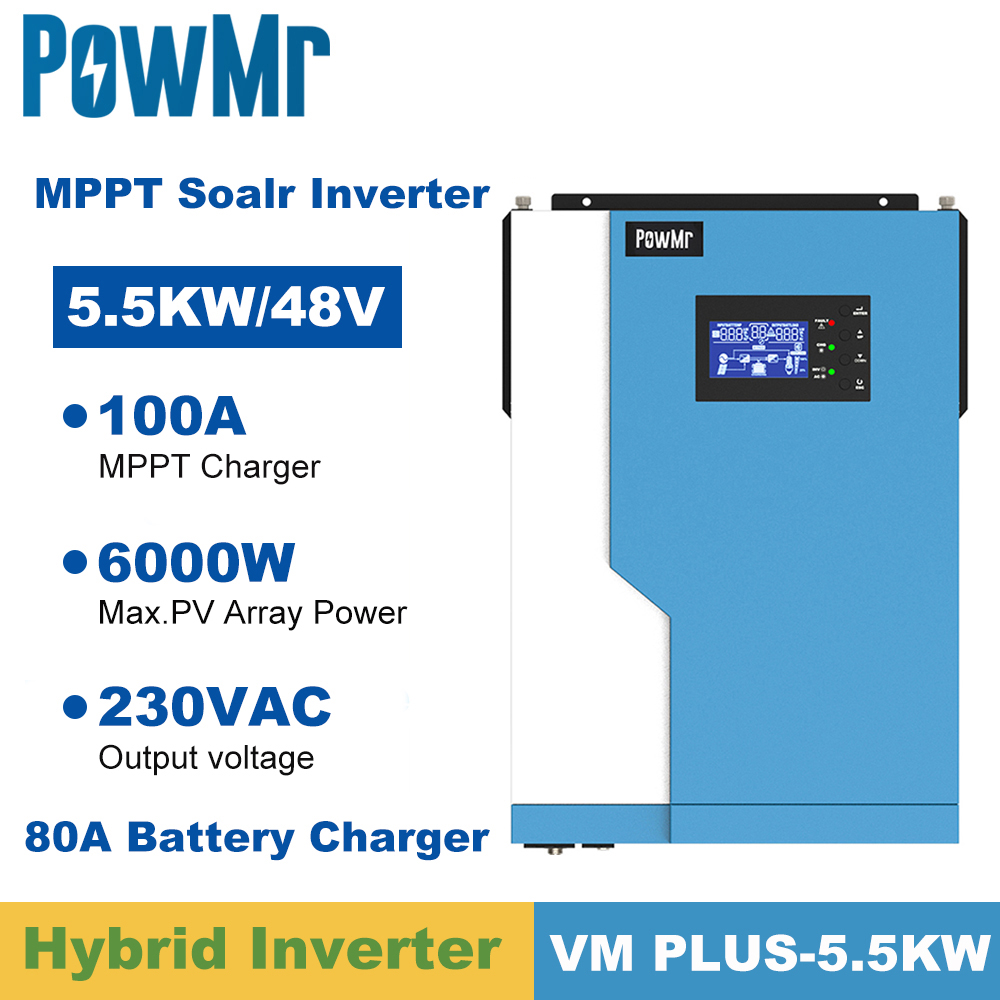

3.5KW 5.5KW 220VAC Off Grid Hybrid 100A MPPT Solar Charge Controller Can Work Without WIFI Battery Monitor

Supplier: Shenzhen Hehejin Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Tony Zou
Price: $32.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	2 years	weight:	12kg
Output current:	100A	place of origin; place of origin:	Guangdong, China
Maximum PV Input:	120V-450V	Certificate:	Chief Executive
Feature two:	Much higher efficiency from PV to AC	Maximum AC input voltage:	500Vac
Photovoltaic charging current:	80A	energy consumption:	2W
Inverter efficiency:	>95%	Normal input voltage:	48VDC
The output voltage:	230VAC	Gross weight per piece:	12.500 kg
output type:	single	model:	VM PLUS-3.5KW 5.5KW+WIFI
type:	DC/AC inverter	Our warehouse location:	China, USA, Germany, UK, Australia, Poland, Russia, Japan
Feature one:	Works without batteries	Input voltage:	24VDC 48VDC
Packaging Details:	Solar product standard carton 13.5KW/5.5KW Solar inverter 1English user manual 1*CD	Output frequency:	50/60Hz
brand:	Mr Power	size:	103044cm
application:	The Sun can generate system	Surge Power:	11000VA
Single package size:	63X42.5X25 cm	Sales unit:	single product

brief introduction

This is a multifunctional inverter/charger that combines the functions of an inverter, solar charger and battery charger to provide UPS support in a portable size. Its comprehensive LCD display provides user-configurable and easy-to-access button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Note 1:This is a wide voltage hybrid inverter. The voltage to start connecting the solar panels must be above 150V for the hybrid inverter to work properly.

Note 2:This hybrid inverter supports WIFI function but has no WIFI monitor.

notes:

How to correctly match the battery capacity of the system should be determined according to the specific usage requirements and application scenarios of the load, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.

For details, please refer to the manual recommendation or consult online customer service.

feature

The maximum charging current of the solar charger is 100A

lithium battery

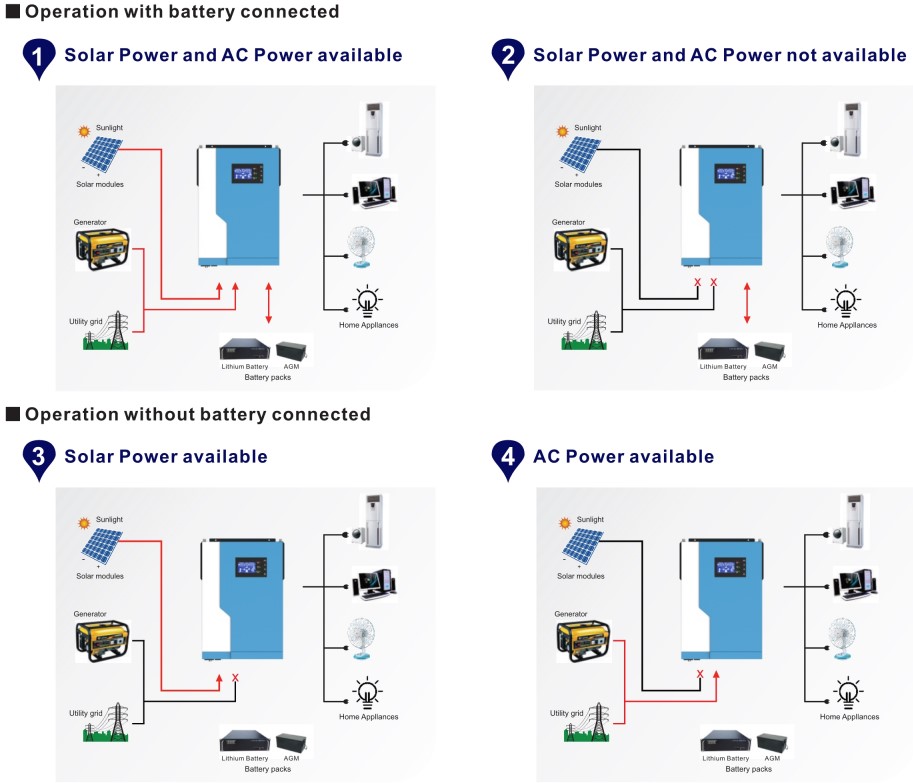

Works without batteries

Power the load directly from photovoltaics, even without batteries

120-500V wide photovoltaic input

Much higher efficiency from PV to AC

(1) Pure sine wave inverter

(2)Configurable input voltage range for home appliances and PCs via LCD settings

(3)Battery charge current is configurable by application via LCD settings

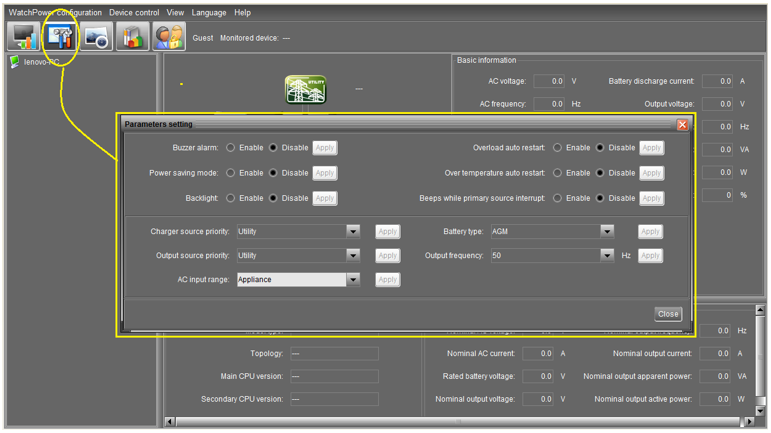

(4)Configurable AC/solar charger priority via LCD settings

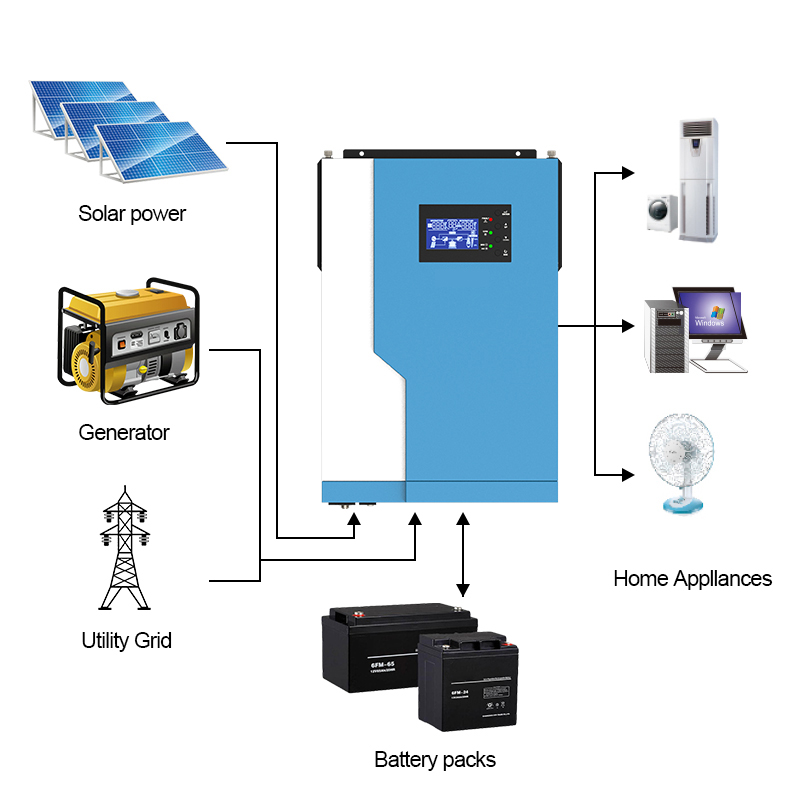

(5)Compatible with mains voltage or generator power

(6)Automatic restart when AC power is restored

(7)Overload/Overtemperature/Short Circuit Protection

(8)Smart battery charger design to optimize battery performance

(9)Cold start function

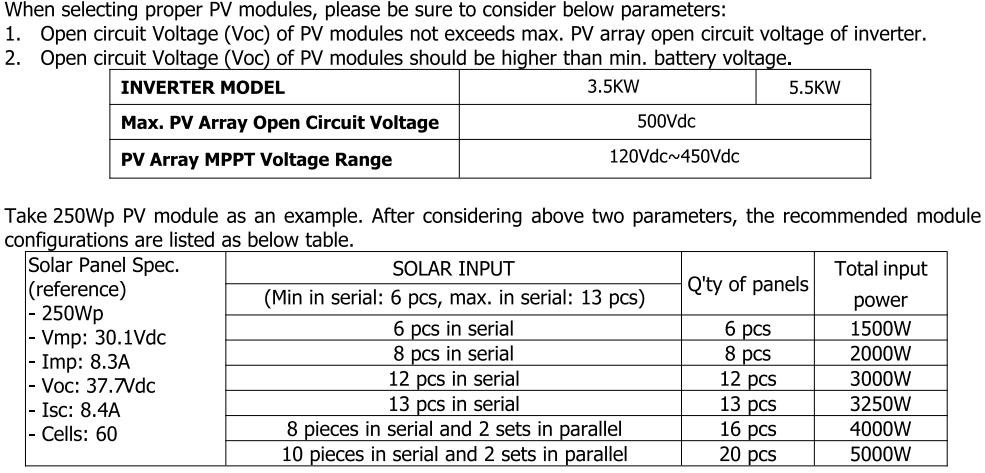

PV module selection.

Specification

schema name	VM-3.5KVA-PLUS	VM-5.5KVA-add
rated power	3500VA/3500W	5000VA/5000W
enter
Voltage	230VAC
Optional voltage range	170-280 VAC (for PC)
	90-280 VAC (Household Appliances)
Frequency Range	50Hz/60Hz (auto-sensing)
output
AC Voltage Regulation (Battery Mode)	230VAC +mn 5%
surge power	7000VA	11000VA
Efficiency (peak) PV to INV	97%
Efficiency (peak) battery to INV	94%
transfer time	10 ms (personal computer); 20 ms (home appliance)
waveform	pure sine wave
Battery @ AC Charger
battery voltage	24VDC	48VDC
float voltage	27VDC	54VDC
Overcharge protection	33VDC	63VDC
Maximum charging current	80A	80A
solar power charger
Maximum PV array power	5000W	6000W
MPPT range @ working voltage	120~450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum charging current	100A
maximum efficiency	98%
physical
Dimensions, D x W x H (mm)	100x300x440
net weight	12KG	12KG

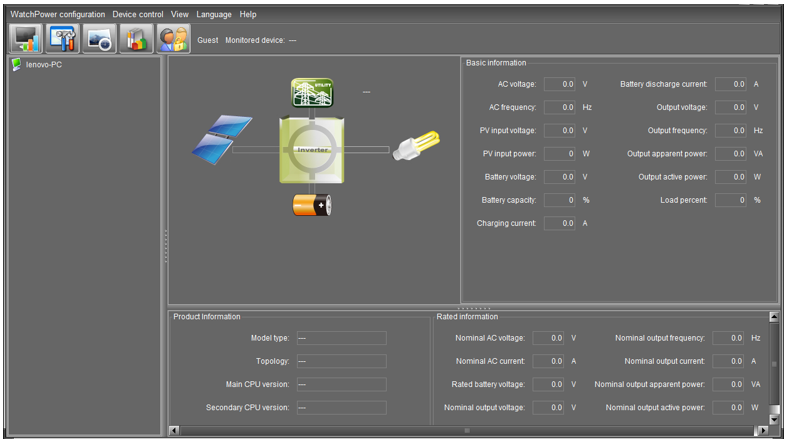

Communication Interface	USB/RS232/WIFI
Operating environment
humidity	5% to 95% relative humidity (non-condensing)
Operating temperature	-10°C to 50°C
Storage temperature	-15°C to 60°C
