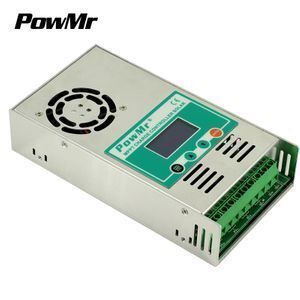

PowMr 12v 24v 36v 48v MPPT 60A Solar Charge Controller Max PV 160V For Gel or lifePO4 Battery MPPT-60A

Supplier: Shenzhen Hehejin Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Tony Zou
Price: $48.35 /piece
Min. Order: 1 piece

Click here to contact

Product details

Temperature Protection:	75°C;	Package Preview:	https://sc01.alicdn.com/kf/HTB1XojCadjvK1RjSspiq6AEqXXaY.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1Nn6BaoLrK1Rjy1zbq6AenFXai.jpg_640x640.jpg;
Max PV Power:	2800W;	Max efficiency:	>98%;
Warranty:	2 years;	Single package size:	15X10X5 cm;
Application:	Charger Controller,Solar Working Station,Lighting Controller,Voltage Controller,Solar System Controller;	Rated Current:	60A;
Product Name:	MPPT 60A Solar Controller 12V/24V/36V/48V Solar charge controller;	Brand Name:	PowMr;
Type:	MPPT;	Certification:	CE RoHS ISO9001;
Package Type:	Solar Energy Products Stander Carton Box; 1Solar Charge Controller ; 1English User Manual ;;	Work Time (h):	1-24 hours Settable;
System voltage:	DC 12V/24V/48V/96V Automatic Recognition;	Selling Units:	Single item;
Soft start time:	≤1S;	Model Number:	MPPT-60A;
Place of Origin:	Guangdong China;	Single gross weight:	1.5 KG;
Weight:	1.5kg;	Charge mode:	48/36/24/12V MPPT 60A Solar Charger Discharger Controller;
Max PV Voltage:	48V;

PowMr 12v 24v 36v 48v MPPT 60A Solar Charge Controller Max PV 160V For Gel or lifePO4 Battery MPPT-60A

Feature

100% MPPT controller

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V

Three-stage charging optimizes battery performance

Multi-function LCD displays

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Data Sheet

Model NO.	HHJ-60A
Charging mode	MPPT Maximum power point tracking automatically
Charging	3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type	DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition	12V system (DC9V-DC15V) 24V system (DC18V-DC29V) 36V system (DC30V-DC39V) 48V system (DC40V~DC60V)
Soft start time	≤1S
Dynamic response and recovery time	100us
Max efficiency	≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency)
PV utilization	≥99%
Voc from PV ( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )	12V system (DC20V~DC80V) 24V system (DC37V~DC105V) 36V system (DC50V~DC160V) 48V system (DC72V~DC160V)
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.)	12V system (720W)24V system (1440W)36V system (2100W)48V system (2800W)
Selectable battery type(default is Sealed)	Vented/Sealed /Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage	Refer to Batteries charging reference
Floating Charging Voltage	Refer to Batteries charging reference
Overcharging protection voltage	12V system (15V) 24V system (30V) 36V system (45V) 48V system (60V)
Rated output current	60A
Temperature Coefficient	±0.02%/ centi-degree
utomatic temperature compensation	14.2V-(Max temperature-25 centi-degree)*0.3
Output voltage ripple-peak	100mV
Output voltage accuracy	≤±1%
Input Anti-intrusion protection	yes
Temperature Protection	75°C
Temperature increased protection	Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C
Fan-on temperature	>40 °C
Fan-off temperature	<35 °C
Acoustic noise	≤40dB
Cooling way	Forced air cooling.
Components	Imported materials, Accord to EU standards, Industrial grade range.
nvironmental requirements	Meet 2002/95/EC; No cadmium, hydrides and fluorides
Size (mm)	215x115x50
Security Level	Accord to CE,PSE, FCC,EMC,EN60950
Electromagnetic Compatibility	Accord to EN61000, EN55022, EN55024
Enclosure	IP21
Gross weight(Kg)	1.5
