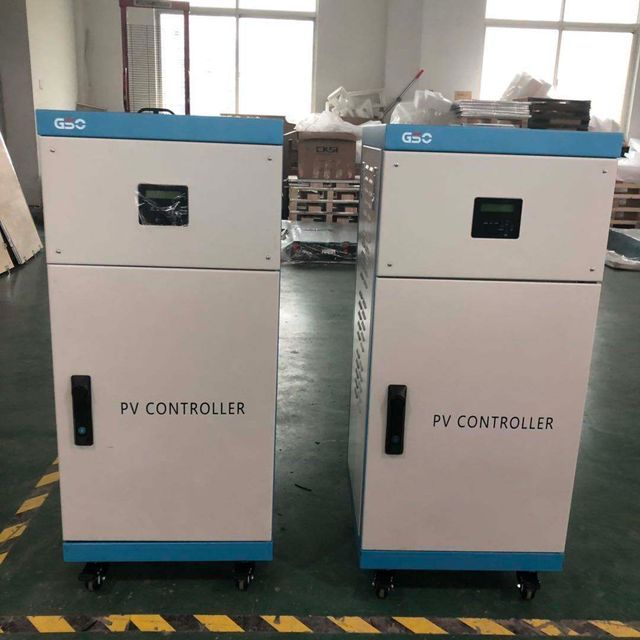

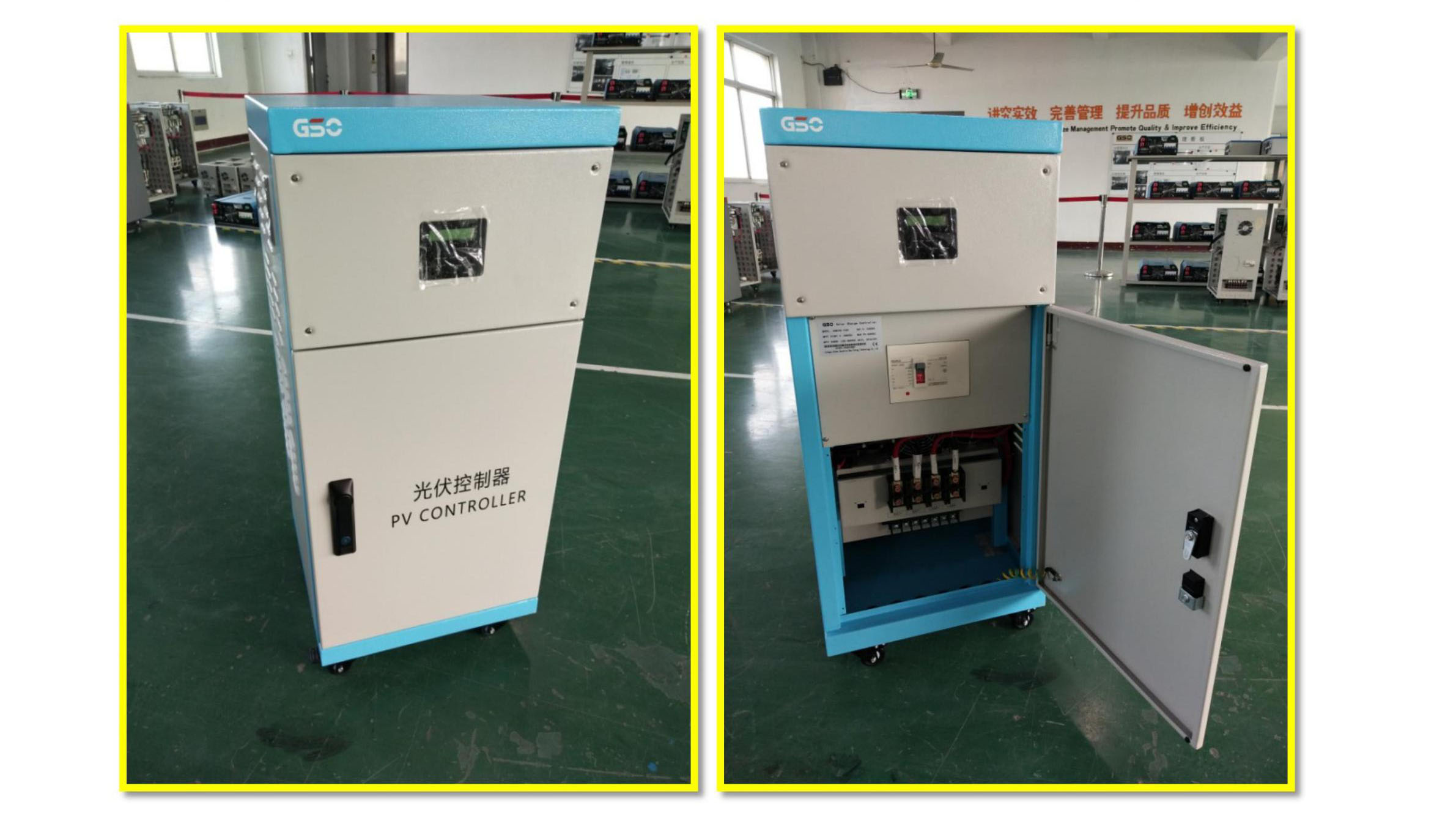

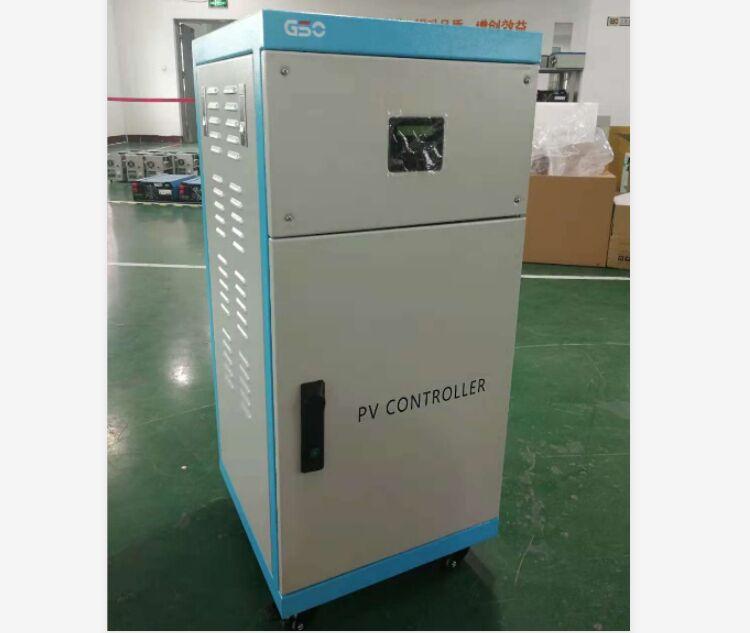

MPPT PWM solar charger controller is suitable for solar power generation system 220v 360v 384v controller
- 650.00 1 - 19 pieces
- 620.00 20 - 29 pieces
- 600.00 >=30 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Package preview: | Place of origin: | Jiangsu, China | |
| model: | GSM360-60A | port: | Shanghai, Shenzhen |
| Maximum photovoltaic voltage: | 160 volts | Supply capacity: | 1000 pieces per month |
| Certificate: | CE | application: | Charge controller, solar system controller |
| Warranty: | 5 years | Protection level: | IP20 |
| OEM/ODM: | accept | Maximum input power: | 30kW |
| exhibit: | LED+LCD screen | Maximum photovoltaic power generation: | 4/8KWP |
| brand: | geosynchronous orbit | Packaging details: | 80 amp solar charge controller mppt for solar wind controller |
| Working hours (hours): | 24 hours | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Machine size: | 168*417*550MM | MPPT efficiency: | >99% |
| net weight: | exhibit | product name: | MPPT solar charger controller for solar power generation system |
| type: | Maximum power point tracking, pulse width modulation | charging method: | Maximum power point tracking |
| Optional features: | RS485 communication interface |
Product Description
MPPT PWM solar charger controller is suitable for solar power generation system 220v 360v 384v controller
System capabilities | ||
Model | GSM360V-100A/150A/200A | |
Photovoltaic module Vmp [V] | 450-540 (recommended) | |
maximum. Photovoltaic module open circuit voltage [V] | 720 | |
PV array path (maximum) | 5 | |
Rated charging current [A] | 100/150/200 | |
Rated battery voltage [V] | 360 | |
Specification
Model | GSM48 | GSM96 | GSM220 | GSM360 | |||
Rated voltage (VDC) | 48 | 96 | 220 | 360 | |||
Overvoltage protection point (VDC) | 62 | 124 | Chapter 279 | Chapter 465 | |||
Overvoltage recovery point (VDC) | 60 | 120 | 270 | 450 | |||
Float charge voltage (VDC) | 54 | 108 | 243 | 405 | |||
Bulk voltage (VDC) | 56.8 | 113.6 | 255.6 | Chapter 426 | |||
Maximum charging current (A) | 60/120 | 50/100/150/200 | 50/100/150/200 | 35/70/105/140 | |||
charging method | Three-stage type: constant current (MPPT), constant voltage, float charge | ||||||
Maximum input power (KWp) | 4/8 | 6/12/18/24 | 14/28/42/56 | 15/30/45/60 | |||
Starting voltage | 80 | 140 | 270 | Chapter 440 | |||
MPPT voltage range (VDC) | 70-150 | 130-280 | 260-450 | 420-600 | |||
Maximum open circuit voltage (VDC) | 160 | 300 | Chapter 480 | 750 | |||
maximum efficiency | >98% | ||||||
MPPT efficiency | >99% | ||||||
Noise (decibel) | <55 | ||||||
exhibit | LED+LCD screen | ||||||
communicate | RS485 (optional) | ||||||
Operating temperature | -10℃~+50℃ | ||||||
Relative humidity | 0~95% (non-condensing) | ||||||
Altitude (meters) | ≤5000m, derate above 1000m | ||||||
level of production | IP20 | ||||||
Dimensions (depth*width*height)mm | 160*400*280 | 160*400*280/440*440*685 | |||||
Weight (kg) | 7-8 | 10-40 | |||||
Protect | Photovoltaic array reverse connection protection; battery reverse connection protection; night anti-reverse charge protection, battery overcharge protection, over-discharge protection, overload protection, and output short-circuit protection | ||||||
