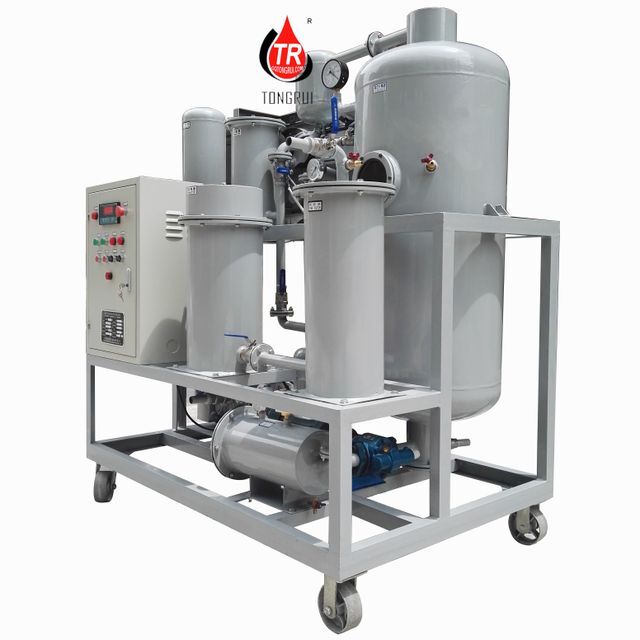

Hydraulic oil purifier, hydraulic oil filter device

Supplier: Chongqing Tong Rui Filtration Equipment Manufacturing Co., Ltd.
Region: Chongqing, China
Contact: Mr Kunlun Lee
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video external inspection:	if	clean:	NAS6
weight:	500 kg	brand:	Tongrui
Core Components Warranty:	2 years	Gas content:	less than 0.1%
Certification:	ISO9001;2008;CE	place of origin; place of origin:	Chongqing, China
Showroom location:	Philippines, Pakistan, Mexico, Thailand, Morocco, Kenya, Bangladesh, Malaysia	Health status:	new
Terms:	Oil filter, oil filtration, lubricating oil recovery, oil treatment	Sales unit:	single product
Local service location:	Egypt, Philippines, Indonesia, Pakistan, Malaysia, Morocco, South Korea, Bangladesh	flow:	600 liters per hour
color:	white, green, blue or as required	Cleanliness:	Category 6 or less (NAS)
Packaging Details:	Sturdy wooden case, suitable for shipping	Dimensions (LWH):	1.7m1.3m1.8m
Moisture content:	less than 80 ppm	temperature range:	0 - 100℃
After-sales service provided:	Online support	Applicable industries:	Manufacturing Plants, Mechanical Repair Shops, Energy & Mining
Single package size:	60X50X50 cm	Marketing Type:	Hot Products of 2019
Working pressure:	Less than 0.4Mpa	Voltage:	380V, 415V, 440V
Warranty:	1 year	After Warranty Service:	Online support
Gross weight per piece:	50.000 kg	Mechanical test report:	if
Impurity content:	3-5 microns	strength:	17kW
Vacuum degree:	-0.06 - -0.095Mpa	Core components:	Engines, motors, pumps

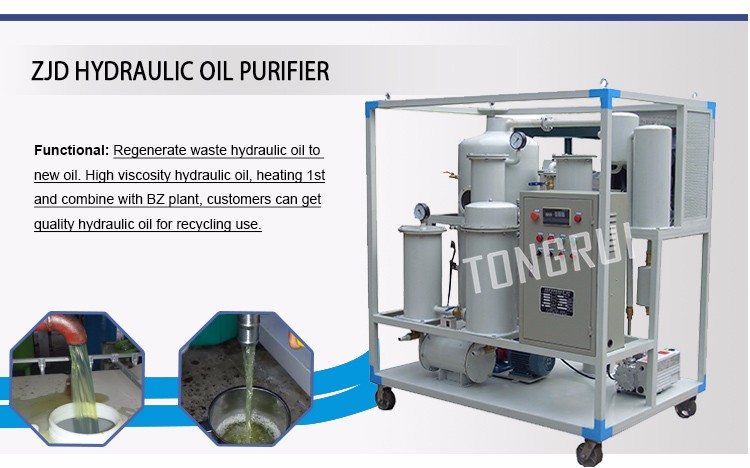

Hydraulic oil purifier, hydraulic oil filter device

application:

This machine is widely used in electric power, metallurgy, mining, machinery, chemical industry, transportation, manufacturing, food and other industries, especially suitable for the recovery and regeneration of various high-precision lubricating oils, including unqualified hydraulic oil, gear oil, refrigeration oil, Dissolving oil, heat treatment oil, anti-wear hydraulic oil, etc.

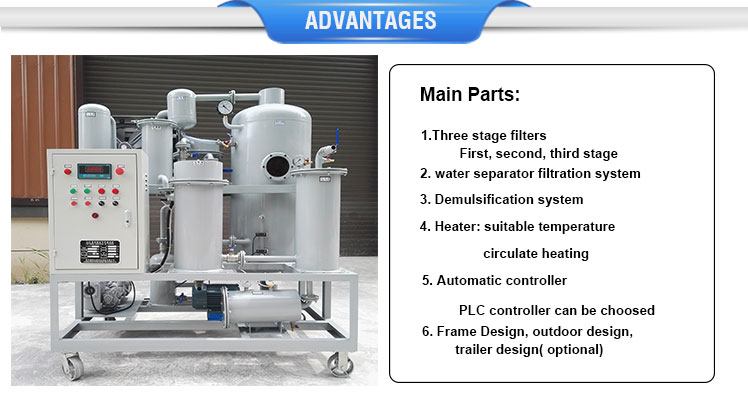

Advantage:

1. Effectively remove iron, flakes, dust, impurities, moisture and organic matter in inferior oil. In addition, it removes organic and inorganic acids and restores the performance of hydraulic fluids.

2. With strong demulsification ability, it can easily separate a large amount of water, and it is also easy to remove trace water in the oil.

3. Adopt high-precision stainless steel FH rectangular filter system imported from Japan, the filter precision can reach 1 micron.

4. Adopt H, P, M polymer material technology independently invented by Tongrui, which can reduce 1 or 2 color codes of oil, especially suitable for high viscosity lubricating oil, refrigeration oil, hydraulic oil, gear oil, etc.

Technical Specifications

index name	unit	ZJD/TYA-10	ZJD/TYA-20	ZJD/TYA-30	ZJD/TYA-50	ZJD/TYA-75	ZJD/TYA-100	ZJD/TYA-150
flow	Lift / Hour	600	1200	1800	3000	4500	6000	9000
degree of vacuum	MPa	-0.06 - -0.095
work pressure	MPa	≤0.4
temperature range	C	0 - 100
water content	PPm	≤80
cleanliness	NAS	≤6(level)
gas content	%	≤0.1
Impurity content		3-5 microns
power supply		380V/3 phase/50HZ (can be designed according to user requirements)
noise	dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80
Demulsification value	minute	New oil≤8, working oil≤15
heating power	kilowatt	36	40	45	72	80	90	120
total power	kilowatt	38	42	47	75	87	101	135
diameter Inlet and outlet	mm	25	25	25	32	42	50	50
White	Kilogram	450	550	600	750	850	1000	1200
Dimensions (mm)	length	1300	1350	1400	1500	1600	1650	1750
	width	900	950	1000	1150	1250	1300	1400
	high	1600	1600	1650	1700	1700	1750	1950

Our customers We have obtained ISO9001, 2008, SGS, CE and other certificates. Our machines sell well in all provinces and cities in China, we cooperate with many customers all over the world, our products are exported to the Middle East (such as Saudi Arabia, Yemen, Pakistan), Southwest Asia (such as Singapore, Malaysia, Indonesia, the Philippines, etc.), Africa ( Such as Egypt, Mali, Libya, Senegal), Europe (such as England, Albania, Spain, Greece) and South America (such as Honduras, Mexico, Colombia, Chile, Peru), etc.

We warmly welcome you to contact us online or by email, welcome to visit our factory, our company is committed to providing excellent technology and after-sales service, hope we can establish a good business relationship.

Please feel free to contact me for more information.
