CE approved price for 100L pilot scale two-layer chemical glass reactor

Product details
Video external inspection:ifcapacity:100L
Packaging Details:Standard wooden packagingplace of origin; place of origin:Henan, China
Dual display governor:0-600 rpmCoil Capacitor (mm):750/29*40
Temperature probe:PT100Drain valve:80# flange
Applicable industries:Food and beverage factories, retail, universities, chemical and pharmaceutical industriesstrength:180
Auto grade:semi-automaticPackaging Preview:
Supply capacity:500 sets per monthShowroom location:not any
Health status:newCore components:motor
Warranty:1 yearCollection bottle (ml):1000/40*50
port:Shanghai, Qingdao, Guangzhou, etc.Gear Motor:180W
Glass material:High borosilicate glass 3.3Mechanical test report:if
weight:163Main selling point:multifunctional
range of working temperature:-80℃ to 200℃Key words:glass reactor price
Dimensions (L*W*H):2550*650*710 (mm)brand:Sykes
Voltage:220Vpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Constant pressure funnel (mm):2L/29*40 or 5L/10L feeding bottle optionalMarketing Type:normal product
type:ReactorCore Components Warranty:1 year

glass reactor price

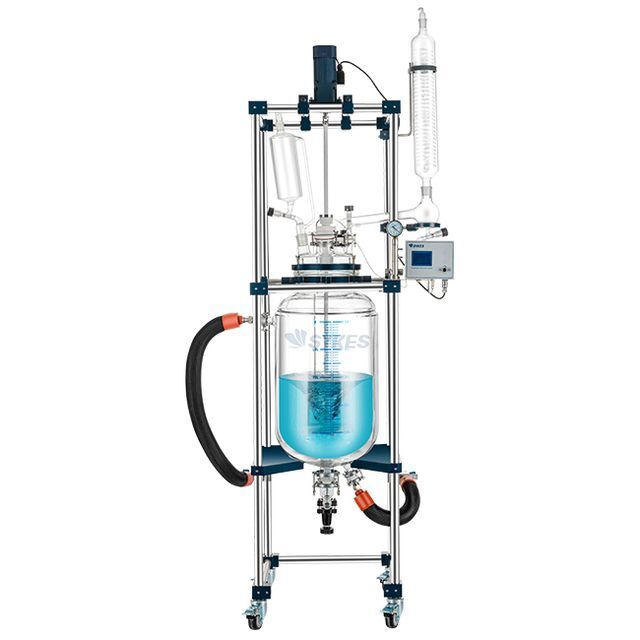

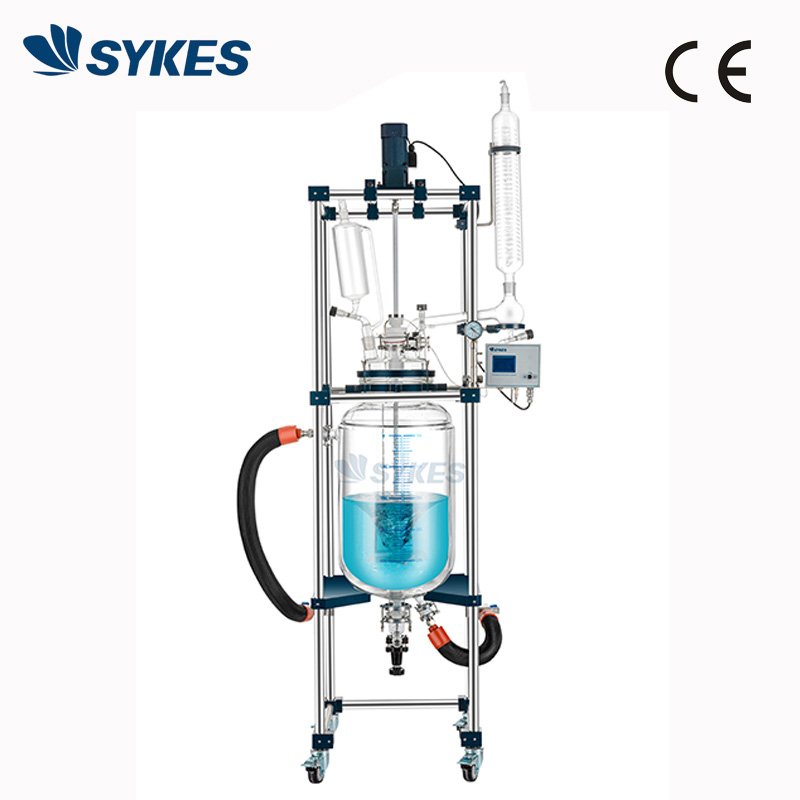

CE approved price for 100L pilot scale two-layer chemical glass reactor













Glass reactors are mainly used for synthesis reactions, distillation and concentration of different types of materials. We have single, double and triple wall glass reactors. According to some experimental requirements, the reactor can be pumped to a negative pressure state. A constant pressure funnel or regulating valve on the feeding bottle allows you to add material to the container at a uniform and controlled rate. The condenser helps to recover some of the substances distilled out during the reaction. The jacket can be filled with circulating liquid to heat or cool the internal materials. Three-layer glass reactor, two jackets, the inner jacket is used for circulating liquid, and the outer layer is vacuumed for heat preservation.







Glass reactors are widely used in experiments, pilot tests, and production in the fields of chemistry, fine chemicals, biopharmaceuticals, and new material synthesis. The glass reactor can be combined with multifunctional circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump (vacuum), circulating cooler, constant temperature circulator, low temperature coolant circulating pump, high temperature heating bath circulator, sealed cooling and heating circulator.





1. Overall stainless steel frame and screws, strong support and high hardness

2. High borosilicate glass 3.3 has good physical and chemical properties.

3. Wide operating temperature range: -80℃ to 200℃.

4. It can work under normal pressure and negative pressure, and the vacuum degree can reach 0.095MPa.

5. The container can withstand the pressure range of -0.1MPa to 0MPa.

6. Zero dead angle anti-corrosion drain valve.

7. Equipped with lockable casters, easy to move or fix.

8. Plug or drain valve made of Teflon (PTFE) and FV rubber; sealed with PTFE-covered O-ring.

9. Mechanical seal, keep a high degree of vacuum during stirring.

10. The reaction glassware is separated from the cover plate, which is convenient for disassembly and assembly, and easy to clean and install.

11. The frequency conversion speed regulation deceleration motor has stable operation, large torque, automatic supercharging, no spark, no noise, and long life.

12. Explosion-proof type is optional.

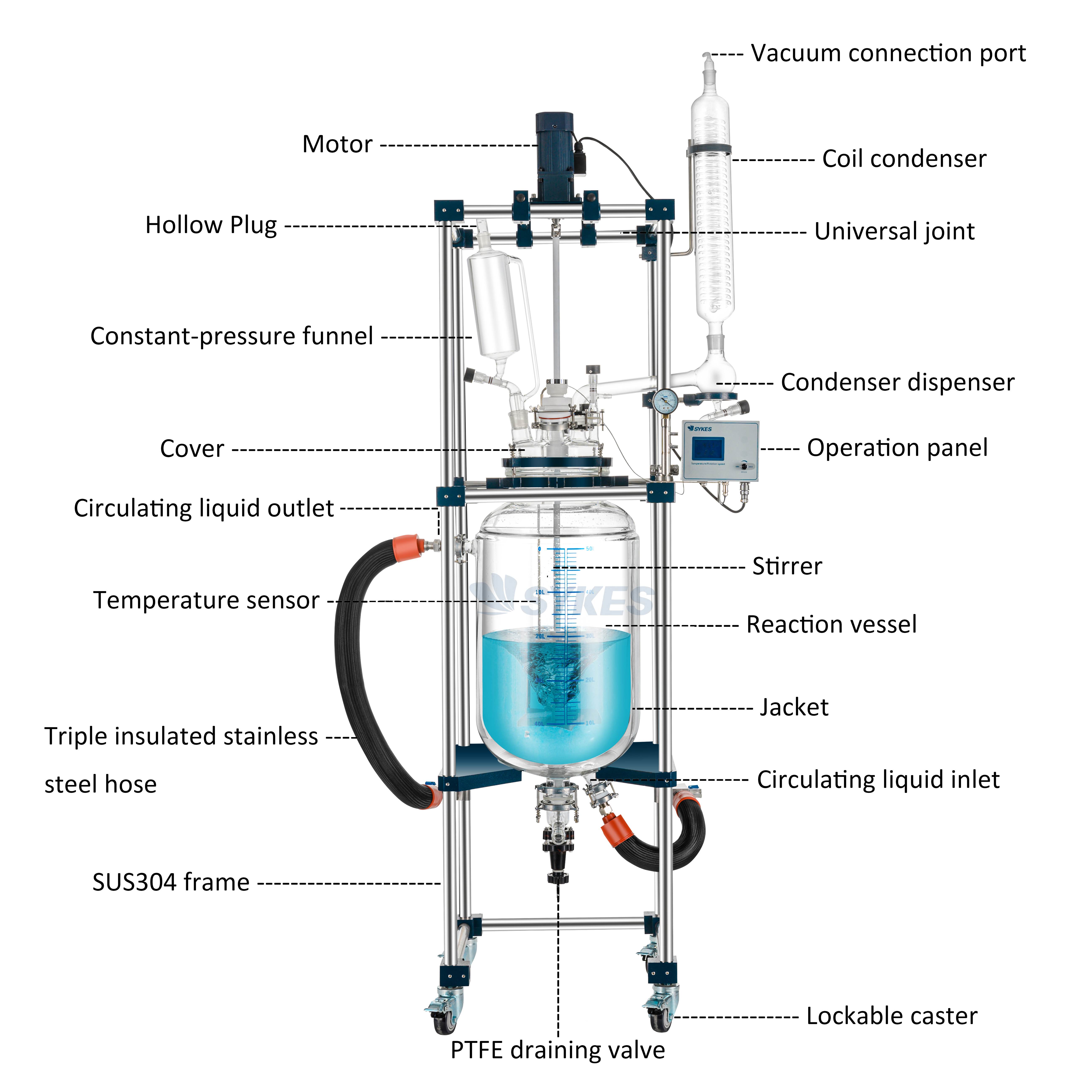

product

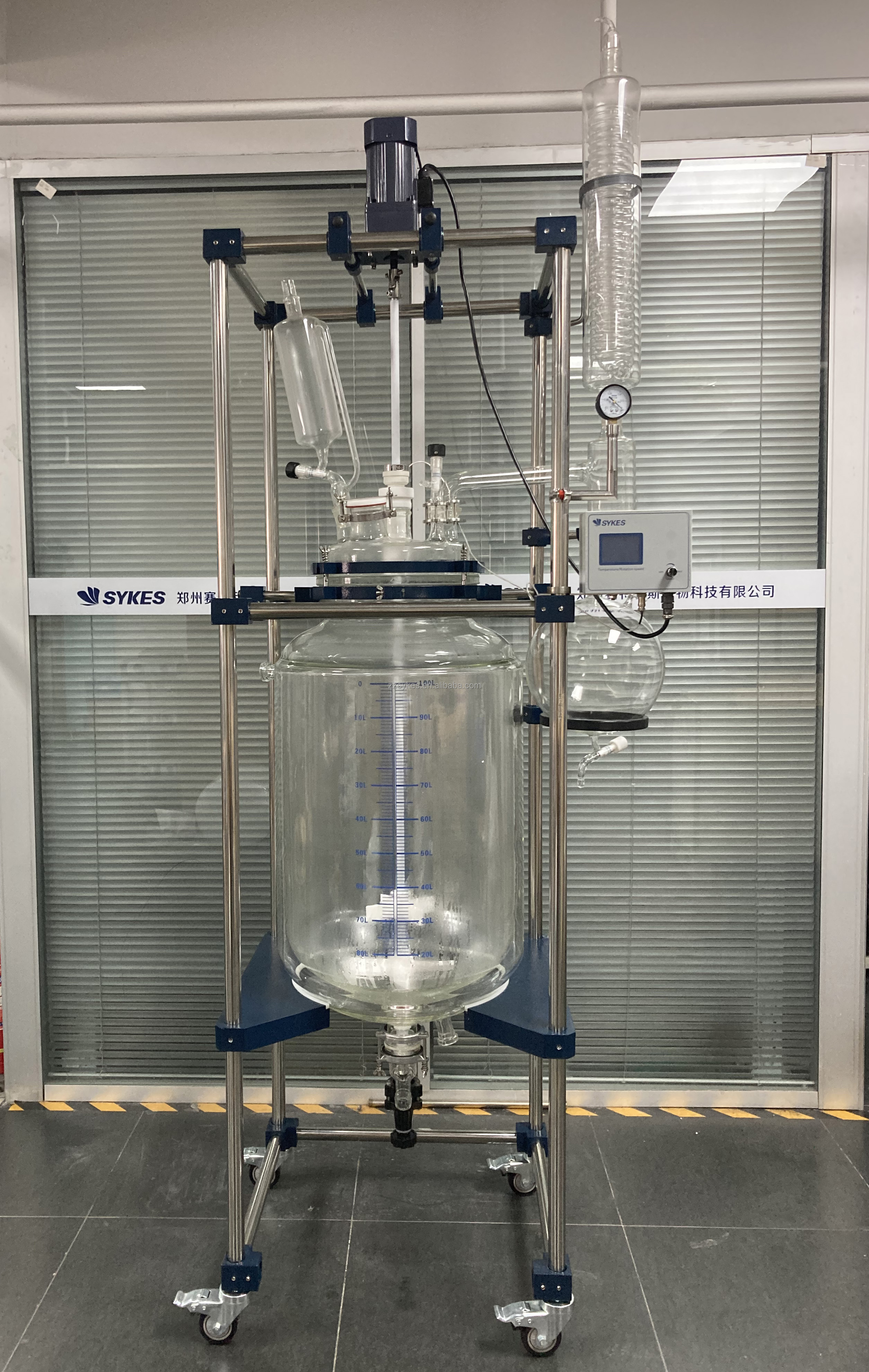

100L Double Glass Reactor

Constant pressure funnel (mm)

2L/29*40 or 5L/10L feeding bottle optional

Dual display governor (rpm)

0-600 (speed and temperature display)

Coil Capacitor(mm)

750/29*40

Motor (V/W)

220V/180W gear motor

PTFE Thermowell

24# (PT100 temperature probe)

Dimensions (mm)

2550*650*710

Vent

34#

PTFE stirring rod (mm)

Ø17*1350 (mechanical seal)

Universal joint (mm)

15*15 (two sections)

suction elbow

29#

hollow plug

29#

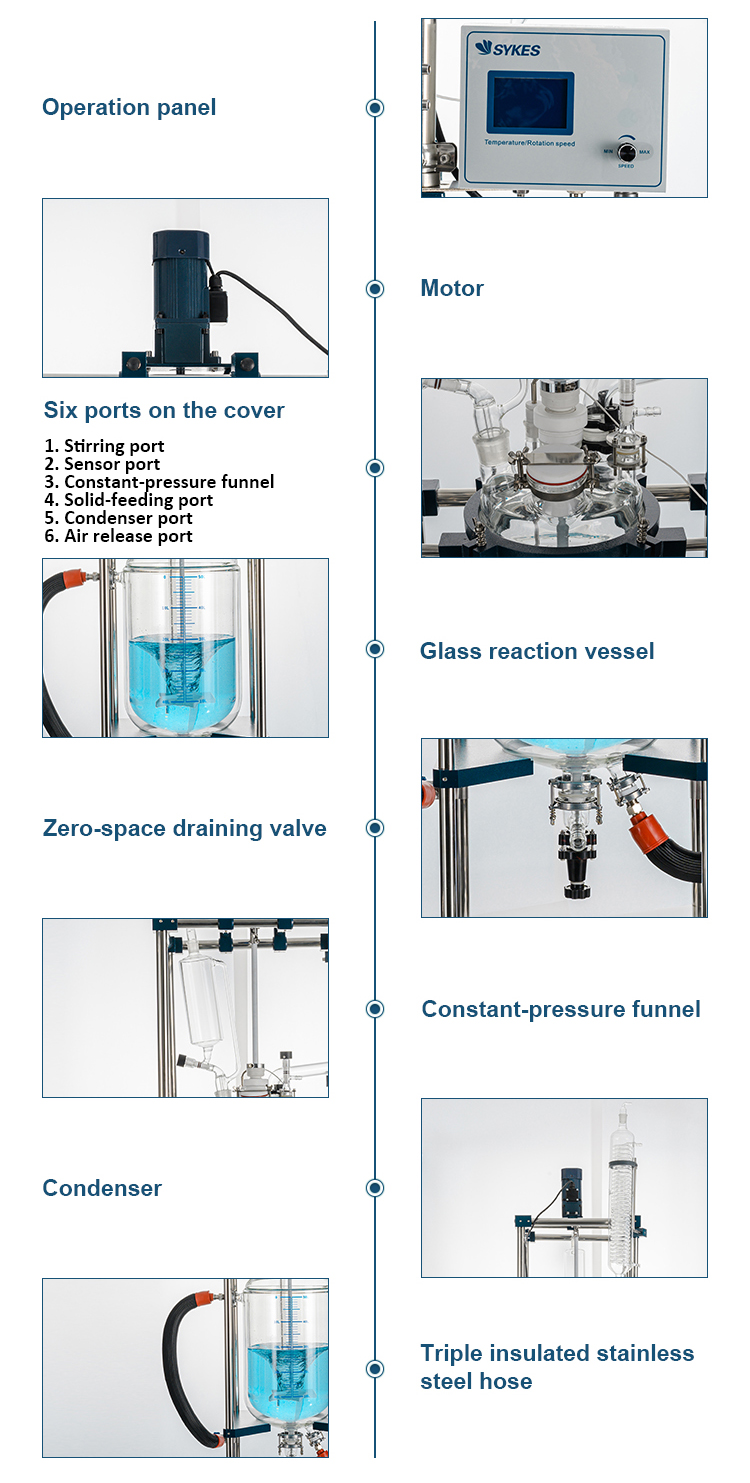

Six ports on glass cover (mm)

Flange diameter Ø340/60*24*80*40*34*40

Reaction glass vessel (mm)

Inner tube diameter Ø460, outer tube diameter Ø500, height H900

Drain valve

80# flange

Collection bottle (L)

10 (optional)

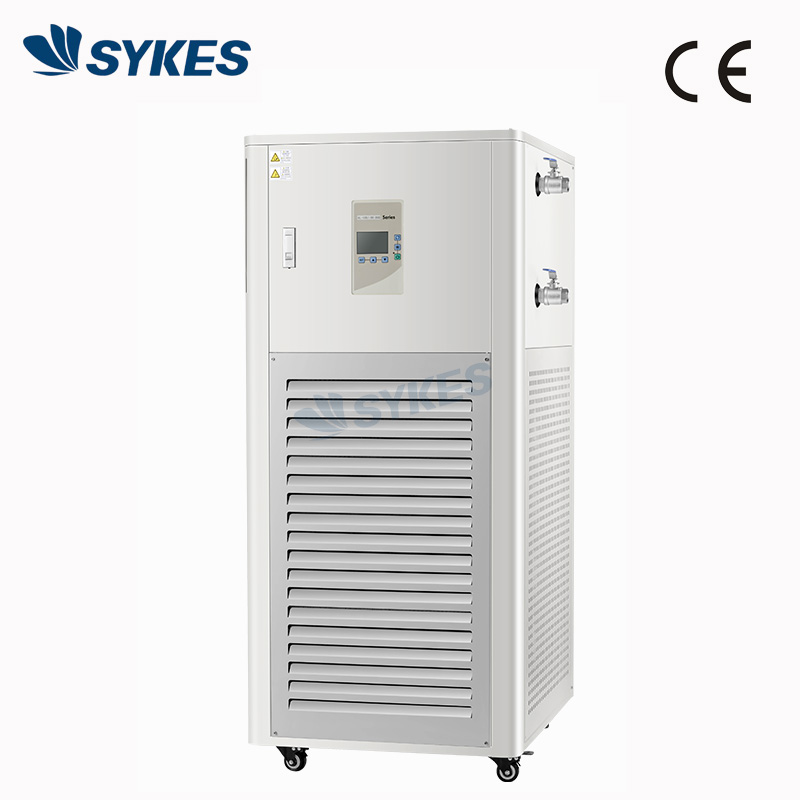

1). -30 to +200℃ cold and heat circulator ZT-100-200-30

     -40 to +200℃Hot and cold circulatorZT-100-200-40

     -80 to +200℃Hot and cold circulatorZT-100-200-80



2). 100L Double Layer Single Jacketed Glass ReactorGR-100

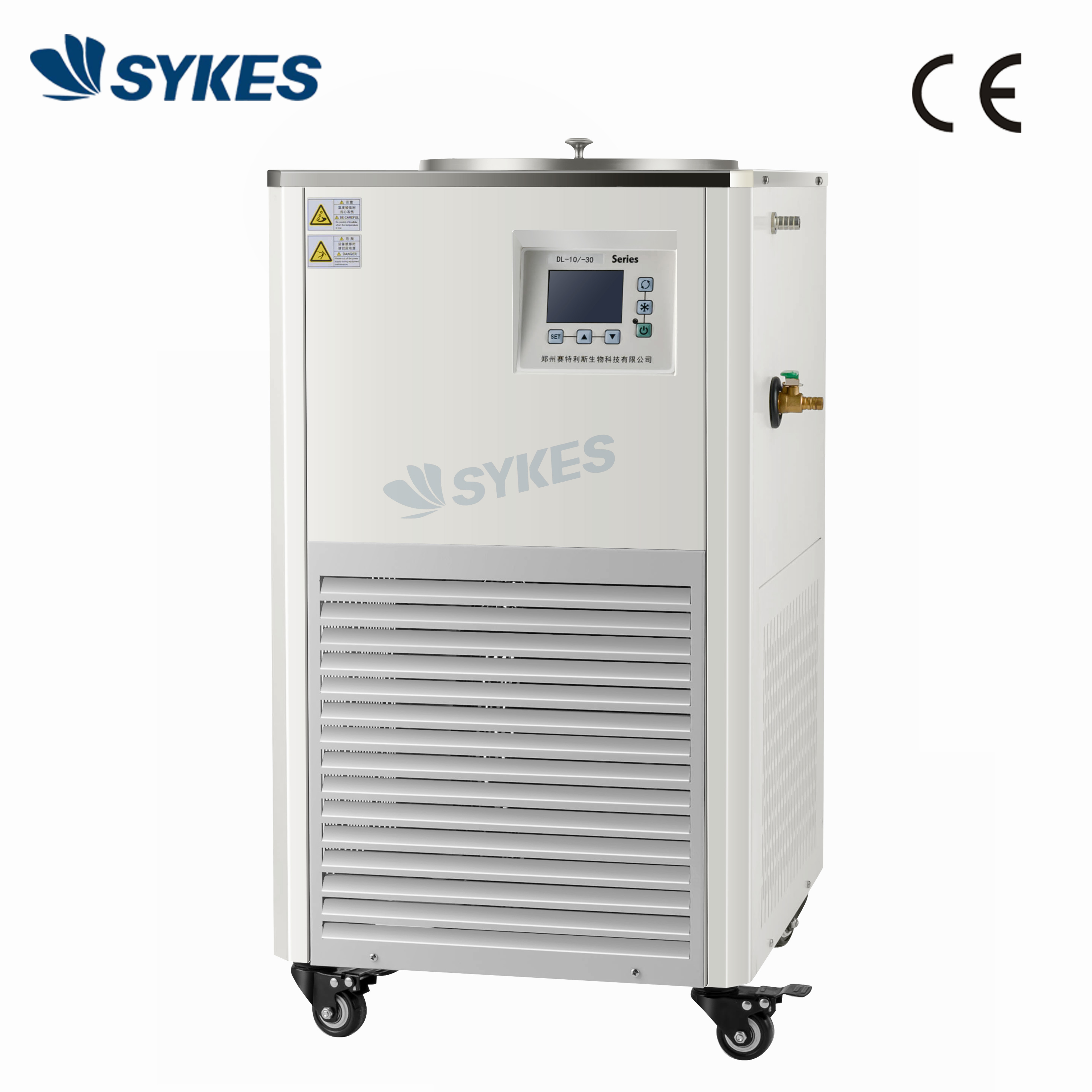

3).-30°C to +20°CCirculating coolerDL-50/30

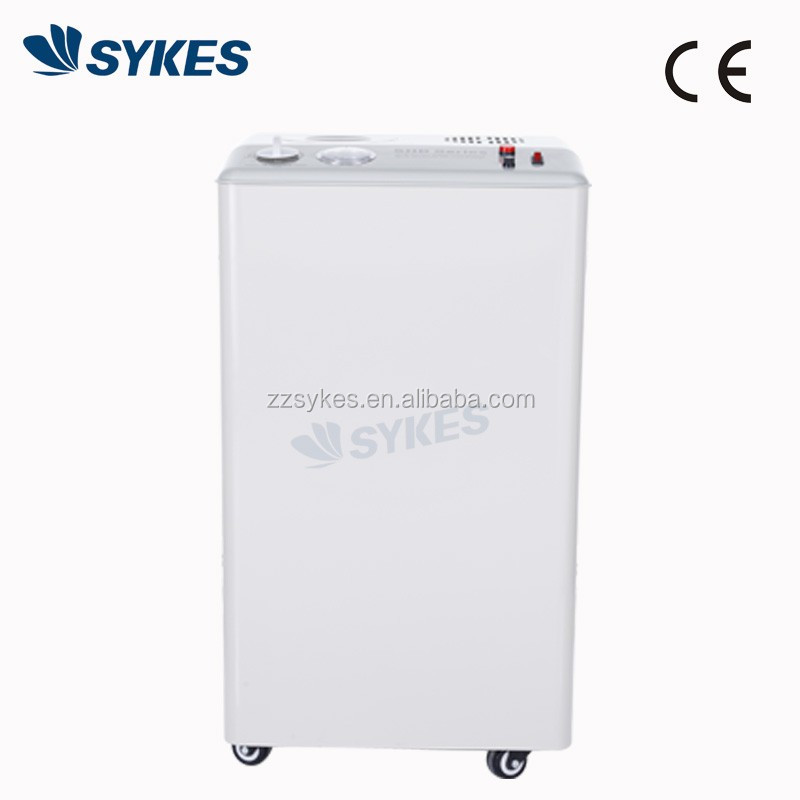

4).Spray paint TeflonWater circulation vacuum pumpSHB-B95T





100L glass reactor without 10L receiving bottle





100L glass reactor with 10L receiving bottle
