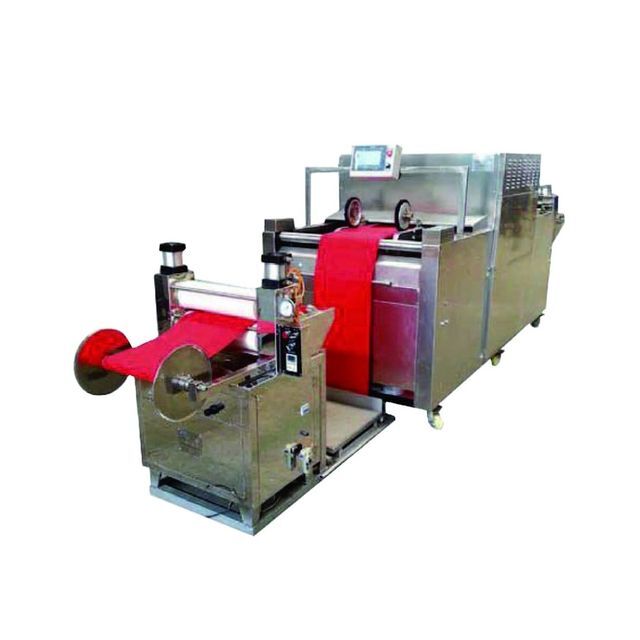

Top 1 Knitted Fabric Heat Setting Tenter
- 20000.00 set
| Video external inspection: | if | heating method: | Coated infrared lamps |
| Temperature Accuracy: | ±2.0℃ | Marketing Type: | normal product |
| strength: | 4000*1300*1200mm,15kw | Dimensions (L*W*H): | 4000*1300*1200mm |
| heating power: | 15kW | payment terms: | letter of credit, wire transfer |
| Warranty: | 1 year | After Warranty Service: | Video technical support, online support |
| place of origin; place of origin: | Jiangsu, China | Supply capacity: | 100 sets of Top 1 knitted fabric heat setting tenter frames per month |
| Certification: | CE ISO9001 | Auto grade: | automatic |
| Showroom location: | not any | Health status: | new |
| product name: | Top 1 Knitted Fabric Heat Setting Tenter | Core components: | motor |
| temperature range: | Room temperature-210℃ | After-sales service provided: | Video technical support, online support |
| Local service location: | not any | weight: | 800KG |
| Voltage: | 380V | To set the trimming: | 105*1000-850*1000mm |
| Core Components Warranty: | 3 months | cooling method: | automatic cooling |
| port: | Shanghai | Applicable industries: | manufacturing plant, textile machinery |
| brand: | Haitai | Set width: | 105-850mm |
| Mechanical test report: | if | Packaging Details: | 1 set/standard package Top 1 knitted fabric heat setting tenter frame |
| Heating rate: | 0.5-6.0℃/min |

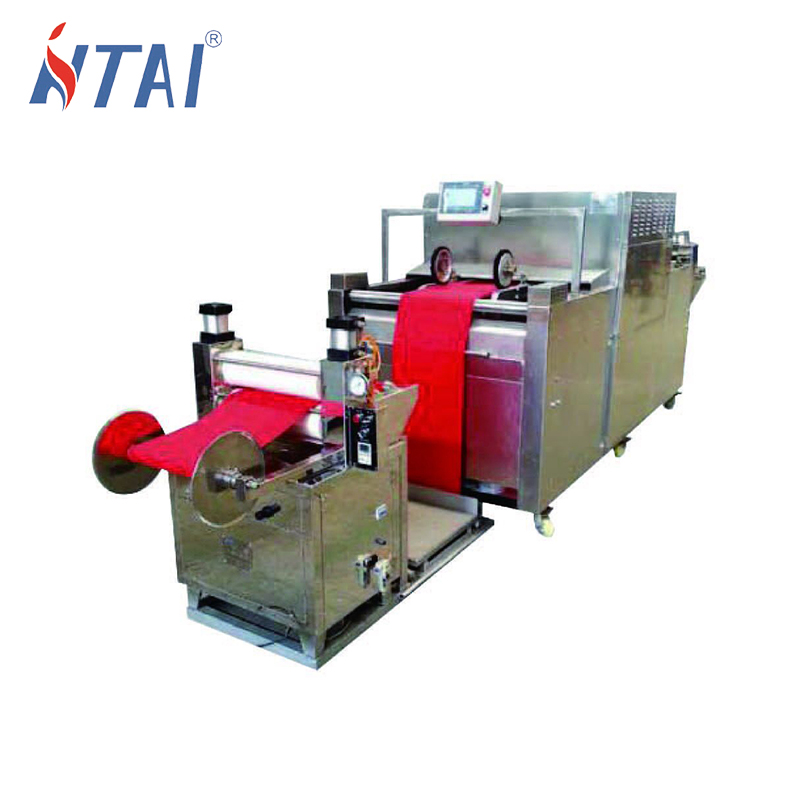

Top 1 Knitted Fabric Heat Setting Tenter
|
Model |
HTR-800 |
|
set width |
105-850mm |
|
set trim |
105×1000-850×1000mm |
|
temperature range |
Room temperature-210℃ |
|
temperature accuracy |
±2.0℃ |
|
Heating rate |
0.5-6.0℃/min |
|
heating power |
15kW |
|
heating method |
Coated infrared lamps |
|
cooling method |
automatic cooling |
|
turning method |
operating frequency, loop |
|
Power Specifications |
Three-phase four-wire 380V |
|
Dimensions |
4000*1300*1200mm(L×W×H) |
advantage
1. Gate width, to fill the gap at home and abroad.
2. Environmental protection, energy saving and high efficiency.
Use high-tech design
1. Novel structure, fully imitating large-scale production design: the width can reach 800mm.
2. The use of infrared heating, environmental protection, energy saving, high efficiency (heating to 200 ℃, only 25 minutes).
3. The cavity adopts a new type of fan, frequency conversion speed regulation, reasonable nozzle, and uniform rapid heat setting effect.
4. The hot air is automatically turned off during emergency stop to prevent damage to the fabric.
5. Can adapt to a variety of fabrics.
6. The whole machine is controlled by PLC, and the man-machine interface operation is implemented.
