HTA-5KG fabric Sample Jet Dyeing Machine

Supplier: Jingjiang Huaxia Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Yumin Yin
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	2.9KW;	Material:	Stainless Steel;
Max.working temperature:	140℃;	Place of Origin:	Jiangsu China (Mainland);
Weight:	430KG;	fabric delivery:	200m/min;
Automatic Grade:	Automatic;	Warranty:	1 Year;
Voltage:	220V/380V;	Max.working capacity:	2-5KG;
Packaging Detail:	fabric Sample Jet Dyeing Machine packed in Wooden Case;	Brand Name:	HTAI;
Product name:	fabric Sample Jet Dyeing Machine;	Certification:	ISO9001,CE;
Port:	Shanghai;	Heating mode:	Steam heating;
After-sales Service Provided:	Engineers available to service machinery overseas;	Max.working pressure:	0.44Mpa;
Payment Terms:	L/C,T/T;	Supply Ability:	30 Set/Sets per Month fabric Sample Jet Dyeing Machine;
Dimension(LWH):	10407301890mm;	After-sales Service Provided:	Video technical support,Field maintenance and repair service;
Condition:	New;

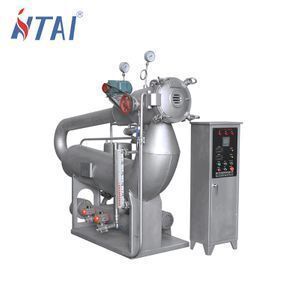

HTA-5KG fabric Sample Jet Dyeing Machine

Product Description

Model	No.of Tube	Nominal Capacity(kg)	Total Power(kw)	Dimensions(mm)
				L	W	H
HTC-3	1	3	1.5	1040	730	1890
HTC-5	1	5	2.2	2000	860	1800
HTC-10	1	10	2.2	2000	900	2000

Characteristics

1.Suitable for dyeing fabric: cotton, polyester/cotton blended yarn, polyester, acrylic, nylon, ramie, viscose rayon fiber, cotton/linen blended, etc.

2.The machine body and part that touches the dye liquor are made of high anticorrosively stainless steel.

3.Improve the motor drive controlled by transducer,minimizing the slippage between fabric and lifter and ensuring the fabric simultaneously running between roller and fabrics.

4.Pumps unique designed with stainless steel which makes dye liquor keep certain pressure and flow rate.Thus,it ensures fabric smooth delivery in dye liquor.

5.Automatic heating control.
