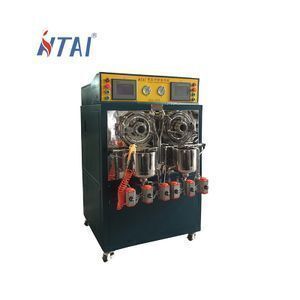

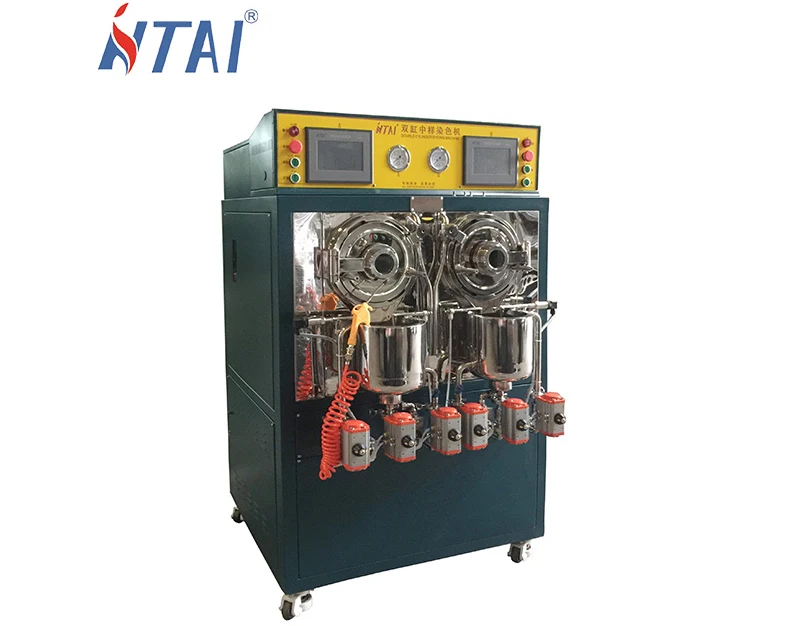

3kg new double cylinder tie dye fabric dyeing machine

Supplier: Jingjiang Huaxia Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Yumin Yin
Price: $26000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO9001,CE ISO9001;	Voltage:	380v;
Capacity:	3Kg*2;	Liquor ratio:	1:5-1:8;
Single gross weight:	560.0 KG;	Rate of temperature increase:	0.1~5℃/min;
Total power:	6.6kw*2;	Warranty of core components:	3 months;
After-sales Service Provided:	Video technical support,Online support;	Tank number:	2;
Selling Units:	Single item;	Machinery Test Report:	Provided;
Automatic Grade:	Automatic;	Production Capacity:	3kg*2;
Showroom Location:	None;	Max.working temperature:	135℃;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Local Service Location:	Morocco,Bangladesh;
Cooling rate:	2℃/min;	Single package size:	140X110X195 cm;
Marketing Type:	New Product 2020;	Brand Name:	HTAI;
Warranty:	1 Year;	Applicable Industries:	Manufacturing Plant;
Power:	6.6kw*2;	MAX. working pressure:	0.44Mpa;
Condition:	New;	Place of Origin:	Jiangsu China;
Core Components:	Motor;	Weight:	520kg;
Packaging Detail:	standard package for 3kg new double cylinder tie dye fabric dyeing machine;	Video outgoing-inspection:	Provided;
Dimension(LWH):	120017001060(mm);	Name:	3kg new double cylinder tie dye fabric dyeing machine;

3kg new double cylinder tie dye fabric dyeing machine

Product Description

Introduction

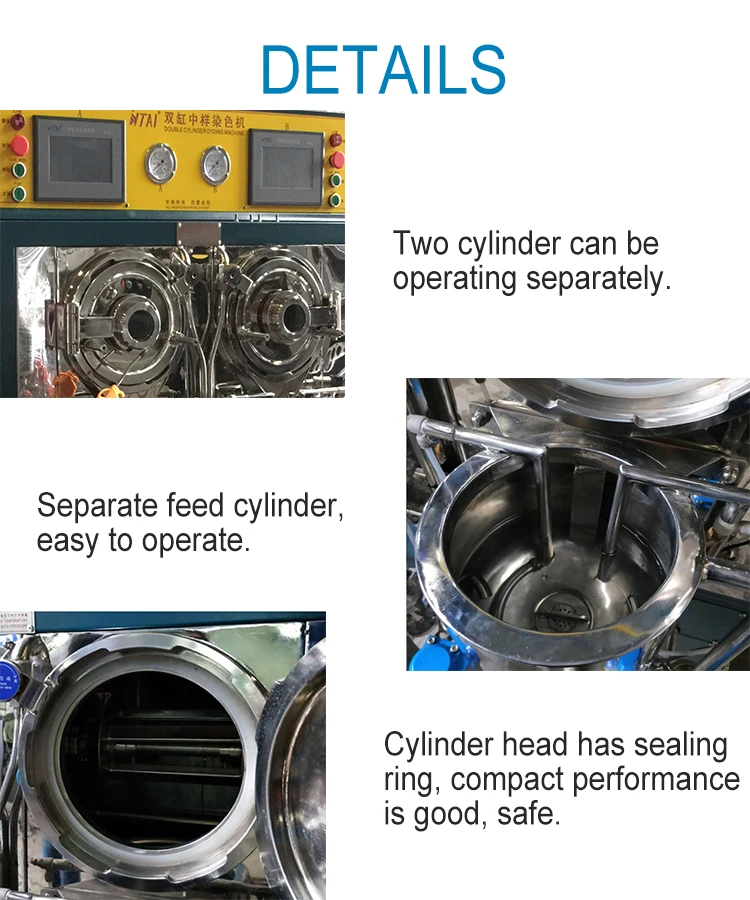

3kg double cylinder sample dyeing machine is a new kind of small bath ratio prototype. It is created by Huaxia Co., according to market demands, and has won many invention patents. The equipment is adapted to all kinds of knitted, woven, new elastic fabrics, non-woven fabrics, nylon, polyamide fiber elastic cloth, including down product cloth which is the most difficult to dye. It is a sole efficient and energy-saving small ratio machine which can reduce costs in mass production.

Parameters

Model	HTC—3kg(Double Cylinder)
Tank number	2
Capacity	0.3Kg-3Kg/Cylinder
Liquor ratio	1:5-1:8
Max. working pressure	0.44MPa
Max. working temperature	135℃
Rate of temperature increase (Room temperature-135℃)	0.1~5℃/min
Cooling rate(135℃-80℃)	2℃/min
Total power	6.6 Kw/Cylinder
Dimensions(L×W×H)	120017001060(mm)
