Product details
AVR Display:LED AVR;Usage:SVC;
Package Type:*Color box & Brown box package *2pcs / per brown box;Model Number:IDEAL AVR PS series;
AVR Voltage regultation:3 step(2 boost & 1 buck);stabilizer protection:RJ-11/RJ-45;
Current Type:AC;Delivery Detail:0 days after payment;
stabilizer Capacity:800VA/400W;Brand Name:IDEAL AVR;
surge protected:175 Joules;Single gross weight:1.6 KG;
stabilizer overload:YES;Input voltage:110/120Vac;
stabilizer Weight:1.6kgs;Selling Units:Single item;
AVR Socket:Nema5-15R;Place of Origin:Taiwan;
Single package size:33X30X14 cm;Phase:Single Phase;
Features:delay time setting;Package Preview:https://sc02.alicdn.com/kf/UTB8z0QbDqrFXKJk43Ovq6ybnpXaH.jpg_640x640.jpg;
Product Details

The Power of Stability

3-in-1 & Multi-function Automatic Voltage Regulator

voltage protection stabilizer

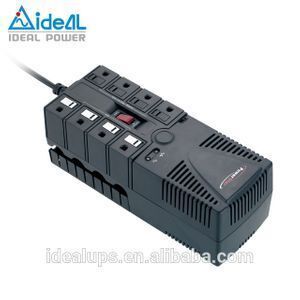

PS-800VA (Nema5-15R)   power stabilizer

AVR PS-800VA Nema5-15R provides 3-steps voltage regulation to stabilize output voltage for protecting connected devices from damage. To guarantee safety of devices connection, it also embedded with thermal switch for over-temperature protection. voltage protection stabilizer

Main Features

* Provide stable output voltage through boost and buck stabilizer voltage protection stabilizer
* Build-in selectable delay time setting for 2sec./10sec./30sec.
* Built-in thermal switch for over-temperature protection
* Provide modem / phone line surge protection
* Provide overload & short circuit protection
 voltage stabilizer
* Fire retardant plastic material
 power stabilizer

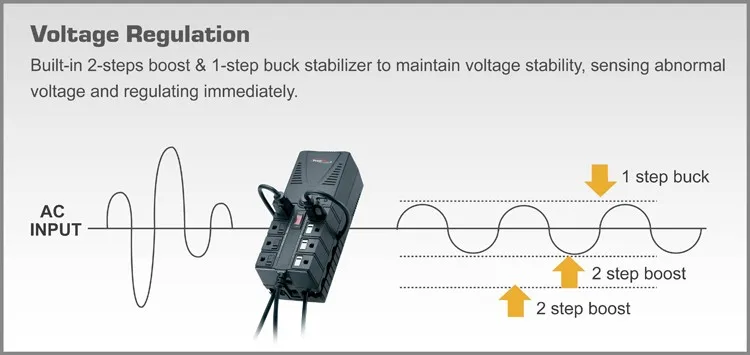

Voltage Regulation

Built-in 2-steps boost & 1-step buck stabilizer to maintain voltage stability, sensing abnormal voltage and regulating immediately.  power stabilizer

voltage stabilizer

Fast Delivery

2-in-1 Main Power Switch

The 2-in-1 main power switch of AVR has both ON/OFF switch function and breaker function to prevent the danger from overload and short circuit situation.   power stabilizer      voltage stabilizer

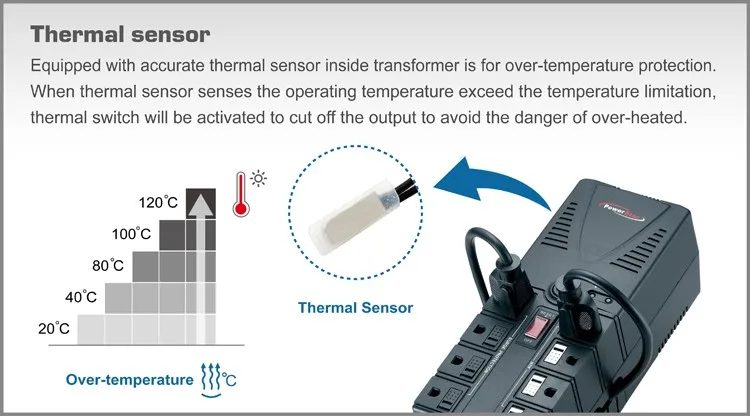

Thermal sensor

Equipped with accurate thermal sensor inside transformer is for over-temperature protection.

When thermal sensor senses the operating temperature exceed the temperature limitation, thermal switch will be activated to cut off the output to avoid the danger of over-heated. power stabilizer    power stabilizer

Surge protection

Surged protected 8 outlets can prevent connected loadings from damage when experienced high voltage or lightning. power stabilizer

Intelligent delay-time function

Selectable delay timer 2sec. /10sec. /30sec. can ensure that the devices are not switched on-off repeatedly during power fluctuations since a massive surge usually experienced when power returns after power failure.power stabilizer

Application

Feasible for all kinds of houshold /office/business appliances

Product Introduction
MODEL
PS-800
CAPACITY AVR
800VA/400W
INPUT
Voltage
110/115/120Vac or 220/230/240Vac
Voltage Range
110/115/120Vac: 80-144Vac ; 220/230/240Vac: 161-288Vac
Frequency
50/60 Hz
OUTPUT
Steps of Regulation
3 (2-steps boost + 1-step buck)
Output Receptacles
Nema5-15R*4pcs AVR regulated & surge protected+4pcs surge protected only
Protection
Phone surge suppression : RJ-11
Overload / short circuit: manual reset circuit switch
Over-temperature: thermal switch
STATUS INDICATORS
Power On/Off LED
Green
Ouput Cut-off LED
Red
ENVIRONMENT
Humidity
0-95% (Non-condensing)
Noise Level
Less than 40dB at 1M
PHYSICAL
Dimension (D*W*H)
230*90*85mm
Net Weight
1.4kgs
Warranty

Other Desktop Product

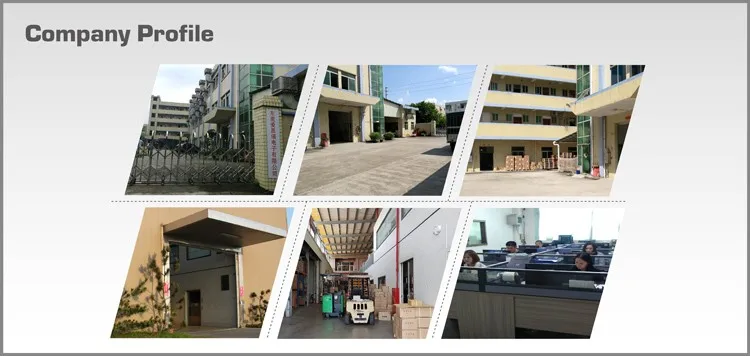

Our Company

Company Introduction

IDEAL POWER CO., LTD was founded in 1996 and committed to design and manufacture reliable and qualified full range of power products, including Uninterruptible Power Supply (UPS), Inverter, Automatic Voltage Regulator (AVR), Voltage Protector (VP) and Surge Protector (SP).

With more than 20 years' experience of OEM/ODM in power products, IDEAL POWER strives to achieve the mission to provide products with high quality and better performance to meet customers' demand in the world.

Our Service Team

We, IDEAL, are dedicating on product development and training professional team, we focus on the global market trend to provide innovative power for customers. IDEAL engineering team has professional background experience and technical knowledge and skill, devoting to integrate global market tendency with new technology to ensure products meet the global customer demand. IDEAL design team help customer design customized product package to establish admirable corporate image for marketing.
We are convinced that establishing long-term relationship of mutual trust and mutual benefit between IDEAL and customers is the motion for us to thrive.
With well-trained and professional team, IDEAL support best service and qualified products to customers globally.

Exhibition
FAQ

Why Choose IDEAL?

1) ODM/OEM experience for more than 20 years.
2) Well-organized manufacturing bases to meet worldwide growing demand.
3) Customized products to meet various applications.
4) Full range of power products
5) High quality products supported by strict quality control system
6) Well-trained workforce and engineer team.
7) Reliable manufacturing supplier on E-commerce online platform

FAQ-Automatic Voltage Regulator

Q1: What can an automatic voltage do for me?
Voltage regulator will provide stable output voltage through boost and buck stabilizer when main power is under over voltage or low voltage. It also guards the connected devices against from overload, surge and spike to prolong the usage life of appliances.

Q2: How to maintain an automatic voltage regulator?
It's simple to keep your voltage regulator work normally.
1. Do not overload your AVR.
2. Do not connect any electronic devices with large initial inrush current at start-up, such hair dryer, laser printer and motor.
3. Place it around a clear environment.

Q3: What's life time of an automatic voltage regulator?
Most AVR can be used for more than 5 years if you maintain it under good conditions.

Q4: What type of automatic voltage regulator that we offer?
Our voltage regulator is relay type, and it has electronic circuit and relay to regulate voltages.
The advantage of relay type AVR is that it has light weight and competitive price.
