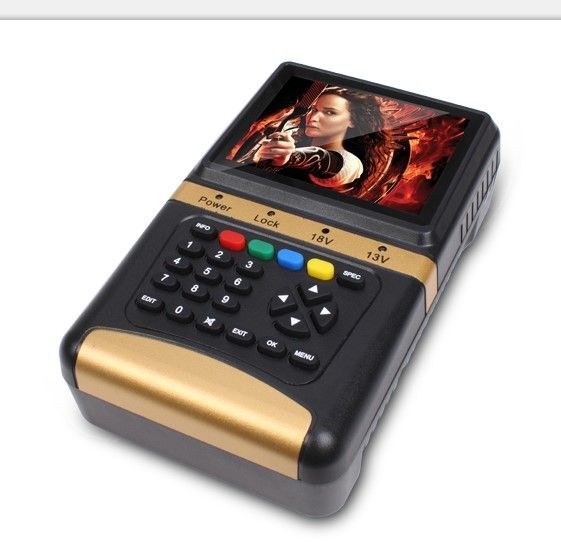

Gecen Digital Satellite Finder with TV Image Display Model SF-3500
-
Supplier: Zhuhai Gecen Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Kelly Ng -
Price: $45.00 /piece -
Min. Order: 1 piece
Product details
| LCD display size: | 3.5 inches | payment terms: | L/C,T/T,Western Union |
| color: | Black | Frequency Range: | 950-2150MHz |
| Packaging Details: | Neutral color box/white box/OEM gift box | Original Equipment Manufacturer: | usable |
| brand: | Global Green Energy | Full color LCD: | support |
| Supply capacity: | 100000 pieces/month | size: | 160*97*47mm |
| port: | Zhuhai/Shenzhen/Guangzhou | Manual edit: | support |
| place of origin; place of origin: | Guangdong, China | Input connector: | Type F |
| demodulation: | QPSK | Signal level: | -78~-10dBm |
| model: | SF-3000 |
Digital Satellite Detector/Satellite Meter/
Product Description
feature:
- Spectrum analysis function
- Full color LCD
- Support manual editing with onboard keyboard
- Built-in rechargeable battery or external power supply
- Data update and software upgrade via USB port
| system resource | Physical Specifications | ||
main processor | 600 Hz based CPU | LCD Monitor | 3.5 inches |
| flash | 64M bits | Size [W*H*D] | 160x97x47(mm) |
| DDR SDRAM | 1024M bits | net weight | 0.5Kg |
| Operating temperature | 0℃ ~ +45℃ | ||
| Storage temperature | -10℃ ~ +70℃ | ||
| Tuner/Front End | power supply | ||
Tuner type | DVB-S/DVB-S2 | input voltage adapter | Free voltage (100~240V AC 50/60Hz) |
| input connector | Type F | energy consumption | 10W max |

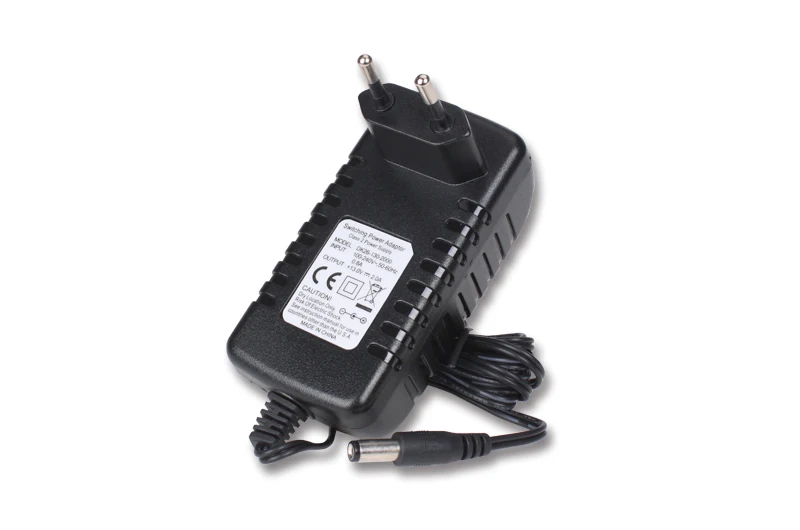

Frequency Range | 950MHz~2150MHz | Power charger output | 14V DC 2A |
| signal level | -65~-25dBm | Battery | 12.6V DC 2000mA |
| impedance | 75Ω | ||
| LNB Power and Polarization | Vertical: +13V Level: +18V Current: Max.500mA Overload protection | battery charging time | 6H |
| DiSEqC Control | Version 1.0/1.1/1.2/1.3, USALS available | Standard battery discharge time | 3-4H |
| 22KHz tone | Frequency: 22±1KHz | Audio output | Built-in speaker |
| demodulation | QPSK,8PSK,16APSK,32APSK | USB | 1*USB 2.0 sloCompatible host |
| Sign Exponent | 1~60Msps | transport stream | MPEG-2/4, H.264
|

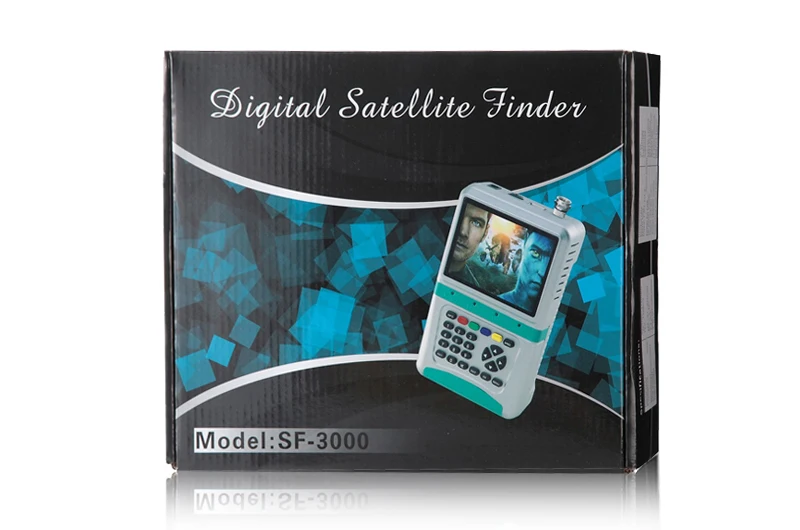

Packaging and Shipping
our service
