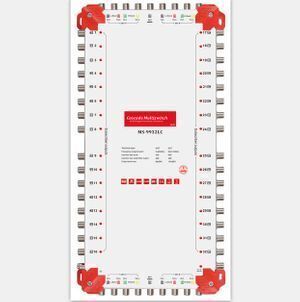

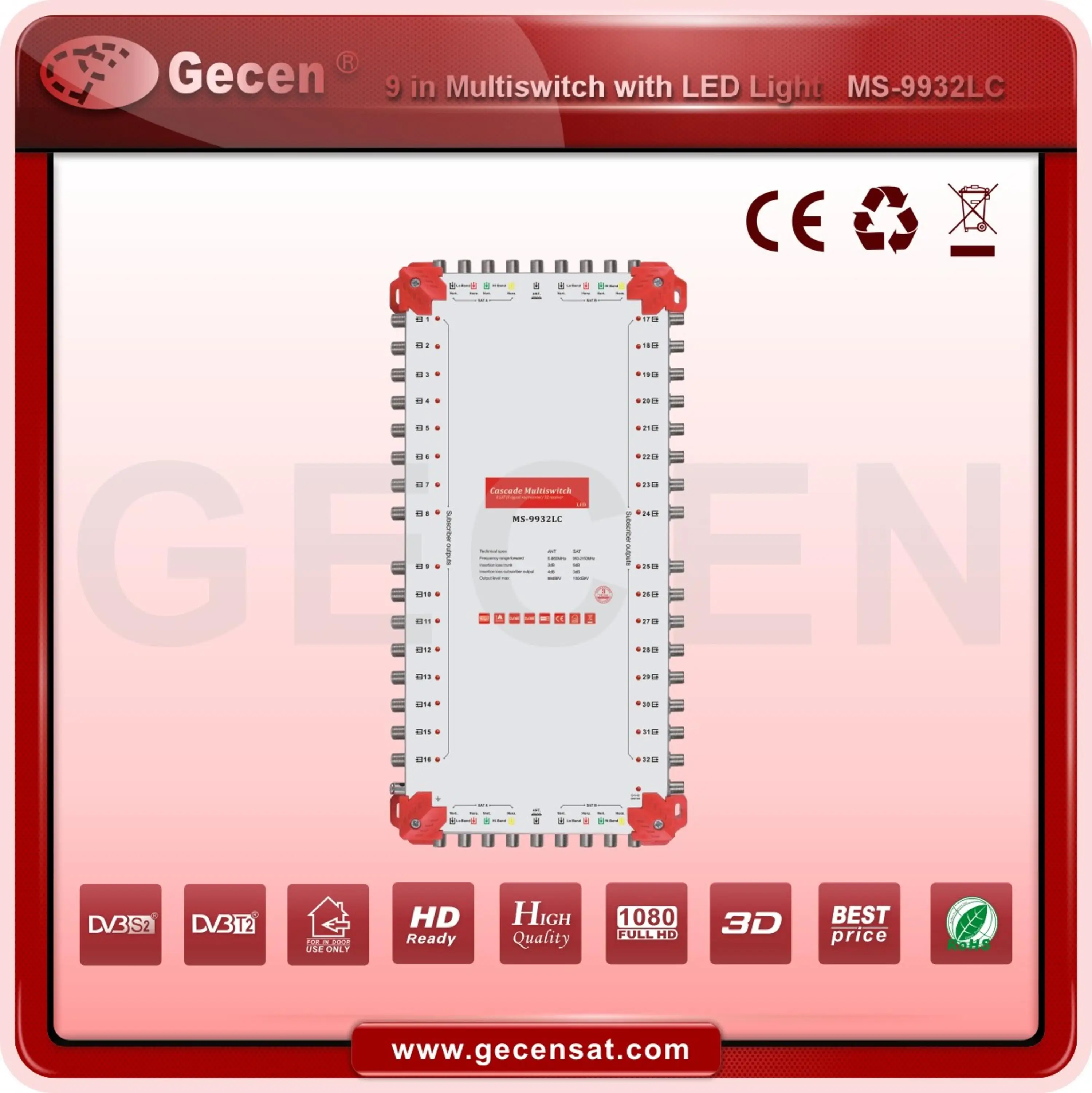

Gecen 9X9X32 Cascade Satellite Multiswitch with LED 9 inputs 32 outputs MS-9932LC

Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Return Loss SAT Inputs

10(dB)

Frequency Range SAT

950-2150(MHz)

Return Loss ANT Input

12(dB)

Insertion Loss ANT

5(dB)

Return Loss Outputs

8(dB)

Insertion Loss SAT

4(dB)

Output Level ANT

88(dBuV)

Insertion Loss Trunk(for cascadable type)

0(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

200(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)2000mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Cross Isolation(for cascadable type)

25(dB)

Impedance(all ports)

75(Ω)
