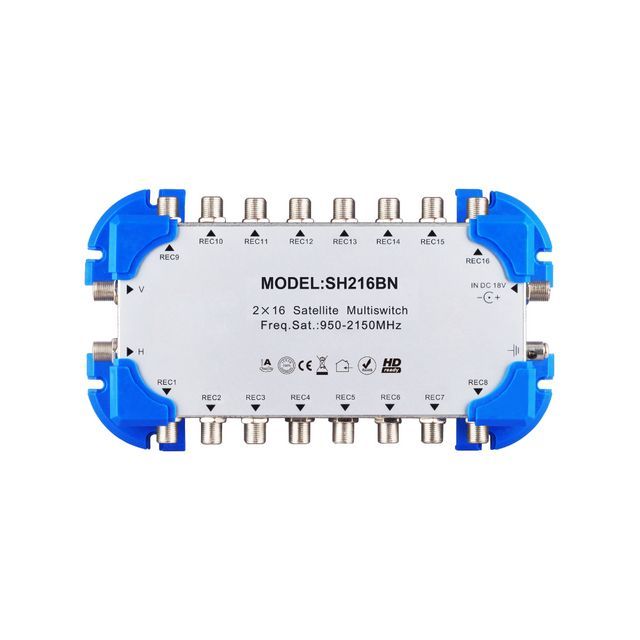

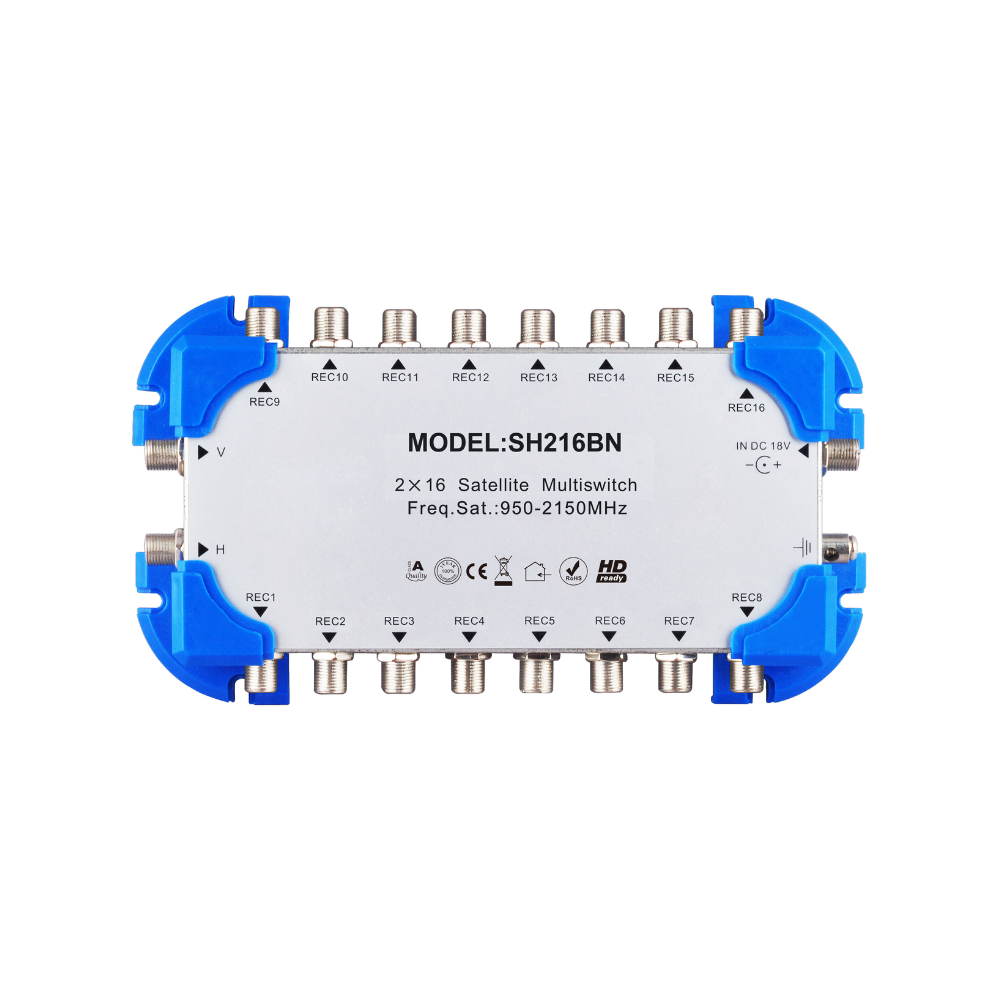

2 in 16 TV inputs for 16 satellite receivers 2x16 satellite multiplexer
-
Supplier: Zhongshan Hejia Electrical Industrial Co., Ltd -
Region: Guangdong, China -
Contact: Ms Shel Qiu -
Price: $26.60 / 50 - 99 pieces
$25.50 / 100 - 499 pieces
$24.20 / >=500 pieces -
Min. Order: 50 pieces
Product details
| Packaging Details: | White box/gift box packaging | Can be used to: | 12 users |
| model: | HJSH216 | Housing Type: | sheet metal |
| brand: | and home | cascade: | usable |
| product name: | Satellite MultiSwitch CE 216 HD | Terrestrial TV input: | 1 |
| Private Mold: | No | Satellite IF input selection: | 13V, 18V, 22KHz |
| Package preview: | lead: | available for each output | |
| aspect: | 163X193X43MM | Origin: | Guangdong, China |
| powered by: | external adapter | port: | Shanghai, Shenzhen, Zhongshan, Hong Kong |
| payment terms: | Western Union, T/T, MoneyGram | Satellite IF input: | 1 |
| Supply capacity: | 10000 pieces per month |
Product Description
2x16 Multiswitch External Power Adapter White Box Packaging
feature:
*12 5 satellite IFs and 1 terrestrial TV input for satellite receiver.
*5 channels satellite IF input 13V, 18V, 22KHz selection
* Low insertion loss, high isolation and return loss.
*12 5 satellite IFs and 1 terrestrial TV input for satellite receiver.
*5 channels satellite IF input 13V, 18V, 22KHz selection
* Low insertion loss, high isolation and return loss.
* Subscriber's SAT-IF-PATH is active and provided by receiver
*Sheet metal enclosure with plastic brackets.
* Design suitable for indoor use.
Specification:
*Sheet metal enclosure with plastic brackets.
* Design suitable for indoor use.
Specification:
For multiple switches

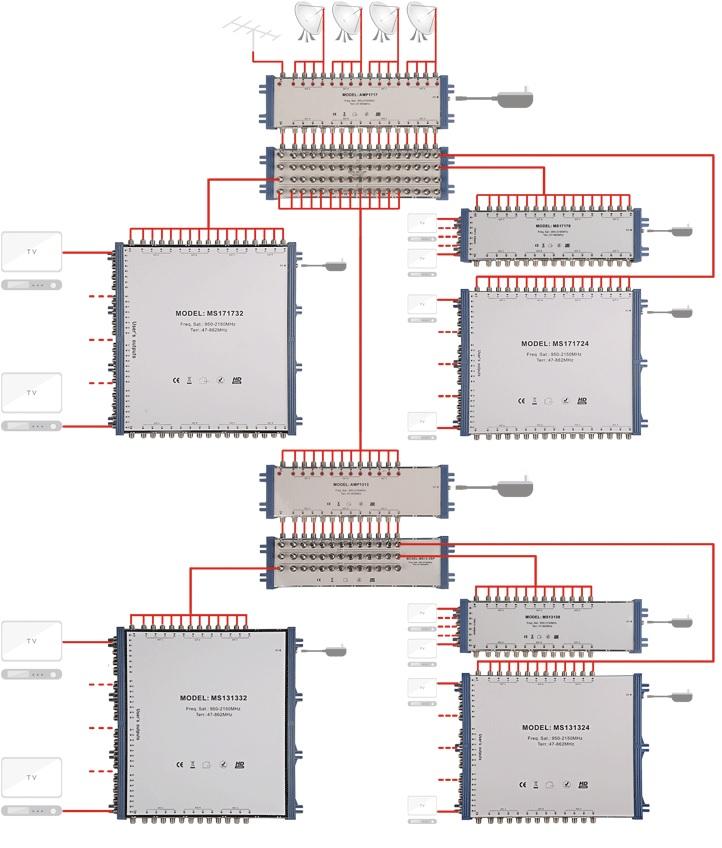

A multiplexer is a device used with two or four way LNBs to distribute the satellite TV signal to multiple (usually more than four)
Receiver from a single antenna and LNB.
Multiplexers are often installed above or within apartment buildings to allow all residents to receive satellite TV without
Prepare a separate dish for each resident.
Receiver from a single antenna and LNB.
Multiplexers are often installed above or within apartment buildings to allow all residents to receive satellite TV without
Prepare a separate dish for each resident.
thing | typical | Quality Control Limits | Comment | |
Frequency Range | Ground: 47~862MHz Satellite: 950~2150MHz | |||
enter | 1SAT and 1 terr. | F-connector | ||
output | 16 receivers | F-connector | ||
Tap loss (Terr.) | -3dB | -3dB | ||
Tap Loss (SAT) | 3 decibels | 3 decibels | ||
Return loss (Terr.) | -10dB | -10dB | ||
return loss (SAT) | -10dB | -10dB | ||
Isolation (horizontal/vertical) | -25dB | -25dB | ||
Isolation (REC-REC) | -28dB | -28dB | ||
Power Adapter | Input: 100~240V Output: DC12V 1A | |||
Dimensions (length, width, height) | 163x193x43 | 163×193×43 | mm | |
