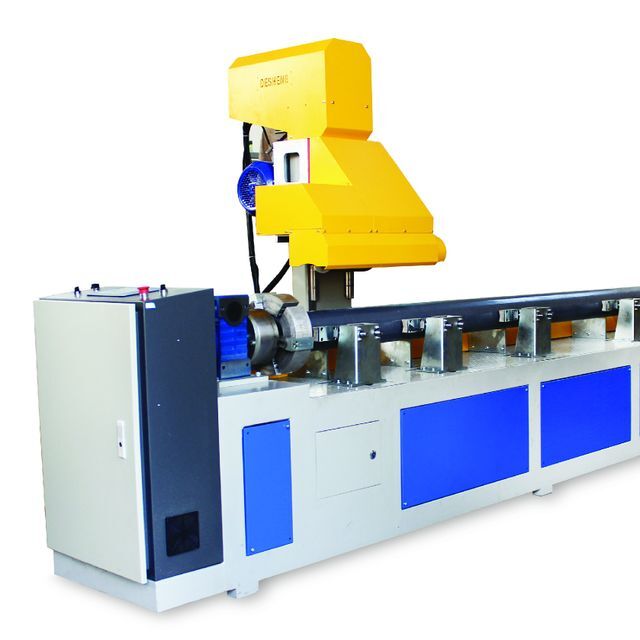

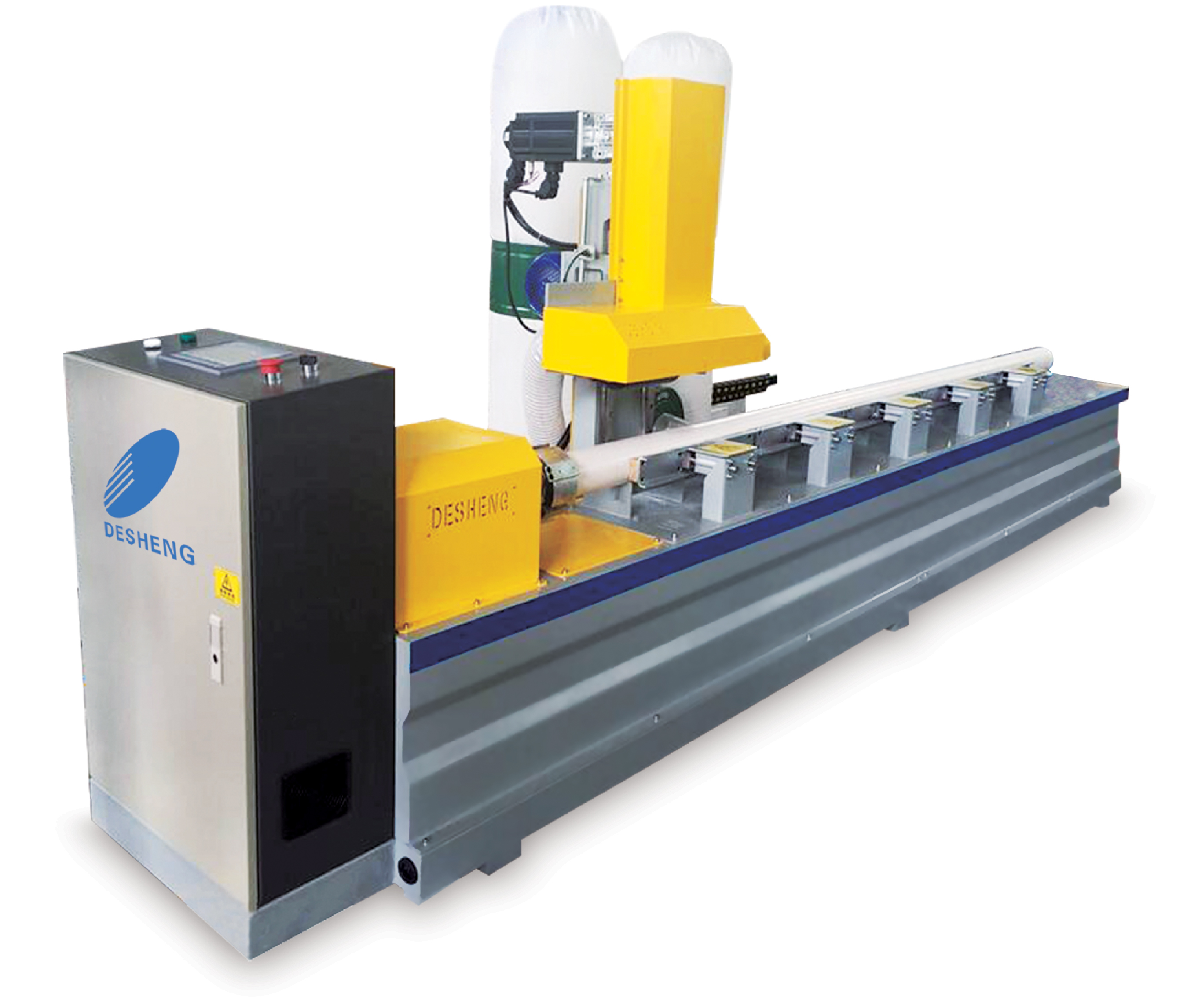

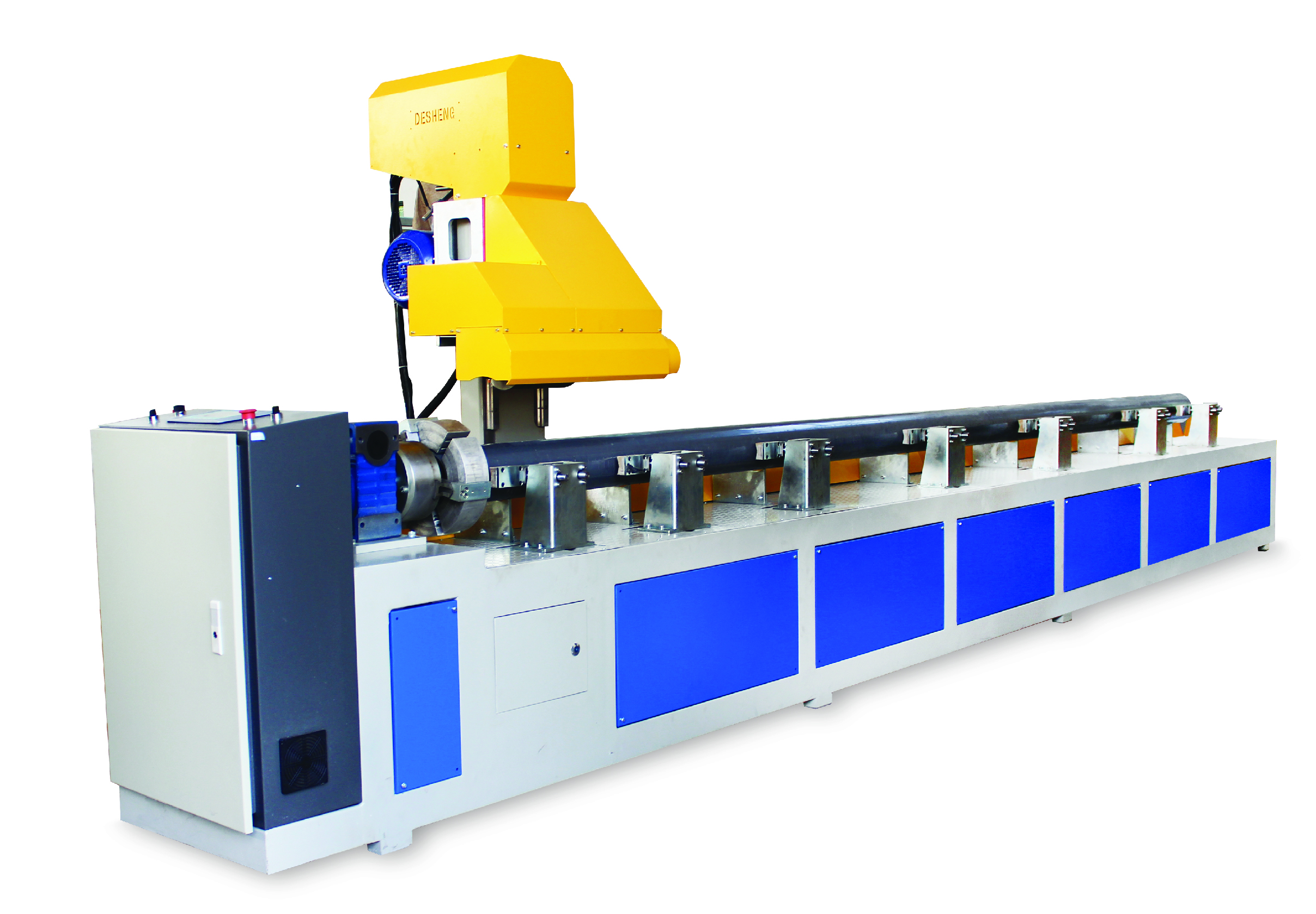

DS250-SA Automatic slot machine

Click here to contact

Product details

Pipe diameter:	50mm-250mm	Main selling point:	high productivity
strength:	15KW	brand:	Desheng Flaring Machine
port:	China Shanghai	After-sales service provided:	Engineers can repair machinery overseas
Voltage:	380V 415V 460V	Mechanical test report:	if
payment terms:	letter of credit, wire transfer	Warranty:	1 year
Marketing Type:	normal product	Supply capacity:	1 set per month

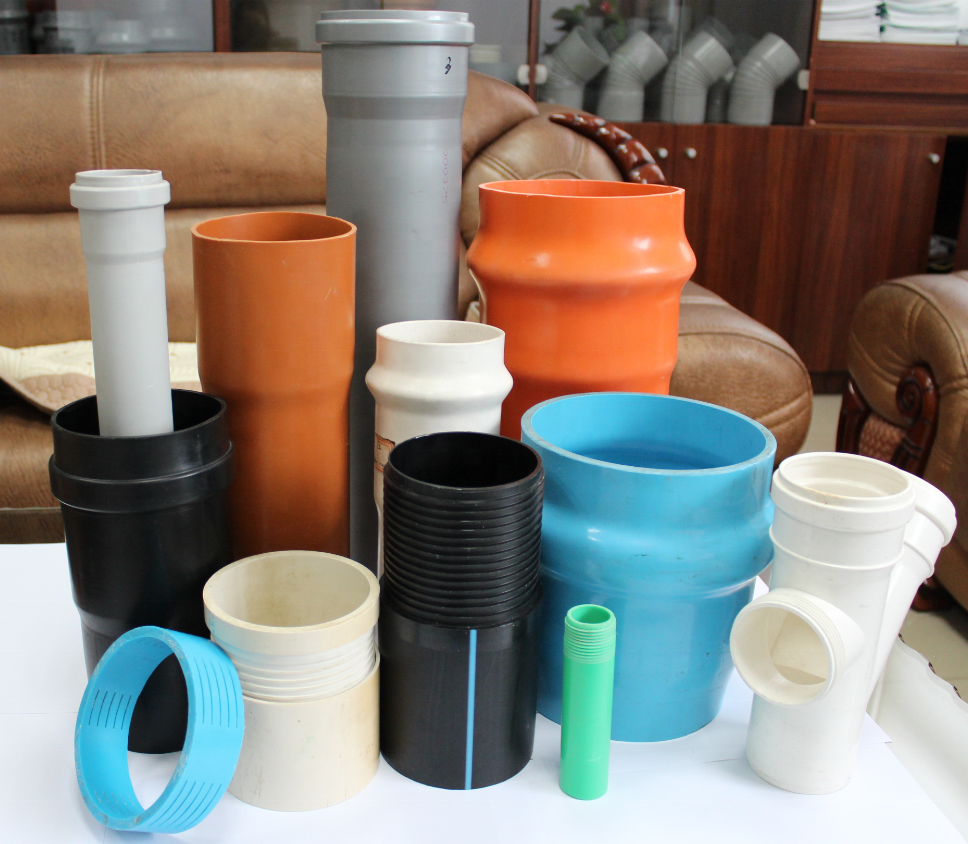

Processing type:	PVC pipe PE pipe	Video external inspection:	if
Applicable industries:	construction project	Showroom location:	Egypt, Brazil, Peru, Saudi Arabia, Argentina, Algeria, Bangladesh
Weight (kg):	2500	Packaging Details:	DS250-SA Plastic film slotting machine, wooden box slotting machine.
Health status:	new	Product Category:	slotting machine
Core Components Warranty:	1.5 years	Core components:	PLC, gearbox, motor
place of origin; place of origin:	Jiangsu, China	Dimensions (LWH):	750012001500mm

pipeline standard	Model	DS250-SA Slotting Machine
	standard	U-PVC1002.1-2006 (on request)
	diameter	50mm- 250mm
	length	2m – 4m
Electrical components	PLC and screen	Siemens
	Low voltage equipment	Schneider, Omron
	total power	9KW
	Use voltage	380V, 50HZ, three-phase (on request)
	Wire size	310mm² and 16mm²
pneumatic	compressed air pressure	0.6Mpa
pneumatic	Pneumatic valve	Social network
equipment appearance	Number of blades	Depends on customer's number of slots
	Dust collector	Yes
	center height	1000mm (as required)
	height adjustment	Electrical - via button
	machine color	light grey RAL7032 (on request)
	Machine size	2500mm(L)×3200mm(W)×2200mm(H)
	machine weight	2850kg
working principle	type of machine	Fully automatic, a pipe can be opened with one or more rows of parallel grooves. Slot number and size: according to customer requirements.
	machine speed	1 m/min
	Blade material	W18Cr4V
