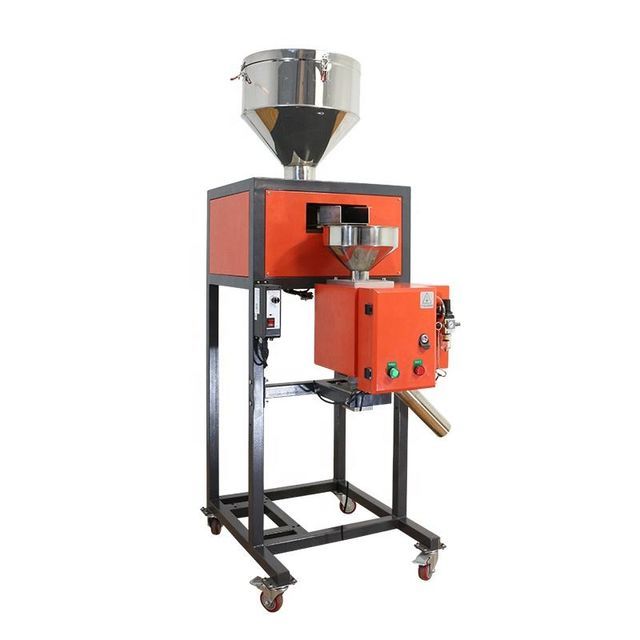

Electrostatic metal separator powder non-ferrous metal detector separator metal separator vibration stainless steel Products from Qingdao Zhongbangling Electric Co., Ltd.

Product Details

Mechanical test report:	if	Weight (kg):	200
Health status:	new	payment terms:	L/C, Western Union, D/P, T/T
brand:	AsianJN	Video outbound inspection:	if
application:	Plastic particles	Showroom location:	not any
Dimensions (LWH):	5005001400 mm	After-sales service provided:	Video Technical Support
Supply capacity:	50 groups per week	Core components:	engine
port:	Qingdao	Punching diameter:	25mm-150mm
Core component warranty:	1 year	Blanking speed:	free fall
Main selling points:	Easy to operate, automatic	Packaging Details:	Wooden case or carton packing, depends on the goods
Applicable industries:	plastic processing	Voltage:	220V, 50/60HZ
range of working temperature:	-10~+80℃	product name:	metal separator
Origin:	Shandong Province, China	Marketing Type:	normal product
compressed air:	3 bar~5 bar/4 bar~6 bar	Warranty:	1 year

Product Description

No	Voltage	range of working temperature	Punching speed	discharge time	compressed air	Punching diameter	emissions	check accuracy
RL-25G	220V, 50/60HZ	'-10~+80℃	free fall	0.1 ~ 15 seconds adjustable	3 bar~5 bar	φ25mm	250 kg/h	0.2~0.3 mm
RL-30G	220V, 50/60HZ	'-10~+80℃	free fall	0.1-16 seconds adjustable	3 bar~5 bar	φ30mm	300~400kg/hour	0.3~0.4mm
RL-40G	220V, 50/60HZ	'-10~+80℃	free fall	0.1-17 seconds adjustable	3 bar~5 bar	φ40mm	400~500kg/hour	0.4~0.5 mm
RL-50G	220V, 50/60HZ	'-10~+80℃	free fall	0.1 ~ 18 seconds adjustable	4 bar ~ 6 bar	φ50mm	700~1000kg/hour	0.5~0.6 mm
RL-60G	220V, 50/60HZ	'-10~+80℃	free fall	0.1 ~ 19 seconds adjustable	4 bar ~ 6 bar	φ60mm	1000~1200kg/hour	0.6~0.7mm
RL-70G	220V, 50/60HZ	'-10~+80℃	free fall	0.1 ~ 20 seconds adjustable	4 bar ~ 6 bar	φ70mm	1200~1300kg/hour	0.7~0.8 mm
RL-80G	220V, 50/60HZ	'-10~+80℃	free fall	0.1-21 seconds adjustable	4 bar ~ 6 bar	φ80mm	1500 kg/h	0.8~0.9 mm
RL-100G	220V, 50/60HZ	'-10~+80℃	free fall	0.1-22 seconds adjustable	4 bar ~ 6 bar	φ100mm	2000 kg/h	0.9~1.0 mm
RL-120G	220V, 50/60HZ	'-10~+80℃	free fall	0.1-23 seconds adjustable	4 bar ~ 6 bar	φ120mm	2200 kg/h	1.2~1.5 mm
RL-150G	220V, 50/60HZ	'-10~+80℃	free fall	0.1-24 seconds adjustable	4 bar ~ 6 bar	φ150mm	2500 kg/h	1.5~2.0 mm
