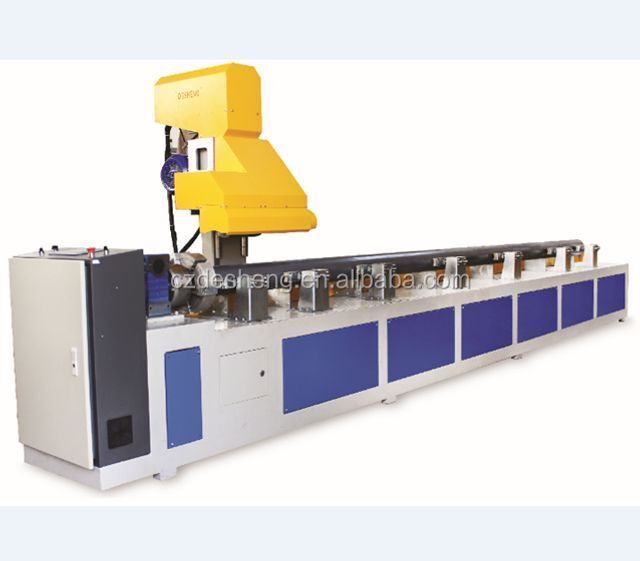

DS250-SA Plastic Pipe Slotting Machine

Click here to contact

Product details

Showroom Location:	Egypt,Argentina,Chile,Ukraine,Uzbekistan,Tajikistan;	Brand Name:	Desheng Belling Machine;
Product Type:	PVC PE PIPES SLOTTING MACHINE;	Applicable Industries:	Manufacturing Plant,Construction works ;
Video outgoing-inspection:	Provided;	Machinery Test Report:	Provided;
Warranty:	1.5 years;	Weight (KG):	2800;
Condition:	New;	Key Selling Points:	Easy to Operate;
Warranty of core components:	1 Year;	Slotting material:	PVC HDPE;
Marketing Type:	Ordinary Product;	Place of Origin:	Jiangsu, China;
Slotting pipe diameter:	50-250MM;	Product name:	SLOTTING MACHINE;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	1 Set per Month;
Dimension(LWH):	740011001500mm;	Certification:	CE Certificate;
Core Components:	PLC,Gearbox,Motor;	Port:	SHANGHAI, CHINA;
Packaging Detail:	DS250-SA Slotting Machine is packed by plastic film;	Payment Terms:	L/C,D/P,T/T;

Pipe standards	Model	DS250-SA
	standard	U-PVC1002.1-2006 (as request)
	Diameter	75mm- 250mm
	Length	2m – 6m
Electrical component	PLC and Screen	Siemens
	Servo motor	have
	low-voltage apparatus	Schneider, Omron
	Total Power	13KW
	Use voltage	380V, 50HZ, 3-phase (as request)
	Wire dimension	310 square millimeter, and 16 square millimeter
Pneumatic	Compressed air pressure	0.6Mpa
Pneumatic	Pneumatic valve	SNS
Equipment appearance	Blade qty	Depend on customer’s slot quantity
	Dust collect device	Yes
	Center height	1000mm (as request)
	Height adjustment	Eletrical - via button
Operating principle	Machine color	Light grey RAL7032 (as request)
	Machine dimension	7000mm(L)×2200mm(W)×2600mm(H)
	Machine weight	3250kg
	Machine type	Fully-automatic, A pipe can be slotted with one row or several parallel rows of grooves. The number and dimensions of slots: according to customer’s request.
	Machine speed	0.5m/min
	Blade material	W18Cr4V
