1000W 1500W Mini Small Handheld Fiber Laser Welding Machine for Metal Stainless Steel Tube Laser Welding Machine

Supplier: Shenzhen Dag Technology Industrial Co., Ltd.
Region: Guangdong, China
Contact: Ms Lynn Lin
Price: $4600.00 / 1 - 4 sets
$4000.00 / 5 - 19 sets
$3500.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	maximum. Output Power:	1500w
Pulse Width:	0.5-15ms	Mechanical test report:	if
Core components:	laser source	Laser wavelength:	1064 nm
Welding speed:	0-120mm/s	Welding method:	hand held
Packaging Preview:		Pulse frequency:	≤100Hz
Marketing Type:	normal product	application:	metal welding
Core Components Warranty:	2 years	Packaging Details:	A set of wooden boxes that meet international export standards
Supply capacity:	200 sets per month	Focus diameter:	0.1-3mm
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	port:	Shenzhen Port
Laser power:	1000w 1500w	Advantage:	Small size
Weight (kg):	130kg	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other
Main selling point:	easy to operate	Warranty:	1 year
Laser head brand:	Kirin	place of origin; place of origin:	Guangdong, China
cooling system:	water cooling	usage:	metal welding
product name:	Handheld Laser Welding Machine	Laser source brand:	Rex/MAX
Laser Type:	Fiber Laser Source	wavelength:	1064
Video external inspection:	if

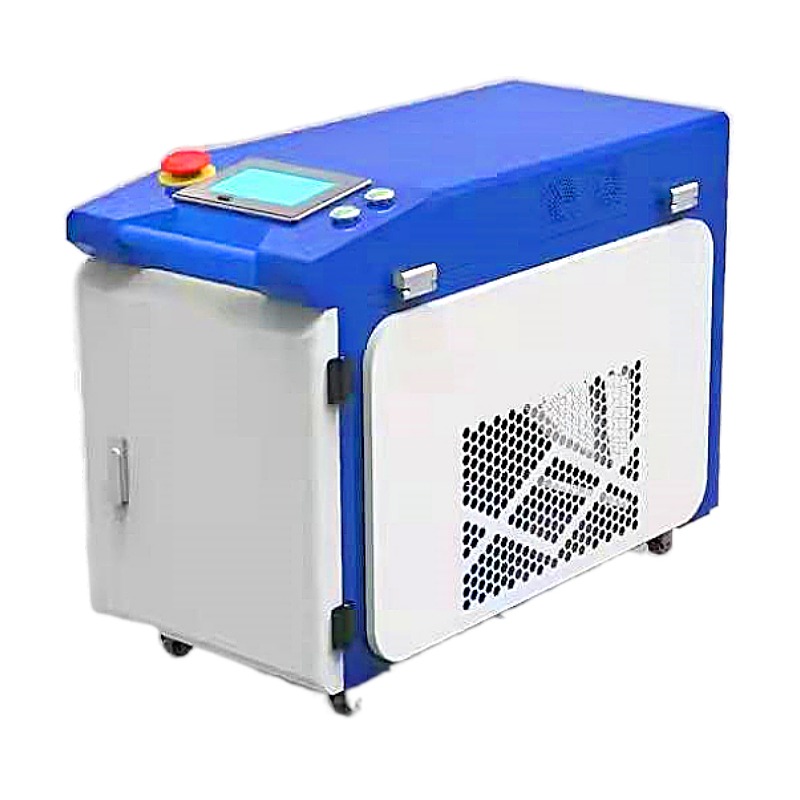

Micro Handheld Fiber

Laser welding machine

Output fiber length 5/10/15m (optional)

Laser power 1000W/1500W (optional)

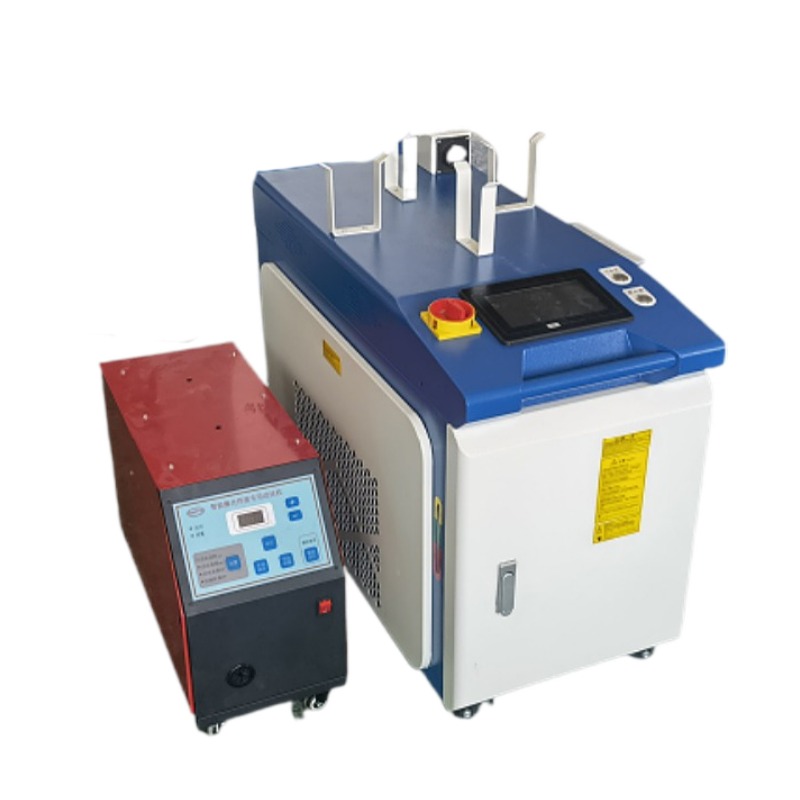

Handheld laser welding machine with automatic wire feeder

Product parameters

model	DGWF-H1000/DGWF-H1500
Laser power	1000W/1500W
operating mode	Continuous / Modulation
Output fiber length	5/10/15m (optional)
Features	Stainless Steel Metal Welding
Laser wavelength	1070±5nm
Power requirements	AC220V/50Hz-5KHz
weight	130KG
cooling method	water cooling
Cooling water temperature	5-45℃
Air humidity	10-90%
Welding thickness range	0.5-0.8MM
Welding wire requirements	≤0.5mm
Welding speed	0-120mm/s
Cabinet Style Colors	custom or standard

Product Description

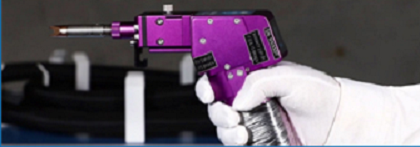

Laser welding head

The welding head is easy to operate without the need for a professional welder.

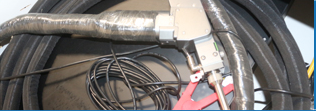

Output fiber length

Equipped with 5-15m optical fiber cable (optional), it can weld long-distance and large-area parts.

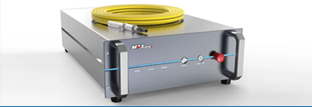

laser source

High quality, very stable: brand laser source Raycus MAX (optional) has a service life of up to 100,000 hours and is maintenance-free.

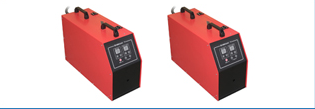

Automatic feeding system

The handheld laser welding machine is equipped with an automatic wire feeder.

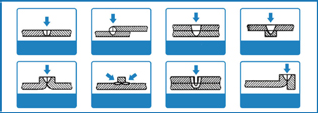

Various welding processes

Plug welding, seal welding, spot welding, stitch welding and lap welding.

Product advantages

Fine workmanship

It is suitable for spot welding of various complex welds and various devices. It is mainly used for the welding of thin metal sheets in the range of 0.5~3.0mm, which makes up for the problems of hot melting, easy deformation and deep processing after welding in the traditional argon arc welding process.

good stability

Pure and stable fiber laser source, good maintenance-free welding effect, continuous laser emission mode, uniform welding spot, very smooth and clean welding surface, no need for secondary processing after welding, simple operation, saving you expensive technical labor costs, no wearing parts, Maintenance free.

Work efficiently

This product breaks through the traditional method and adopts directional point-to-point welding, which is 10-15 times faster than ordinary welding and has high work efficiency.

wider application

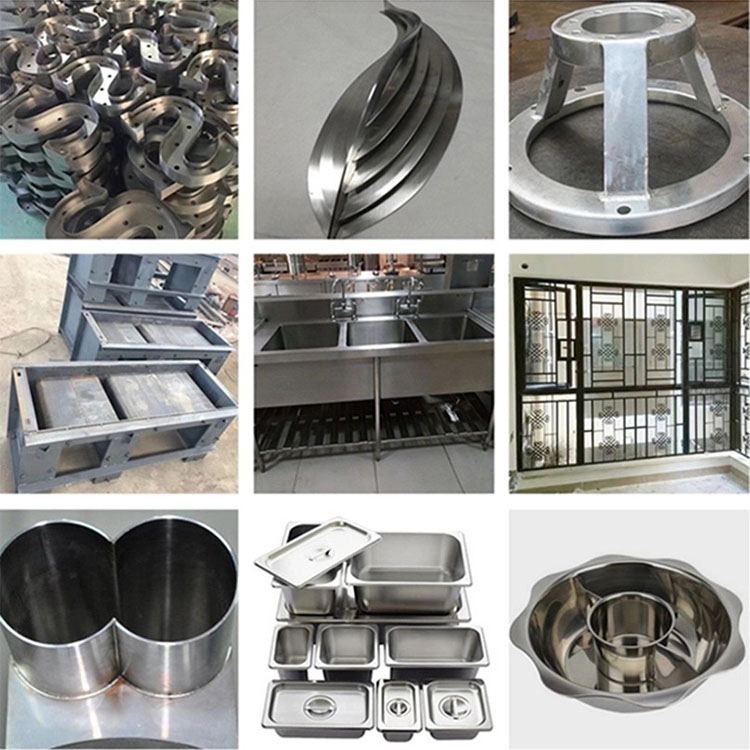

Widely used in kitchen and bathroom industry, home appliance industry advertising industry, stainless steel door and window industry, handicraft industry mold industry, household goods industry, furniture industry, auto parts industry, etc.

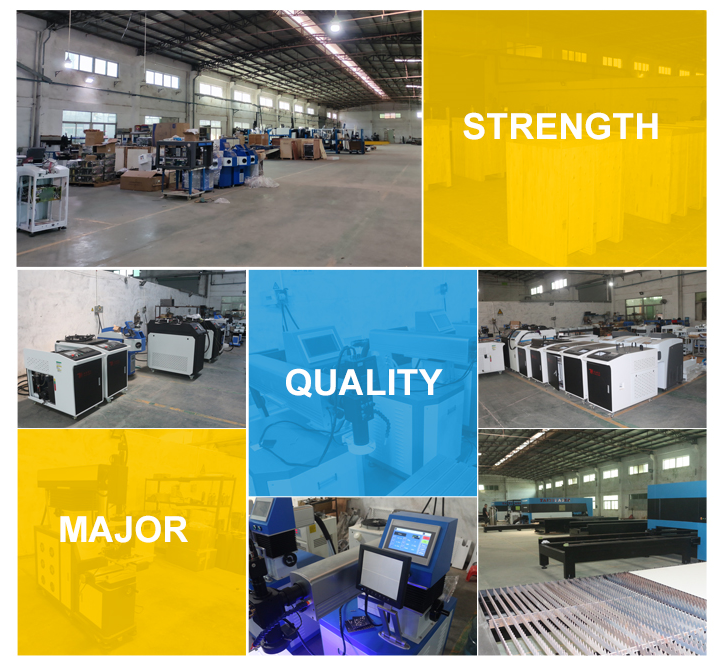

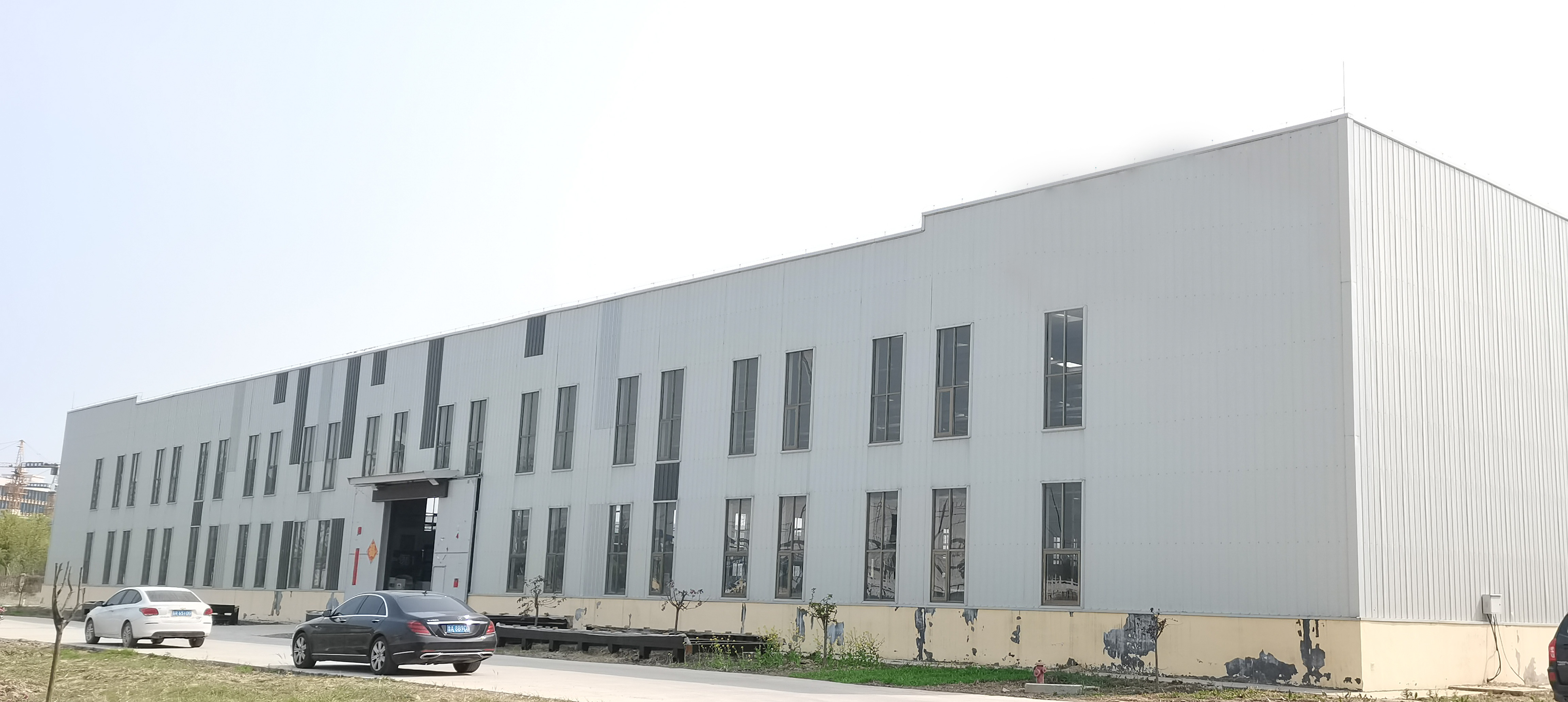

Company Profile

about us

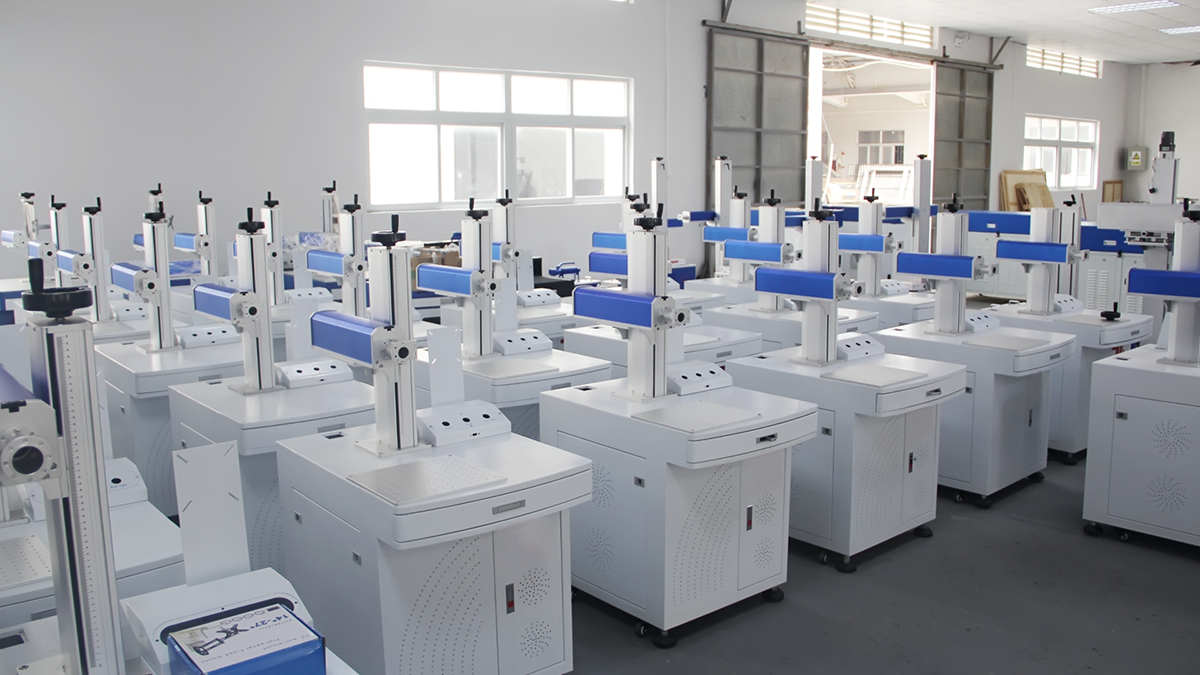

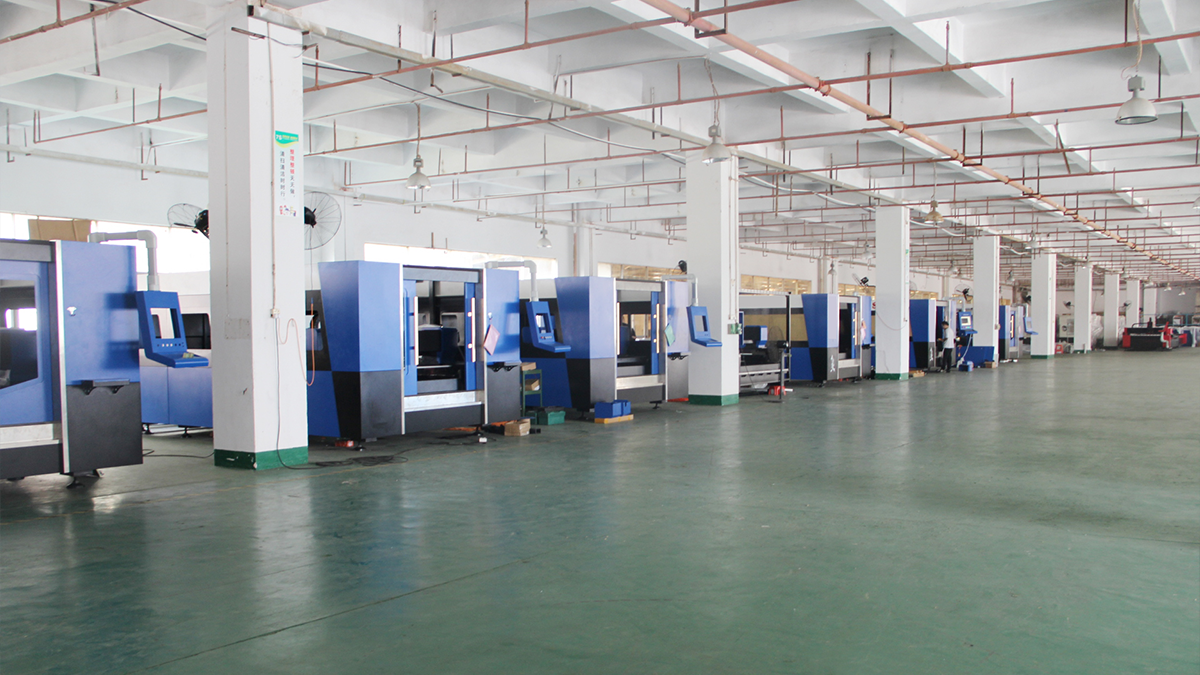

Shenzhen Dage Technology Industrial Co., Ltd. is an industrial machinery manufacturer and supplier, we are engaged in laser marking machine, laser welding machine, laser cutting machine, laser cleaning machine industry. Meanwhile, we provide OEM and ODM services. We have not only a sales department, but also a quality and R&D department to ensure our competitive products in the market. So far, our machines have been sold all over the world, and nowadays, more and more factories and dealers choose us because they realize that good and reliable quality and reasonable price are the basis of long-term business. Our goal is to provide more Good service and better products for our customers to meet more and more factory production needs and requirements.
