Drawing machine with fine wire
-
Supplier: Jiangsu Brainpower Intelligent Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Shelley Sun -
Price: $6800.00 / 1 - 3 sets
$6600.00 / 4 - 7 sets
$6400.00 / >=8 sets -
Min. Order: 1 set
| Certification: | CE, CIQ, SC | Warranty: | 1 year |
| Supply capacity: | 50 sets per month | Packaging Preview: | |
| Health status: | new | strength: | 11+4KW |
| port: | Shanghai or Zhangjiagang Port | After-sales service provided: | Free spare parts, online support, on-site installation and commissioning training, on-site maintenance and repair services, video technical support |
| place of origin; place of origin: | Jiangsu, China | Dimensions (L*W*H): | 1*20GP |
| Inlet diameter: | 1.2 | year: | Newest |
| Outlet diameter: | 0.10-0.32mm | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

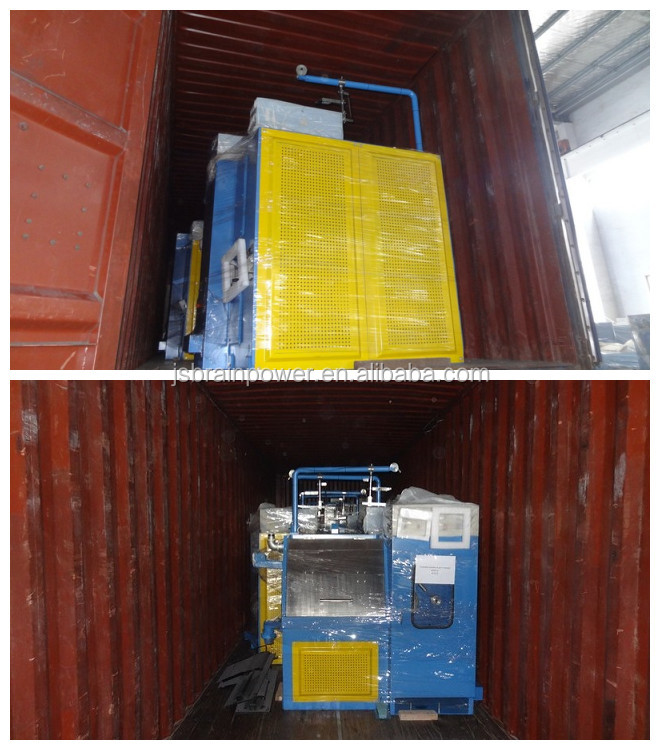

| Packaging Details: | 1-LCL Cargo: Standard export wooden box 2-FCL Cargo: Stretch film | brand: | brain power |
| Applicable industries: | factory, wire and cable factory | Voltage: | 380V or customized |

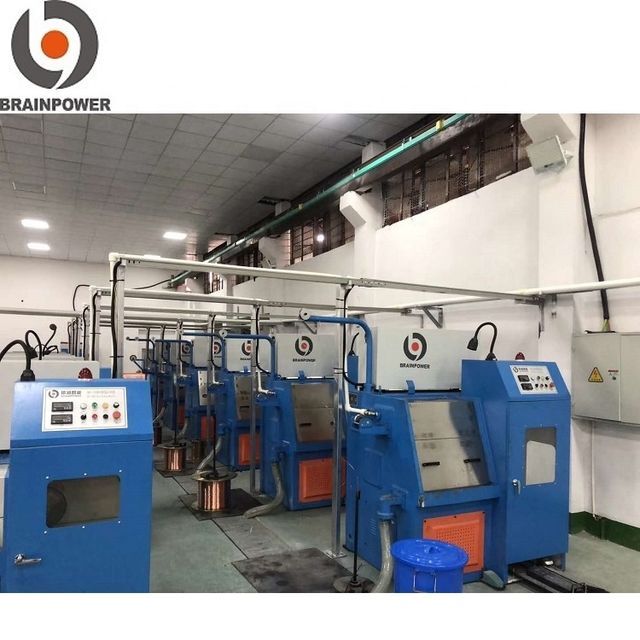

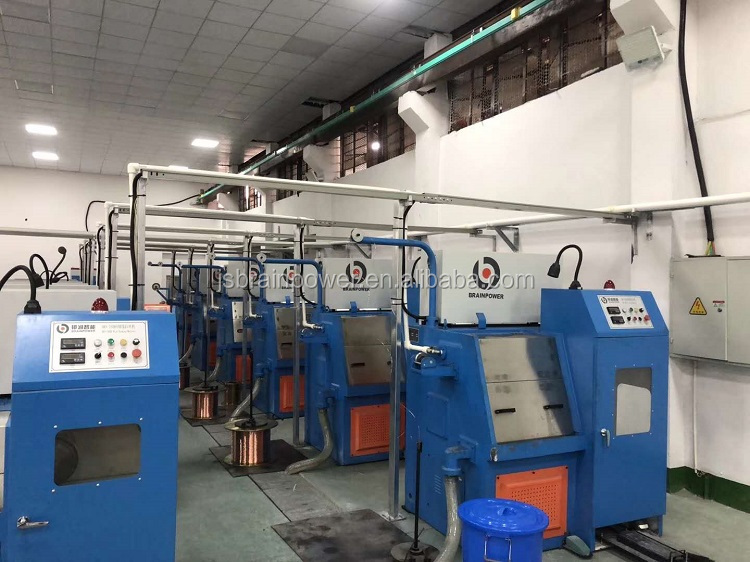

Fine wire drawing machinevery specialusedFor drawing copper wire of 0.10-0.32mm.
Finished wire is wound from 300 steel spool.
1) Number of lines: 1 line
2) Maximum incoming wire: 1.2mm, outgoing wire: 0.10-0.32mm
3) Raw material: copper
4) Number of winches: 4PCS (verticaltype)
type of machine | BRN-22DH |
Control System | button |
Inverter control | Dual Inverter Control |
Drawing modulus/max | 22 |
Inlet diameter | o0.60-o1.20mm |
outlet diameter | o0.10-o0.32mm |
Pulling speed | 2500m/min |
slip rate in m/c | 15% |
Fixed speed winch slip rate | 8% |
frame | Iron casting |
winch | Ceramic Plasma Winch |
main motor | 11KW |
Winder motor | 4kilowatt |
Spool size | Φ300mm orcustom made |
maximum load | 50KG |
Lubrication type | spray type |
brake | Magnetic brake |
energy source | 380V 50Hzorcustom made |
Machine size | 2000×1600×1900 |
machine weight | 2000KG |
1) doubledrivermake sure precise tension and Minimum ratiowire.
2)Easy threading and maintenance operations.
3) Energy saving and excellent wire surface quality.
4) The best choice for diversified product manufacturers.
1) What are the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipment.
2)How is the after-sales service?
Engineers will be dispatched when needed.
3)How much after-sales service do I need to pay?
The buyer provides the engineer with round-trip air tickets, room and board,
Guarantees and daily wages for everyone.
4)What kind of guarantee can you offer?
12 months from the date of shipment andLifetime maintenance charges.
5)Can you support full project instead of stand-alone?
Yes, in addition to machines, we can also provide total solutions for raw materials, auxiliary parts, worker training, etc.
-
