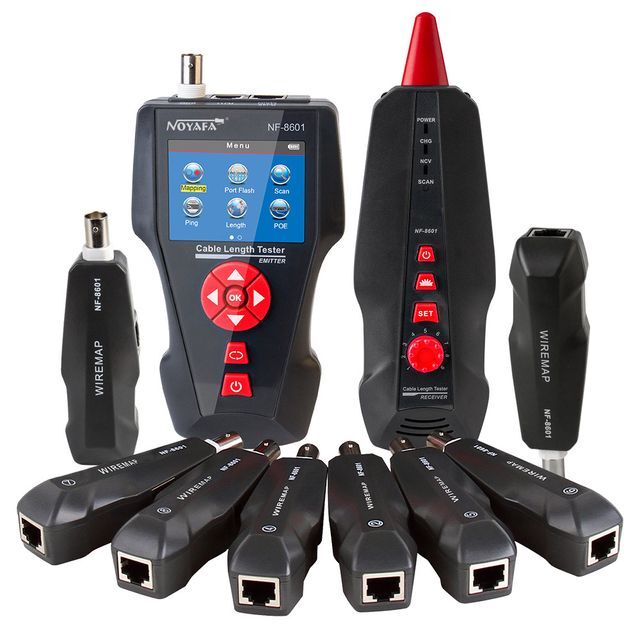

Noyafa NF-8601 Multifunctional LAN Cable Tester Including PoE/PING Test
-
Supplier: Shenzhen Noyafa Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Noyafa Shenzhen -
Price: $111.95 / 1 - 19 pieces
$105.31 / 20 - 399 pieces
$93.45 / >=400 pieces -
Min. Order: 1 piece
Product details
| model: | NF-8601W | Tracking Type: | RJ45, RJ11, BNC and metal cables |
| Other functions: | PING&PoE&Portflash function | power supply: | 3.7V lithium battery |
| Packaging Details: | Transmitter size (L*W*D): 173*92*34mm Receiver size (L*W*D): 183*58*35mm Remote control size (L*W*D): 106*32*30mm | Supply capacity: | 1,000,000 units/month |
| strength: | 3.7V lithium battery | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal |
| Test length: | RJ11, RJ45, BNC | Material: | ABS+ electrical parts |
| place of origin; place of origin: | Guangdong, China | brand: | Ye Yafa |
| Wiring Diagram Type: | RJ45, BNC cable | port: | RJ45, RJ11, BNC, PoE&Ping |
| port: | Shenzhen |
Product Description
main function
1. PoE function: Identify which pins are supplying power and detect the voltage.
2. PING function to test network performance, packets, minimum and maximum time.
3. Tone Tracking Cable with Complete AC Interference Suppression
4. Hub Blink Locate network ports by blinking port lights on the Hub/Switch.
5. TF function computer import and export data (160 sets, txt format).
6. Measure the length of network cable, coaxial cable and telephone line.
7. Quickly find the target cable without stripping the isolation between unknown cables.
8. Able to test open circuit, short circuit, cross connection,
9. Perform crosstalk test on the network cable to solve the potential problem of slow network speed.
10. 8 remote units help test the continuity of 8 cables at a time.
11. Track breaks and shorts are sketchy.
12. Voltage detector: included in the receiver (90-1000V)
Technical indicators
NF-8601W Transmitter Specifications | ||
index | LCD 320x240 mm with backlight | |
Cable Test Type | STP/UTP 5E, 6E network, telephone, coax | |
maximum. Line graph distance | 1000 meters | |
maximum. tracking distance | 1000 meters | |
maximum. cable length distance | 1000 meters | |
maximum. Calibration distance | 50 meters | |
accuracy | Up to 98% (after calibration) | |
Compatible Connectors | RJ11, RJ45, PING/POE, BNC | |
Cable diagram indication | LCD Display (#1-#8) | |
Battery Type | 3.7V lithium battery 1800mAh | |
Operating temperature/humidity | 10℃ ~ -60℃ / 0℃~70℃ | |
Dimensions (LxWxD) | 173x92x34mm | |
NF-8601W Receiver Specifications | ||
frequency | 130kHz | |
maximum. Working current | less than 70mA | |
headphone jack | 1 | |
LED lighting | 2 LEDs | |
Battery Type | lithium battery | |
Dimensions (LxWxD) | 218 x 46 x 29 mm | |
NF-8601W Remote Unit Specifications | ||
Compatible with connectors | RJ11, RJ45, BNC | |
Dimensions (LxWxD) | 107 x 30 x 24 mm | |
remote unit | 8 | |
Packaging and Shipping

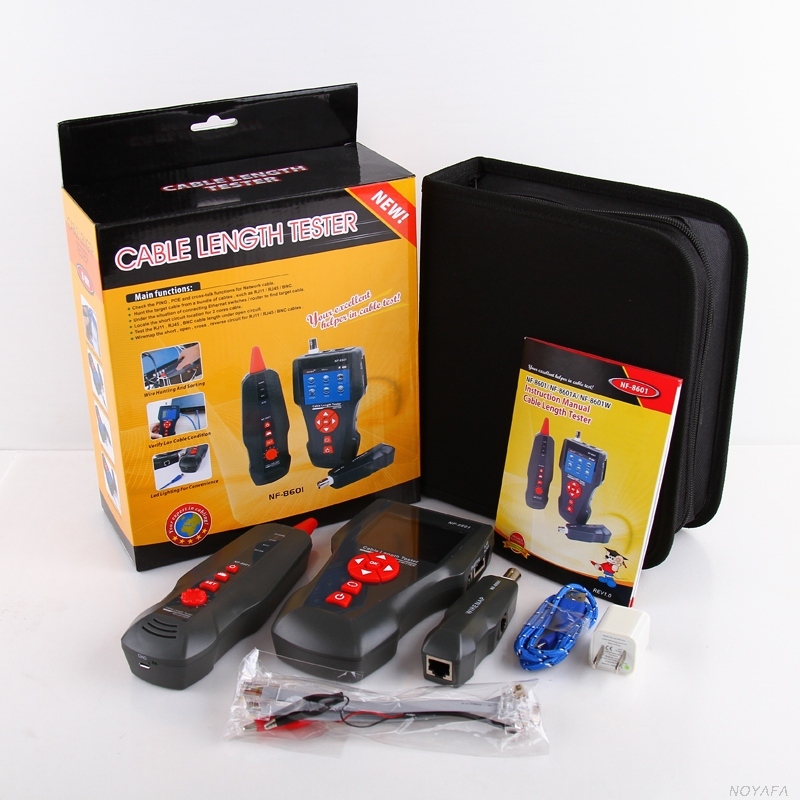

Package
Built-in lithium battery x 2 sets
Charging adapter x 1set
Phone line adapter x 1 set
Network cable adapter x 1 set
Cable clip x 1 set
Shipping:All shipping methods are available
Company Profile

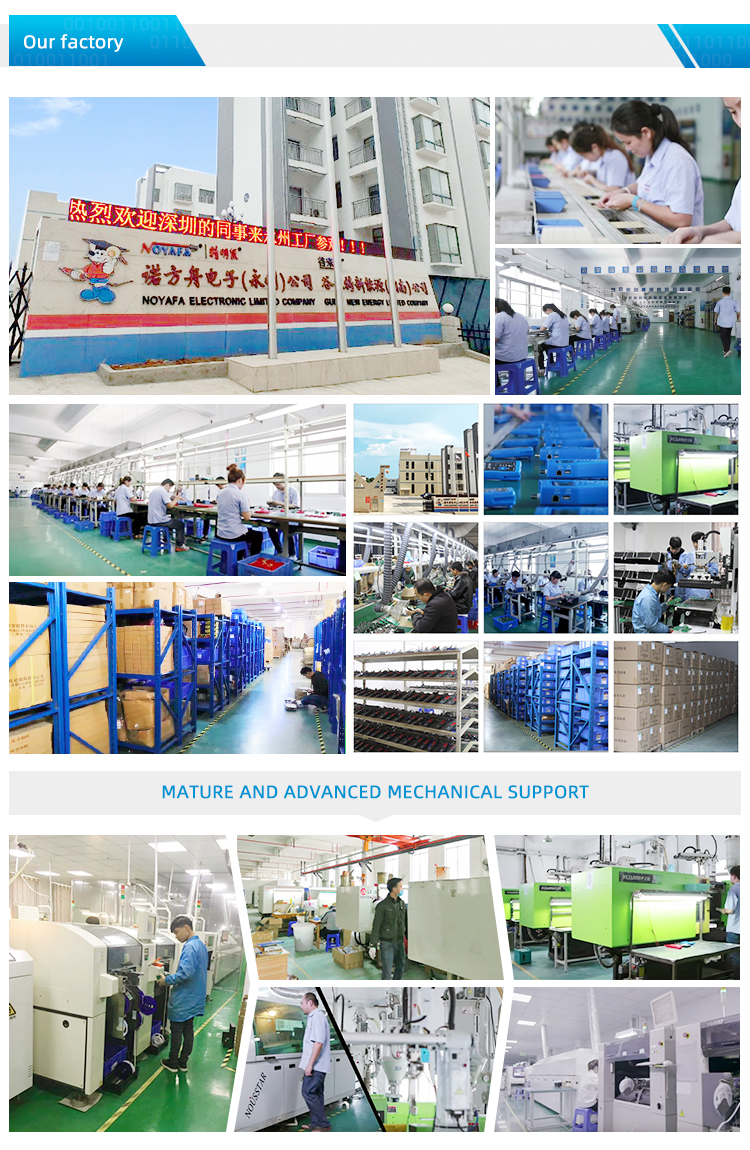

Shenzhen Noahfa Technology Co., Ltd.is a manufacturer established in 2006, headquartered in Shenzhen, China, providing test equipment such as cable testers, wire tracers, fiber testers, laser rangefinders, CCTV testers, etc.
After years of development, the company has created an experienced sales and after-sales service team. It has formed a high reputation among manufacturers and users. At present, our products are exported all over the world, especially in Europe and Asia. No matter when and where, customer satisfaction is our eternal pursuit and goal.
FAQ
Q1: Are you a trading company or a manufacturer?A1: We are the original manufacturer and can help you get factory selling products with competitive price.Q2: How long is your delivery time?A2: If the goods are in stock, usually 3-10 working days. Or 10-25 working days if the goods are not in stock, it depends on your order quantity.Q3: How is your after-sales service?A3: Our experienced technical team is always ready to reply you within 24 hours.Q4: What is your MOQ? Do you provide custom service?A4: For sample order, MOQ is not limited. We would appreciate it if you would like to purchase a sample to test first.Q5: What are your payment terms?A5: Payment≤5000USD, 100% advance payment. Payment>$5000, 30% T/T prepaid, balance before shipment.Payment for trade assurance orders. Paypal, Western Union, etc.
Q6: Can I be your exclusive distributor instead of me?A6: We appreciate that. We will discuss your market situation together, and upon confirmation we will send you a contract with detailed requirements on dealer terms and sales targets.
