vacuum hopper loader for pellets

Click here to contact

Product details

Reservoir volume:	6 L;	Supply Ability:	500 Set/Sets per Month;
Security setting:	overload protection;	Place of Origin:	Guangdong China (Mainland);
Port:	Jiangmen/Guangzhou/Shenzhen;	Conveying Tube Inner Diameter:	38 mm;
Dimension(LWH):	380280580mm;	Specification of the attached hoses:	38mm*3.5m 1pcs;
Application:	plastic industry;	Specification:	1.1kw/1.3HP;
Certification:	CE;	Conveying capacity:	300kg/hr;
Warranty:	1 year;	Loading distance:	3.5 m;
Packaging Detail:	Standard wooden case;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Static wind pressure:	1300mm/H20;	Power(W):	11000;
After-sales Service Provided:	Online support,Video technical support;	Weight:	12KG;
Usage:	industry plastic;	Voltage:	220V/50Hz/1Phase as usual;
Controller:	microcomputer;	Condition:	New;
Brand Name:	XIECHENG;

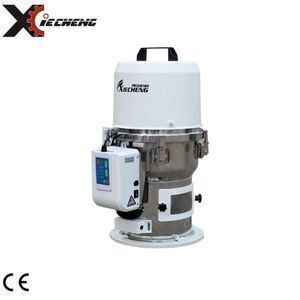

vacuum hopper loader for pellets

With small footprint and low weight, available placed directly onto other machines or containers for auto loading.

Microcomputer controlled.

Alarm for overload and lack of material.

300G equipped with high – speed rectifier motor with delicate size and strong suction force – suitable for new materials.

400G with induction high pressure pump – with low noise and long service time.

Cable control board design – easy to set and control with distance.

Filter for air and dust (Optional part).

Model		XC-X300G	XC-X400G
Motor	Type	Carbon Brush	Induction
Motor	Specification	1.1kw/1.3hp 1φ	0.75kw/1hp 3φ
Conveying capacity(kg/hr)		300	330
Loading distance(m)		3.5	4
Static wind pressure(mm/H₂O)		1300	1400
Reservoir volume(L)		7.5	7.5
Conveying tube inner diameter(mm)		φ38	φ38
Specification of the attached hoses		φ38mm×3.5m 1pcs	φ38mm×4mm 1pcs
Dimensions(cm)		34×34×59	45×37×66
Approx. Net weight (kg)		12	27
