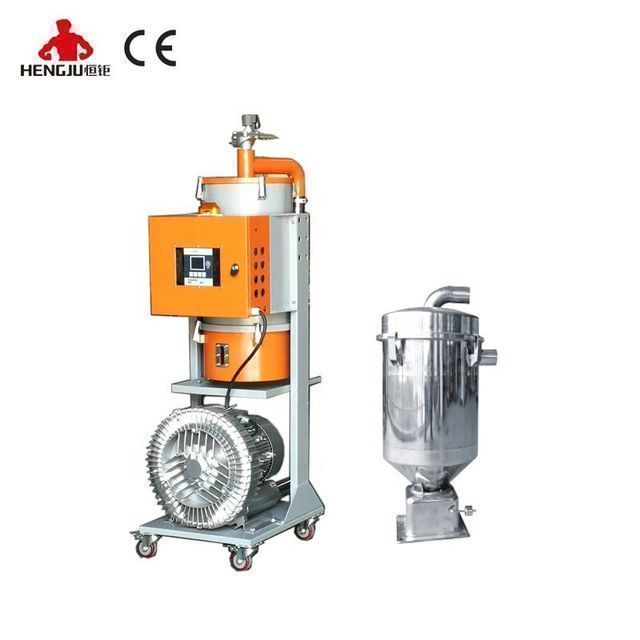

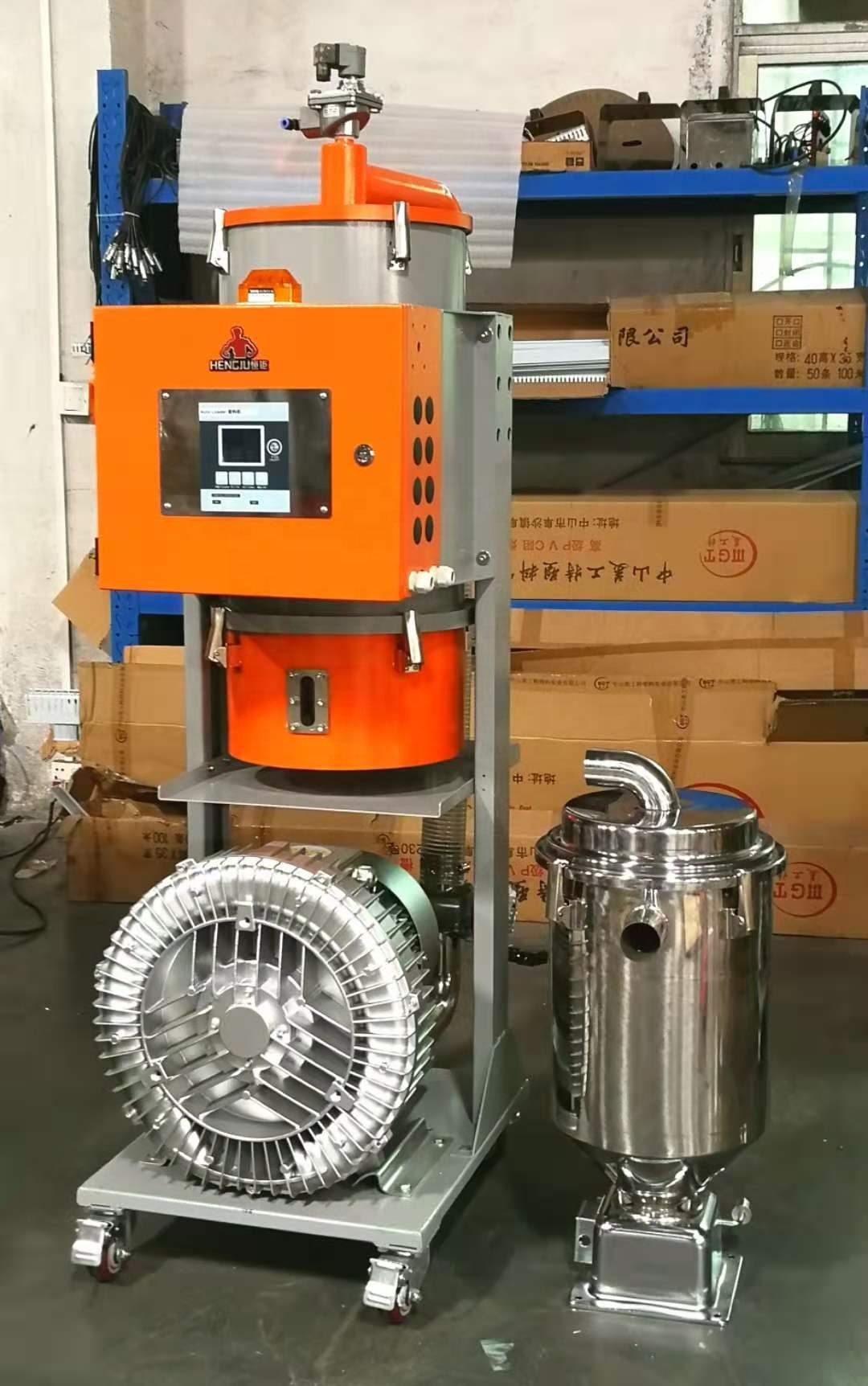

Hengju Hot Sale 3HP Plastic Material Vacuum Automatic Multi Hopper Loader
-
Supplier: Dongguan Hengju Machinery Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Jenny Yuan -
Price: $1600.00 /set -
Min. Order: 1 set
Product details
| Packaging Details: | wooden package or customized | Mechanical test report: | if |
| Applicable industries: | Manufacturing plants, injection molding production, plastic extrusion production, plastic blown film production | Package preview: | |
| Core component warranty: | 1 year | product name: | Vacuum Auto Loader |
| State of health: | new | Showroom location: | UK, Vietnam, Philippines, Indonesia, Russia, Thailand, Malaysia |
| Power (kW): | 2.2 | strength: | 220V-480V |
| Static wind pressure (mm/H2O): | 2900 | Core components: | motor, water pump |
| Capacity (kg/h): | 500 kg/h | application: | plastic industry |
| Dimensions (L*W*H): | 42*37*120cm | port: | Shenzhen, Guangdong |
| Maximum lifting height (m): | 6 | name: | Plastic Hopper Loader |
| brand: | Hengju | payment terms: | Western Union, D/P, D/A, T/T |
| Weight (kg): | 80 kg | Video shipment inspection: | if |
| place of origin; place of origin: | Guangdong, China | Warranty: | 1 year |
| Voltage: | 220V-480V | Supply capacity: | 200 sets per month |
| Delivery capacity (kg/hr): | 500 | Key words: | plastic material loader |
Product Description

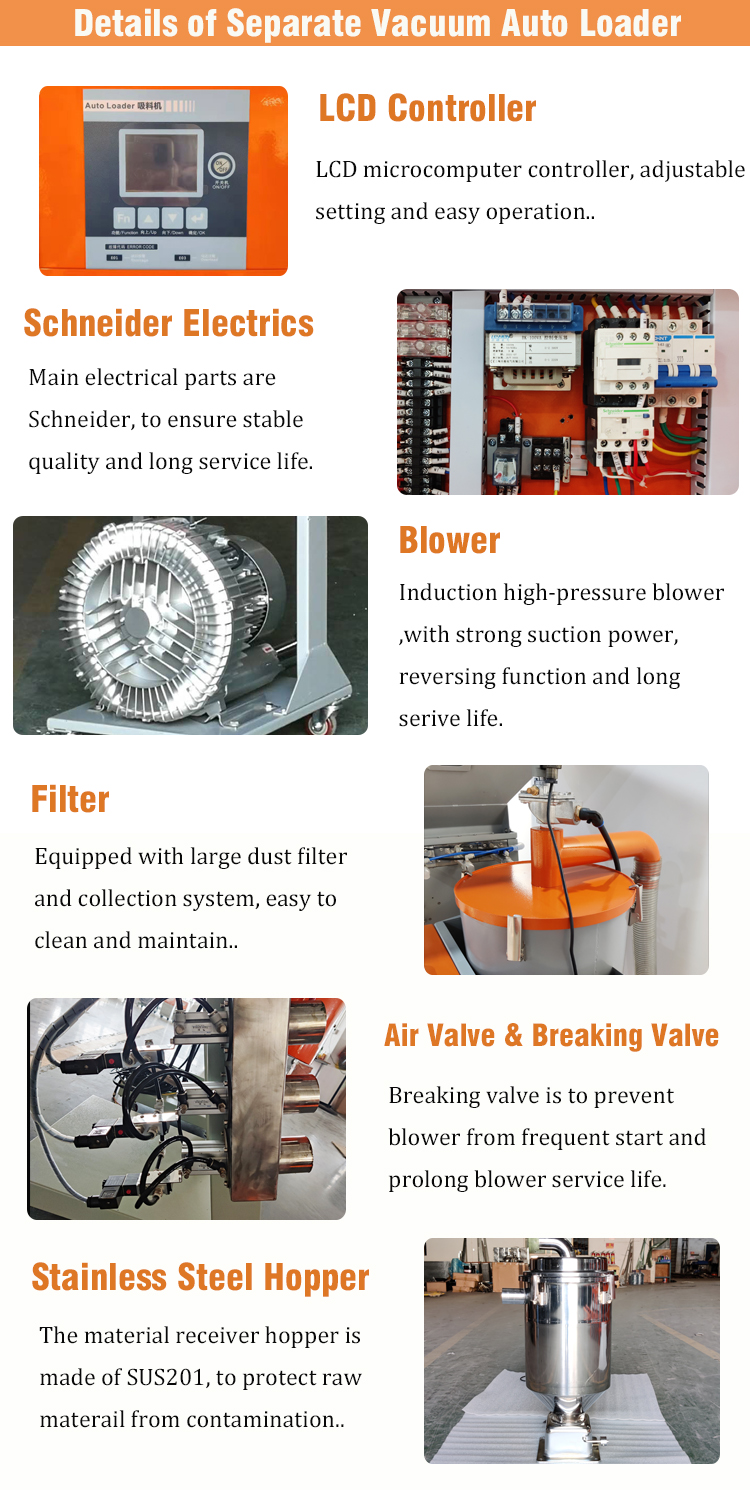

Standalone Vacuum Hopper Loader:
2. High-power motor with large-size hose and hopper.
3. Microcomputer control, overload and material shortage alarm.
notes:
Conveying capacity and loading distance are based on ABS raw material bulk density approx. 0.65kg/L, take plastic material particles with a diameter of 3-5mm as the test sample, and take the vertical height of 4m and the horizontal distance of 5m as the test standard to obtain the results.
According to different plastic proportions, shapes, conveying length and height, pipeline characteristics, etc., the specific parameters will not be the same.
Product parameters

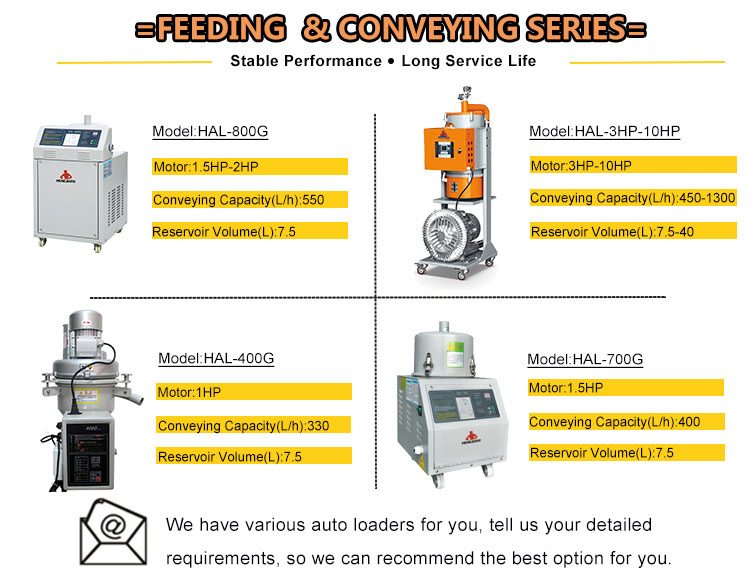

Model/900G series | HAL-3HP | HAL-5HP | HAL-7.5HP | HAL-10HP |
Motor (KW) | 2.2 | 4.2 | 5.5 | 7.5 |
Delivery capacity(kg/hr) | 590 | 700 | 800 | 950 |
Loading distance (m) | 6 | 6 | 6 | 6 |
Static wind pressure (mm/H2Oh) | 2900 | 3200 | 4200 | 4500 |
Water storage volume (L) | 7.5 / 12 | 25 | 40 | 40 |
Delivery hose diameter.mm | φ51 | φ51 | φ63 | φ63 |
Hose Specifications | φ51mm×10m 1 piece | φ51mm×10m 1 piece | φ63mm×15m 1 piece | φ63mm×15m 1 piece |
Dimensions (cm) | 42*37*120 | 50*45*123 | 58*60*170 | 58*60*170 |
net weight/kg) | 68 | Post-90s | 135 | 140 |

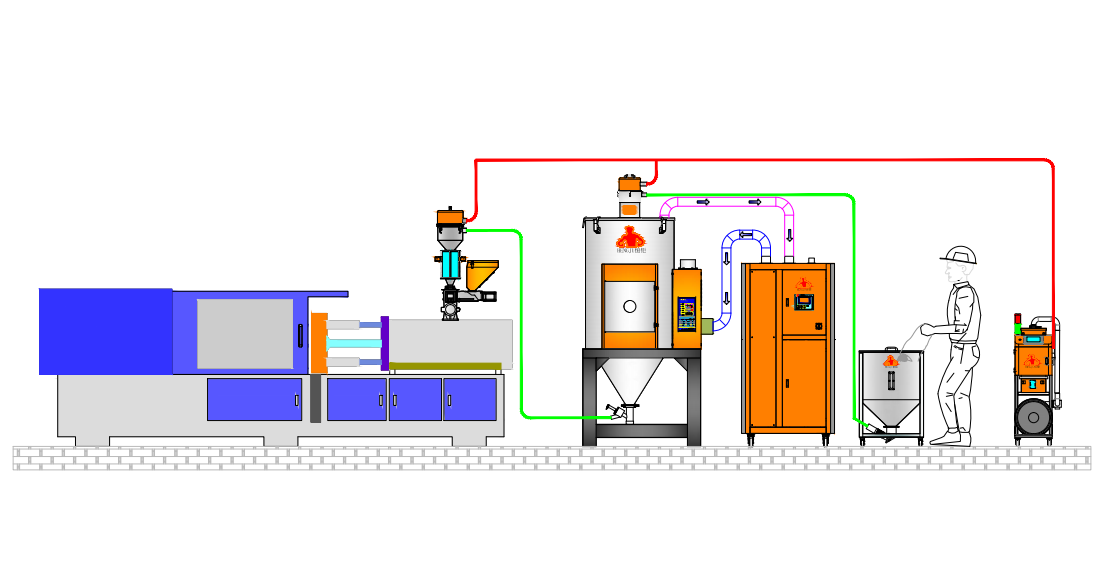

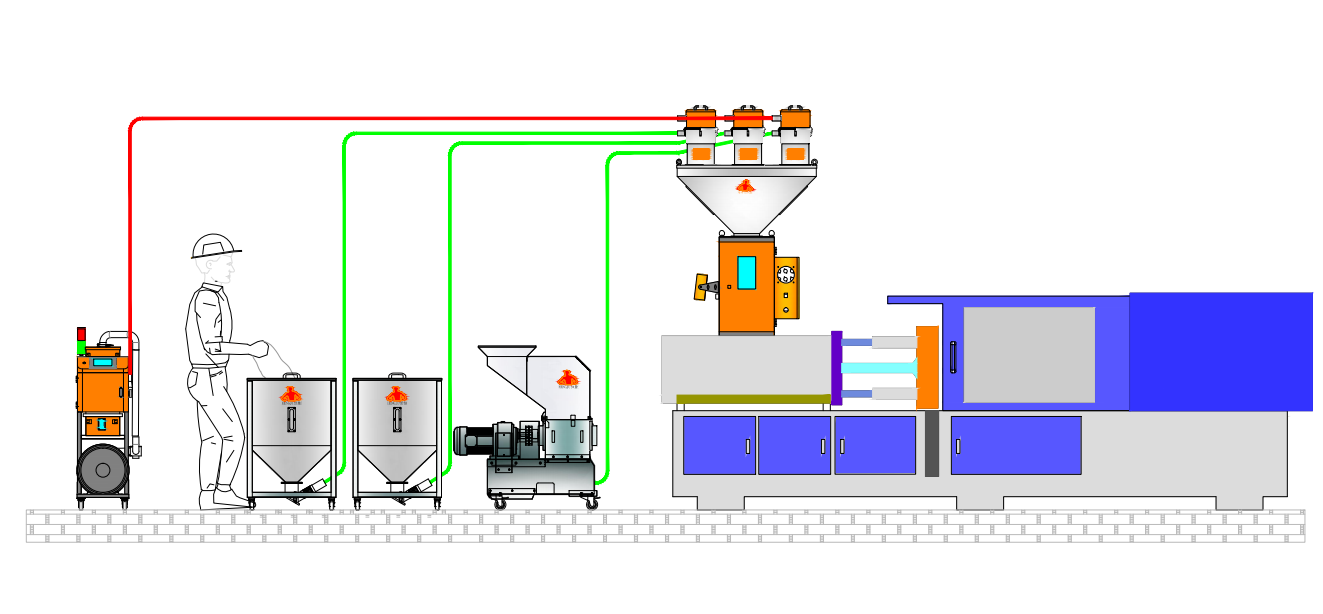

Installation Notes
