Food grade salt processing machine grinder sugar powder making machine

Supplier: Jiangyin Brightsail Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jewel Qian
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	SUS304/316;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Supply Ability:	20 Sets per Month;	Applicable Industries:	Food & Beverage Factory,Farms,Food Shop,Food & Beverage Shops;
Voltage:	Customized,Customized;	Warranty of core components:	1 Year;
Product name:	Food grade salt processing machine grinder sugar powder making machine;	Machinery Test Report:	Provided;
Certification:	ISO CE,ISO CE;	Application:	food,chemical,medical;
Model Number:	BSG;	Power:	depends;
Dimension(LWH):	Designed;	Warranty:	1 Year;
Packaging Detail:	Food grade salt processing machine grinder sugar powder making machine wooden case or container;	Place of Origin:	Jiangsu, China;
Package:	Wooden Case;	Video outgoing-inspection:	Provided;
Capacity:	30-3000 kg/h;	Type:	Salt Refining equipment;
Condition:	New;	Core Components:	Motor;
After Warranty Service:	Online support;	Local Service Location:	None;
Port:	SHANGHAI;	Usage:	Salt;
Brand Name:	Brightsail;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support;
Motor:	ABB/Siemens/Chinese Brand;	Marketing Type:	New Product 2020;
Showroom Location:	None;	Weight:	depends,depends;

Product Description

Food grade salt processing machine grinder sugar powder making machine

Product Application

BSG series crusher is a kind of high effcient mill designed and developed by my company.

This machine features compact structure,stable technical performance,wide application, which can be used in chemical industry,dye,food, and other industries.

Main properties:

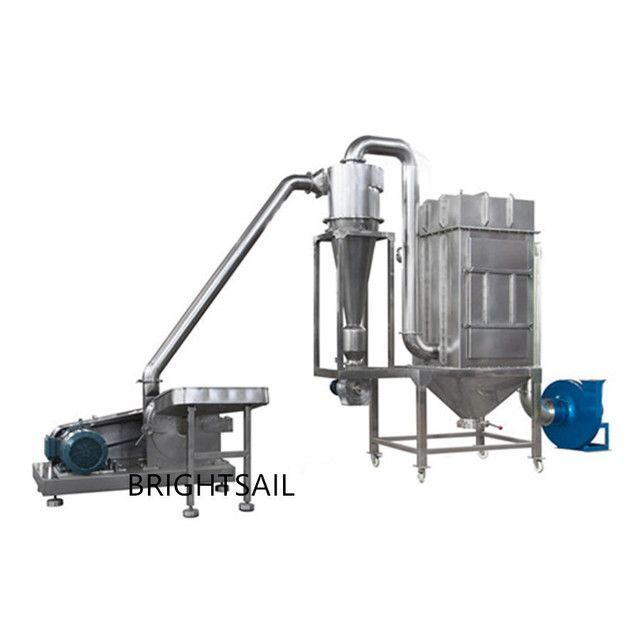

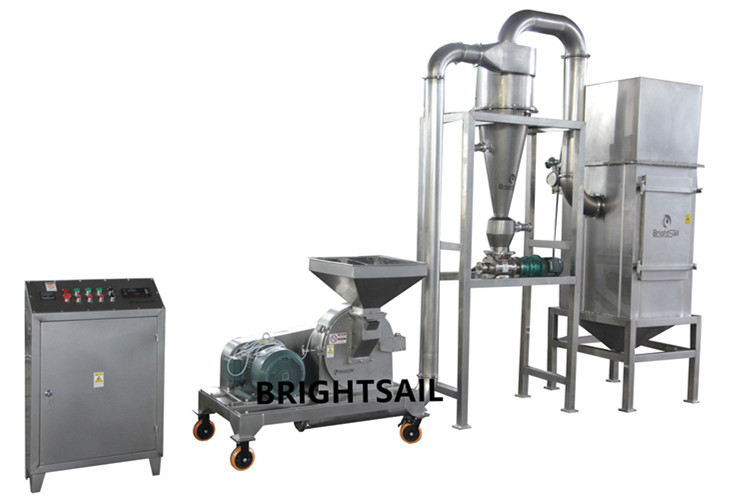

This equipment consists of crushing chamber,suction device,discharge device,pulse dust catcher,blower,electrical cabnets,etc.

After crushing material discharge is under normal temperature, material's cell integrity is kept well.

Capacity is 2-3 times bigger than usual universal griner.

#SugarGrindingMachine #SaltPowderGrinder #FinePowderGrindingEquipment

TECHICAL PARAMETER FOR BSG-fertilizer powder grinding machine
Model	BSG-300	BSG-400	BSG-500	BSG-600	BSG-700
Speed of main shaft（rpm）	5300	4800	3800	3300	2800
Main motor (KW)	5.5	7.5	15	22	30
Blower(KW)	2.2	2.2	7.5	15	18
Discharge motor(KW)	0.37	0.75	0.75	0.75	1.1
Grinding fineness (mesh)	10-120	10-120	10-120	10-120	10-120
Capacity （kg/h）	50-500	100-1000	300-1500	500-2500	1000-5000

Main Features

1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)During production,temperature remains normal, will not get hot. So material's color and nature won't change.

5) Uniqe design, with same power consumption, it can achieve much bigger capacity

Detailed Images

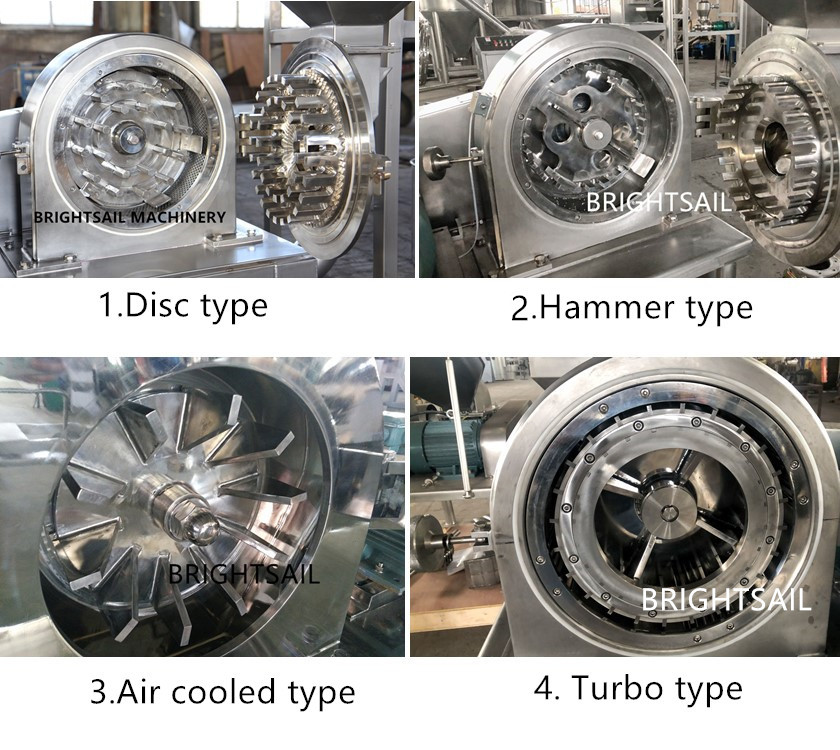

Crusher part

Unique design,crusher part won't get hot even though working for hours.

Color and nature of material won't change.

Change powder size by changing different mesh screen.

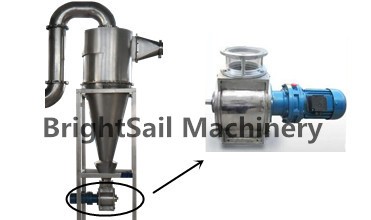

Cyclone part

(1) Cyclone can seperate dust from powder(granules)

(2) Rotary valve make powder discharge speed even

Rotary valve is also made of stainless steel

and to clean it and dismantle is convinient.

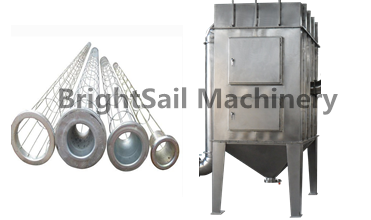

Pulse Dust Collecting box

(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

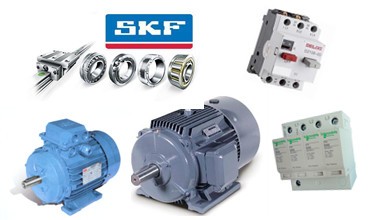

TO MAKE SURE BETTER QUALITY

1) We use motor from ABB/Siemens/WEG

2) We adopts electrical control parts from Schneider/Delixi

3) We use bearings from SKF

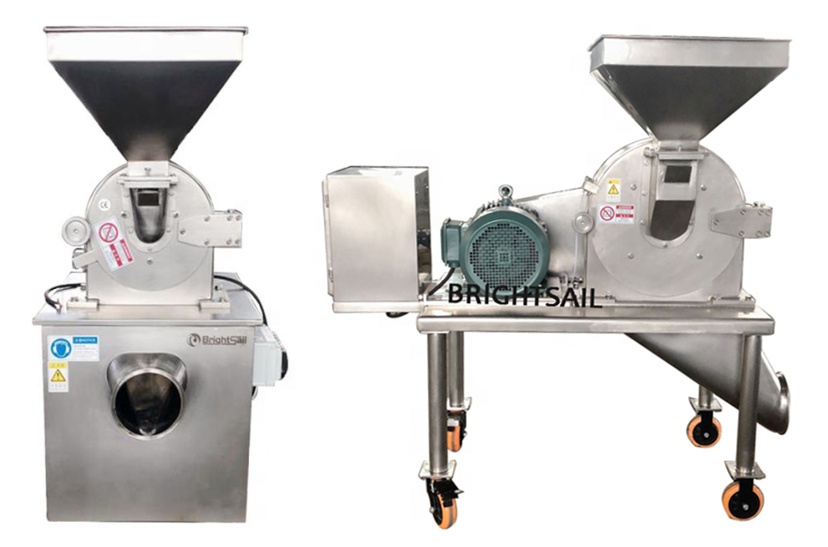

BSU universal crusher

Remark: The crusher part of our BSU universal crusher is the same as BSG's,if your budget is a little limited,you can choose this single machine.

And 2,500 USD is just the price of the smallest model- BSU-20.If you want to know the price and details for bigger models,please kindly send me an inquiry.

Our Service

Pre-Sales Service

* Inquiry and consulting support with 24 hours

* Sample testing support.

* View our Factory.

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	Depends
Weight	Depends
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20 ft container; 40 ft container
Weight	denpends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
