SPICE pulverizer machine spice crusher spice powder grinding machine

Product Application

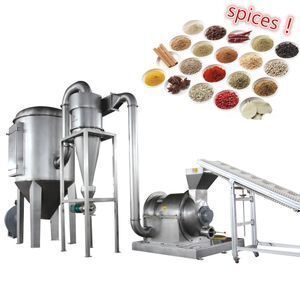

This is our lastes advanced hammer mill set:

It features:
1) NO need screen or sieve in mill chamber, change powder particle size by changing speed;
2) Because it has no screen in mill chamber,when milling, there is no heat rising in mill chamber;
No need to worry power get stuck in the screens or product quality get affected by the heat from the mill. That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.
3) The mill part combines coarse crusher, middle fine milling area and fine milling area( it combines 3-stage grinding at one time) together, which means it can makes fine powder directly from big raw material, very effective.
4) It can save more power, its capacity is much bigger than other same motor traditional mill.

5) You can feed big raw material. (like complete ginger, complete turmeric,complete chilli directly into the mill chamber, it can grind them into fine powder directly.)

this machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.

Crusher part

This is the mill part,
It combines corse crusher area, middle fine milling area, and super fine milling area together.

It can grind big raw material into fine powder directly.

（combines 3-stage grinding in one mill chamber）

Work method

1) From right to left,
they are coarse crush area,middle fine mill area and fine milling area and blast area.
Material fed in will be milled by the three areas to become fine powder directly.
2) change powder size by changing speed.

 Cyclone part


(1) Cyclone can seperate dust from powder(granules)

(2) Rotary valve make powder discharge speed even

      Rotary valve is also made of stainless steel

      and to clean it and dismantle is convinient.

Pulse Dust Collecting box

(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

TO MAKE SURE BETTER QUALITY

1) We use motor from ABB/Siemens/WEG

2) We adopts electrical control parts from           Schneider/Delixi

3) We use bearings from SKF
