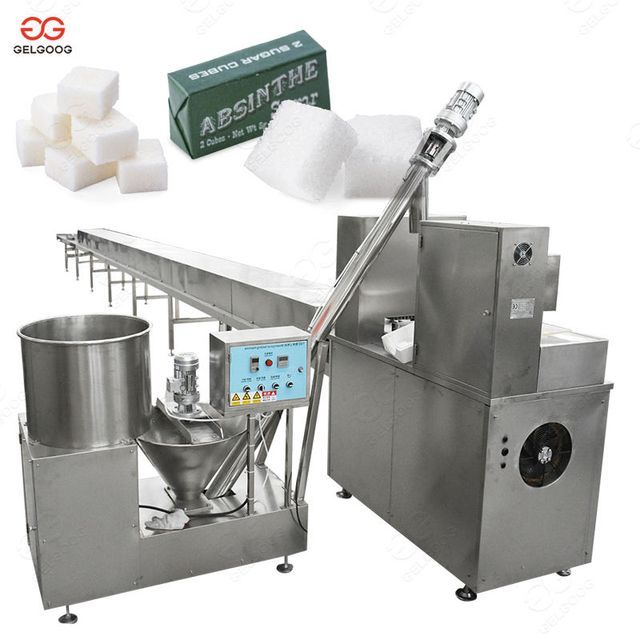

Cube sugar production line Sugar processing production line

Supplier: Gelgoog Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Ms Una Dong
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 sets of sugar processing production lines per month	Video outbound inspection:	if
Candy Size:	25*25mm	capacity:	150-200kg/hour
type:	production line	Health status:	new
Model:	GGMQF-50	product name:	Cube sugar production line Sugar processing production line
Packaging Details:	Wooden packaging is used as the export standard for sugar processing lines.	Function:	Automatic PLC control
weight:	350kg, 350kg	Warranty:	one year
Core components:	Programmable controller, motor	model:	GG
port:	any port in China	After Warranty Service:	Video technical support, online support
aspect:	12006001400mm	Dimensions (LWH):	12006001400 mm
Showroom location:	not any	usage:	sugar
Marketing Type:	2020 New Products	Certification:	International Organization for Standardization CE certification
air pressure:	0.3Mpa-0.8Mpa	Voltage:	380V 50Hz three phase
Local service locations:	Vietnam	payment terms:	L/C, Western Union, T/T, MoneyGram, Alibaba Trade Assurance
strength:	0.3Kw 380V 50Hz three-phase, 0.3KW	brand:	Gergog
Core component warranty:	not available	Applicable industries:	Food and Beverage Factory
Origin:	Henan, China	Mechanical test report:	if

Cube sugar production line Sugar processing production line

Product Description

thisCube sugar production lineUsing the relative movement between the flexible toothed disc and the fixed toothed disc, the material is ground through the impact, friction of the teeth and the impact of the material.
Cube sugar production line is a continuous briquetting machine with automatic sugar feeding and automatic forming technology, which is mainly used for pressing square and other shapes.
This equipment is a sugar cube machine that can realize automatic rotation, automatic frequency conversion, and continuous briquetting, and is mainly used for briquetting sugar cubes.

No	Name	picture	parameter

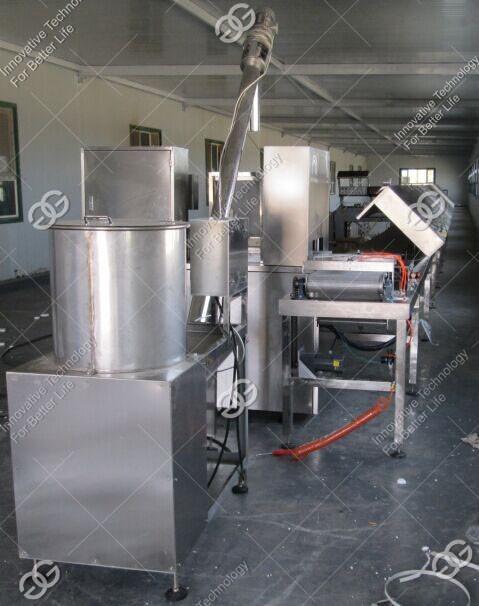

Fully automatic cube sugar production line: capacity: 150-200Kg/h

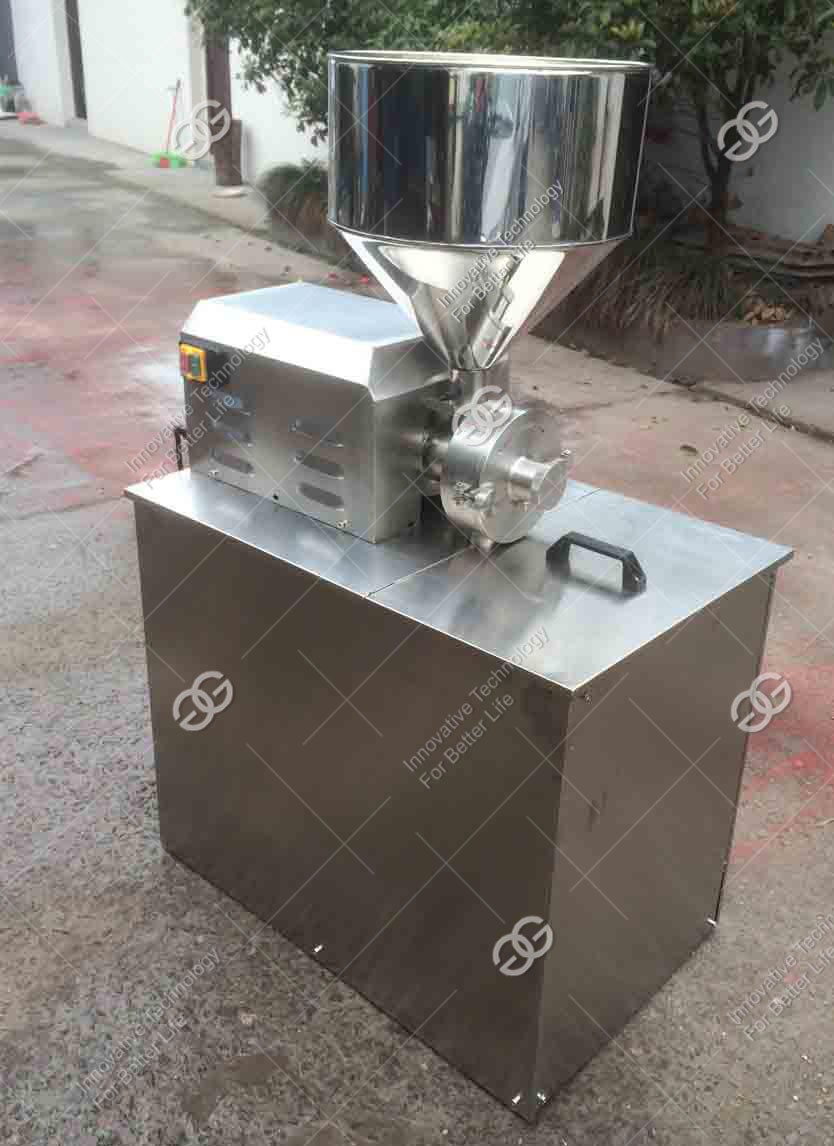

1	sugar grinder		Model: GG-20B Capacity: 150--200kg Power: 4Kw 380V 50Hz Grinding fineness: 50-150 mesh Weight: 250 kg Size: 5506001250mm
2	Spiral mixing elevator		Model: GGTSG Function: mixing, automatic lifting, feeding Total power: 3.85Kw Drop height: 1700mm Weight: 240Kg Size: 5505001650mm Material: SS304 for food contact parts
3	Sugar Cube Forming Machine		Model: GGMQF-50 Capacity: 150-200Kg/h Candy size: 2525mm Power: 0.3Kw 380V 50Hz 3 phase Air pressure: 0.3Mpa-0.8Mpa Size: 1200600*1400mm Weight: 350Kg Automatic PLC control

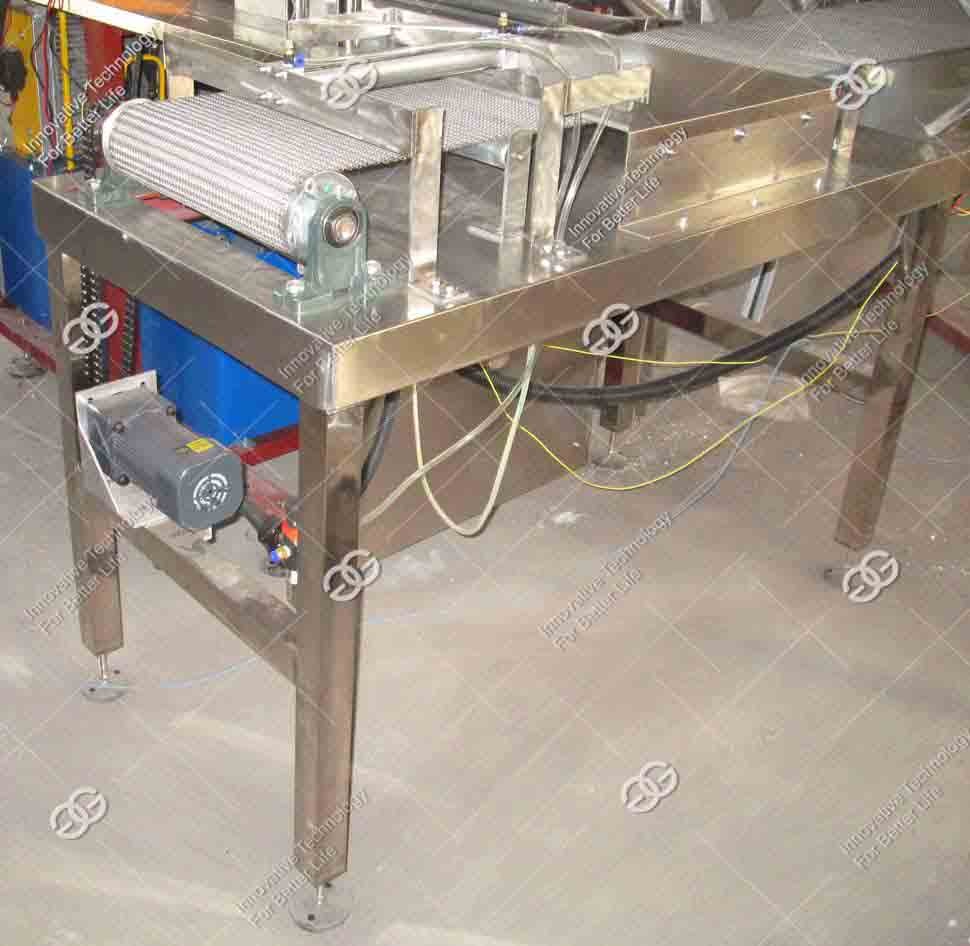

4	Conveyor		Model: GGS-2 Function: linkage, transmission Speed: 0-10 cubic meters per minute Air pressure: 0.3Mpa-0.5Mpa Weight: 60Kg Size: 13007001000mm

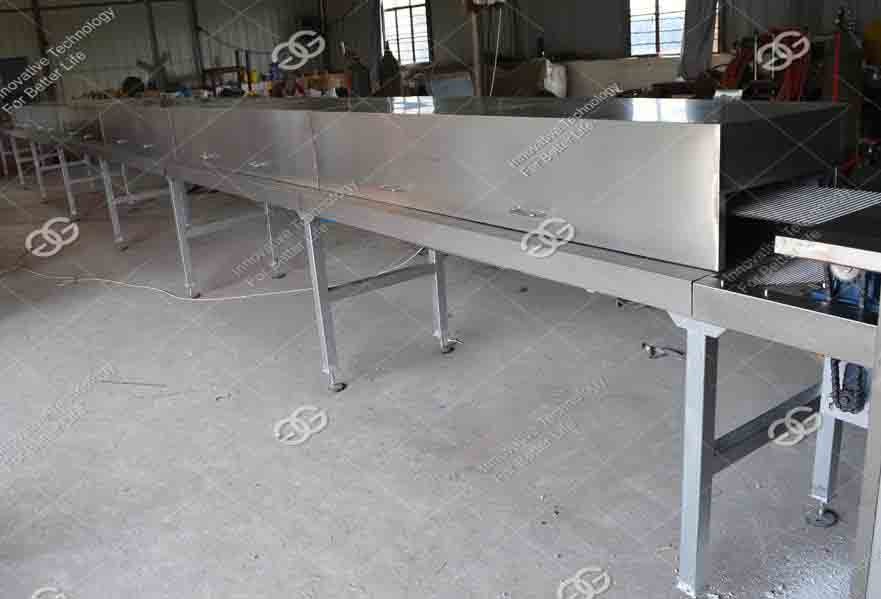

5	Infrared drying oven		Model: GGFH-3 Power: AC380V50HZ 2KW 6 Conveying speed: 0-10m/min Quantity: 6 sets Weight: 90Kg6 Size: 19007001150mm

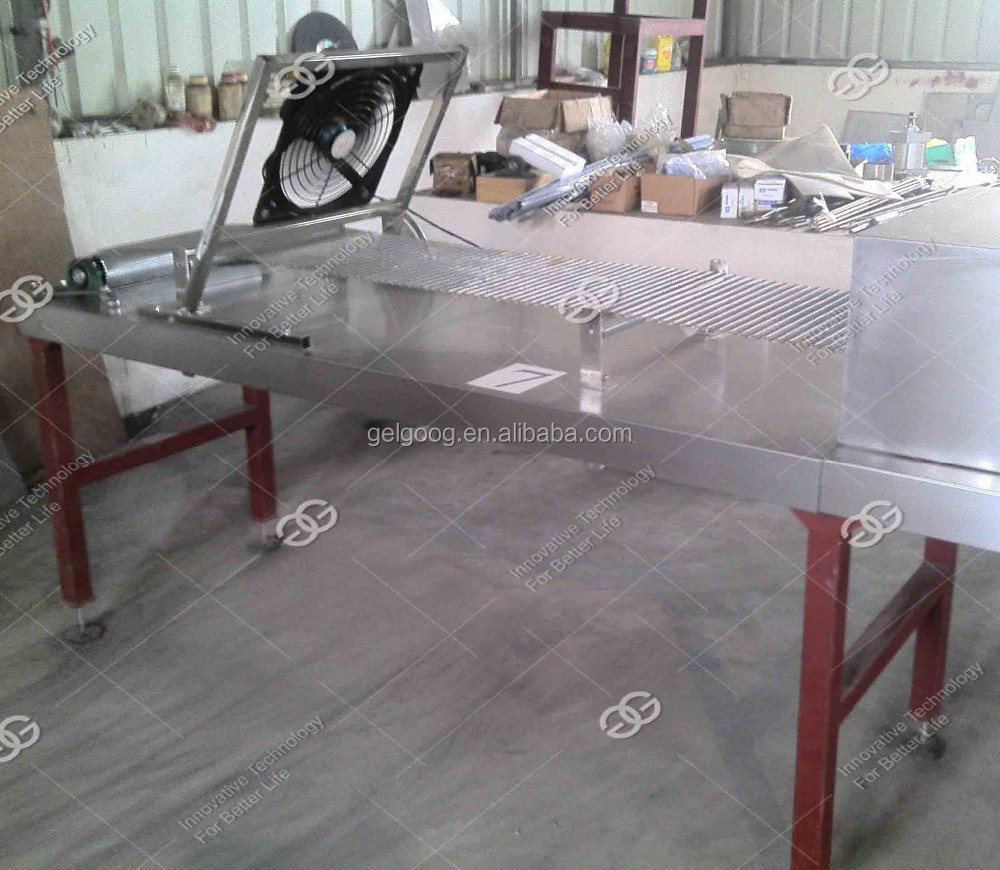

6	Cooler		Model: GGQ-1 Conveying speed: 0-10m/min Quantity: 2 sets Size: 1900700700MM Weight: 60Kg*2
7	Packing Machine		Function: stepless speed change Power: 2.2Kw 380V 50Hz 3 phase Maximum pressure: 36(43)Kpa Maximum vacuum: 26(31)KPA Chuck: 2 pieces Size: 650600950mm Weight: 75Kg

manufactures

our service

1. Quality assurance terms:

The quality guarantee period is one year. Our factory is responsible for the faults caused by the machine itself and quality reasons. Other failures caused by operating errors and human factors are the responsibility of the customer.

But we will provide lifetime after-sales service for the machine!

2. About MOQ (minimum order quantity):

We are specialized in food machinery wholesale, so overseas agents will be highly appreciated! The best quality, the most favorable price, to achieve win-win cooperation!

3. Overseas service:

Our engineers can go to your country for installation and maintenance according to customers' requirements.

Packaging and Shipping

1. Packing specification:

Outer packing: export standard wooden packing.

Inner packing: stretch film

2.delivery time:

5-10 days after receiving 40% of the full payment.

3. Regarding transportation:

We can be responsible for the shipping, of course, if you have a forwarder in China, we can also accept and cooperate with your agent.
