40hp 25KW Outrunner Electric Motorcycle Paraglider Brushless DC Motor 120100

  • Supplier: Dongguan Freerchobby Model Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Mark Tan
  • Price: $360.00 / 1 - 2 pieces
    $330.00 / 3 - 9 pieces
    $305.00 / >=10 pieces
  • Min. Order: 1 piece
Product details
Model Number:MP 120100/50KV;Commutation:Brushless;
Packaging Detail:EVA FOAN PACKAGE;Torque:46Nm;
MAX VOLT:100;KV:/12180/50/35;
Construction:Permanent Magnet;SIZE:120 x 120 ( without shaft );
Warranty:Other;Usage:BOAT,Car,Electric Bicycle,Home Appliance,electric paramotor;
Protect Feature:Explosion-proof;Certification:ce;
STATOR:60mm;Payment Terms:Western Union,T/T,PAYPAL;
Efficiency:Other;THEUST:56kg;
Supply Ability:5000 Pieces per Year;ESC:300/400A;
NET WEIGHT:3.9kg;Brand Name:MP;
Port:Yantian;SHAFT:12mm;
MAX POWER:25KW;Place of Origin:Guangdong, China;
Type:brushless motor;Model type:MP120100;

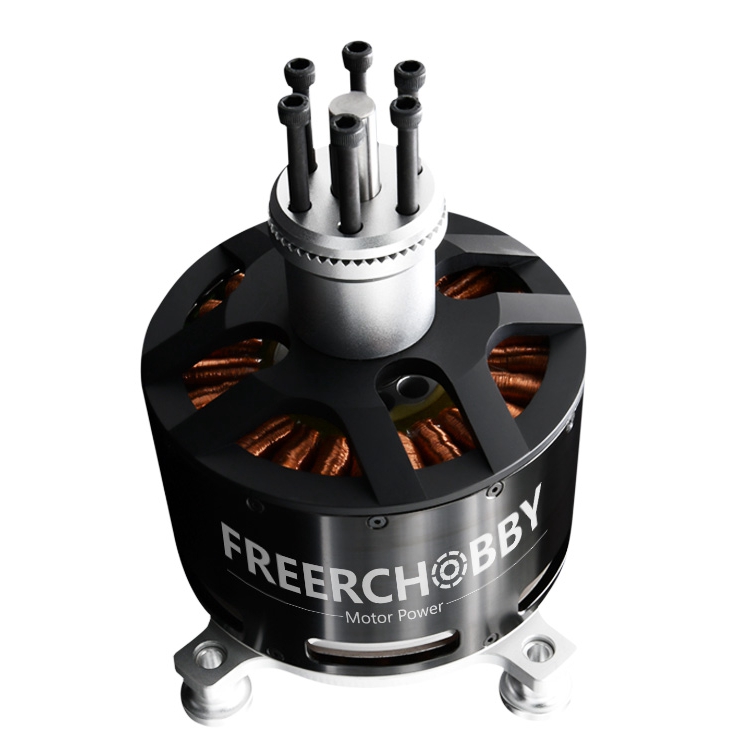

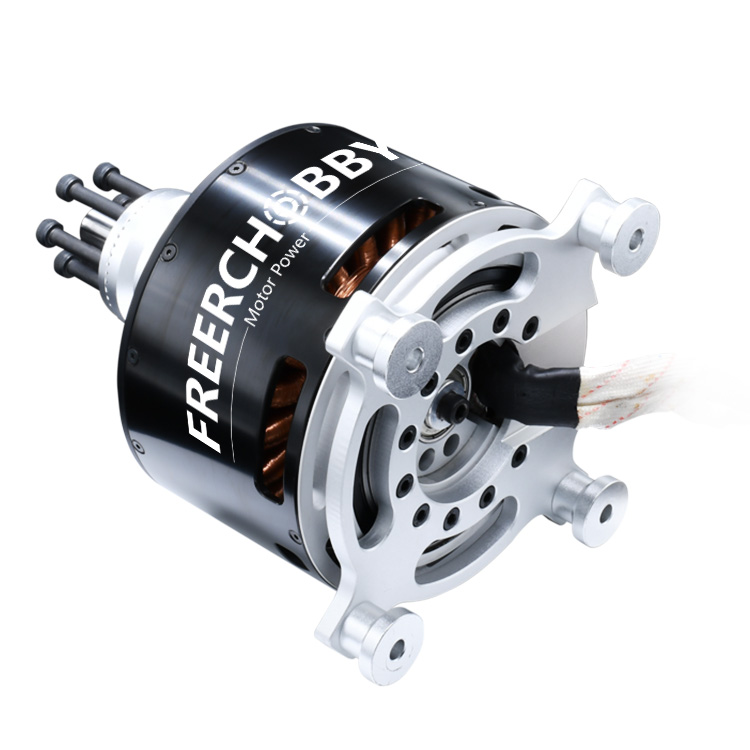

120100  KV50 outrunner brushless motor with 60kg thrust for paramotor drone



Specifications



Motor MP120100 Max power 25kw
KV 35/55/80/121 Rated power 12kw
Stator 60mm ESC 400-500A
Voltage 100v Max thrust 58kg
Max torque 35Nm Size 120*120mm(without shaft )
Weight 3.9kg Shaft 12mm

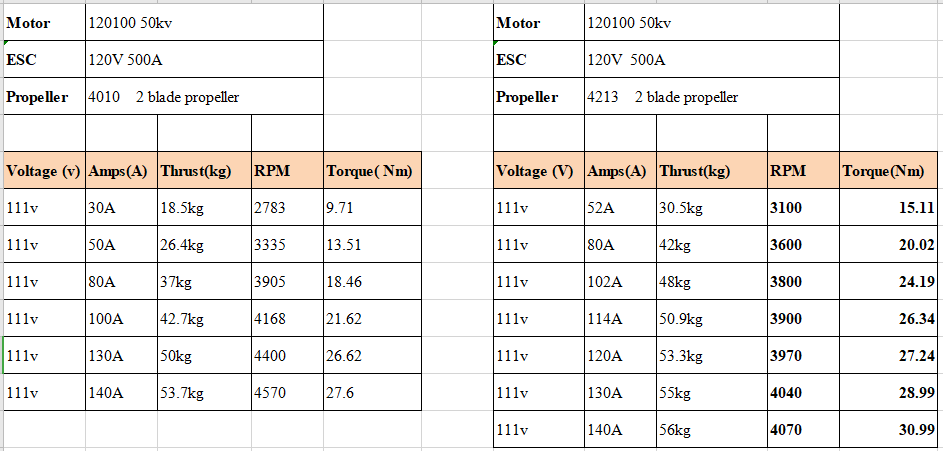

Testing report:
Testing propeller:  34*12
Testing esc: 22s  500A
Testing motor type:  120100 KV80

Testing current:
When load current at 27A , the thrust is  10KG
When load current at 67A,  the thrust is   21KG
When load current at 110A,   the thrust is   30kg
When load current at 180A,     the thrust is   40kg
When load current at 250A,  the thrust is   50kg





















Company introduction:



Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car

 model, brushless motor, rc tools and accessories.

About our rc car department,  We have a design team for 8 people

with many years’ RC experience, the driver who gets awards in the

national championship and merit awards in the domestic and inte-

rnational opening tournament joining us makes our products more

professional, market oriented and diverse. Now our company had

released 1/8th SC truckand buggy ,1-10 scale competition On road

kit and RTR on road car to the market.

About our brushless motor department, our main technician, with 12

years’ motor design experiece, design various size motors for rc hobby

plane, multicopter, such as 28, 35, 42, 50, 63 series. And for other industrial,

such as electric skateboard, electric bike, electric paramotor, electric car&ship,

our sensored motor, watercooling system motors will be what you request,

such as our motor 8085, 80100, 12090, 120100, 154120 ect.



Welcome to visit the updates for our website.

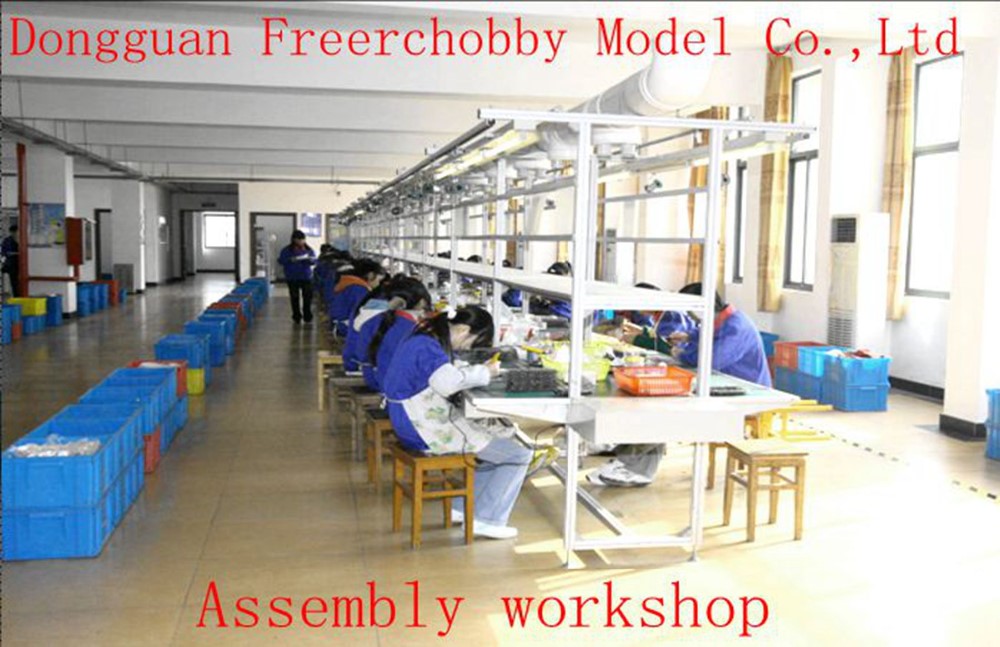

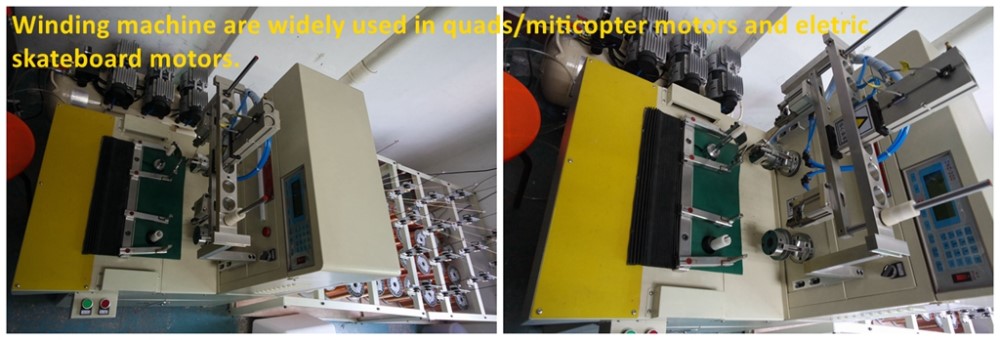

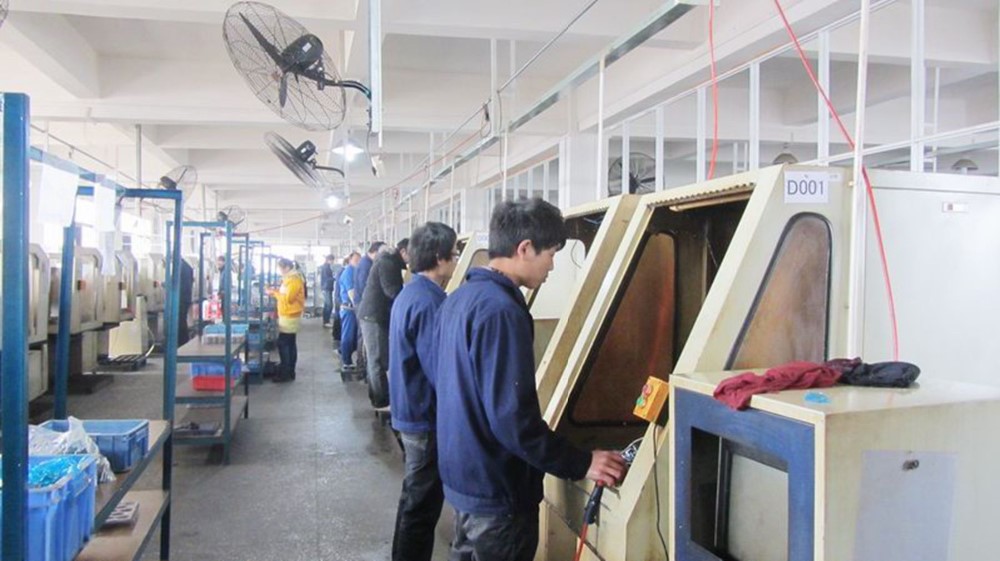

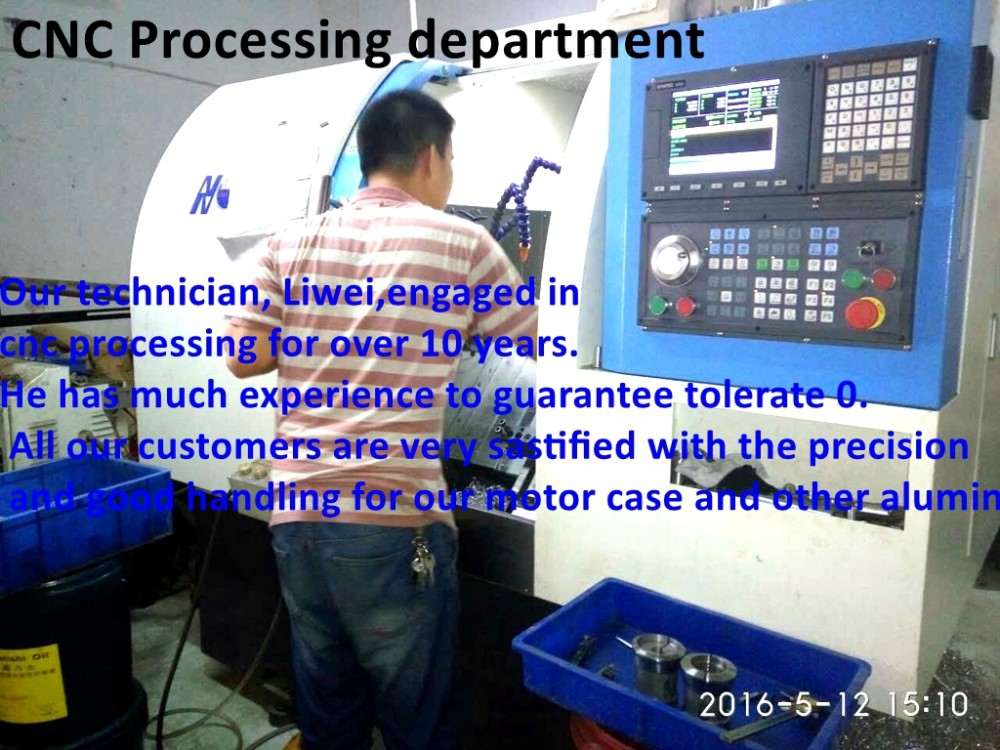

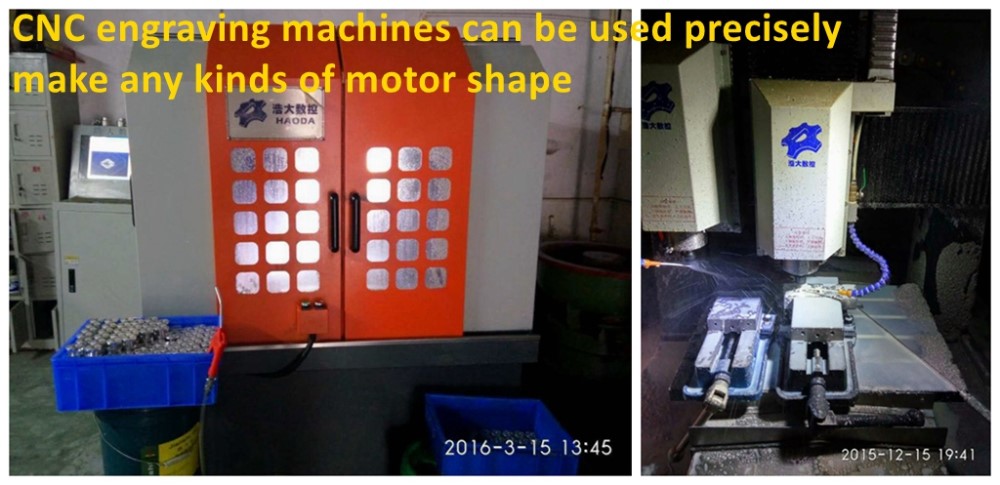

Facory photos:

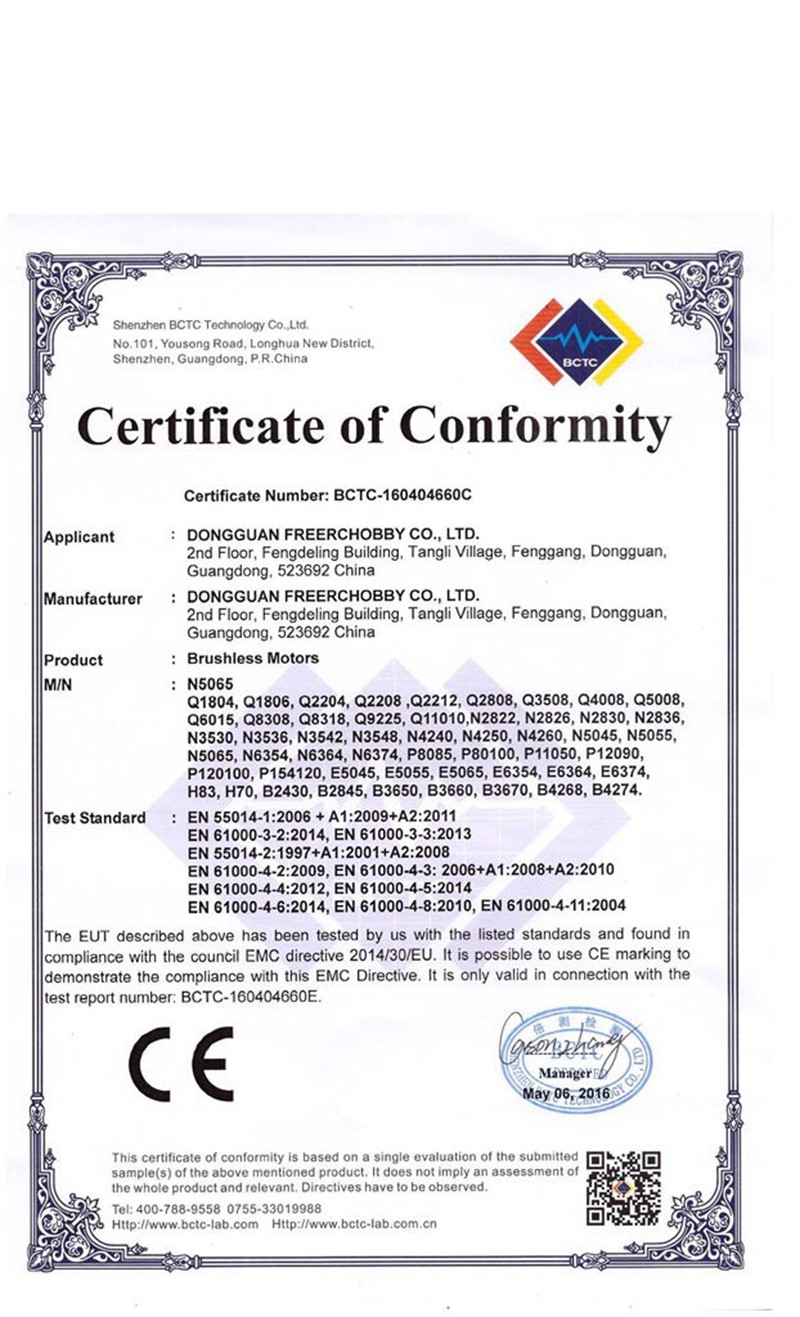

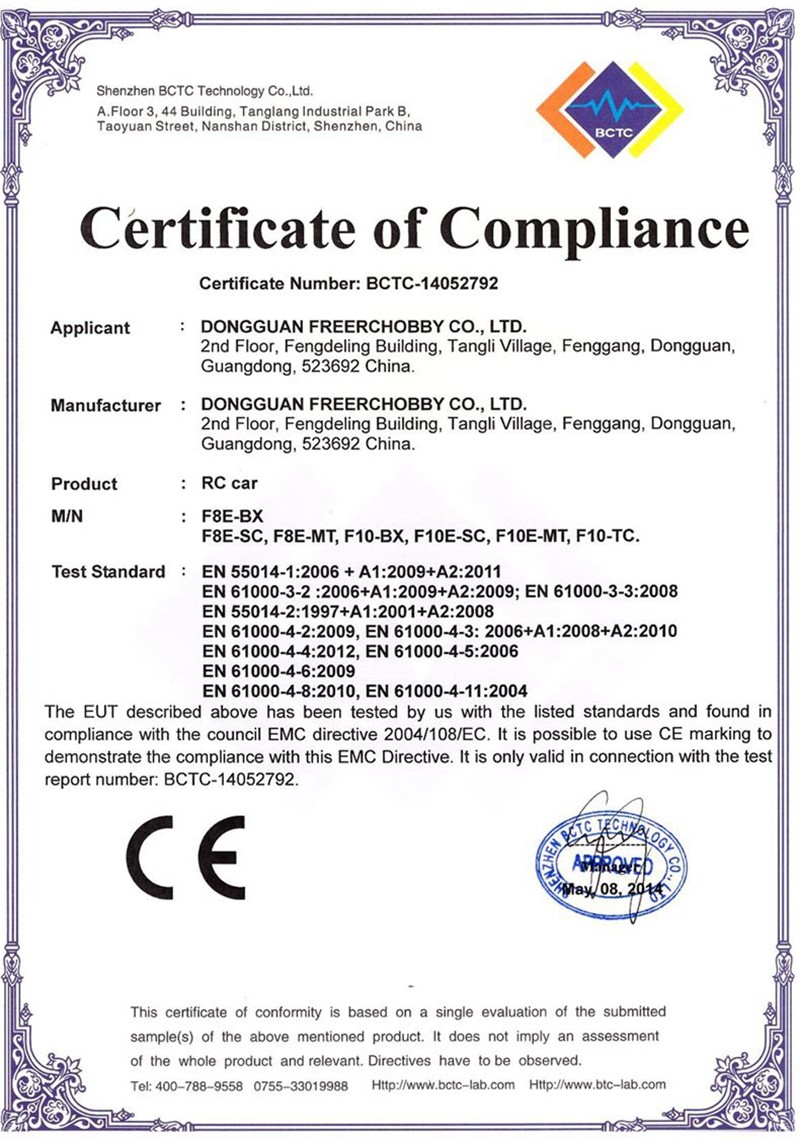

Certificates:



We can provide OEM, ODM serivice for any potential client and projects.  Wish to hear from you.
