Carbon steel Filling Skid Station 20 and 40 Feet Containers with storage tank Fuel dispenser for filling gasoline diesel
- 19999.00 1 - 9 sets
- 14999.00 10 - 99 sets
- 9999.00 >=100 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Max Working Pressure(MPa): | 25 MPa; | Warranty of core components: | 1 Year; |
| Supply Ability: | 500 Sets per Month; | Place of Origin: | Hubei, China; |
| Package Preview: | ; | Dimension(L*W*H): | 9700 mm*2840 mm*2900 mm; |
| Showroom Location: | None; | Certification: | ISO9001; |
| After Warranty Service: | Video technical support,Online support; | Oil pump maximum oil supply: | 666L/min.; |
| Brand Name: | Autower; | Oil product: | Diesel, gasoline, or both; |
| Core Components: | PLC,Pressure vessel; | Explosion-proof technology: | Internal ignition suppression system; |
| Port: | Wuhan; Shanghai; | Warranty: | 1 Year; |
| Packaging Detail: | Standard Export Wooden Box, or Customized; | Video outgoing-inspection: | Provided; |
| Key Selling Points: | Famous brand PLC; | Local Service Location: | None; |
| Working temperature: | -15~+50°C; | Installation mode: | Outdoor, skid mounted fixation; |
| Capacity: | 15000L (20ft), 40000L(40ft),15000L (20ft), 40000L(40ft); | After-sales Service Provided: | Field installation, commissioning and training,Online support; |
| Payment Terms: | L/C,T/T; | Machinery Test Report: | Provided; |
| Tank work pressure: | 0.1MPa; | Condition: | New; |
| Dispenser: | Double nozzle or single nozzle; | Weight: | 2-5 Ton; |
| Applicable Industries: | Energy & Mining,Petrochemical industry; | Application: | petroleum products; |
| Marketing Type: | New Product 2020; | Tanker Material: | Carbon steel; |
Product Description

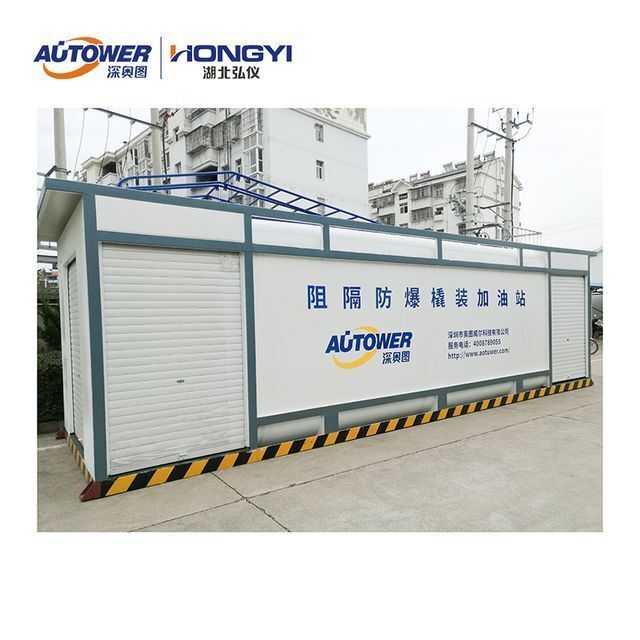

Portable Filling Skid Station for 20 and 40 Feet Containers
Size | 20/40 feet container |
Tanker Material | Carbon steel |
Oil product | Diesel, gasoline, or both |
Capacity | 15000L (20ft), 40000L(40ft) |
Working temperature | -15~+50°C |
Dispenser | Double nozzle or single nozzle |
Installation mode | Outdoor, skid mounted fixation |
Oil pump maximum oil supply | 666L/min. |
Tank work pressure | 0.1MPa |
Working voltage | 380V |
Working power rate | ≤15KW |
Total weight/unit container | ≤25 Ton |
Overall sizes/unit container | According to the container size |
Application standard | UL-142 / NFPA 30A |
Others | Customized |
