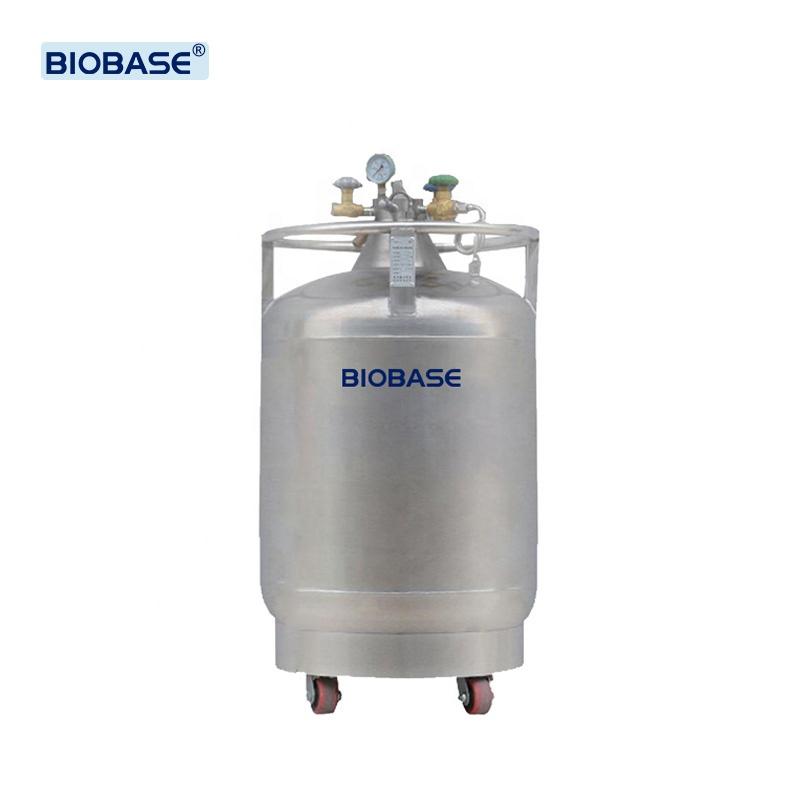

BIOBASE self-pressurizing liquid nitrogen tank 30L 200L self-pressurizing cryogenic container laboratory liquid nitrogen tank
- 1220.00 1 - 1 units
- 1099.00 >=2 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Dimensions (length*width*height): | 630*630*1300 | Package preview: | |
| product name: | Self-pressurizing liquid nitrogen container | Video outbound inspection: | if |
| Packaging details: | standard packaging | Core components: | Pump |
| Mechanical test report: | if | Pressure gauge range: | 0-0.25 |
| Warranty: | 1 year | Marketing type: | 2020 new products |
| Main selling points: | long lasting | Applicable industries: | laboratory |
| Maximum working pressure: | 0.09 | high: | 1185 |
| Maximum working pressure (MPa): | 0.09 MPa | Health status: | new |
| Place of origin: | Shandong Province, China | brand: | biological base |
| Core component warranty: | 1 year | payment terms: | L/C, D/A, D/A, wire transfer |
| capacity: | 100L,100L | caliber: | 50mm |
| port: | Qingdao/Guangzhou | Static evaporation rate: | 1.3% |
| weight: | 85 | Supply capacity: | 1500 units per month |
| Main safety valve opening pressure |: | 0.099MPa | Outer diameter: | 606mm |
| Standard working pressure: | 0.05 | Showroom location: | not any |
Product Description
Specification
Model | unit | YDZ-30 | YDZ-50 | YDZ-100 | YDZ-200 | |||
capacity | L | 30 | 50 | 100 | 200 | |||
caliber | mm | 50 | 50 | 50 | 50 | |||
Empty weight | Kilogram | 50 | 50 | 80 | 80 | |||
outer diameter | mm | Chapter 454 | 506 | 606 | 660 | |||
high | mm | 450 | 998 | 1185 | 1320 | |||
static evaporation rate | % | 2.5 | 2 | 1.3 | 1.2 | |||
Standard working pressure | MPa | 0.05 | 0.05 | 0.05 | 0.05 | |||
Maximum working pressure | MPa | 0.09 | 0.09 | 0.09 | 0.09 | |||
Main safety valve opening pressure | MPa | 0.09 | 0.099 | 0.099 | 0.099 | |||
Second safety valve opening pressure | MPa | 0.15 | 0.15 | 0.15 | 0.15 | |||
Pressure gauge range | MPa | 0-0.25 | 0-0.25 | 0-0.25 | 0-0.25 | |||
Standard accessories | personal computer | 1 1.5m liquid nitrogen output hose | ||||||
Package Size | mm | 440*440*1045 | 490*490*1080 | 630*630*1300 | 690*690*1430 | |||
gross weight | Kilogram | 56 | 62.5 | 85 | 136.8 | |||
Packaging size (width*depth*height) | 380*300*190mm | 430*330*230mm | 350*290*240mm | |||||
gross weight | 4.5kg | 7kg | 6kg | |||||
