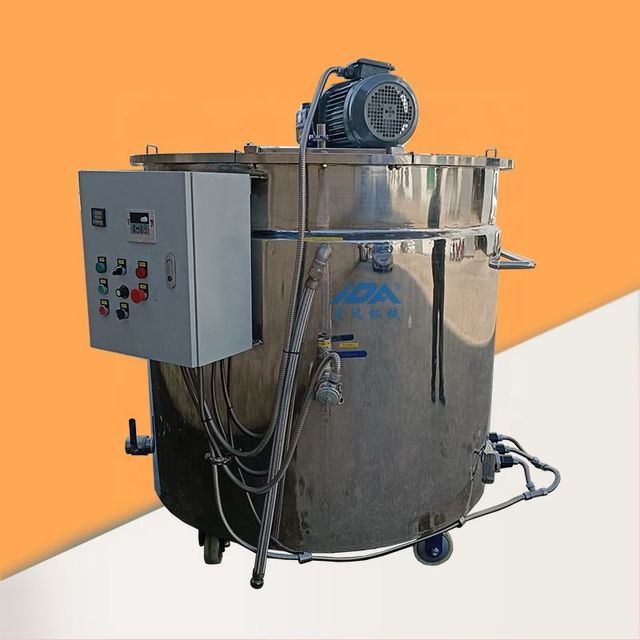

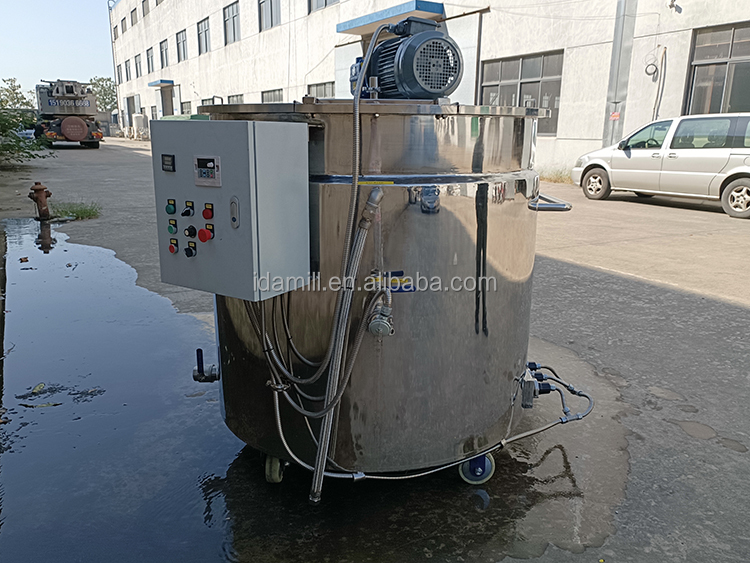

IDA removable stainless steel 304 paint mixing tank, electric heating mixing container paint glue storage tank stainless steel kettle

Supplier: Jiangyin Ida Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Rachel Yin
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Video outbound inspection:	if	Core component warranty:	1 year
Origin:	Jiangsu, China	Mechanical test report:	if
Dimensions (LWH):	custom made	payment terms:	L/C, Western Union, T/T, MoneyGram
Supply capacity:	30 units per month	capacity:	0-5000L
Applicable industries:	Manufacturing plants, food and beverage plants	Showroom location:	not any
Warranty:	1 year	Core components:	engine
Marketing Type:	normal product	Packaging Details:	The machine will be covered with wear-resistant film, and then packed in plywood case.
port:	Shanghai	Material:	SS304/SS316
Health status:	new	Main selling points:	easy to operate
usage:	for mixing and storage	weight:	100
Package preview:		brand:	International Development Association
Maximum working pressure (MPa):	1 MPa

Product Description

* The electric heating tank is mainly used for the processing of coatings, glues, paints and cosmetic inks that require a certain temperature when stirring. Heating tanks are mainly used for the storage of food, medicine, daily chemicals, chemicals, beverages, etc., and are indispensable equipment for manufacturers of daily chemicals, chemicals, and beverages.
* Stainless steel pull tanks are often used in conjunction with dispersers, mixers, grinders, emulsifiers and other equipment to assist in the completion of stirring, mixing, dispersing, emulsifying, homogenizing, grinding and other processes.

work rules

*The electric heating stainless steel dispersion tank raises the temperature of the heat transfer oil or water to the required temperature through the electric heating device, and transfers the heat to the materials in the reactor to reach the reaction temperature of the materials.
*The electric heating constant temperature control cabinet is equipped with a temperature controller to control the temperature of the heat transfer oil and the reaction temperature of the materials in the dispersing tank to realize fully automatic control. The temperature can be set according to different requirements.

capacity

wall thickness

bottom thickness

Overlay Thickness

discharge hole diameter

wheel diameter

(Φ×H)mm

total height

100 liters

1mm

1.5 mm

1.0mm

1 1/2 inches

3 inches

510×500

630mm

200 liters

2.0 mm

2.0 inches

4 inches

620×670

850 mm

300 liters

1.2mm

750×700

880mm

400 liters

1.5 mm

800×800

980mm

500L

900×800

980mm

600 liters

2.0mm

980×800

980mm

800L

1130×800

980mm

1000L

3.0 mm

3.0mm

1200×900

1080mm

1200L

1240×1000

1180 mm

1500L

1400×1000

1180mm

2000L

1460×1000

1380mm

Features

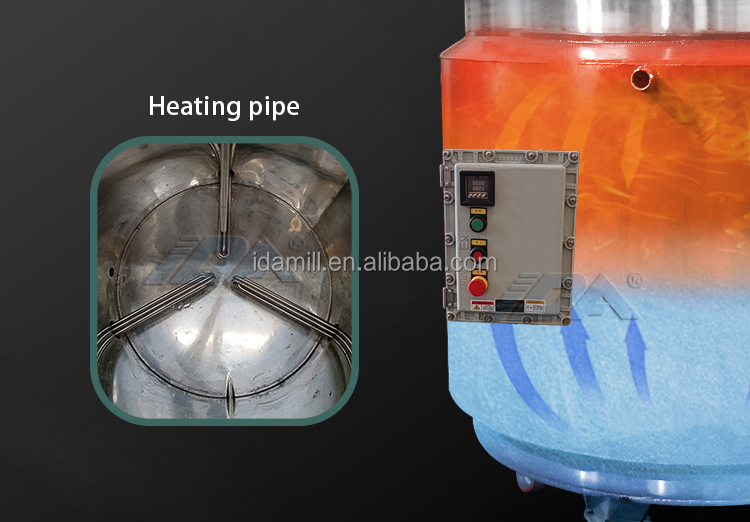

* The electric heating tank is a double-layer stainless steel cylinder. The heating medium is usually heat transfer oil or water, which is heated by an electric heating rod. Used to store or stir materials that need to be kept warm or heated.
* Equipped with multiple sets of electric heating elements, the heating speed is fast and can be used in rotation to ensure the life of electric heating.
* According to site requirements, explosion-proof electric heating cylinder can be configured.
* Stainless steel material, mirror surface inside and outside, no material hanging, easy to clean.
* Selection of high-quality stainless steel materials: 201/304/316, acid and alkali resistance, corrosion resistance, high temperature resistance.
* The bottom can be customized as plane/ellipse/arc/slope cone bottom, and the discharge is clean.
* The electric heating dispersing cylinder has the advantages of environmental protection, energy saving, safety, convenience and low cost.
* The bottom is equipped with moving wheels, which are wear-resistant, high-load-bearing, flexible in direction change, easy to move, and have a brake device, which can be fixed at any time.

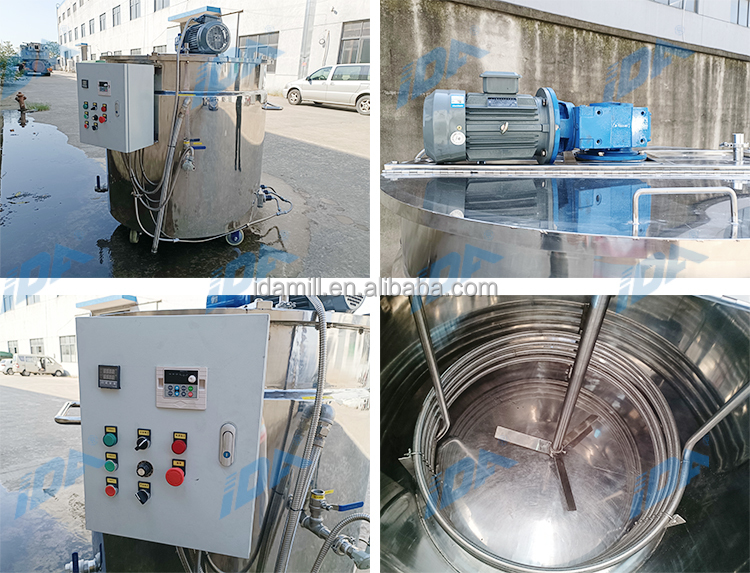

Product Details

application
