Curtis PMC 1244 Model Curtis Motor Controller

Product details
Excitation Type:Separately Excited;Model Number:1244-5561;
Place of Origin:Jiangsu China (Mainland);Serial Number:15237C.014410;
Port:Shanghai, Ningbo, Shenzhen;Motor Type:DC Motor;
Delivery Detail:Shipped in 3 days after payment;Item name:Curtis PMC 1244 Model Curtis Motor Controller;
Controller Type:Programmable;Color:Black;
Packaging Detail:Stronge Carton with foam inside Curtis PMC 1244 Model Curtis Motor Controller;Current:500A;
Supply Ability:500 Piece/Pieces per Month Curtis PMC 1244 Model Curtis Motor Controller;Voltage:36-48V;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Weight:4.2 kg/pc;
Packing Size:37x30x20 cm/pc;Model Number:1244-5561;
Brand Name:Curtis;
Product Description
Product Name
Curtis Controller
Model Number
1244-5561
Voltage
36-48V
Current
500A
Applied Model
Electric Forklift, Electric Vehicle
Detailed Images

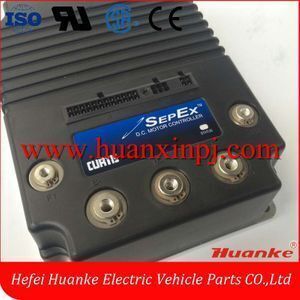

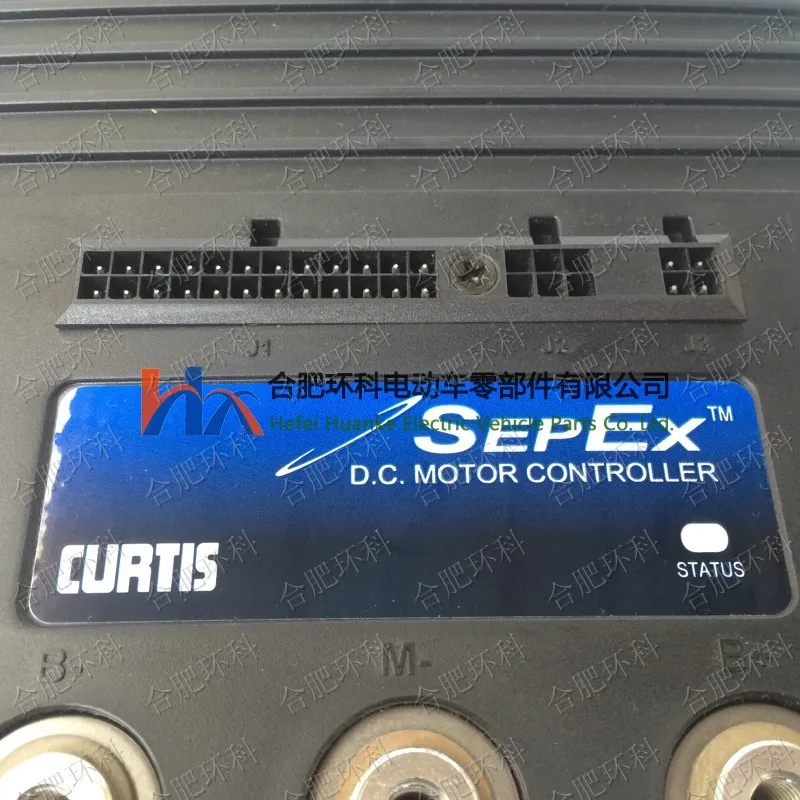

Curtis PMC 1244 Model Curtis Motor Controller

DESCRIPTION
Curtis PMC Model 1244 SepEx:emoji: programmable controllers provide smooth and seamless regenerative control of separately excited motors. An advanced MOSFET power section provides very high efficiency, silent operation and reduced motor and battery losses.

APPLICATION
Curtis PMC SepEx:emoji: controllers are designed for small material handling and other light industrial vehicles using separately excited motors. These include low lifts, stackers, personnel carriers and other industrial vehicles.

FEATURES
? Full bridge control of the motor field allows reversing without the use of direction contactors.
? Fully compatible with the Model 1313 Programmer for programming, diagnosticand test information.
? Armature current controlled at all times, reducing arcing and brush wear.
? Regenerative braking increases usable battery energy and reduces motor heating.
? Neutral braking provides automatic braking in neutral - simulates the feel of compression braking. Braking level adjustable.
? MultiMode:trademark: allows four user selectable vehicle operating profiles.
? Programmable to match individual separately excited motor characteristics.
? Meets or exceeds EEC fault detect requirements with circuitry and software to detect faults in the throttle circuit, MOSFET drive circuits, and driver outputs.
? Vehicle speed is controlled and limited at top end via motor field control.
? Passive regen provides vehicle speed control at any throttle position when going down ramps.
? Linear temperature cutback on armature and field drive current limits. No sudden loss of power under any thermal conditions.
? Undervoltage cutback reduces motor current to maintain the battery voltage above the under-voltage point.
? PWM drivers for contactors are programmable for pullin and holding currents to reduce power dissipation and allow the use of common contactors.
? HPD and SRO interlock options ensure proper startup sequence.
? Emergency reverse (belly button) input causes immediate reversal upon activation.

Meets or complies with relevant US and International Regulations
? Manufactured under ISO 9001 certified Quality Management System.
? UL Recognized Component Status.
Packing & Delivery

Every product is strongly packed by carton box with foam inside.

For example, 1 pc Curtis Controller 1244-5561

Packing Size: 37x30x20 cm

Weight: 5 kg

Our Company

We, Hefei Huanke Electric Vehicle Parts Co., Ltd., are a professional supplier of forklift spare parts in China. Our company specializes in various kinds of electric pallet truck parts and forklift parts for both domestic and international markets.

Now, our company is the Curtis agent and distributor of Britain Albright Contactor. In addition, we have established strategic cooperation relations with France REALS Company and Belgium TVH Company which are the professional suppliers of forklift parts in the world.

Our product category covers forklift control system, running system, drive system, hydraulic system, etc. Controllers, contactors, sensors, PU wheels and other parts are supplied by our Huanke Company. Meanwhile, we have set up purchase department and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.

Huanke Company keeps the development and wins markets based on our high quality products and professional services. With strong technology development capacity and good level services, we have won the trust of customers.

Our company is located at the crossing of Weiwu Road and Longwu East Road, Xinzhan Development Area, Hefei City, Anhui Province, China. We are determined to be a pallet truck and forklift part supplier with the most complete varieties, the strongest strength and the fastest response in China.

Welcome to visit our factory and have a face-to-face business conversation together.

Our Service

1. Technology Support.
2. 24 Hours Service
3. 3 months warranty
4. Reply in 24 hours
5. OEM is acceptable

6. Fast delivery

FAQ
Q1: Can I have a sample for testing?
A1: Yes, sample order is acceptable.

Q2: Can I add my logo on product?
A2: Yes, OEM is supplied

Q3: How can I get the after-service?
A3: We will give you technology information. If problems happen, our engineer will support you.


Trade Assurance

100% Product quality protection

100% On-time shipment protection


100% Payment protection

Hot Sale Product
Product Name

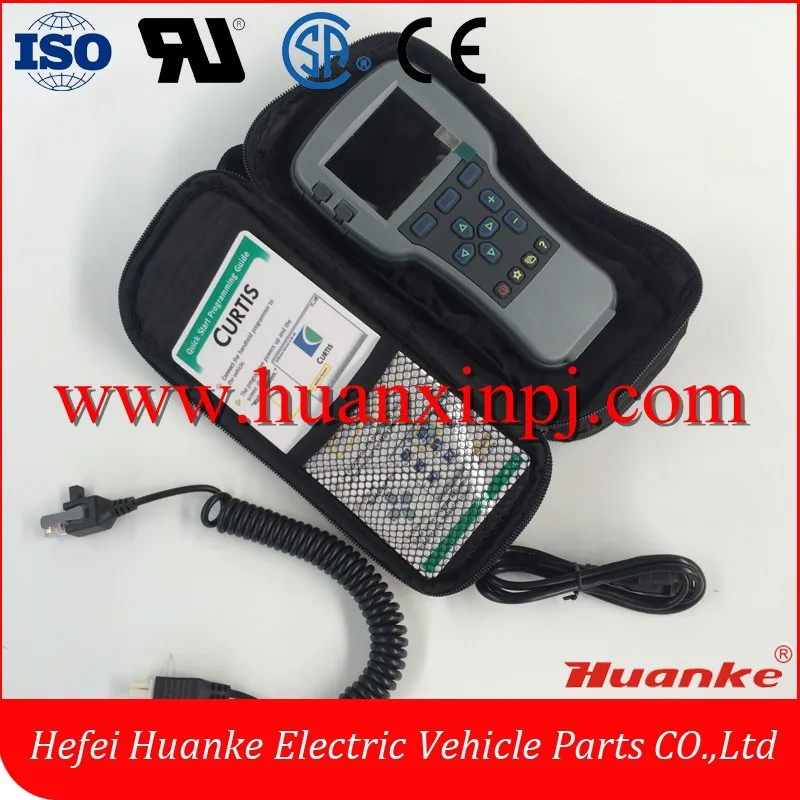

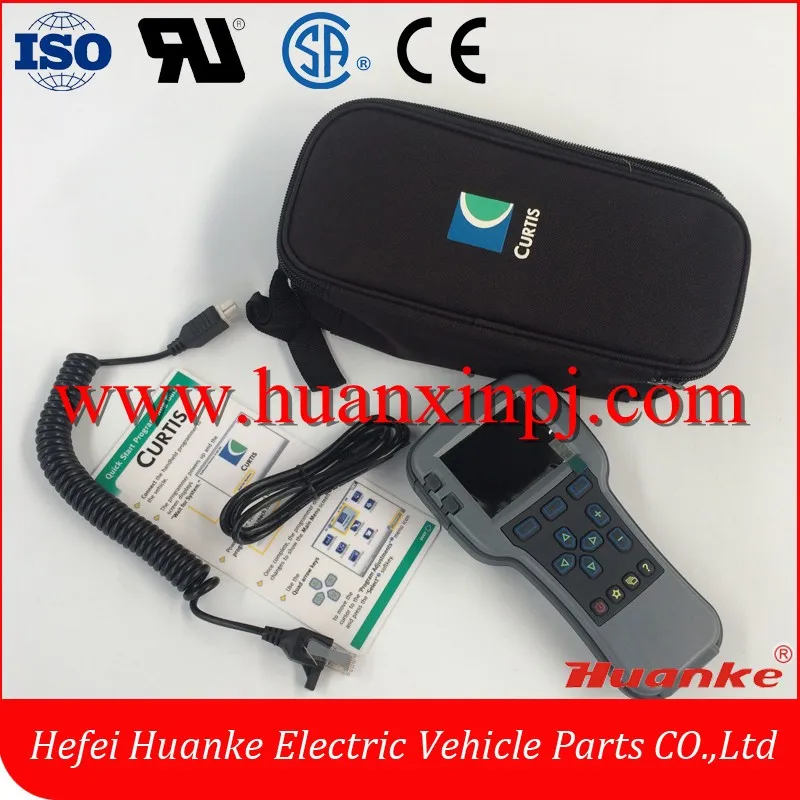

Curtis Programmer
