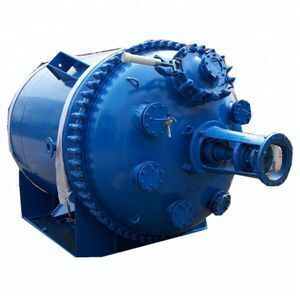

Glass Lined Reactor for chemical production

  • Supplier: Briture Co., Ltd.
  • Region: Anhui, China
  • Contact: Mr Thomas Wang
  • Price: $5000.00 /set
  • Min. Order: 1 set
Product details
Dimension(L*W*H):500mm*500mm*2000mm ~ 3500mm*3500mm*8000mm;Payment Terms:L/C,T/T,Western Union;
Model Number:K type, F type;Machine Type:K type or F type;
Power(W):5KW-75KW;Working temperature:0-200 c degree;
Voltage:220V/380V;Condition:New;
Working pressure:6bar;Supply Ability:200 Set/Sets per Year;
Volume:100L-30000L;Warranty:1 Year;
Packaging Detail:nude packing and pegged by wire in container;Application:Chemical Industry;
Brand Name:Briture;Delivery Detail:30days;
Certification:ISO;Weight:50- 15000 Kgs;
Glass Lined thickness:0.8-2.0mm;Heating method:Thermal Oil Heating;
After-sales Service Provided:Engineers available to service machinery overseas;Type:Tank Reactor;
Place of Origin:Shandong China (Mainland);Automatic Grade:Semi-Automatic;
Port:Qingdao;
Product Description
Material for Glass Lined Reactor

 Glass Lined Reactor is made of glass coating and steel plate, glass coating is fused onto the surface of stell plate at high temperature, which have the advantages anti-corrosion for glass and strength for steel plate.

Application

Glass Lined Reactor is an ideal material for anti-corrosion and its surface is very easy to polish and no contaimination to mediums, it is widely used in the field of petrochemicals, light industry, parmaceuticals, pesticide, foodstuff, dyes, scientific research etc.

Chemical Resistivity

Medium
Concen-tration
%
Temper-
ature
(c degree)
Perfor-mance
Medium
Concen-tration
%
Temper-
ature
(c degree)
Perfor-mance
HCL
5-20
Boiling point
Excellent
H3PO4
30-60
Boiling point
Not good
H2SO4
0-30
Boiling point
Good
H3PO4
80
100
Not good
H2SO4
0-30
180
Not good
HBr
100
100
Good
H2SO4
70-100
240
Not good
CH3COOH
100
100
Good
HNO3
5-50
100
Good
CH3CHO-HCOOH
0-30
100
Good
HNO3
5-50
150
Not good
Cl2
100
100
Good
HNO3
100
70
Good
H2C2O4
100
100
Good
H2CrO4
100
100
Good
NaOH
25
40
Good
H3PO4
10-60
100
Good
Na2CO3
1-20
60
Excellent
H3PO4
10-20
Boiling point
Good
Na2CO3
25
40
Not good
Drawing
Detailed Images

Vessel Body Inner with Glass Lined

Glass Lining Thickness: 0.8-2.0mm

Vessel with top cap, Jacket,  Agitator

K Type & F Type

Glass Lined Reactor with Flame Proof Motor

& Gear Box

Packing & Delivery

Glass Lined Reactor was put on steel pallet

Loaded into Container and pegged by wire
